Startech 4 Bay Hot Swap Mobile Backplane rack

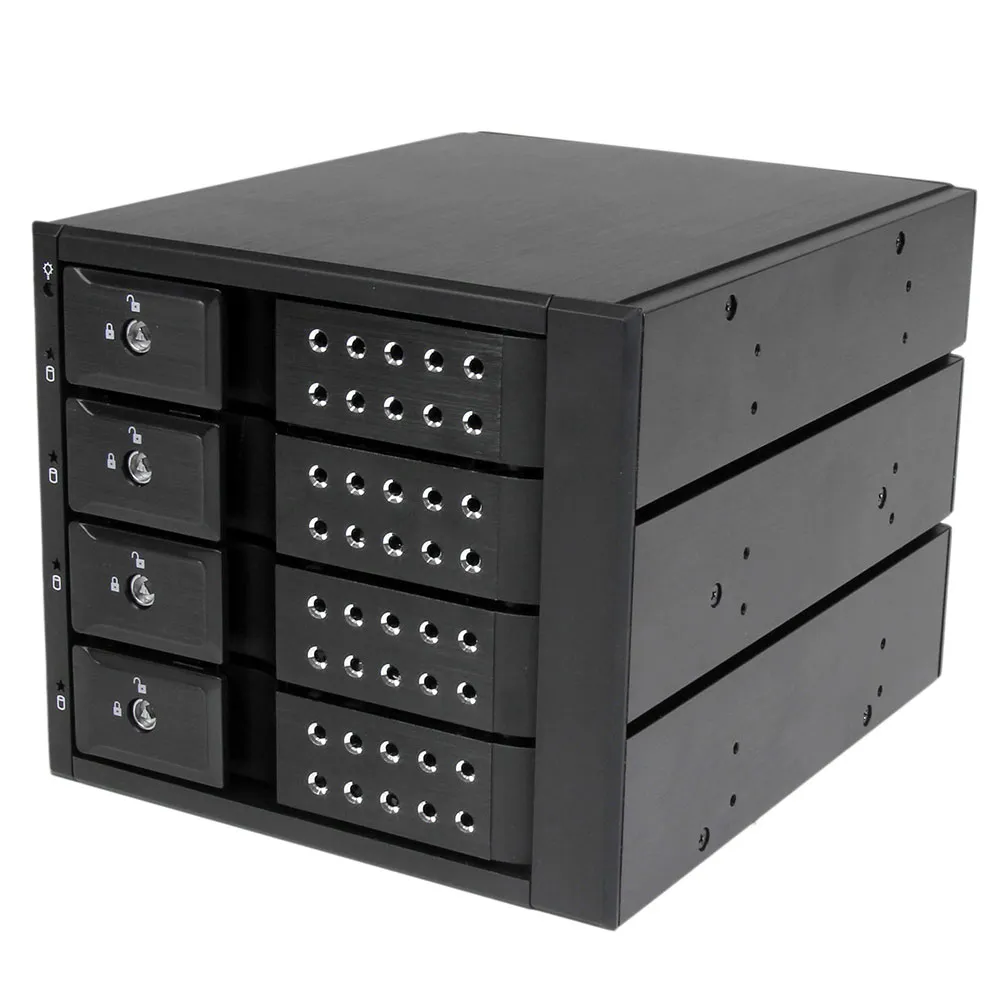

STARTECH 4 Bay Hot Swap Mobile Backplane Rack for 3.5" SAS/SATA HDD

Elevate your server or computer system´s storage capabilities with the STARTECH 4 Bay Hot Swap Mobile Backplane Rack. Designed for IT professionals and system builders who demand efficiency, flexibility, and reliability, this enterprise-grade backplane optimizes your data management workflow. It transforms three standard 5.25" front drive bays into a high-density, hot-swappable storage solution, allowing you to manage up to four 3.5" hard drives with unparalleled ease.

This mobile rack is the definitive solution for streamlining server maintenance, building powerful storage arrays, or managing large volumes of data. The hot-swap functionality is a critical benefit, enabling you to install, replace, or remove drives on the fly without system downtime, ensuring continuous operation for mission-critical applications. Its robust design and advanced features provide the performance and security necessary for demanding data center, server room, and high-performance workstation environments.

EU Plug.

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25 bays into a hot-swappable interface for up to four 3.5´´ SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.



Key Benefits

Maximize Storage Density: Efficiently utilize your server chassis space by consolidating four 3.5" drives into just three 5.25" bays, perfect for expanding storage capacity in compact or fully-populated systems.

Seamless Drive Management: The tray-less, hot-swappable design allows for rapid insertion and removal of drives, drastically reducing downtime during maintenance, upgrades, or data rotation tasks.

Enhanced Drive Protection and Longevity: Ensure the integrity of your valuable data and the health of your hard drives. The solid aluminum construction provides superior durability and heat dissipation, while the integrated 80mm cooling fan actively maintains optimal operating temperatures to prevent overheating and premature drive failure.

Secure and Versatile Operation: Each drive bay is equipped with a key-lock mechanism to prevent accidental or unauthorized removal of drives, adding a crucial layer of physical security. Broad compatibility with both SATA and SAS interfaces makes it a flexible choice for various system architectures and storage strategies.

Main Features
* Accommodates up to four 3.5" SATA or SAS hard drives
* Mounts into three standard 5.25" front drive bays
* Tray-less design for quick and easy drive installation
* Lockable drive doors for enhanced security
* Integrated 80mm cooling fan for superior heat dissipation
* Durable and lightweight aluminum construction
* Power and activity LED indicators for each drive
* Ejector levers for smooth drive removal

Supports
* Drive Types: 3.5" SAS & SATA Hard Drives (HDD)
* Drive Interfaces: SAS I/II (up to 6 Gbps), SATA I/II/III (up to 6 Gbps)
* Bay Installation: 3x5.25-inch Front Bays
* Operating System: OS Independent; No software or drivers required

Technical Specifications
* Host Connectors: 4x SATA (7-pin) Data Receptacle
* Drive Connectors: 4x SFF-8482 (SAS 29 pin, Data & Power) Receptacle
* Power Connectors: 2x LP4 (4 pin; Large Drive Power)
* Material: Aluminum and Plastic
* LED Indicators: 4x Drive Power/Activity (Greember), 1x Fan Status (Green/Red)
* Maximum Data Transfer Rate: 6 Gbit/s
* Product Dimensions (W x H x D): 146 mm x 126 mm x 197 mm
* Product Weight: 1.3 kg
