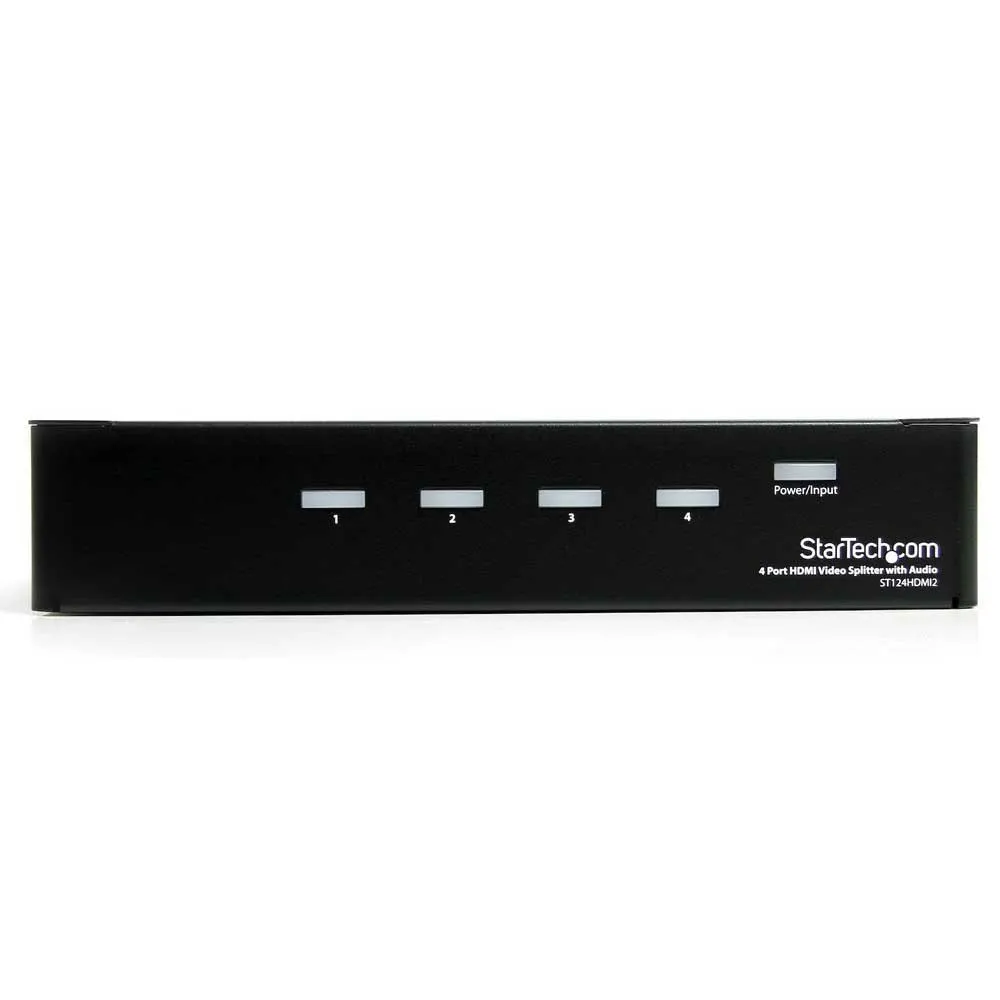

Startech 4 Port HDMI Multiplier

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality.

Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.

A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage:
- High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays
- Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality

* Product appearance and specifications are subject to change without notice.


Specifications:

Ports & interfaces:
- Video port type: HDMI
- Video out: 4x HDMI
- Video ports quantity: 4
- Audio ports quantity: 5
- DC-in jack: Yes

Features:
- Housing material: Steel
- Maximum resolution: 1920 x 1200 pixels
- HDCP: Yes
- Supported graphics resolutions: 1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA)
- Supported video modes: 720p,1080p
- Certification: CE, FCC, TAA, REACH

Power:
- Input voltage: 100 - 240 V
- Input current: 0.8 A
- Output voltage: 12 V
- Output current: 1.5 A
- Power consumption (typical): 18 W

Weight & dimensions:
- Width: 135 mm
- Depth: 220 mm
- Height: 44 mm
- Weight: 966 g

Packaging data:
- Package width: 411 mm
- Package depth: 214 mm
- Package height: 90 mm
- Package weight: 2 kg

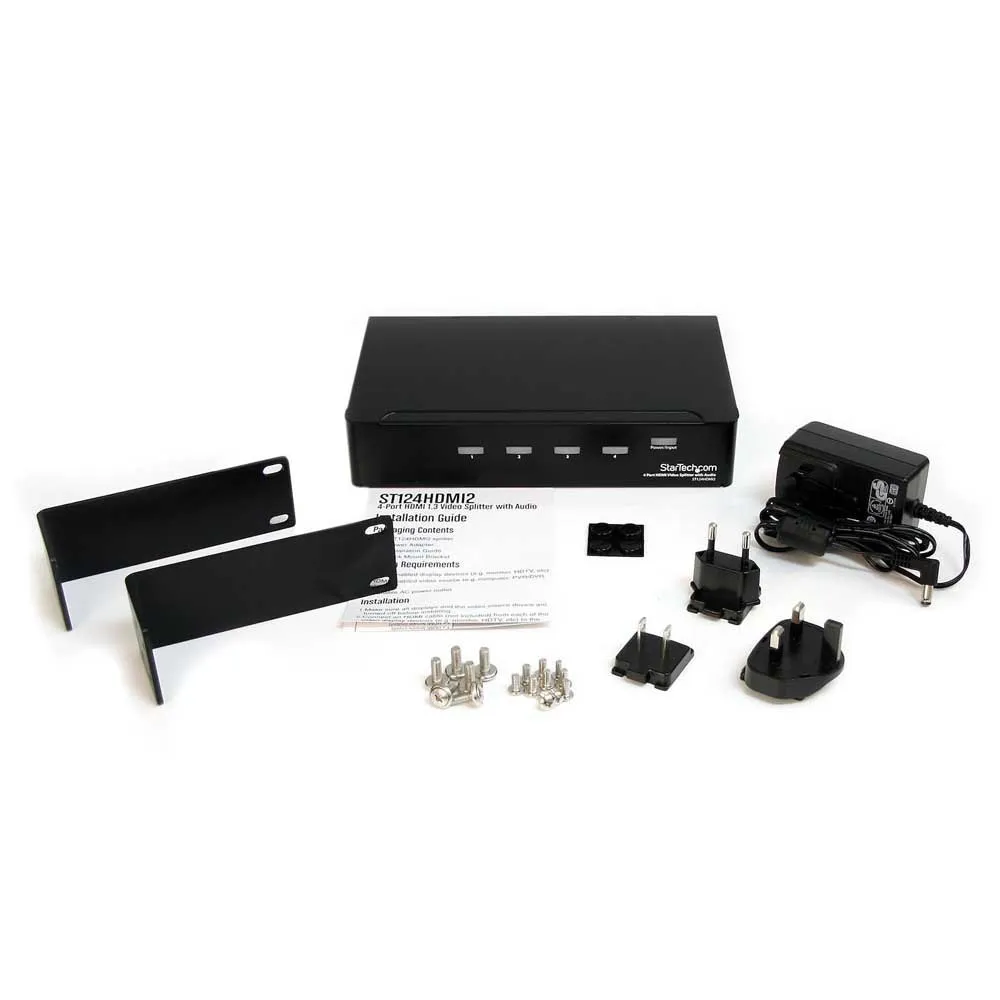

Packaging content:
- Manual: Yes
- AC adapter included: Yes
- Included power plug types: AU,EU,NA,UK

Operational conditions:
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%

Technical details:
- Audio support: Yes
- Cascadable: Yes
