Features of Startech 4P RS232
Product description of Startech 4P RS232 PCI-e network adaptar card to ethernet
Description summary
Unlock remote control for your RS232 devices with this TAA-compliant 4-port serial to IP converter. Effortlessly connect POS systems, sensors, and PLCs over an IP network using TCP/UDP protocols. Enjoy a unified management experience with shared software and Web UI across all devices. Its rugged metal enclosure, ESD protection, and versatile mounting options ensure durability in demanding environments. Supports high baud rates and includes power adapter with 5V over pin 9 capability
Features:
- Four Port Serial To Ip Converter: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
- Unified Ecosystem Experience: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
- Versatile Configurations: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
- Ethernet And Power Options: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
- Rugged And Mountable Enclosure: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm);
- Serial To Ip Converter Options: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)
Configuration and Management:
- The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.
Flexible Installation and Rugged Chassis:

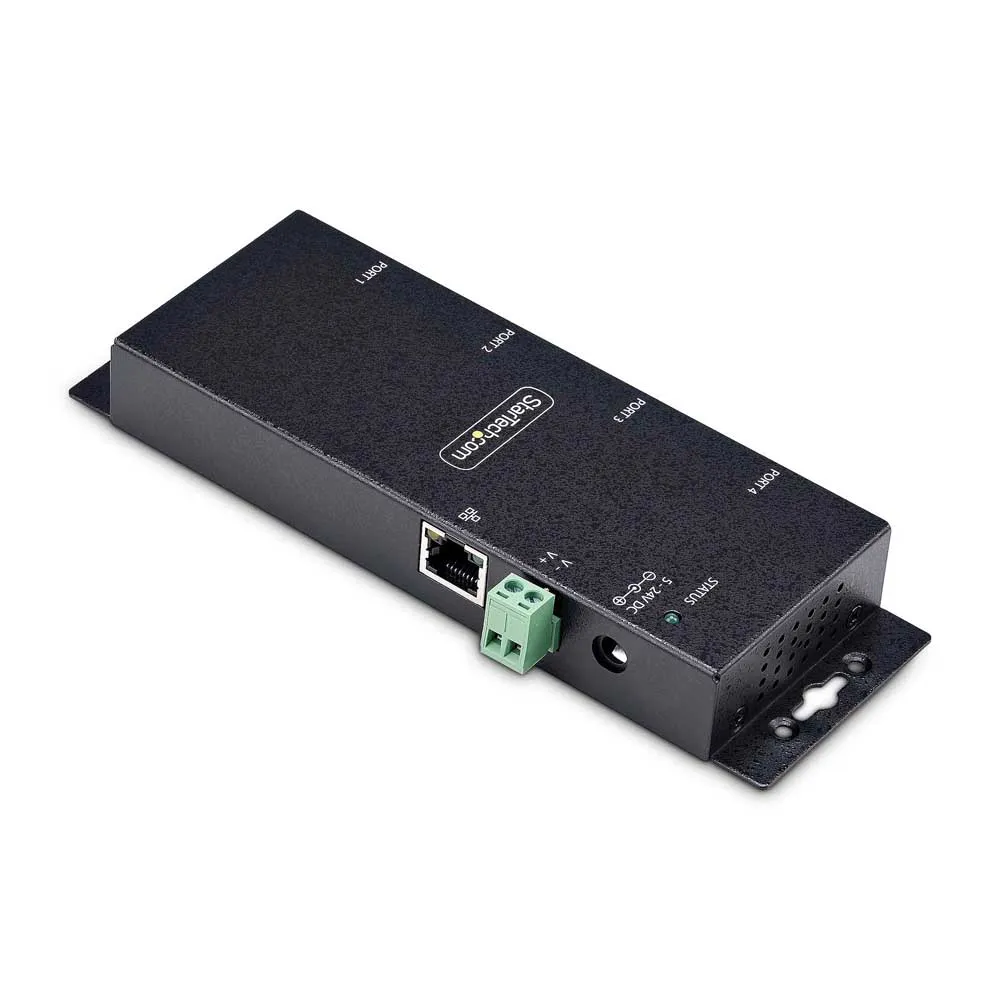

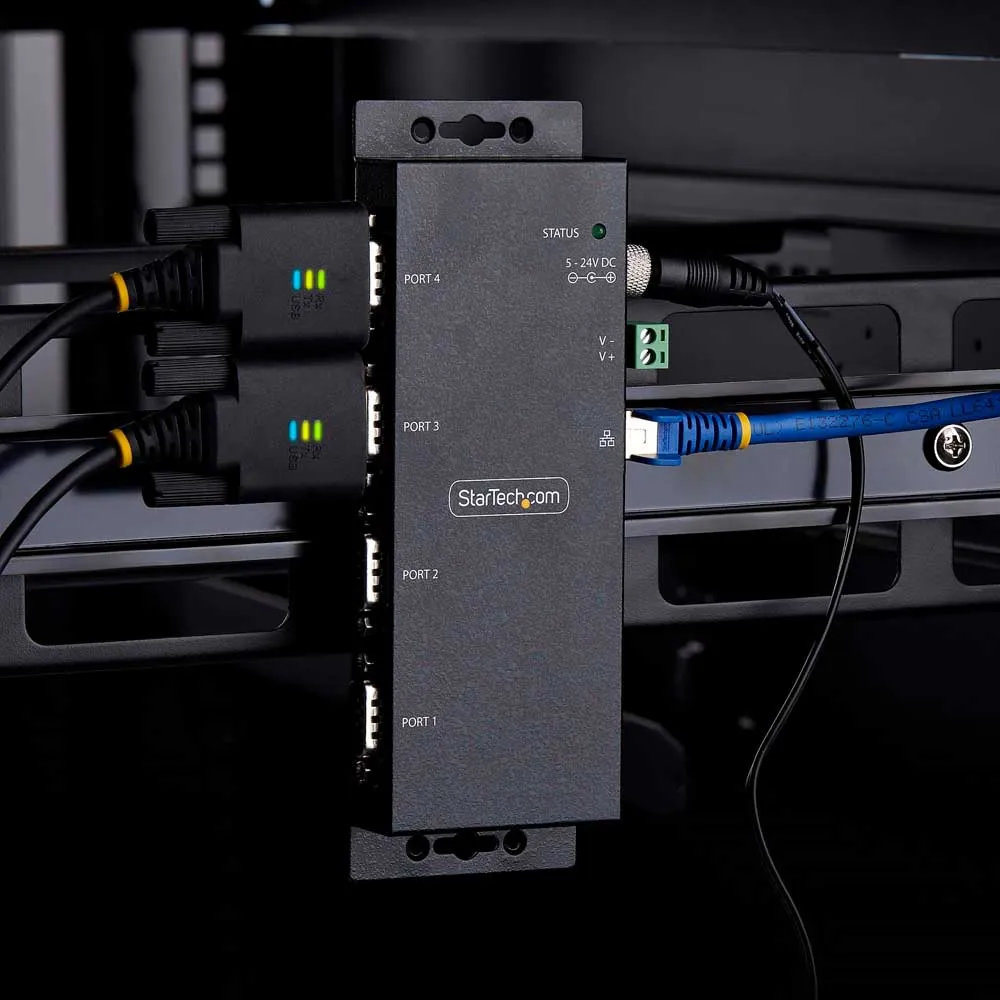

- Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).
Ethernet and Power Options:
- The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports ESD level 4 surge protection, and can supply 5VDC over pin 9 if required.
Specifications:
Connector(s):
Connector Type(s):

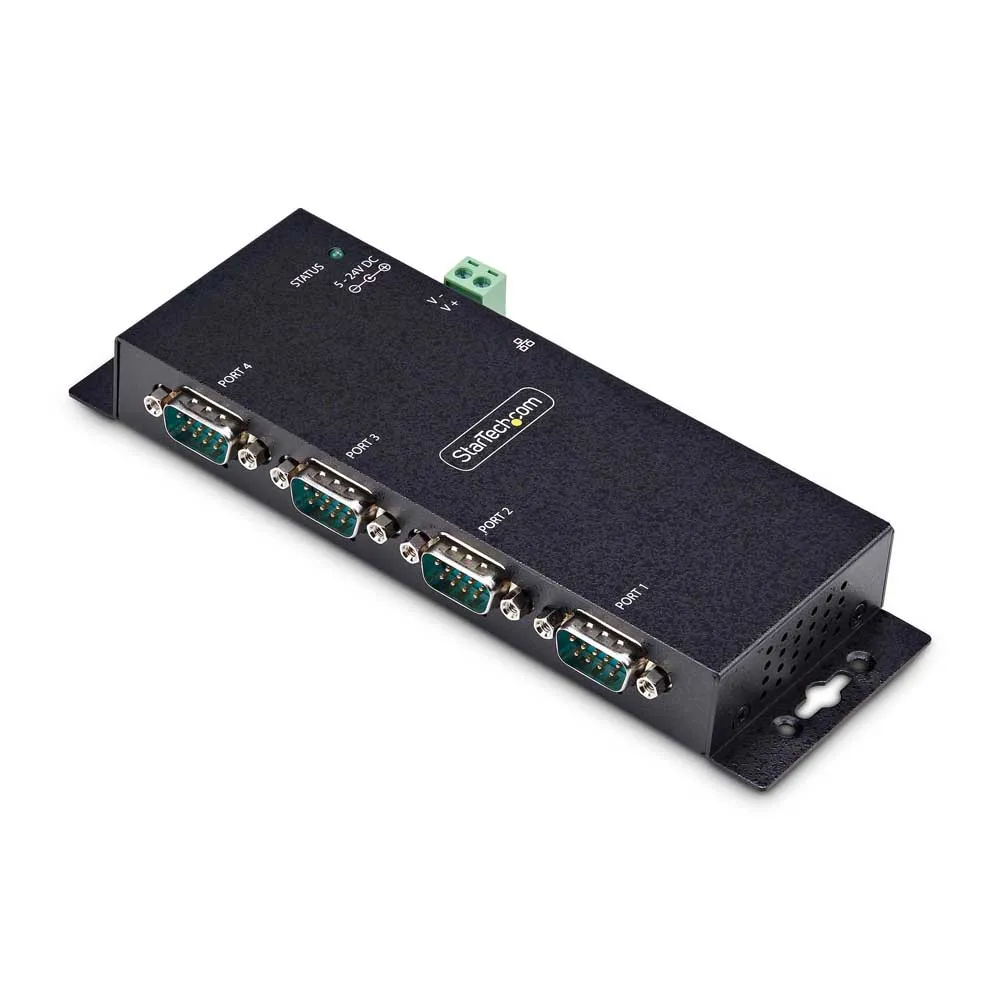

- 4 - DB-9 (9 pin, D-Sub)
- 1 - RJ-45
- 1 - Terminal Block (2 Wire)
- Connector A: 1 - RJ-45
- Connector B: 4 - DB 9-pin Serial
Environmental:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -20°C to 75°C (-4°F to 167°F)
- Humidity: 5~95% RH (Non-condensing)
Hardware:
- Ports: 4
- Interface: Serial
Industry Standards:
- IEEE 802.3u (100BASE-TX )
- IEEE 802.3i (10BASE-TX)
- EIA/TIA-232
Indicators:
LED Indicators:
- 1 - RJ-45
- Right LED
- Steady green: Ethernet connection
- Blinking green: Activity
- Right LED Blinking green: Transmit data activity
- 1 - Power LED
- Steady green: Power is on
- Off: Power is off
- Blinking green: Restoring to factory settings
Performance:
- Serial Protocol: RS-232
- Max Baud Rate: 921.6 Kbps
- Data Bits: 7, 8
- Flow Control: RTS/CTS , X-ON/X-OFF, None
- Parity: None, Even, Odd, Mark, Space
- Stop Bits: 1, 2
- Remote Management Ability: Yes
Surge Protection:
- ESD (Electrostatic Discharge) Level 4
Protection:
- 15kV IEC1000-4-2 Air
- 8kV IEC1000-4-2 Contact
- Compatible Networks: 10/100 Mbps
- Auto MDIX: Yes
- Full Duplex Support: Yes
- Supported Protocols: IP, Telnet RFC2217, TCP Server, TCP Client, and UDP
Physical Characteristics:
- Product Height: 2.3 cm [0.9 in]
- Product Length: 6.0 cm [2.4 in]
- Weight of Product: 400.0 g [14.1 oz]
- Product Width: 17.9 cm [7.0 in]
- Material: Steel
Power:
- Power Source: AC Adapter Included
- Input Voltage: 100 - 240 AC
- Input Current: 0.48A
- Output Voltage: 5V DC
- Output Current: 3A
- Center Tip Polarity: Positive
- Plug Type: M
- Power Consumption (In Watts): 15W
Software:
- OS Compatibility: Virtual COM software supports Windows® only.
- Compatible with Windows 8, 8.1, 10, 11: Special Notes / Requirements
In the Box:
Included in Package:
- 1 - 4-Port Serial Over IP Device Server
- 1 - Din Rail Kit
- 2 - Din Rail Screws
- 1 - Universal Power Adapter
