Startech 8xDVI Switch

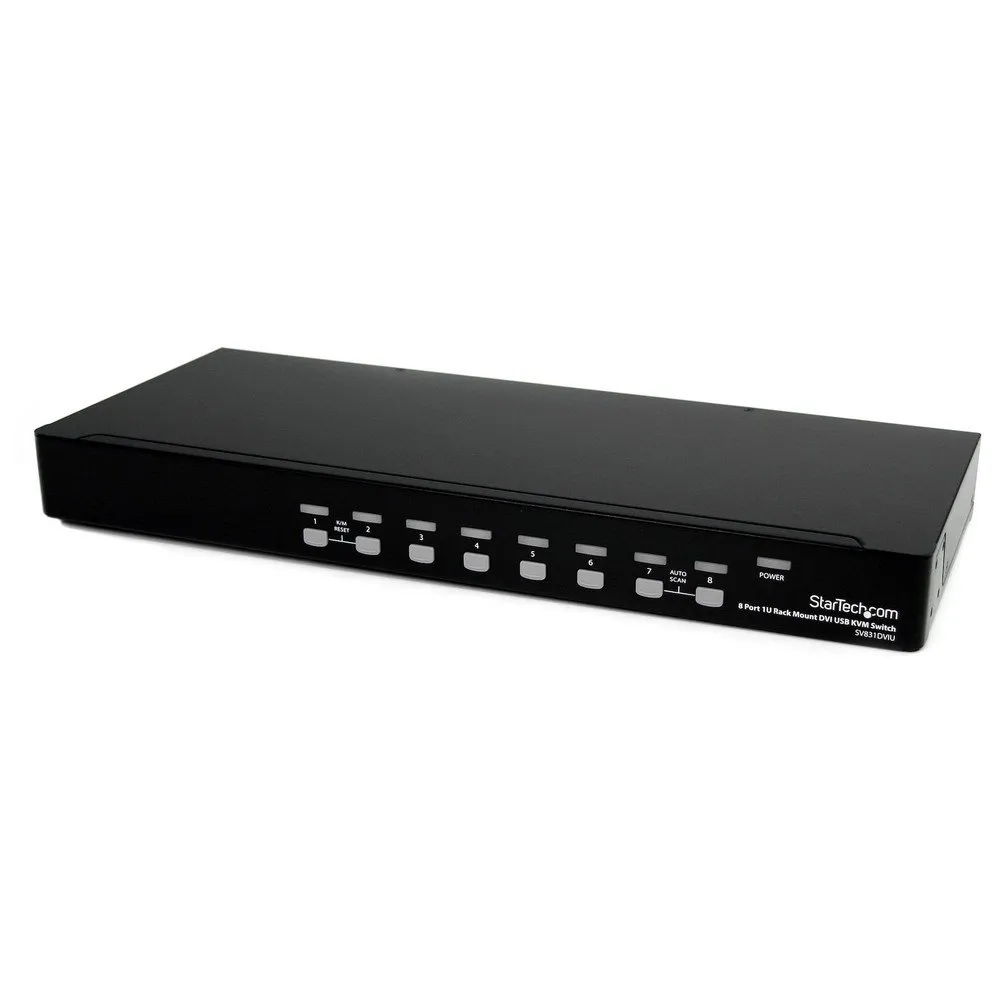

Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons.

Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter.

- see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.

A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.

Applications:

- Ideal for software development and QA test labs with multiple PCs and platforms connected to one console.

- Single console administration of your co-location/ISP facility.

- Create a streamlined access solution in your Datacenter or Server Farm.

Features:

- Supports DVI/HDMI resolutions up to 1920x1200.

- Can be used with DVI to HDMI adapters to connect HDMI based systems.

- Support for most combo/wireless keyboard and mice OS independent - No software or drivers required.

- Front panel push-buttons and Hot-key functions allow for easy switching.

- Auto-scan function cycles through computers sequentially.

Specifications:

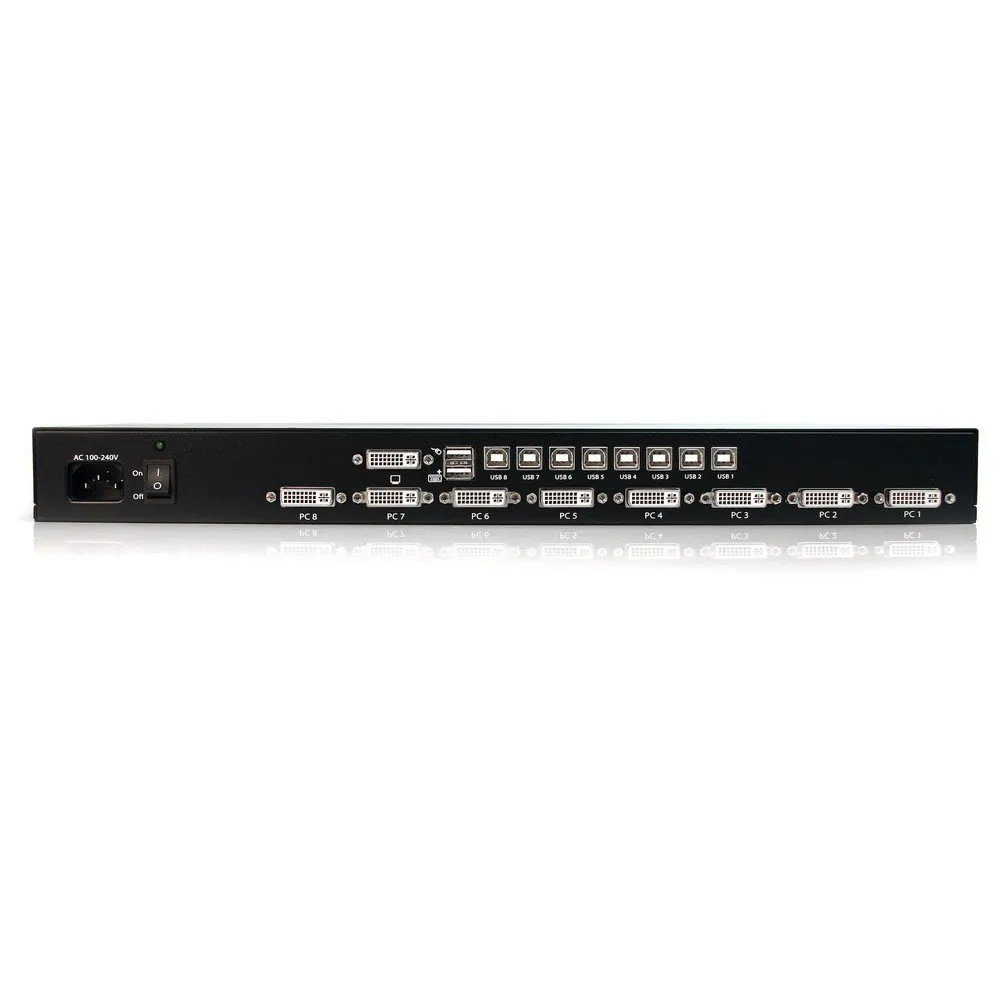

Connector(s):

- 1.

- Console Interface(s) DVI-I (29 pin).

- 2.

- Console Interface(s):

USB Type-A (4 pin) USB 2.0:

8.

- Host Connectors USB B (4 pin):

DVI-I (29 pin) Environmental:

- Operating Temperature:

0°C to 40°C (32°F to 104°F).

- Storage Temperature:

-20°C to 60°C (-4°F to 140°F).

- Humidity:

0~80%RH Hardware:

- KVM Ports:

8.

- PC Interface:

USB.

- PC Video Type:

DVI.

- Number of Monitors Supported:

1.

- Rack-Mountable:

Yes.

- U Height:

1U Packaging Information:

- Package Height:

3.5 in [90 mm].

- Package Length:

23.4 in [59.5 cm].

- Shipping (Package) Weight:

8.3 lb [3.8 kg].

- Package Width:

10.4 in [26.5 cm].

Performance:

- DVI Support:

Yes.

- Single Link.

- Hot-Key Selection:

Yes.

- Maximum Cable Length:

15.0 ft [4.6 m].

- Maximum Digital Resolutions:

1920 x 1200.

- Maximum Number of Users:

1.

- Port Selection Support:

Push Button and Hotkeys.

- MTBF:

134000 hours Physical Characteristics:

- Weight of Product:

5.5 lb [2.5 kg].

- Material:

Steel.

- Product Length:

7.1 in [18 cm].

- Product Width:

17.2 in [43.8 cm].

- Product Height:

1.7 in [44 mm] Power:

- Power Source:

AC Adapter Included.

- Input Voltage:

100.

- 240 AC.

- Input Current:

1.8A.

- Output Voltage:

12V DC.

- Output Current:

4A.

- Center Tip Polarity:

Positive.

- Plug Type:

M.

- Power Consumption (In Watts):

48.
