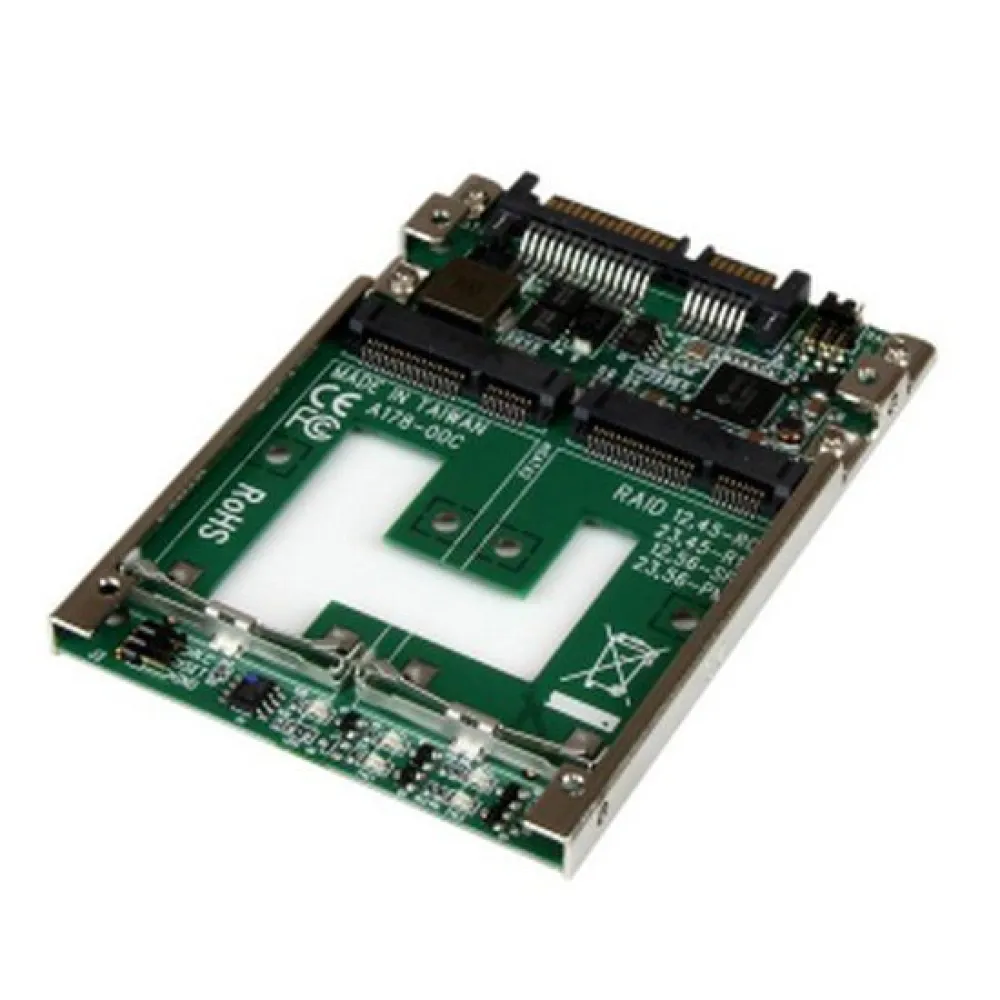

Startech Adapter 2x MSata To Sata 2 5

Astly increase system performance by adding a dual mSATA SSD RAID array into any 2.5´´ SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps.

mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG).

The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Specifications:

Connector(s):

- 2.

- Drive Connectors:

mSATA (52 pin, Mini SATA).

- 1.

- Host Connectors:

SATA Data & Power Combo (7+15 pin) Environmental:

- Operating Temperature:

-40°C to 85°C (-40°F to 185°F) Hardware:

- Interface:

SATA.

- Number of Drives:

2.

- Drive Size:

mSATA (Full Size & Half Size).

- Compatible Drive Types:

mSATA (Mini SATA).

- Drive Installation:

Fixed.

- Chipset ID:

JMicron.

- JMS562 Indicators:

- 1.

- LED Indicators:

Drive 1 Activity Drive 1 Failure Drive 2 Activity Drive 2 Failure Packaging Information:

- Package Height:

1.3 in [32 mm].

- Package Length:

5.7 in [14.5 cm].

- Shipping (Package) Weight:

3.8 oz [107 g].

- Package Width:

6.9 in [17.4 cm].

Performance:

- Maximum Data Transfer Rate:

6 Gbps.

- Type and Rate:

SATA III (6 Gbps).

- Port Multiplier:

Yes.

- Hardware Raid Supported:

Yes.

- Supported RAID Modes:

RAID 1 (Mirrored Disks) RAID 0 (Striped Disks) JBOD.

- (Just a Bunch of Disks) BIG (Spanning or Concatenation).

- Hot Swap Capability:

No.

- MTBF:

5,101,299 Hours Physical Characteristics:

- Weight of Product:

1.4 oz [39 g].

- Material:

Steel, Aluminum and Plastic.

- Product Length:

3.8 in [97 mm].

- Product Width:

2.8 in [70 mm].

- Product Height:

0.3 in [7 mm] Software:

- OS Compatibility:

OS independent.

No software or drivers required What´s in the Box:

- 1.

- Included in Package:

Dual mSATA to 2.5in SATA Adapter Mounting screw kit Install Guide.
