Startech Energy meter

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester.

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario.

It is ideal for technicians and IT pros for immediate, clear test readings anywhere.

Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor.

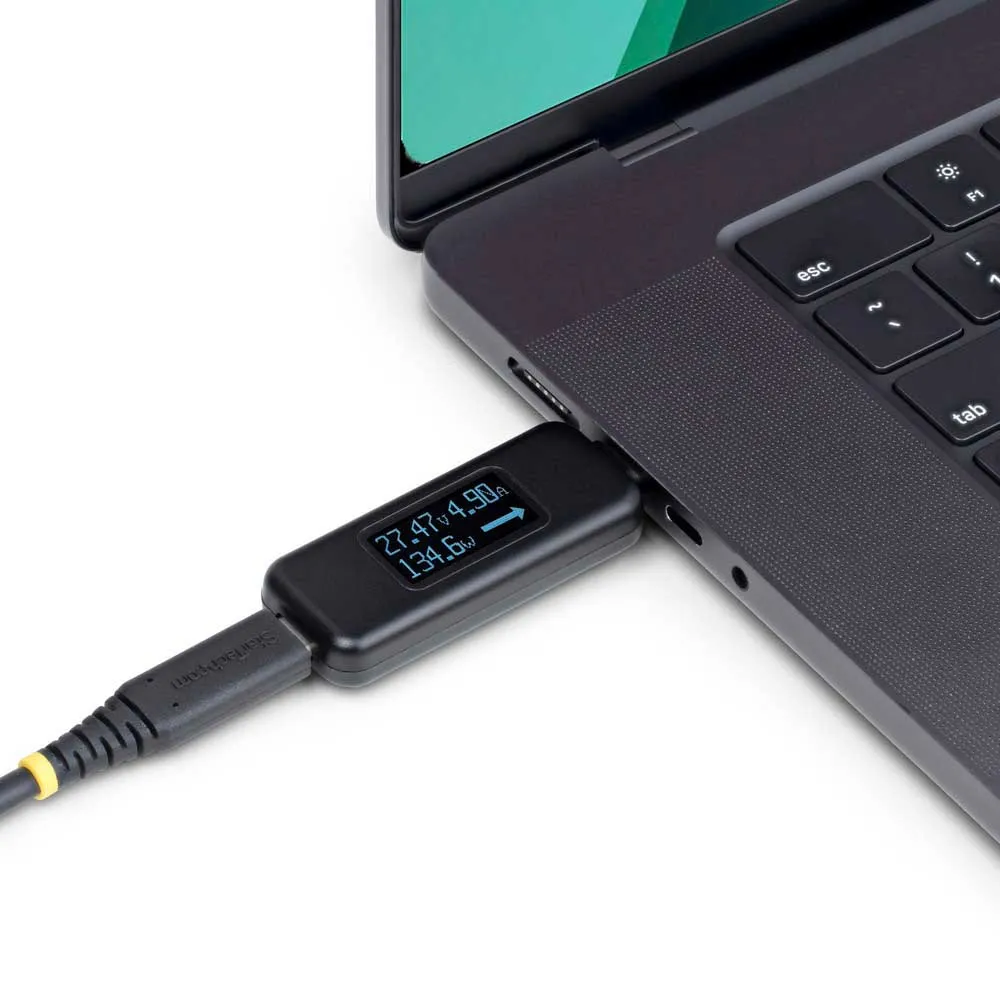

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports.

Its portable design makes it a lightweight and essential additional to any IT Pro´s toolkit.

Streamline Power Diagnostics.

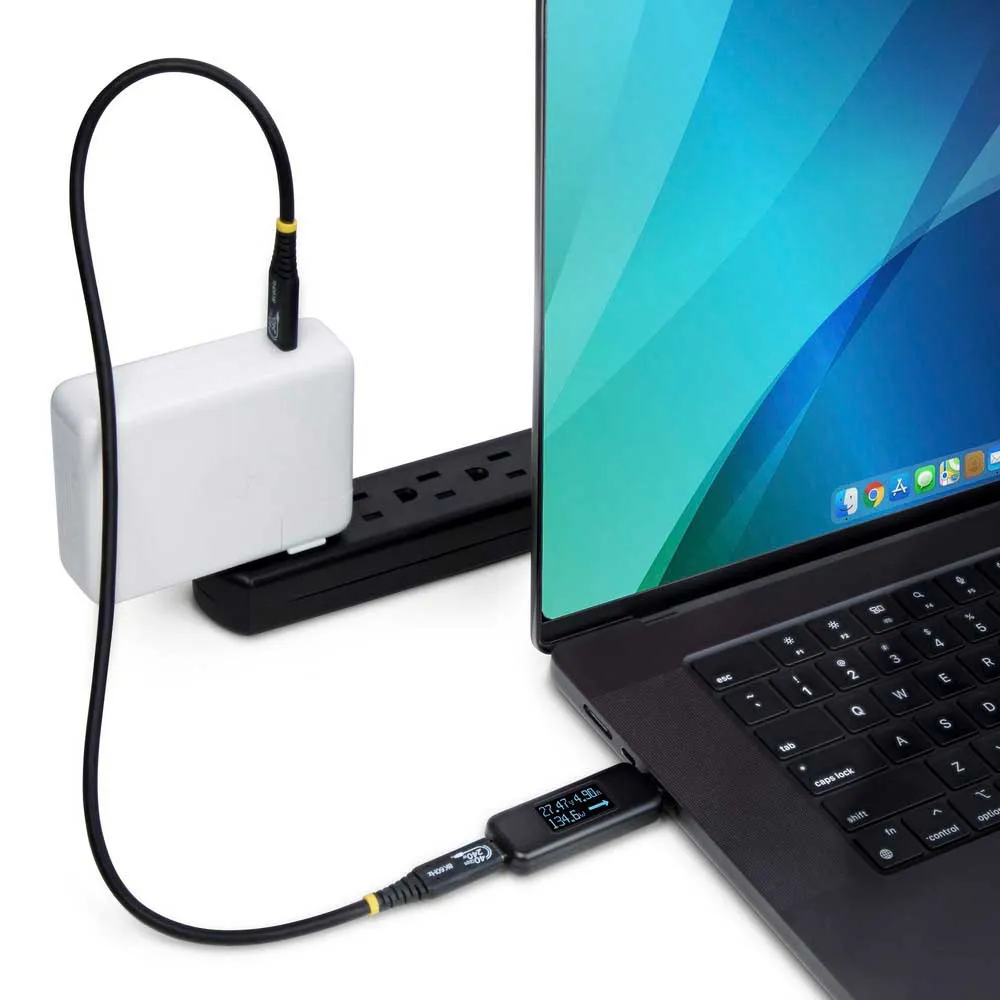

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices.

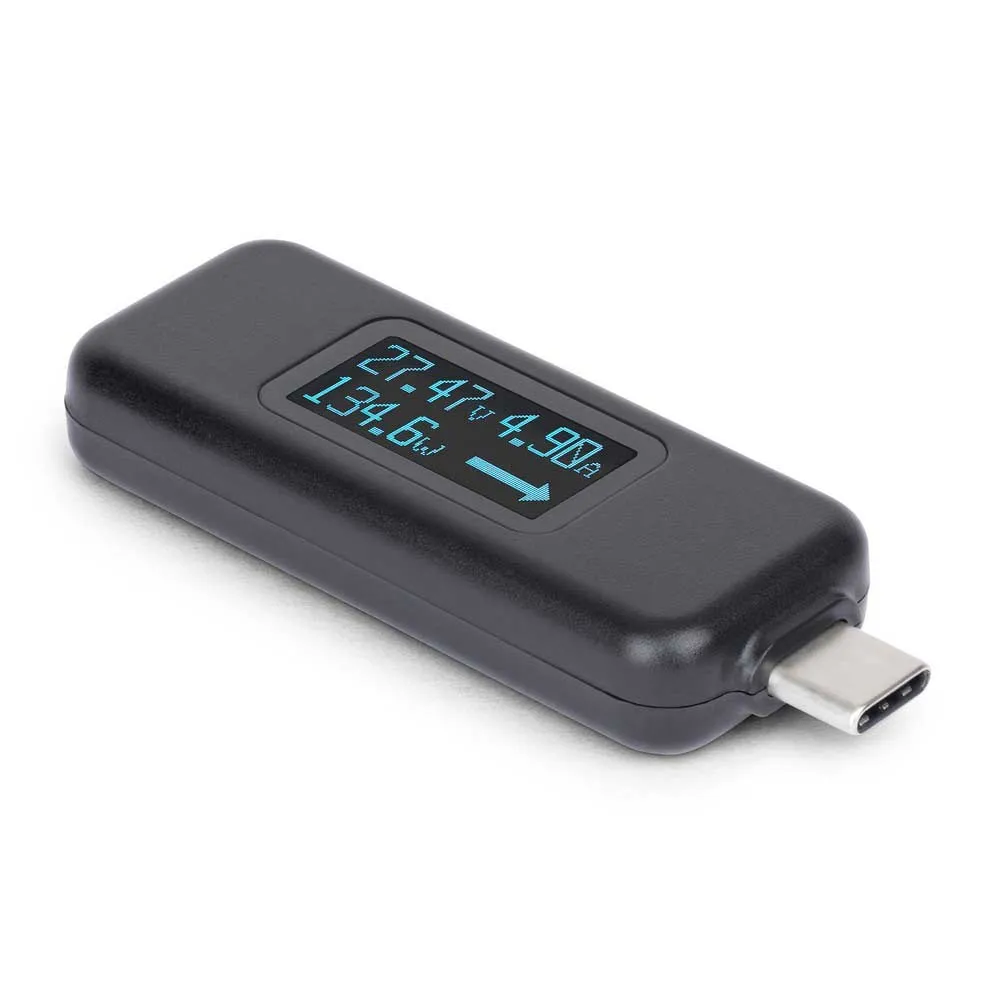

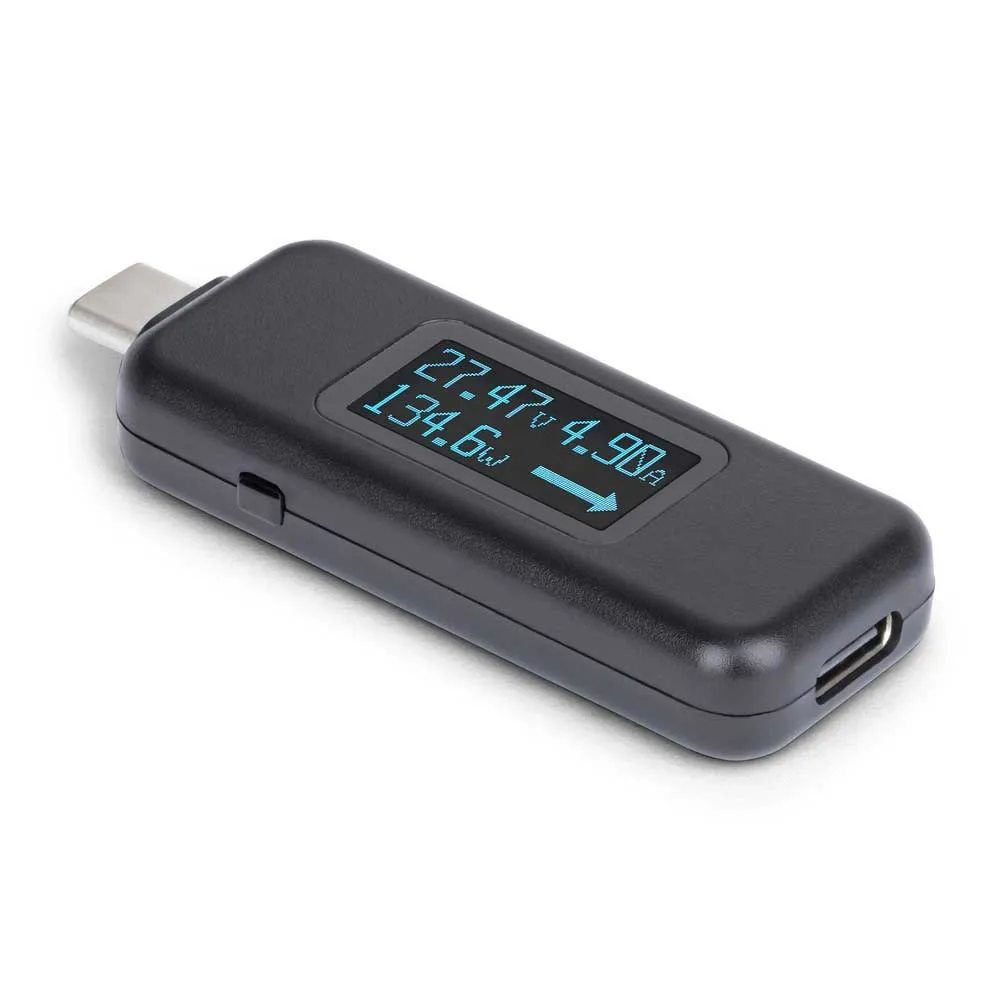

The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction.

Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility.

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices.

It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W.

Note:

Thunderbolt 3 devices are not supported.

The StarTech.com Advantage.

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester.

Testing type:

Amperage, Voltage, Wattage, DC output voltage test:

4.5V-50V, Power connectors supported:

USB Type-C.

Width:

57 mm, Depth:

23 mm, Height:

10 mm.

Package width:

80 mm, Package depth:

84 mm, Package height:

15 mm.

Master (outer) case width:

430 mm, Master (outer) case length:

180 mm, Master (outer) case height:

270 mm.

PORTABLE USB-C POWER TESTING:

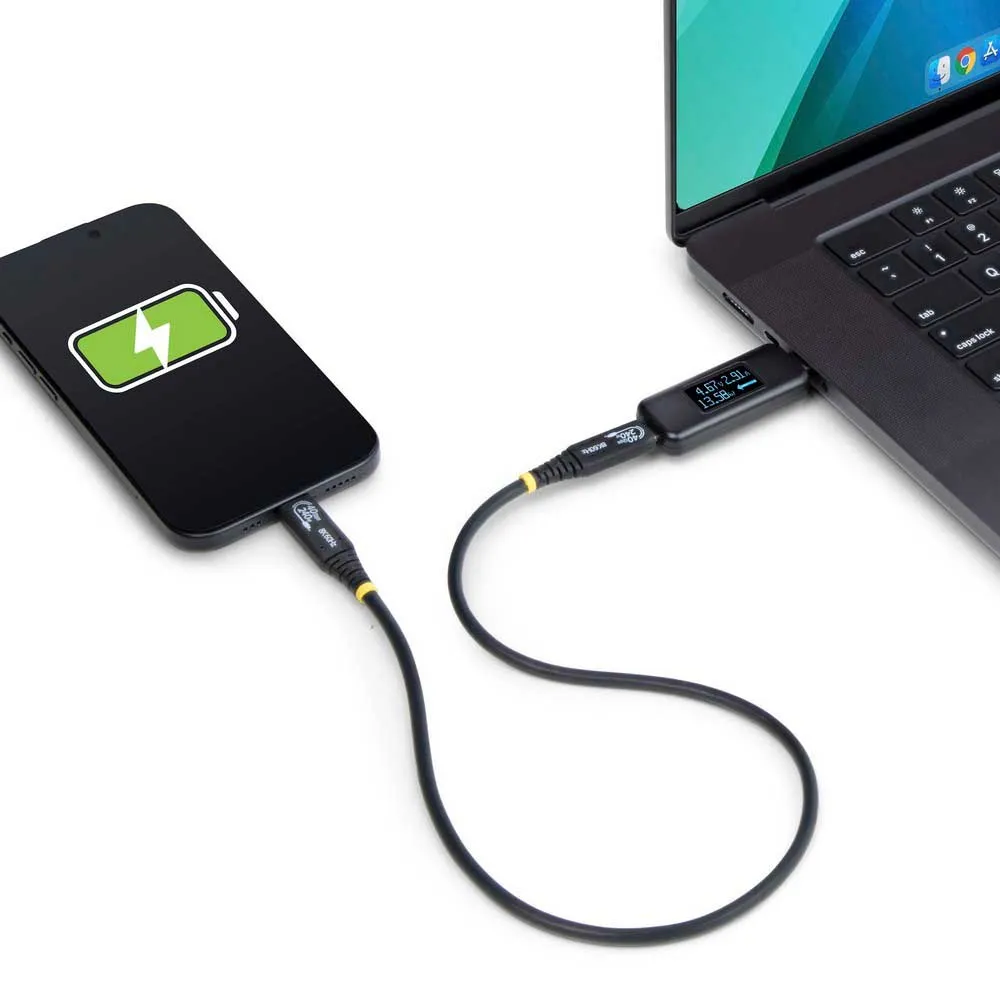

Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester.

Digital display w/180° flip rotation provides real-time at-a-glance readings.

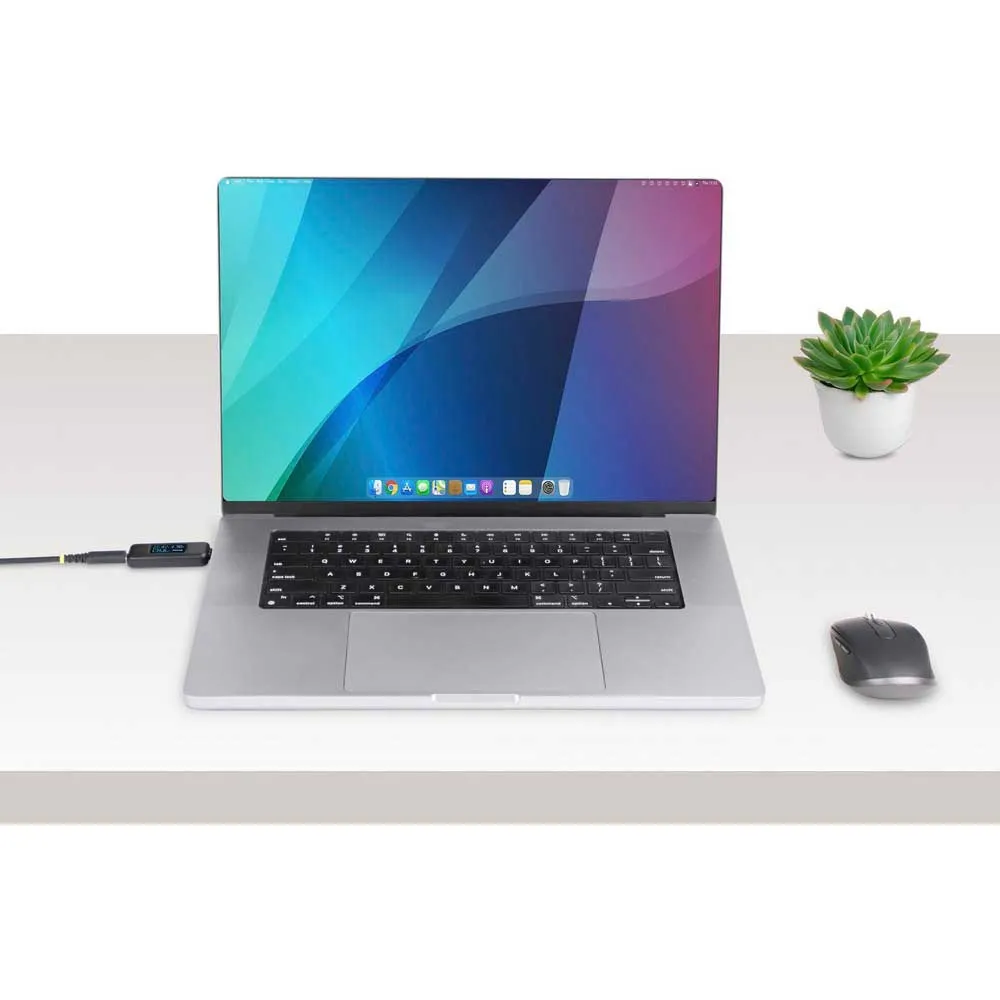

Portable design ideal for IT Pros on-the-go.

SIMPLIFY TROUBLESHOOTING:

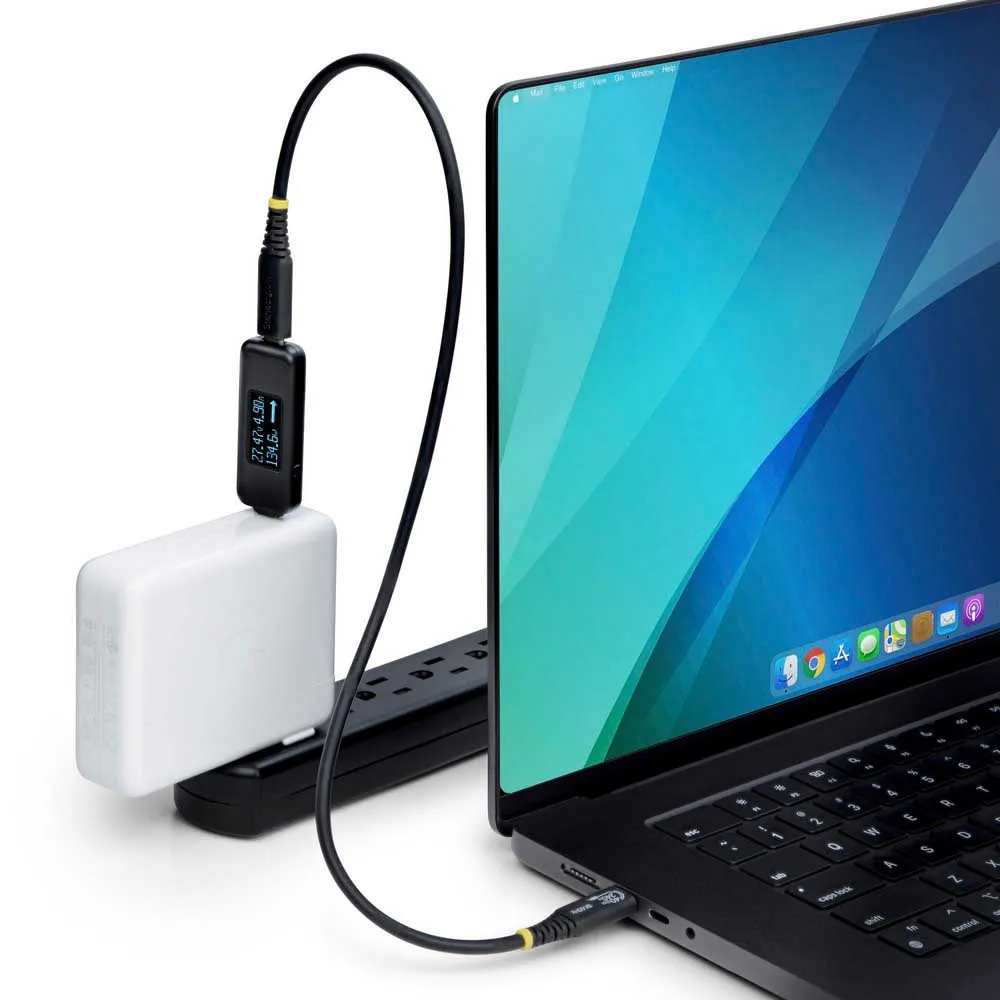

Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices.

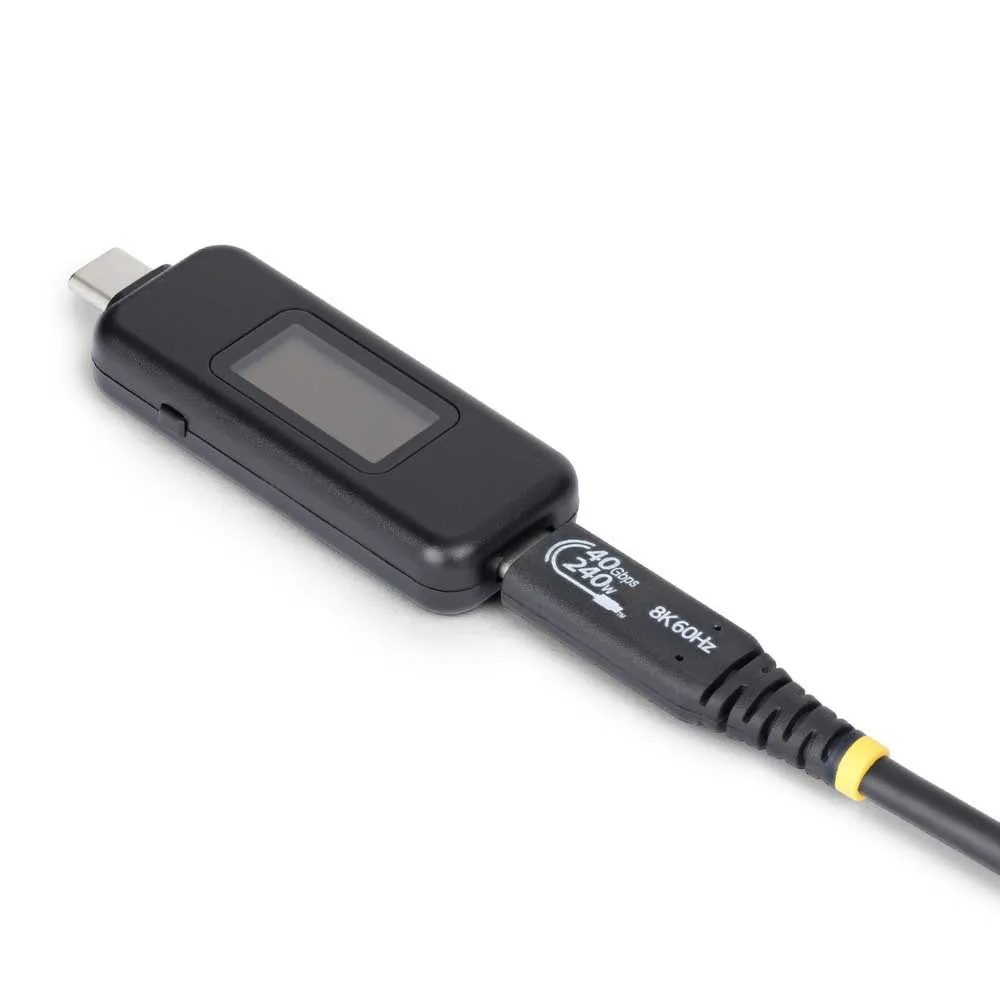

Test USB-C cables to ensure full power transmission from USB-C sources.

Validate performance of high-power devices.

UNIVERSAL COMPATIBILITY:

Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible).

Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR).

APPLICATIONS:

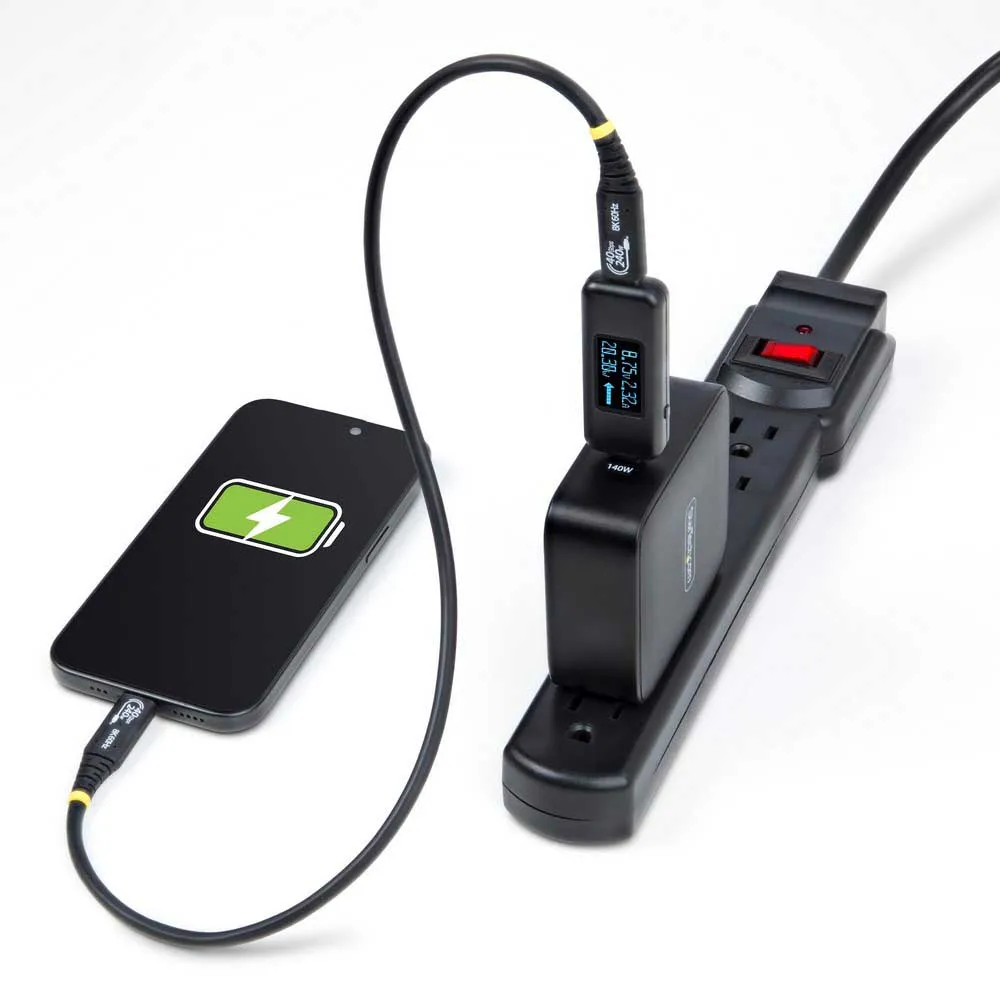

Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues.

Measure power draw from bus-powered USB-C devices.

Ensure USB-C port compliance w/VBUS & voltage drop tests.

SPECS:

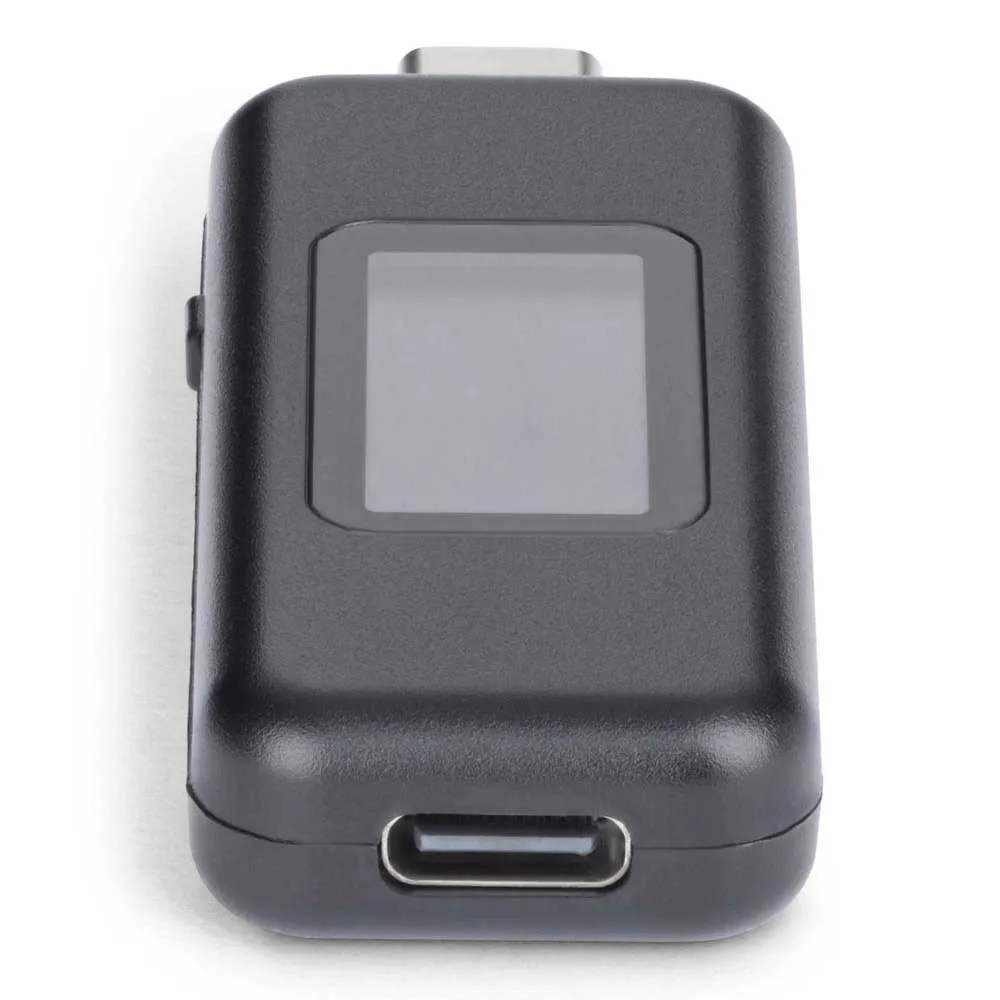

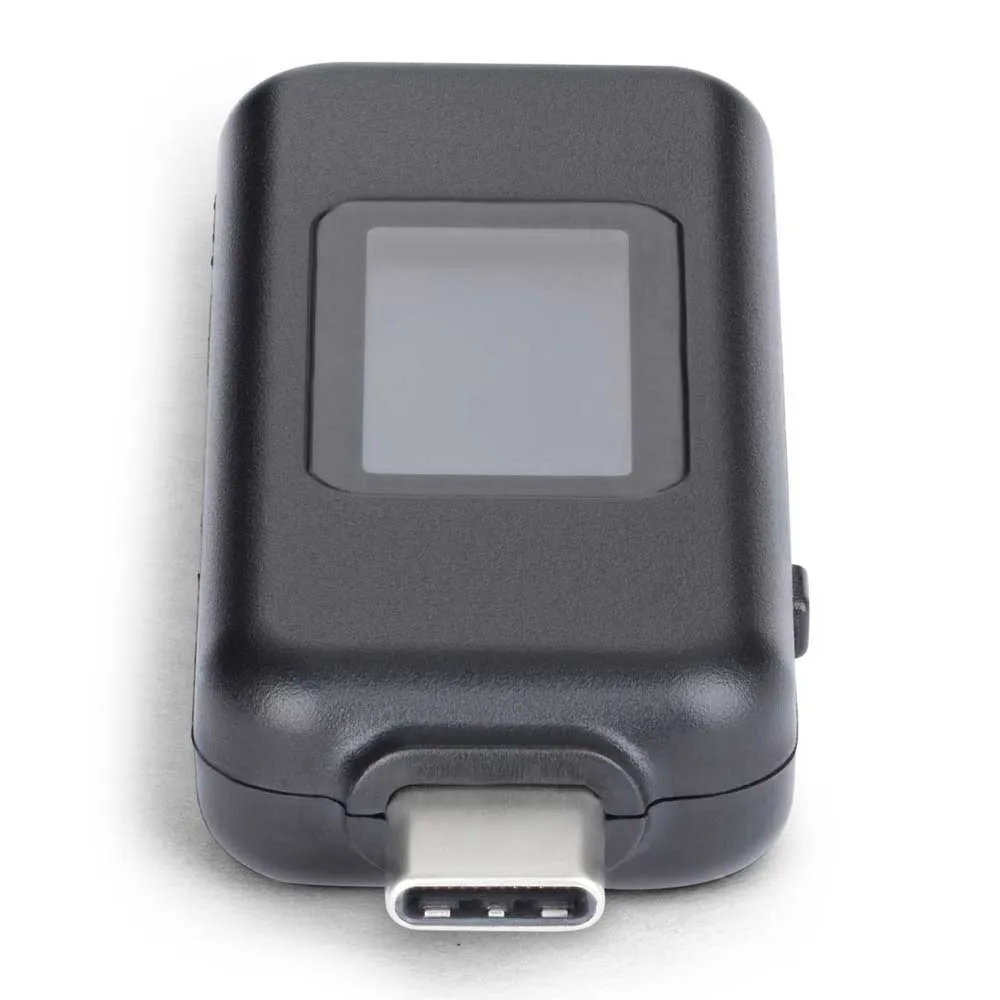

Bi-directional USB Type-C Male to Female.

Digital display with 180° flip rotation.

Voltage/Current Range:

4.5V-50V / 50mA-6.5A.

Up to 240W USB PD 3.1 EPR.

USB 10Gbps Data Pass-Through w/DP Alt Mode.

Not compatible with Thunderbolt 3 devices.
