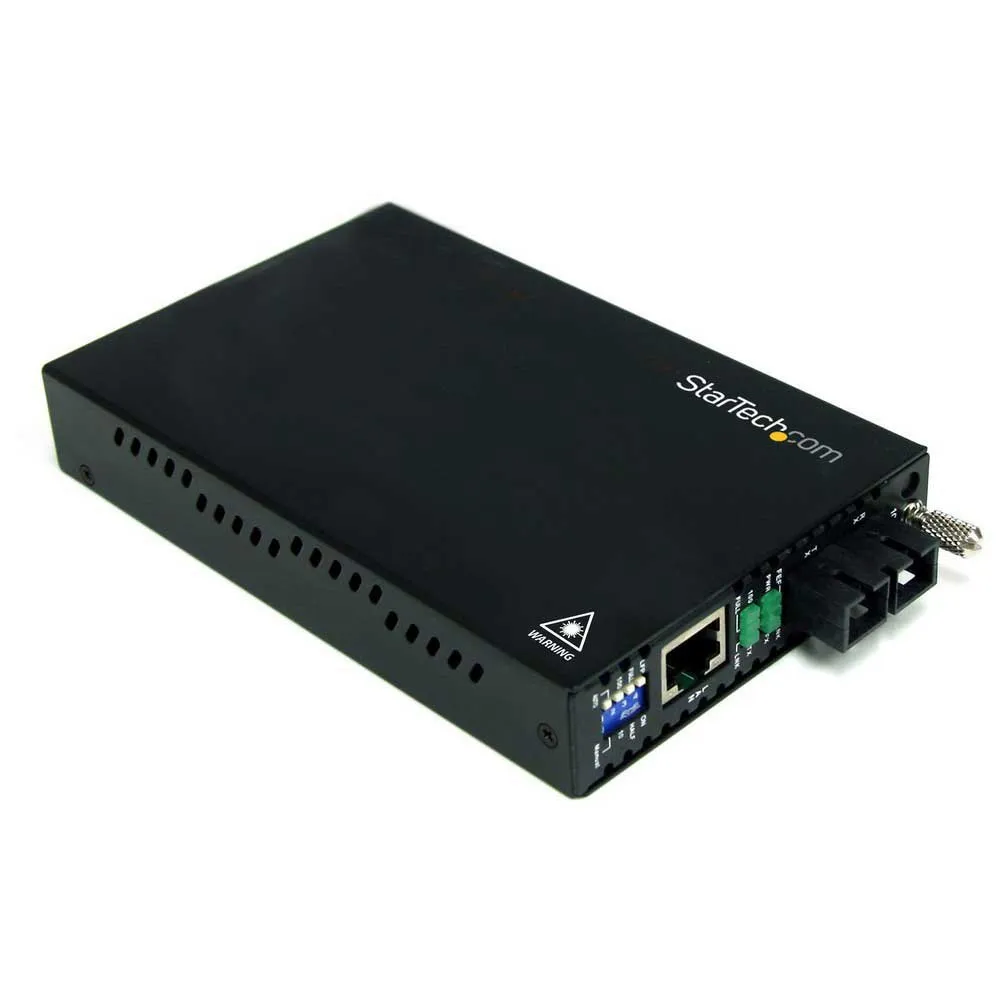

Startech ET90110SC2 Fiber Optic Converter

EU Plug.

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications:

Applications:- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether.

- Perfect for secure environments required by government agencies where EMI is not acceptable.

- Connect traffic control/monitoring systems at extreme distances to the main office.

- Extend network connectivity to remote areas of stadiums, auditoriums or other venues.

- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals over multimode fiber cable Connector(S):- 1.

- Local Unit Connectors:Fiber Optic Lc Duplex, RJ-45 Environmental:- Operating Temperature:0°C to 60°C (32°F to 140°F).

- Storage Temperature:-10°C to 70°C (14°F to 158°F).

- Humidity:10~90% RH Hardware:- PoE:No.

- WDM:No Industry Standards:- IEEE802.3 (10BASE-T).

- IEEE802.3u (100BASE-TX).

- IEEE802.3u (100BASE-FX) Packaging Information:- Package Height:3.0 in [77 mm].

- Package Length:9.2 in [23.3 cm].

- Shipping (Package) Weight:27.5 oz [779 g].

- Package Width:7.5 in [19 cm] Performance.

- Maximum Data Transfer Rate:200 Mbps (Full Duplex Mode).

- Max Transfer Distance:2 km (1.2 mi).

- Type:Multi Mode.

- Wavelength:1310nm.

- Fiber Operating Mode:Half/Full-Duplex.

- Auto MDIX:Yes Physical Characteristics:- Weight Of Product:13.8 oz [390 g].

- Product Length:6.0 in [15.3 cm].

- Product Width:3.4 in [87 mm].

- Product Height:0.9 in [2.4 cm].

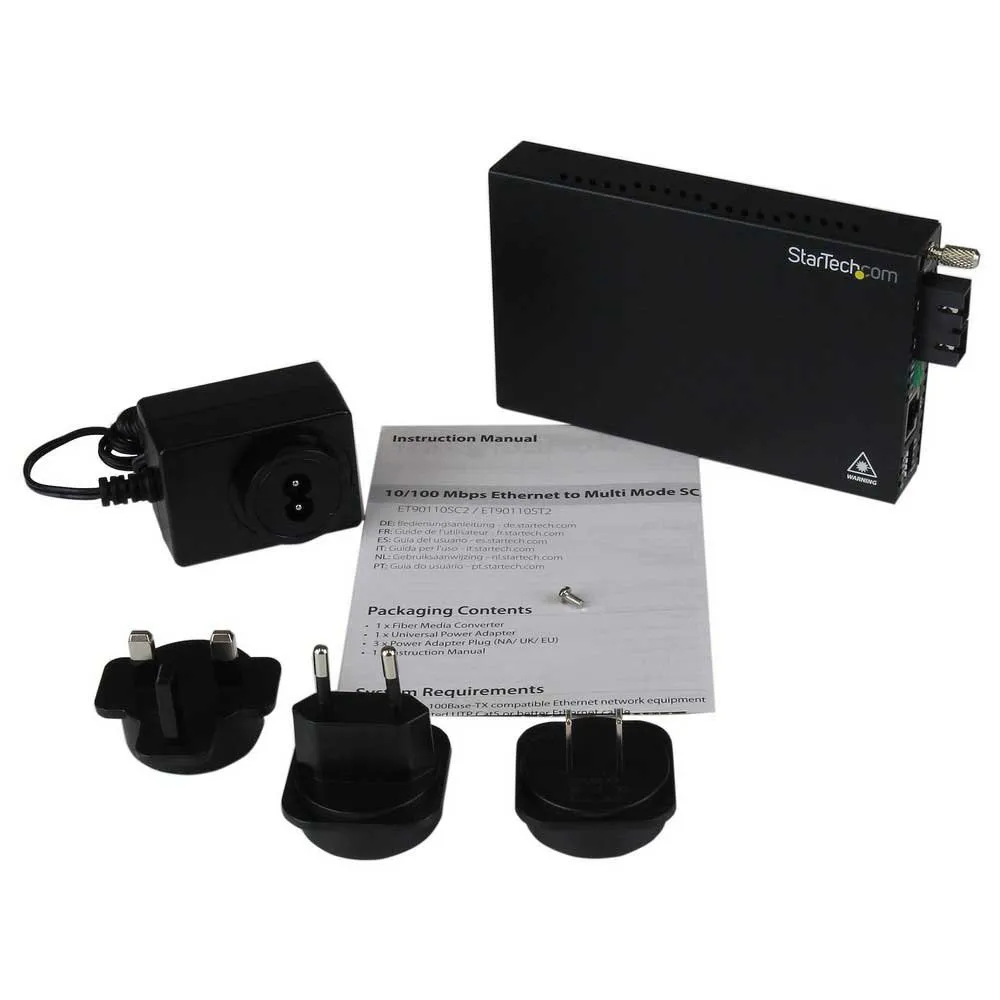

Power:- Power Source:Ac Adapter Included.

- Input Voltage:100.

- 240 Ac.

- Input Current:0.48A.

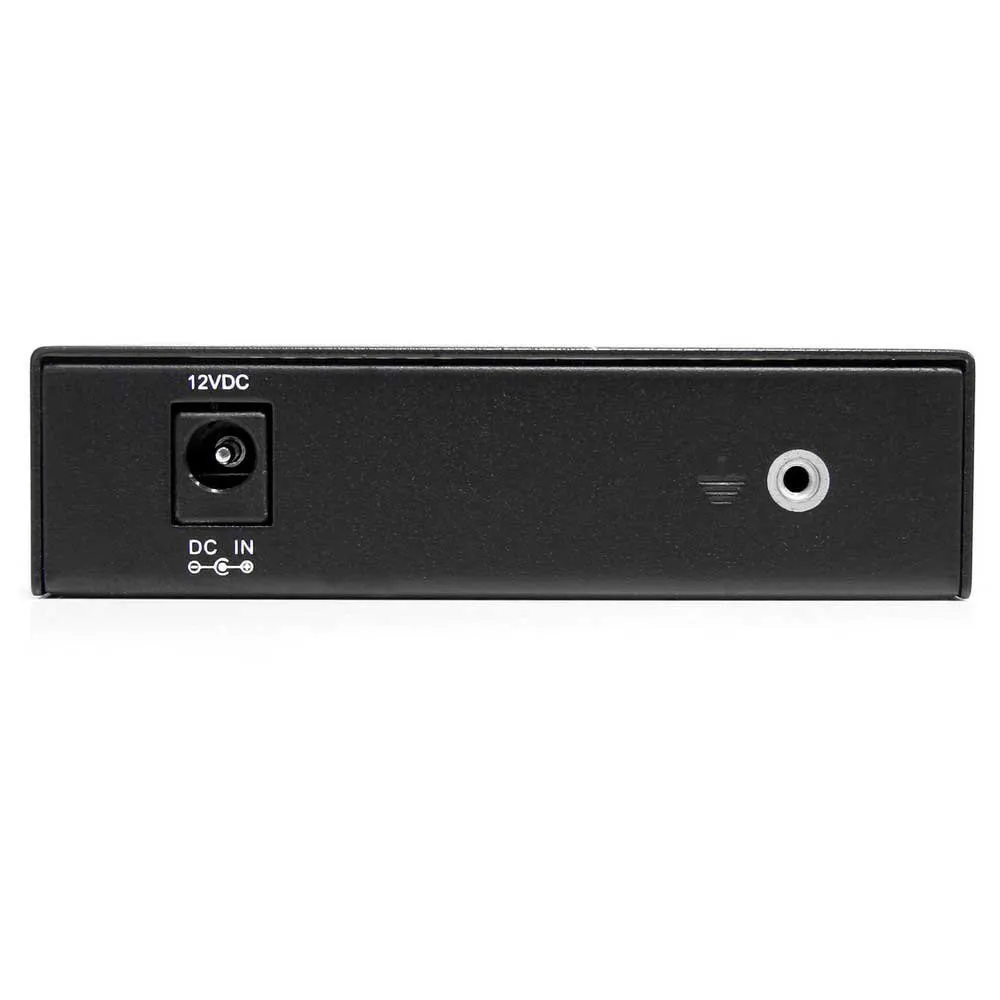

- Output Voltage:12v Dc.

- Output Current:1.6 A.

- Center Tip Polarity:Positive.

- Plug Type:M.
