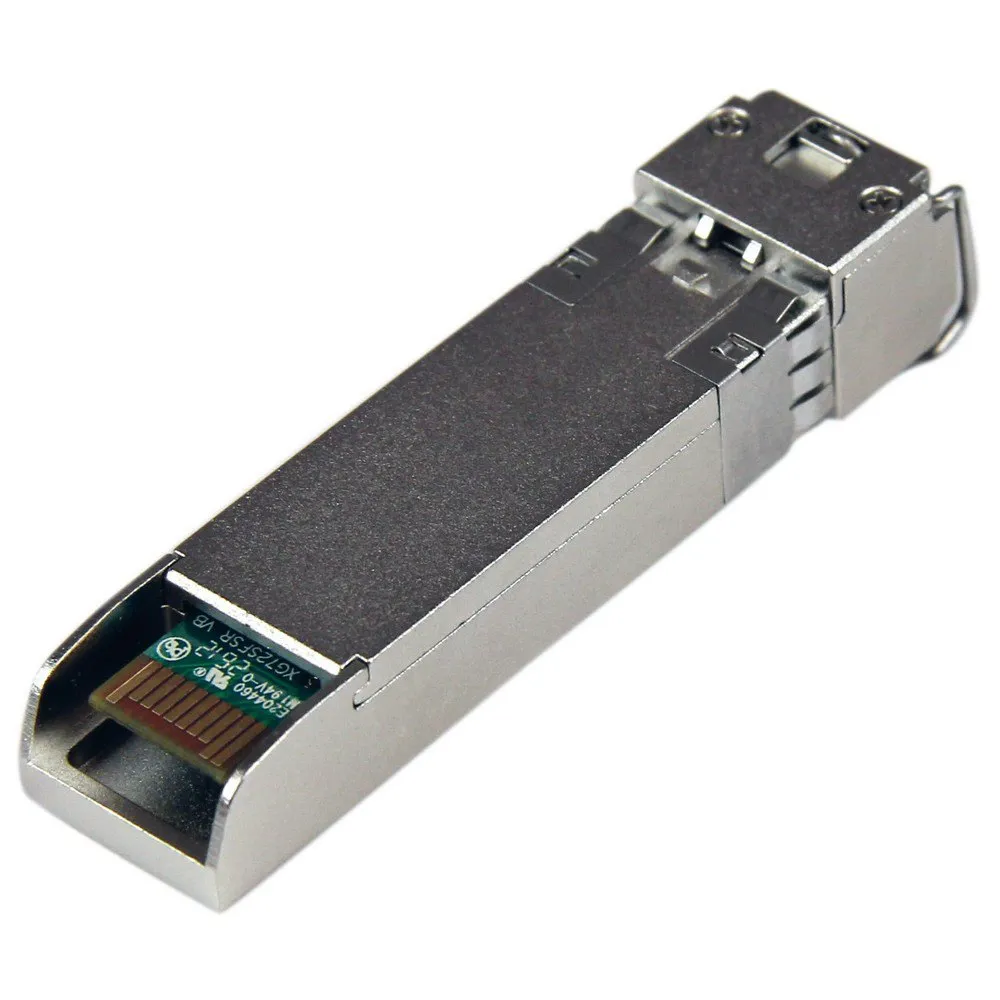

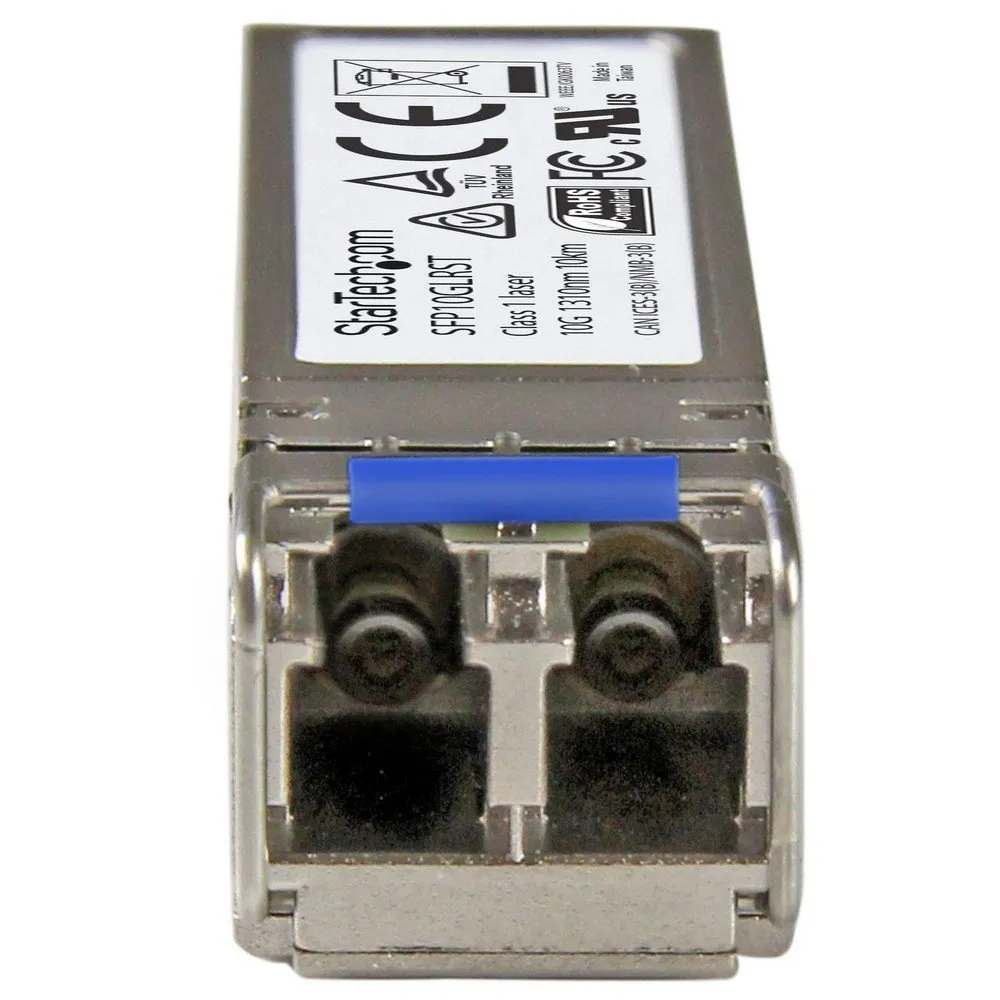

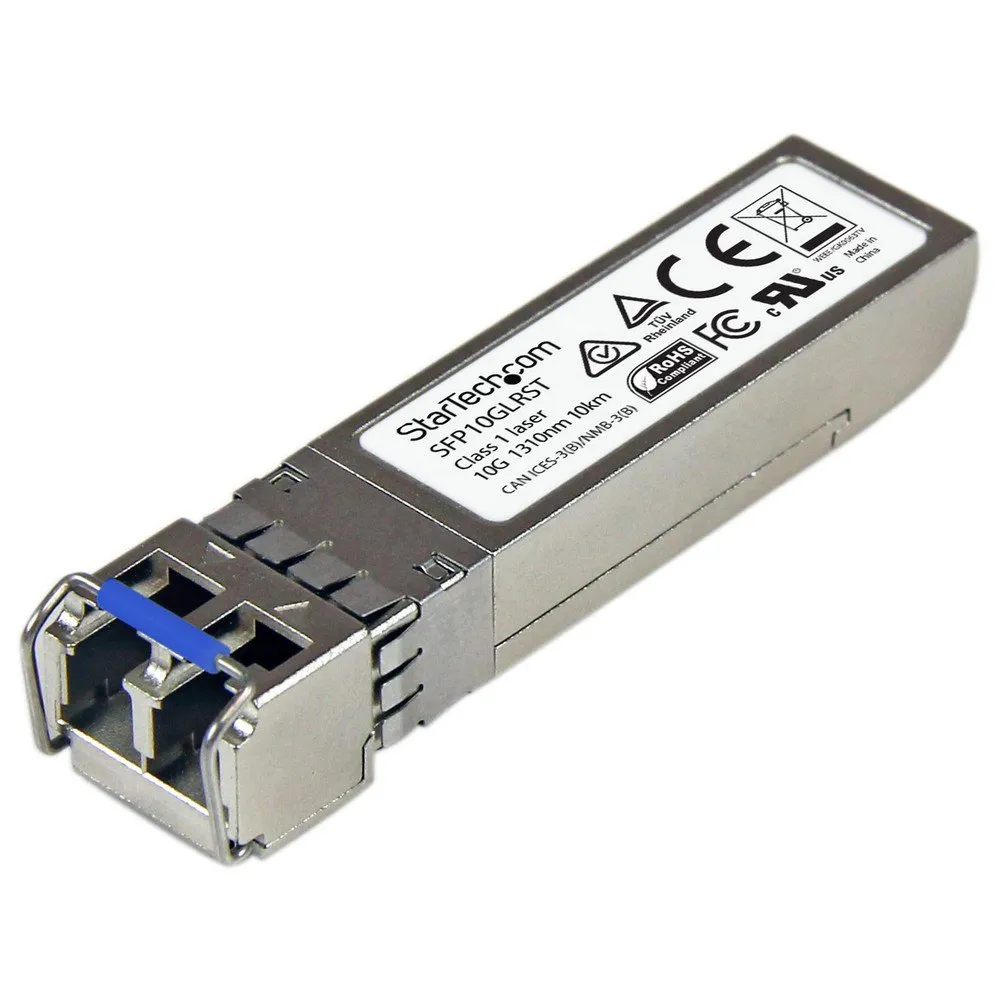

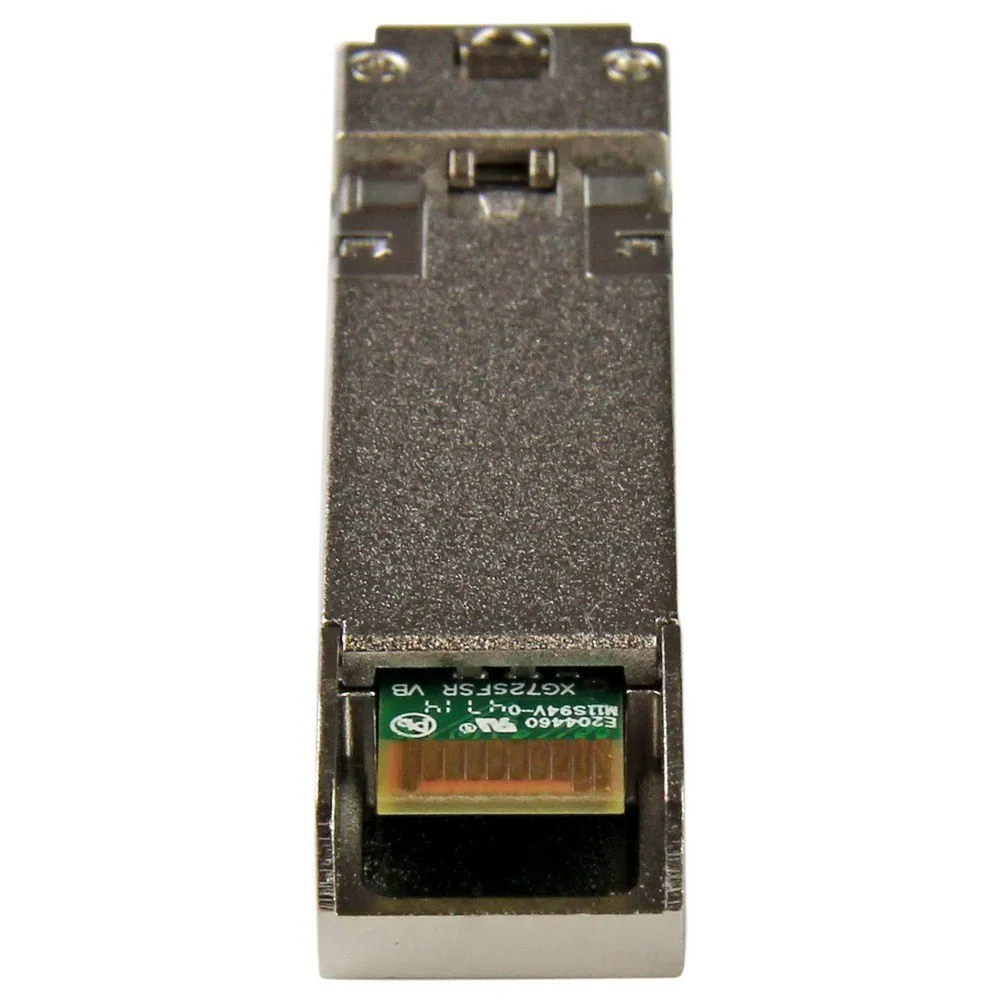

Startech LC SFP 10GB transceiver

The SFP10GLRST is a Cisco SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers.

It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

- 100% cisco sfp-10g-lr compatible:

works with cisco switches like firepower, asr9000, c9300, c3850, c9500 and others.

- Technical specs:

10gbase-lr 10 gbps single mode (smf) lc connector 1310nm digital diagnostic monitoring (ddm) distances up to 10km (6.2mi).

- Tested for oem host compatibility:

hot-swappable in cisco routers and switches.

ddm support reports the transceiver´s status to most snmp network management tools.

- Outstanding support:

backed by startech.com for the life of the module itself, not your equipment.

our modules won´t void your oem support and with access to our tech advisors 5/24.

- Works with msa compliant switches:

also works with switch models from ubiquiti, d-link, netgear, supermicro, tp-link and more that accept uncoded modules Technical.

Specifications:

- Wavelength:

1310nm.

- Maximum Data Transfer Rate:

10 Gbps.

- Type:

Single Mode Fiber.

- Connection Type:

LC Connector.

- Maximum Transfer Distance:

10 km (6.2 mi).

- MTBF:

2,104,865 hours.

- Power Consumption:

Less than 1.3 Watts.

- Digital Diagnostics Monitoring (DDM):

Yes.

- This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

- Material:

Zinc-Plated Casing.

- System and Cable Requirements:

MSA or Cisco compliant SFP port Connector(s):

- 1.

- Local Unit Connectors:

Fiber Optic LC Duplex Environmental:

- Operating Temperature:

0°C to 70°C (32°F to 158°F).

- Storage Temperature:

-40°C to 85°C (-40°F to 185°F).

- Humidity:

5~95% RH.

- Hardware:

Compatible Brand Cisco.

- Industry Standards:- IEEE 802.3ae 10GBASE-LR Packaging Information:

- Package Height:

1,3 in [33,0 mm].

- Package Length:

4,6 in [11,8 cm].

- Package Width:

3,6 in [92,0 mm] Shipping (Package) Weight.

- 3,4 oz [95,0 g]:

Performance.

- Maximum Data Transfer Rate:

10 Gbps.

- Max Transfer Distance:

10 km (6.2 mi).

- Type:

Single Mode.

- Wavelength:

1310nm.

- Fiber Operating Mode:

Full-Duplex.

- DDM:

Yes.

- Compatible Networks:

10 Gbps.

- MTBF:

2,104,865 hours.

- Power Consumption (In Watts):

< 1.3 W Physical Characteristics:

- Product Length:

2,2 in [56,6 mm].

- Product Width:

0,5 in [13,7 mm].

- Product Height:

0,5 in [12,5 mm].

- Weight of Product:

0,8 oz [22,0 g] Special Notes / Requirements:

- Note:

For use in 10 Gigabit fiber networking equipment and media converters What´s in the Box:

- 1.

- Included in Package.

- SFP+ transceiver.
