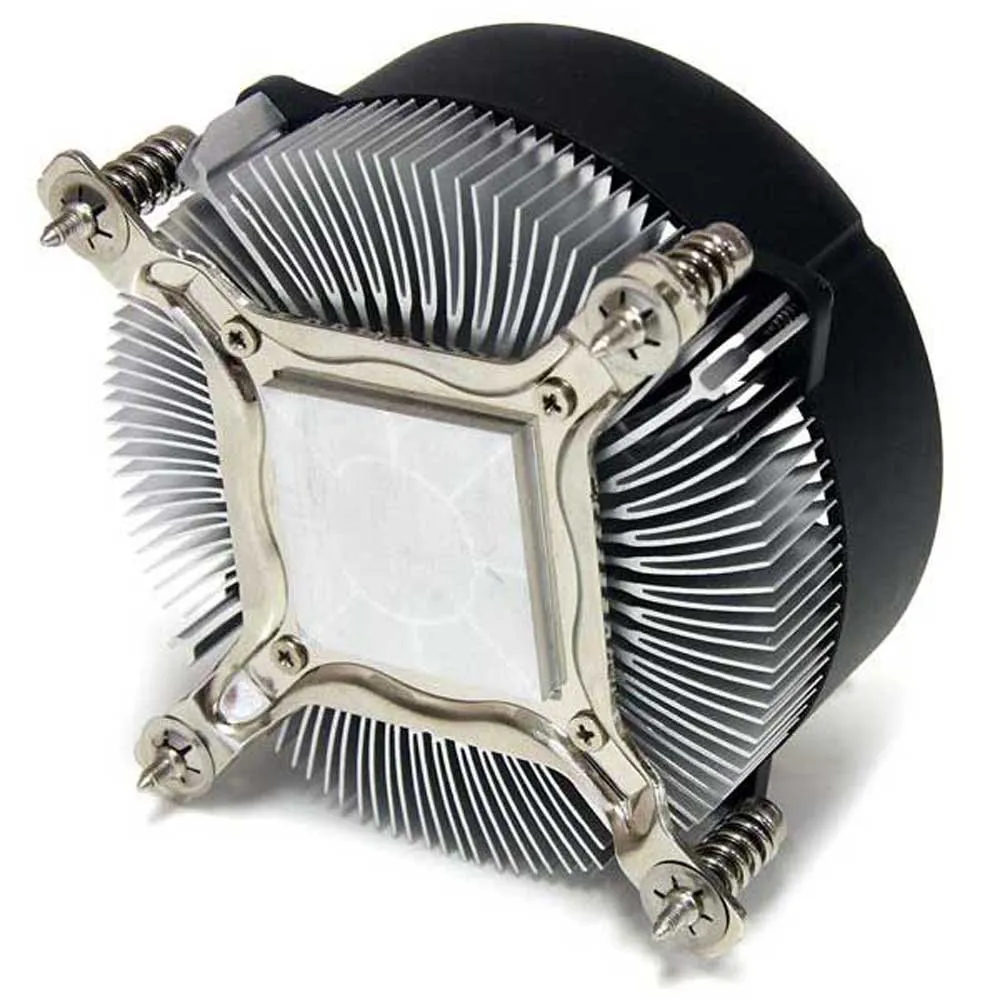

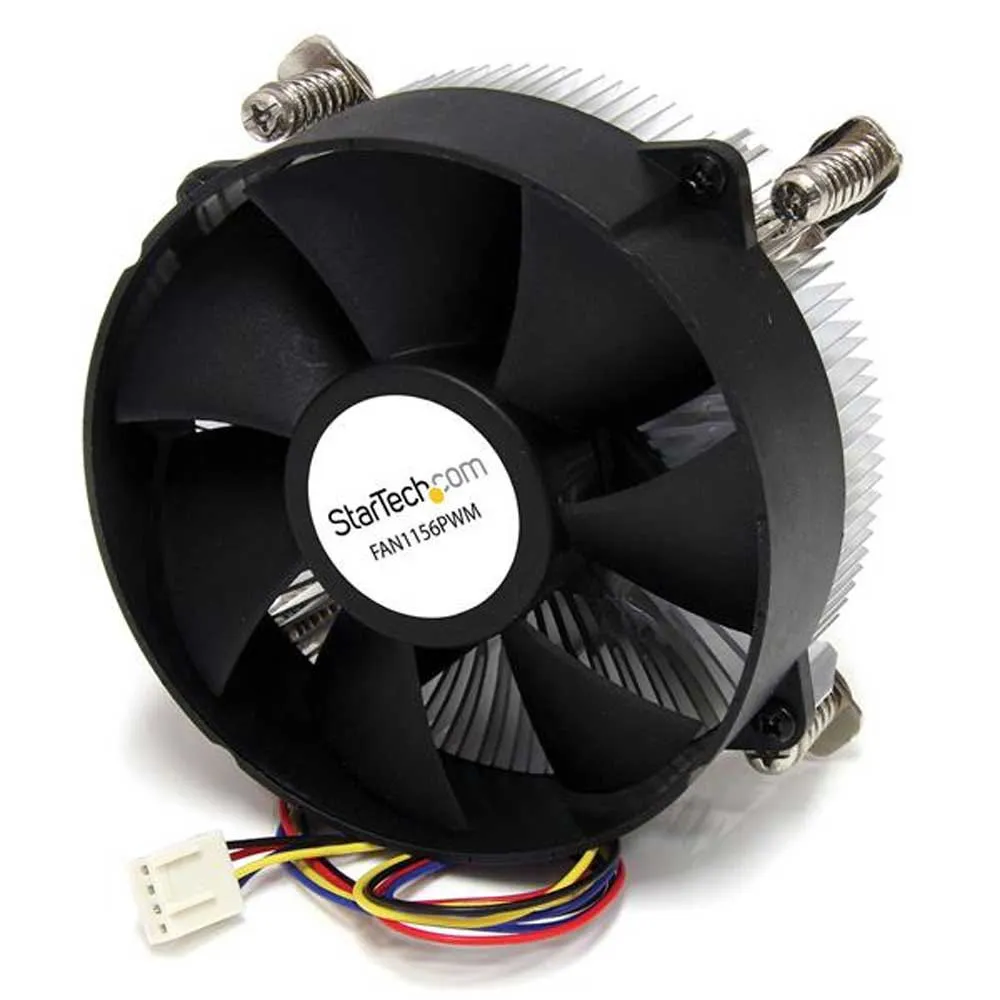

Startech LGA 1156/1155 Intel CPU Fan

The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel® Core™ i3/i5/i7 CPUs.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions.

- lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Specifications:

Connector(s):

- 1.

- Connector Type(s):

LP4 (4 pin, PWM) Environmental:

- Operating Temperature:

-10°C ~ 70°C (14°F ~ 158°F).

- Storage Temperature:

-20°C ~ 70°C (-4°F ~ 158°F).

- Humidity:

0 ~ 65% RH Hardware:

- Number of Conductors:

4.

- Fan Dimensions (Number / Dimensions):

95mm x 95mm x 25mm.

- Fan Bearing Type:

Ever Lubricate Bearing.

- Heatsink Type:

Aluminum.

- Heatsink Dimensions:

95mm x 95mm x 20mm Packaging Information:

- Package Height:

3.3 in [85 mm].

- Package Length:

4.0 in [10.1 cm].

- Shipping (Package) Weight:

11.0 oz [313 g].

- Package Width:

4.0 in [10.2 cm].

- Package Quantity:

1.

Performance:

- Fan RPM:

1000 ~ 3000 RPM.

- Air Flow Rate:

65.61 (max) CFM.

- Noise Level:

<33 dBA.

- MTBF:

40,000 Hours Physical Characteristics:

- Weight of Product:

9.7 oz [274 g].

- Material:

Steel.

- Product Length:

3.7 in [95 mm].

- Product Width:

3.7 in [95 mm].

- Product Height:

2.2 in [55 mm] Power:

- Input Voltage:

12V DC.

- Input Current:

350 mA.
