Startech Mini Display Port To DVI

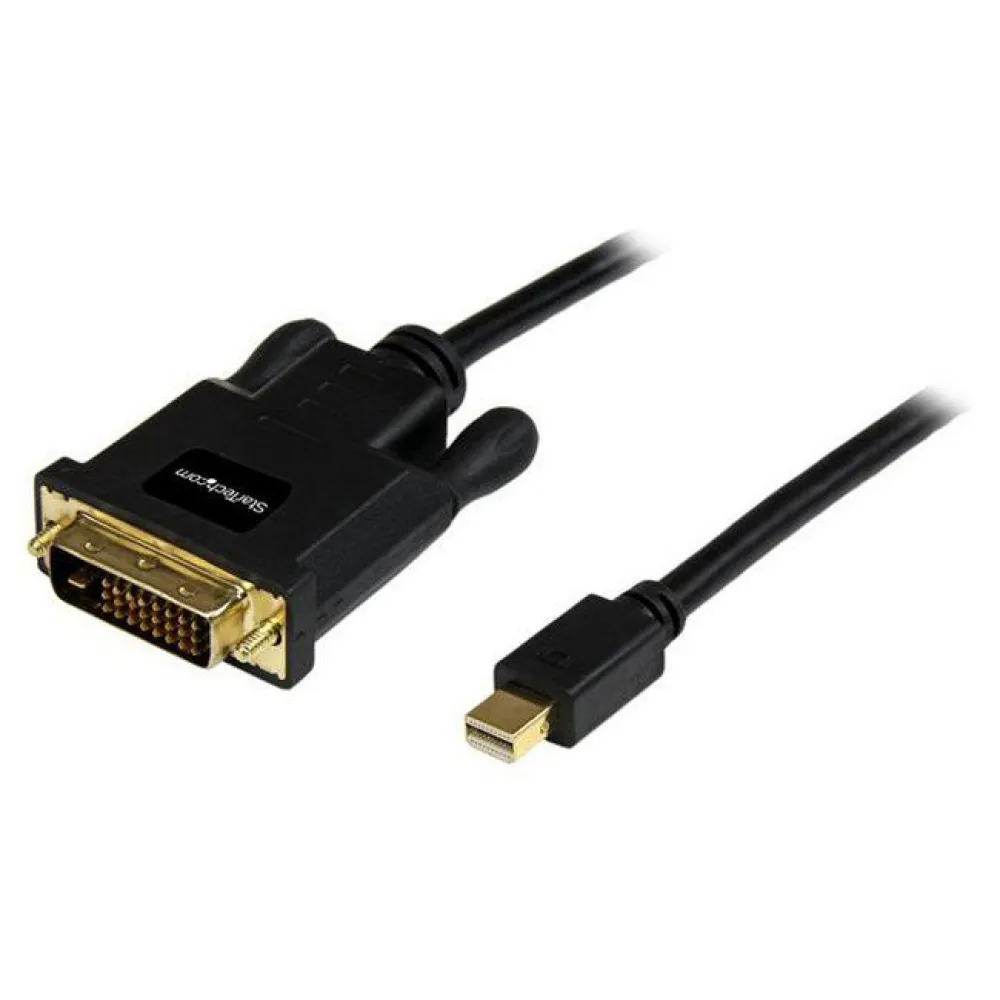

The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).


Specifications:

Connector(s):

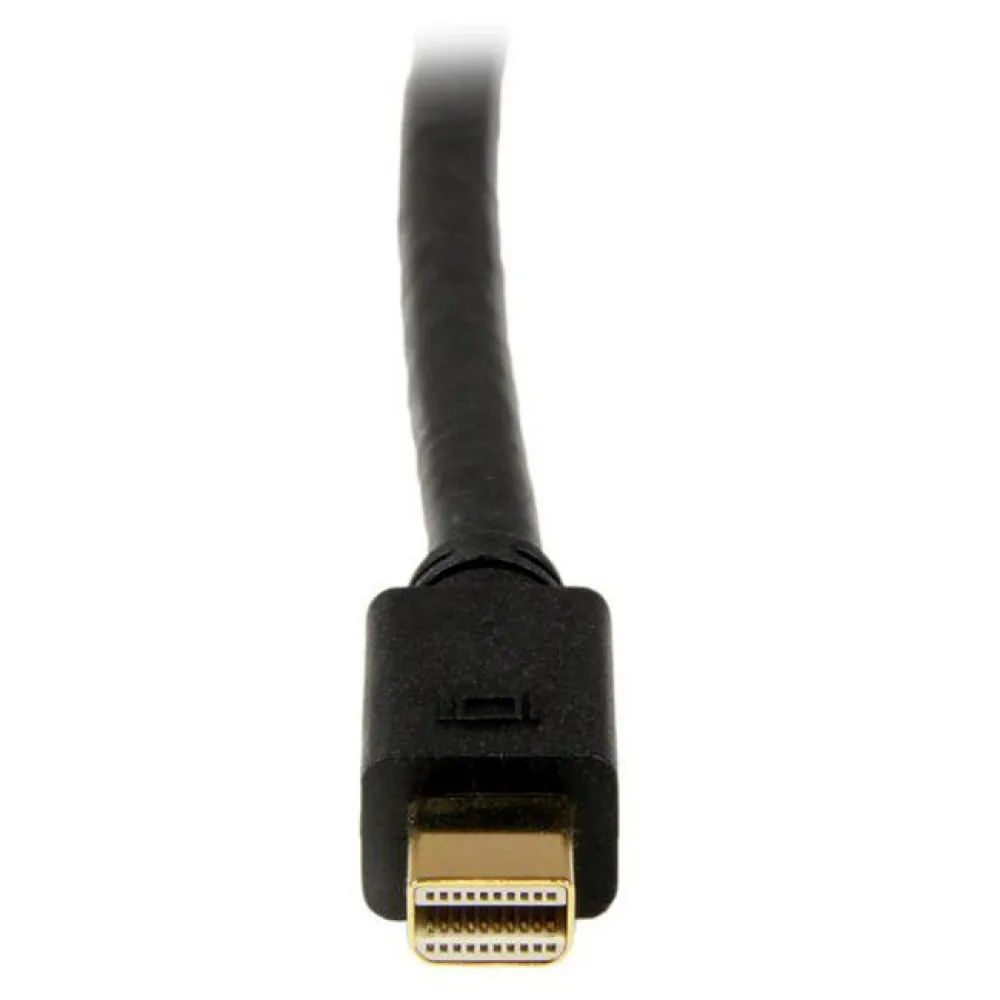

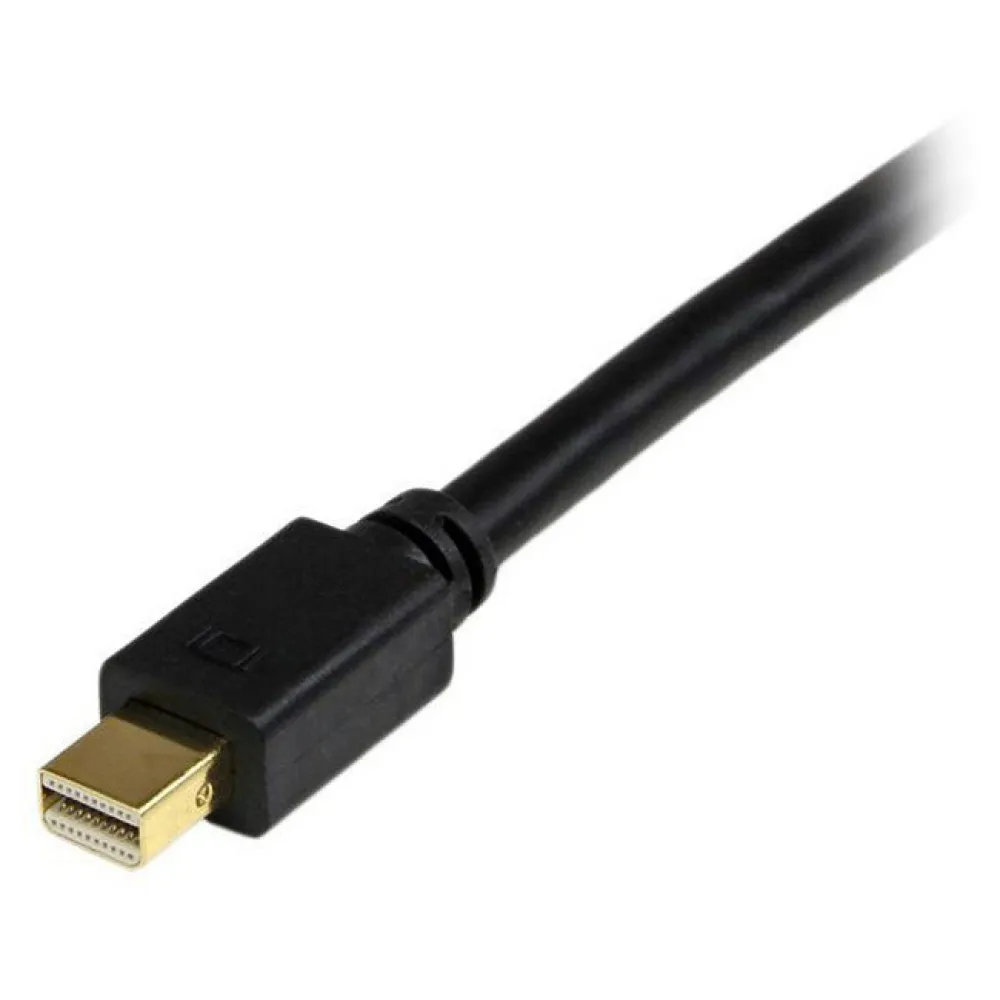

- 1 - Connector A: Mini-DisplayPort (20 pin)

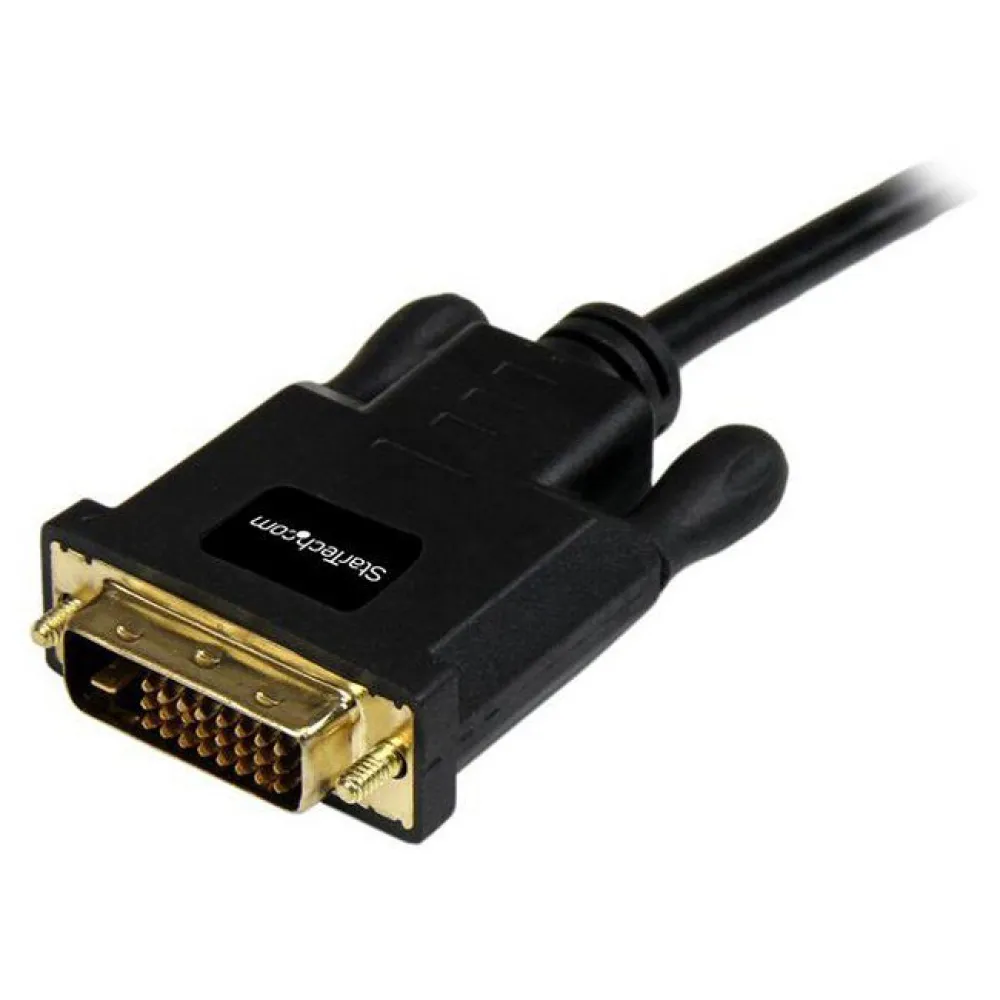

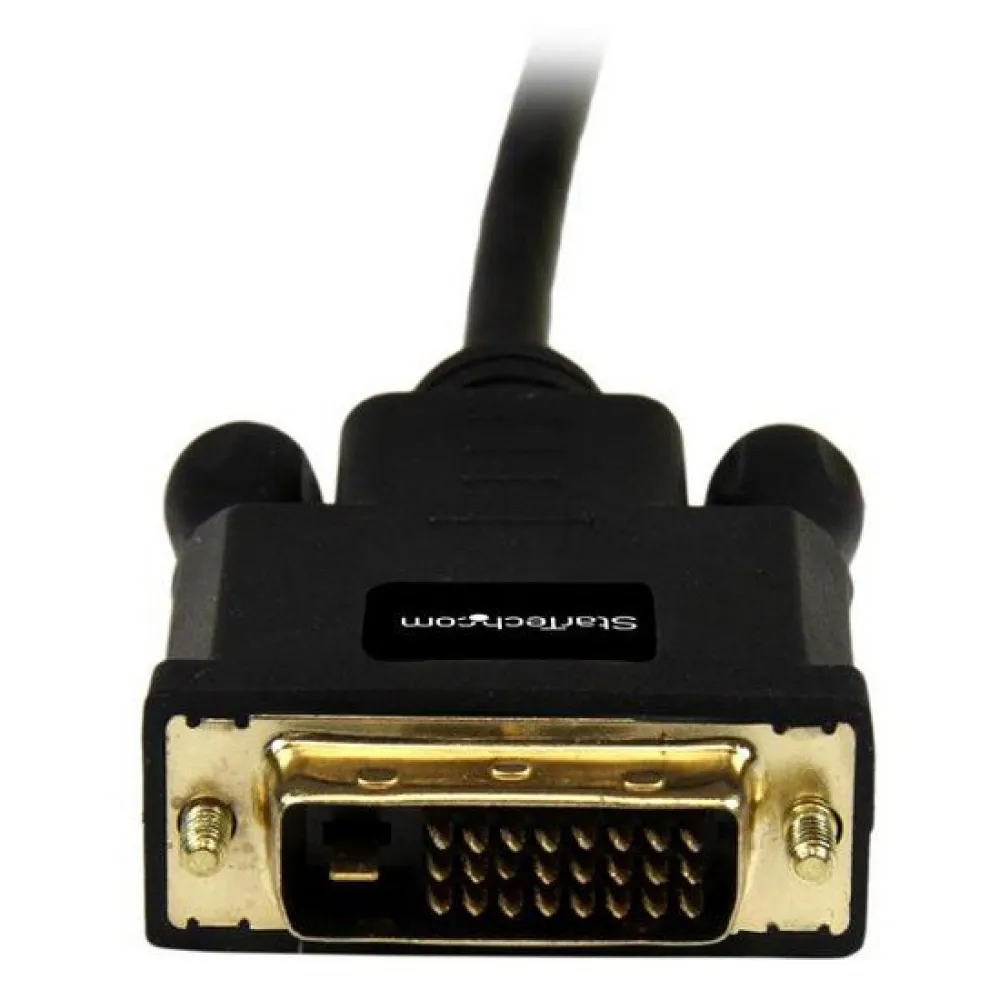

- 1 - Connector B: DVI-D (25 pin)

Environmental:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: 0°C to 70°C (32°F to 158°F)
- Humidity: 40%-85%RH

Hardware:
- Active or Passive Adapter: Passive
- AV Input: Mini DisplayPort - 1.2
- AV Output: DVI-D - Single-Link
- Audio: No
- Chipset ID: NXP - 3361

Packaging Information:
- Shipping (Package) Weight: 5.7 oz [162 g]
- Package Length: 9.4 in [24 cm]
- Package Width: 6.3 in [16 cm]
- Package Height: 0.8 in [20 mm]

Performance:
- Audio Specifications: DVI - No Audio Support
- Maximum Cable Length: 10.0 ft [3.0 m]
- Maximum Digital Resolutions: 1920x1200 / 1080p
- Wide Screen Supported: Yes
- MTBF: 2,405,577 hours

Physical Characteristics:
- Weight of Product: 4.9 oz [140 g]
- Cable Length: 10.0 ft [3.0 m]
- Product Length: 10.0 ft [3.0 m]
- Product Width: 1.5 in [38 mm]
- Product Height: 0.6 in [15 mm]

Special Notes / Requirements:
- System and Cable Requirements: DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through

What´s in the Box:
- 1 - Included in Package: Mini DisplayPort® to DVI Adapter
