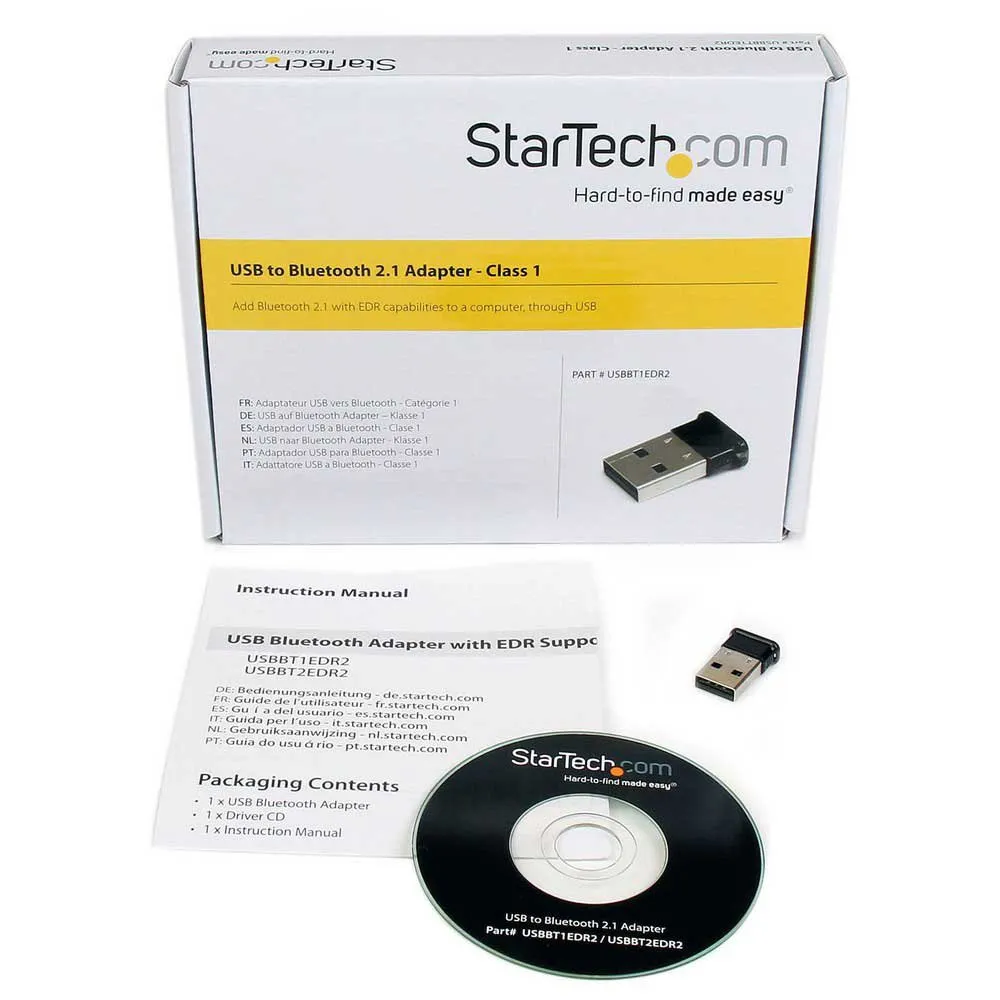

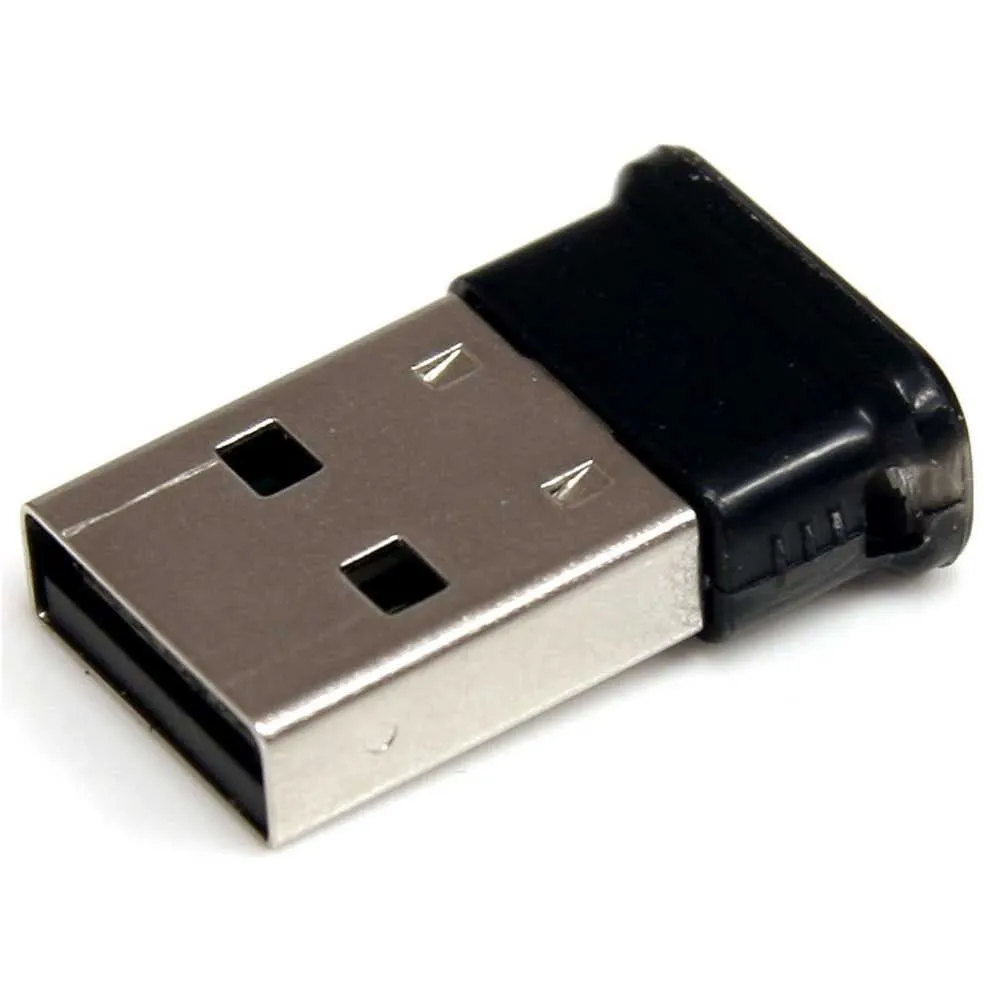

Startech Mini USB Bluetooth Adapter Receiver

The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.

The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Specifications:

Connector(s):
- 1 - Connector Type(s): Bluetooth Class 1.0: USB Type-A (4 pin) USB 2.0

Environmental:
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -25°C to 80°C (-13°F to 176°F)
- Humidity: 75% RH

Hardware:
- Interface: USB 1.1
- Antenna Configuration: Chip Antenna
- Industry Standards: Bluetooth v2.1 + EDR
- Chipset ID: CSR - BC0401PC08

Indicators:
- 1 - LED Indicators: Power/Standby

Packaging Information:
- Package Height: 1.3 in [33 mm]
- Package Length: 6.8 in [17.2 cm]
- Package Width: 5.6 in [14.2 cm]
- Package Quantity: 1
- Shipping (Package) Weight: 2.6 oz [75 g]

Performance:
- Maximum Data Transfer Rate: 3 Mbps
- Frequency Range: 100m (328ft)
- Frequency: 2.4 GHz ISM
- Modulation: GFSK,p/4 DQPSK, 8DPSK
- MTBF: 12,000 hours

Physical Characteristics:
- Material: Plastic
- Product Length: 0.9 in [22 mm]
- Product Width: 0.6 in [15 mm]
- Product Height: 0.3 in [7 mm]
- Weight of Product: 0.0 oz [1 g]

Power:
- Power Consumption (In Watts): 1W
