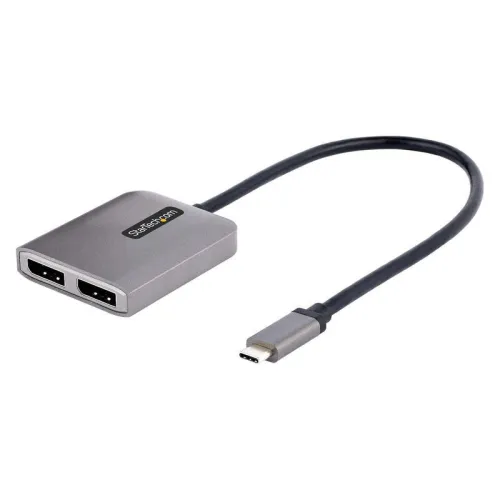

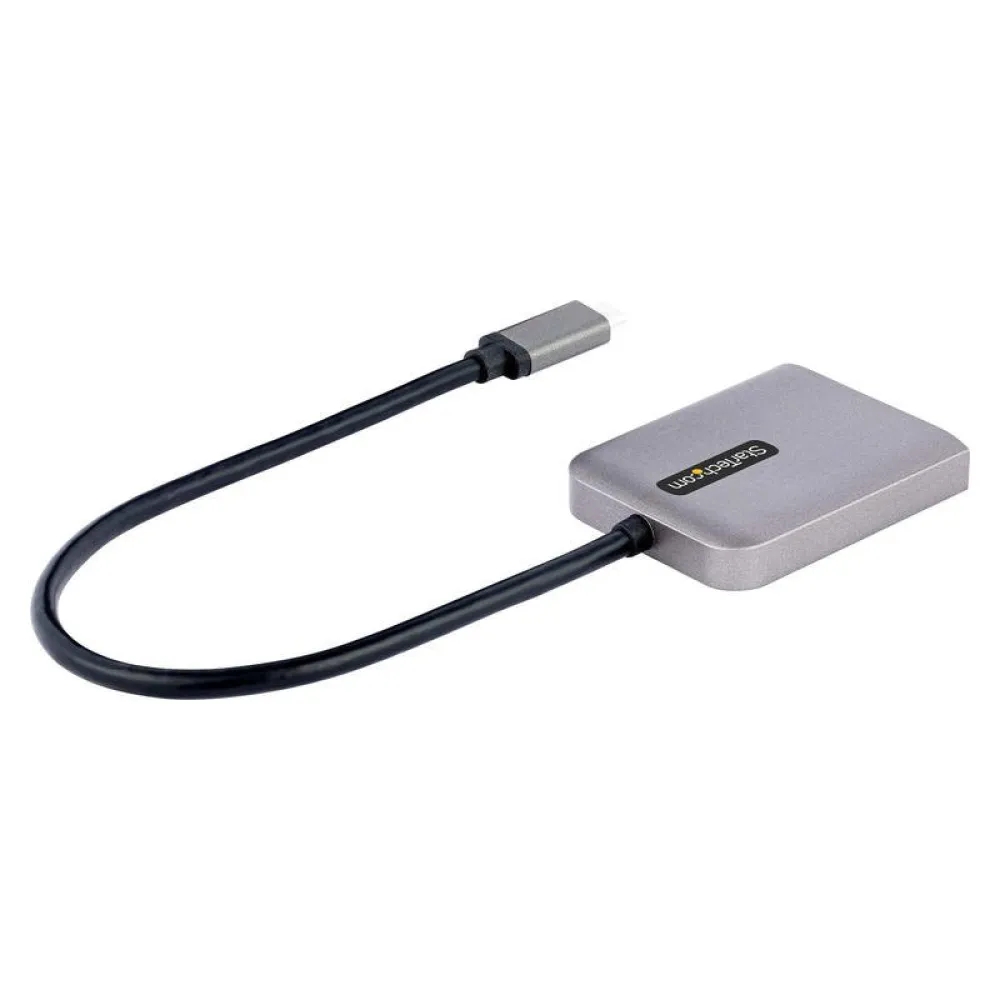

Startech MST14CD122DP docking station

Features:

- Multi-Monitor Setup:

USB-C to Dual-DisplayPort MST Hub powers up to two 4K 60Hz displays from one USB-C DP 1.4 host with DSC.

- Supports HDR and 2-Channel Audio.

- HDCP 2.2.

- Backward compatible with DP 1.2 hosts at lower resolutions.

- Professional.

Performance:

Increase productivity by adding up to two displays to a Windows laptop.

- Use the integrated GPU on the host, enabling high-performance graphics, with minimal CPU usage and no drivers required.

- Hardware Compatibility:

Windows computers with discrete GPU or Intel 12th Gen and higher CPUs that support DP 1.4 DSC that support 2 4K60 monitors.

- See table below for supported configurations.

- Extra Long Cable:

Built-in 30cm cable reduces port/connector strain on 2-in-1 devices like Surface Pro 7/8, iPad Pro, HP Elite x2/laptops on elevated stands.

- Ideal for use on the go or in shared workspaces.

- Connectivity Tools:

Our Windows Layout Utility app (available for download) restores window locations when you reconnect the adapter.

- Windows does not restore them natively.

Specifications:

Performance:

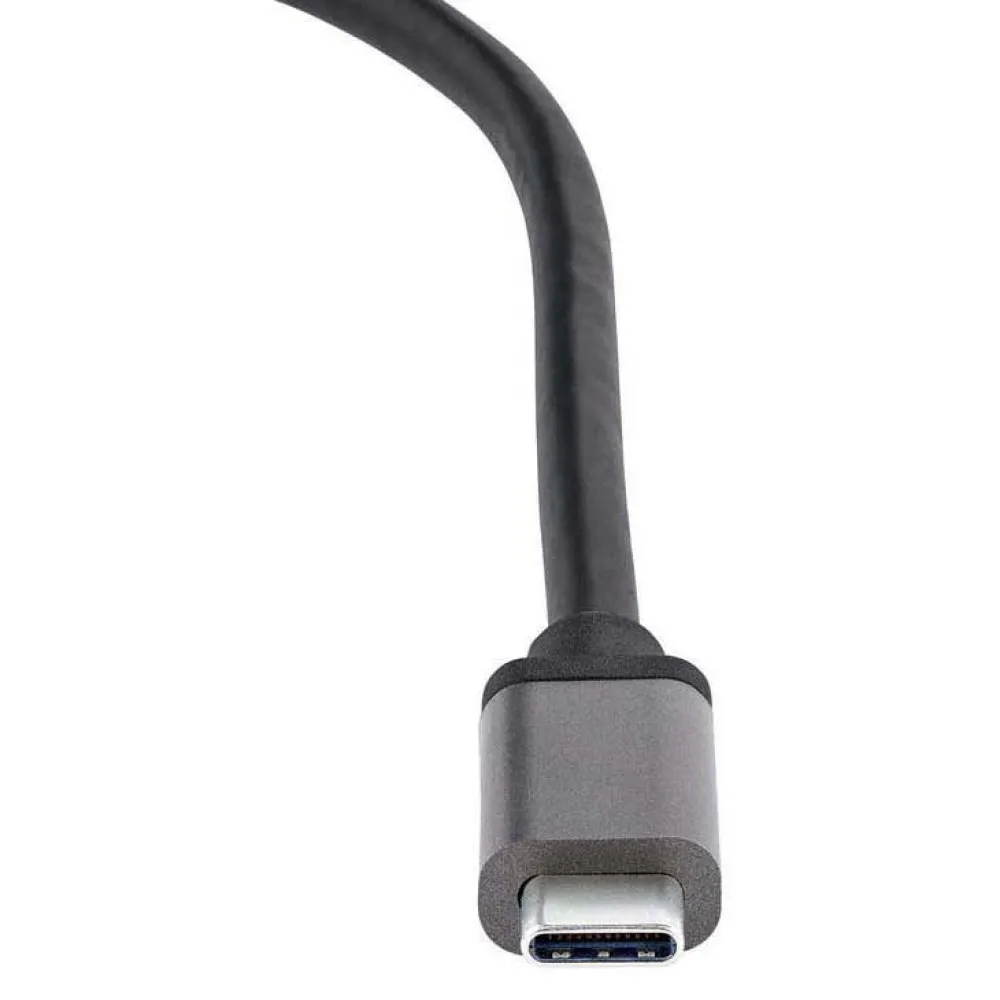

- Usb connector:

USB Type C.

- USB connector gender:

Male.

- USB connector form factor:

Right.

- High Dynamic Range (HDR):

Yes.

- DisplayPort output:

Yes.

- Number of supported displays:

2.

- Number of DisplayPorts:

2.

- HDCP:

Yes.

- HDCP version:

2.2.

- DisplayPort Version:

1.4.

- Maximum resolution:

4096 x 2160 Pixels.

- Refresh rate at maximum resolution:

60 Hz.

- Audio output channels:

2.0 channels.

- Integrated circuit:

Synaptics.

- VMM5220, VIA/VLI.

- VL103 Design:

- Case material:

Plastic.

- USB cable length:

0.3 m System Requirements:

- Supported Windows operating system:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 Environmental conditions:

- Operating temperature range:

0.

- 40 °C.

- Storage temperature range:

-40.

- 70 °C.

- Relative humidity range for operation:

5.

- 90%.
