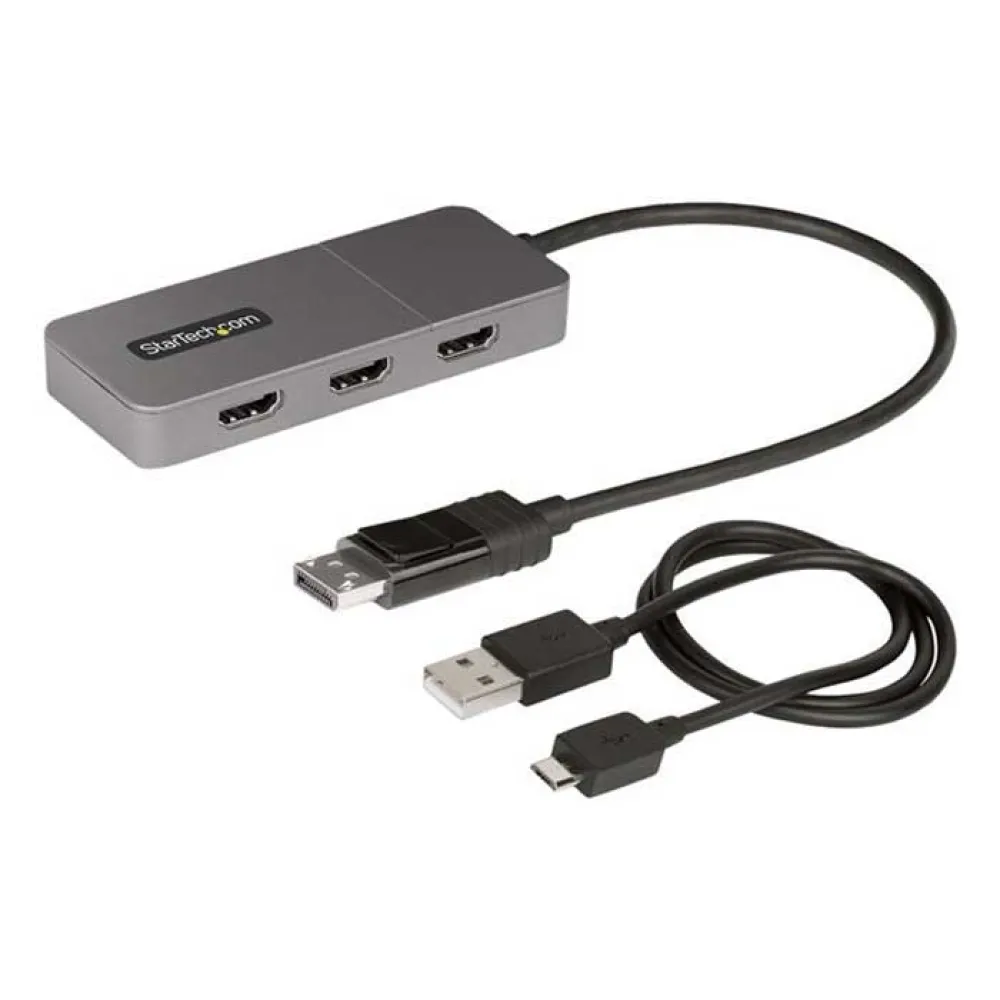

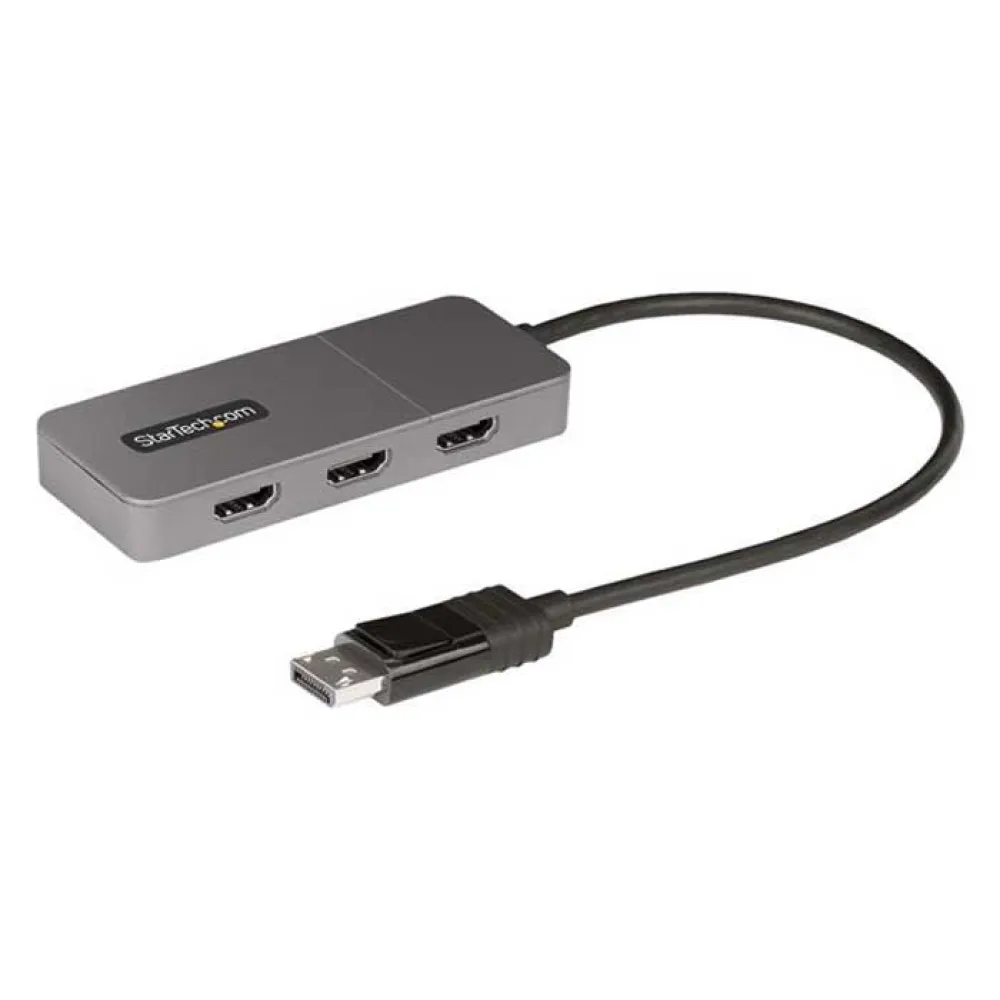

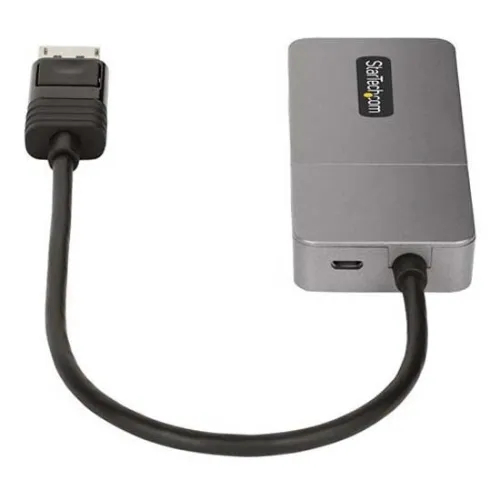

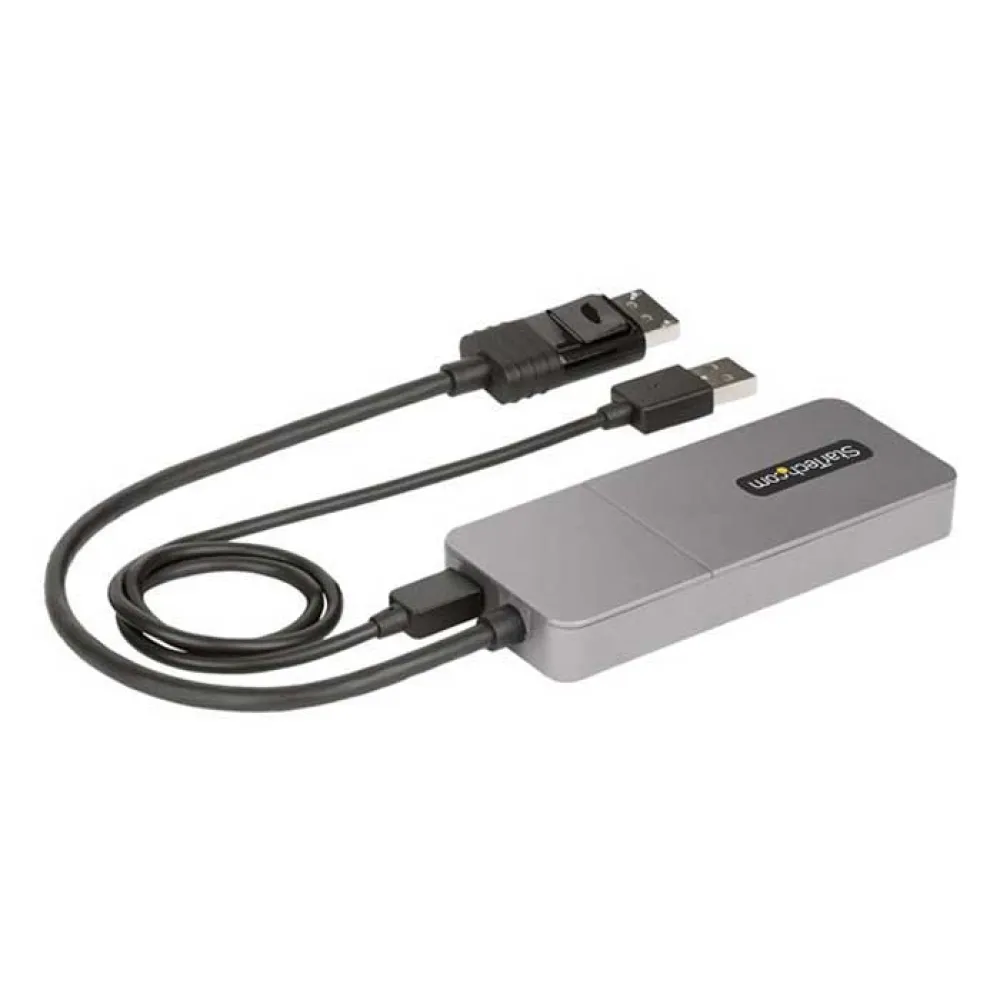

Startech MST14DP123HD docking station

Features:

- Multi-Monitor Setup:

DisplayPort to HDMI MST hub drives up to three 4K 60Hz displays from one DP 1.4 host with DSC.

- USB Powered.

- Supports HDR and HDMI 7.1 Audio -HDCP 2.2.

- Backward compatible with DP 1.2 hosts at lower resolutions.

- No Drivers Or Software:

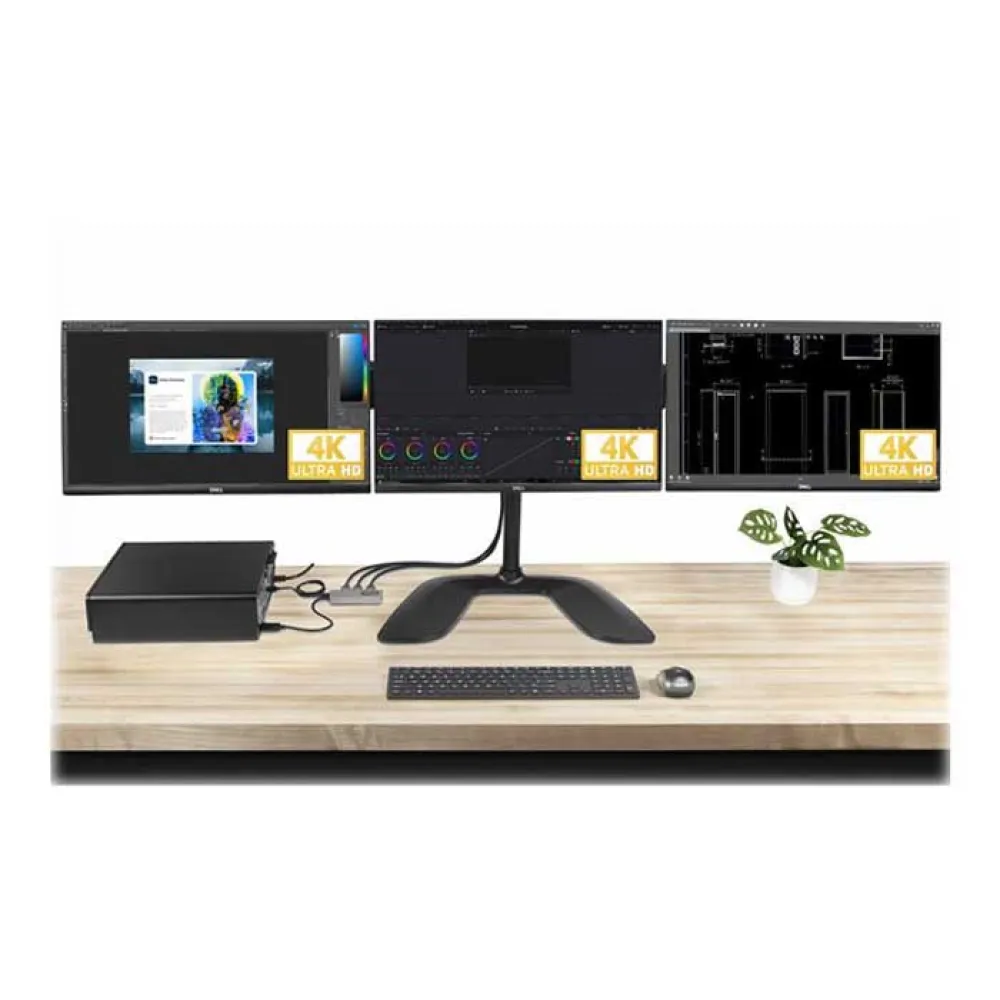

Increase productivity by adding three extended or mirrored displays to a Windows desktop.

- Use integrated or discrete GPU capabilities that enable high-performance graphics with minimal CPU usage.

- Hardware Compatibility:

Windows computers with discrete GPU or 12th Gen and higher Intel processors featuring DP 1.4 with DSC support up to three 4K monitors at 60Hz.

- See resolution table.

- Extra Long Cable:

30cm cable reduces strain on the port, allowing for flexible adapter placement.

- Adapters with short cables do not provide placement flexibility, adding clutter and cables to the workspace.

- Our Advantage:

Connectivity tools included for IT professionals and help desk teams with Windows Layout Utility, which restores Windows application locations when you reconnect the adapter.

Specifications:

- Energy source:

USB.

- Cable length:

0.3 m.

- Connector 1:

DisplayPort.

- Connector 2:

3 x HDMI.

- Gender of connector 1:

Male.

- Gender of connector 2:

Female.

- HDMI version:

2.1.

- DisplayPort Version:

1.4.

- Maximum resolution:

4096 x 2160 Pixels.

- Supported graphic formats:

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160.

- Maximum update speed:

60 Hz.

- Refresh rate at maximum resolution:

60 Hz.

- Integrated circuit:

VMM5310, IT6563FN.

- Supported audio channels:

7.1.

- Supported Windows operating system:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Environmental conditions:

- Operating temperature range:

0.

- 40 °C.

- Storage temperature range:

-40.

- 70 °C.

- Relative humidity range for operation:

5.

- 90% Weight and dimensions:

- Weight:

71 g.

- Broad:

43 mm.

- Depth:

105 mm.

- Height:

14 mm.
