Startech RS232 To RS485/RSS422 adapter

The ic232485s industrial rs232 to rs-422/485 serial converter is a bi-directional adapter that lets you adapt an rs232 data signal to either rs485 (2 or 4-wire) or rs422 and vice-versa, with support for baud rates up to 921.6 kbps.

- Ideal for industrial environments, the serial port converter provides 15kv esd protection on all signal pins to protect costly and often sensitive control equipment against electrical damage.

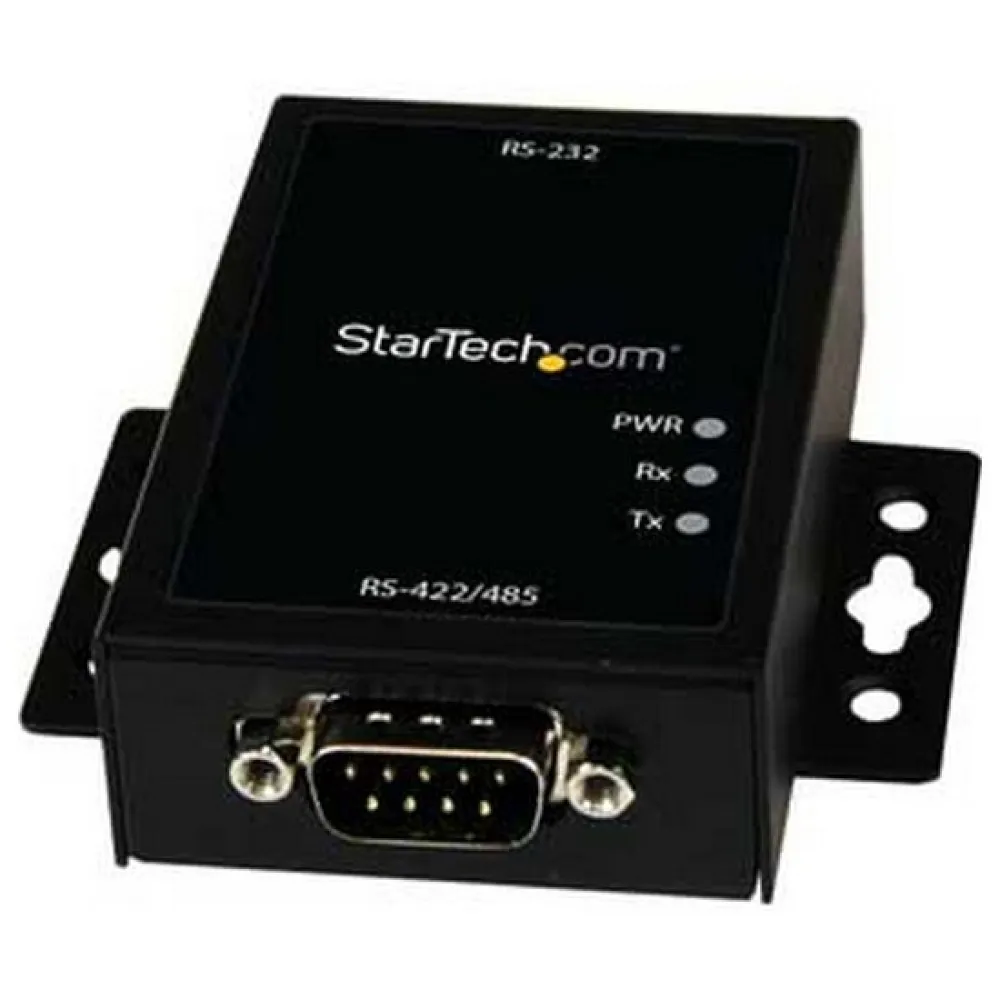

the serial converter also features a sturdy wall-mountable metal housing with power, tx and rx led indicators for simple status monitoring.

- The adapter supports auto baud rate detection as well as rs-422 and rs485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Applications:

- Adapt and connect a scale, meter, scanner or one of several other control peripherals to a computer system with only RS232.

- Monitor or control RS-422/485 serial devices like PLCs and other industrial equipment The StarTech.com Advantage:

- Protect sensitive industrial equipment with integrated ESD protection.

- Communicate efficiently with connected devices through high-speed 921Kbps support.

- Suitable for industrial environments with a rugged, wall-mountable enclosure.

Features:

- RS232 to 2/4-wire RS485 or RS422 conversion.

- Supports RS422 and RS485 auto detect and manual switching.

- ±15KV ESD protection on all signal pins.

- Supports baud rates up to 921.6 Kbps.

- Wall-mountable.

- Supports a maximum connection distance of 4000ft (1200m).

Specifications:

Connector(s):

- 1.

- Connector Type(s):

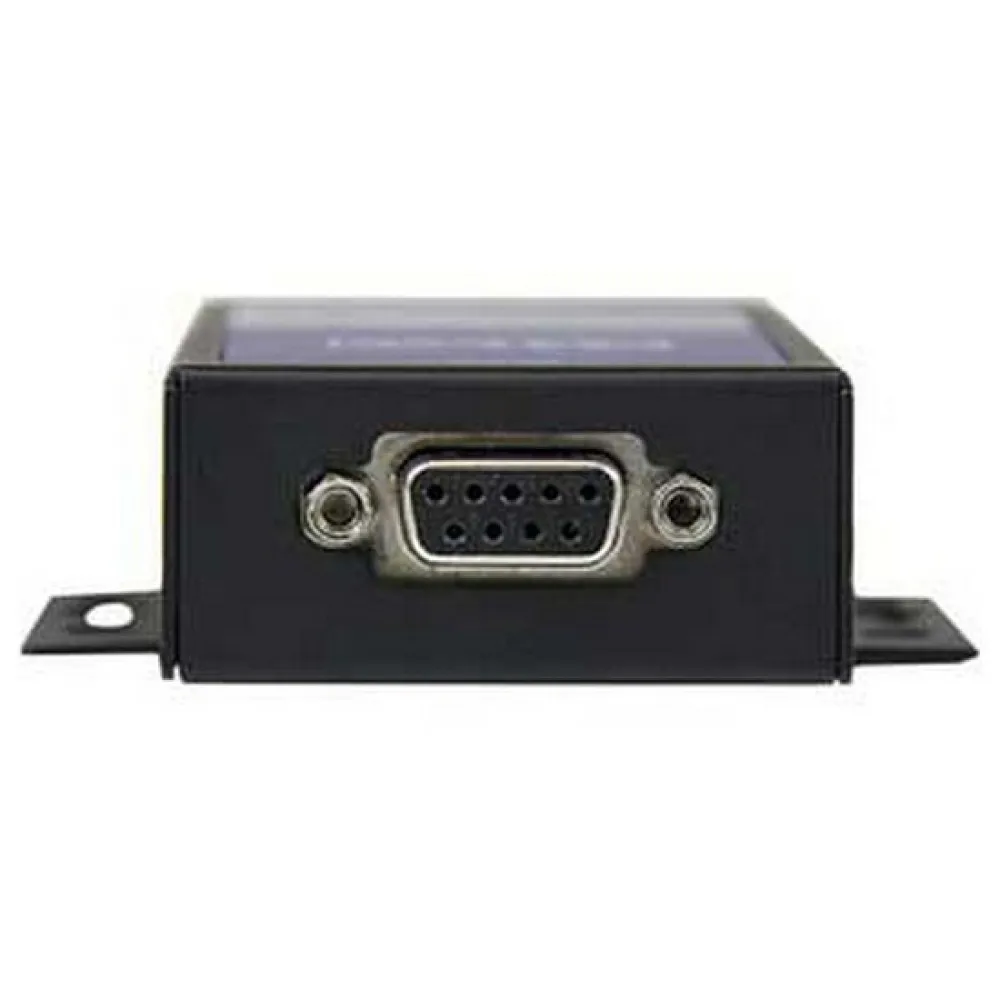

DB-9 (9 pin, D-Sub).

- DB-9 (9 pin, D-Sub) Environmental:

- Operating Temperature:

0°C to 50°C (32°F to 122°F).

- Storage Temperature:

-20°C to 60°C (-4°F to 140°F).

- Humidity:

5~85% RH Hardware:

- Ports:

2.

- Interface:

Serial.

- Port Style:

Cable Adapters Indicators:

- 1.

- LED Indicators:

Power (Green).

- Rx (Yellow):

Tx (Yellow) Packaging Information:

- Package Height:

1.6 in [41 mm].

- Package Length:

5.7 in [14.6 cm].

- Shipping (Package) Weight:

12.4 oz [351 g].

- Package Width:

8.2 in [20.8 cm].

Performance:

- Maximum Cable Length:

3936.0 ft [1200 m].

- Serial Protocol:

RS-232/422/485.

- Max Baud Rate:

921.6 Kbps Physical Characteristics:

- Weight of Product:

5.0 oz [143 g].

- Material:

Steel.

- Product Length:

4.6 in [11.7 cm].

- Product Width:

2.3 in [59 mm].

- Product Height:

0.9 in [22 mm] Power:

- Power Source:

AC Adapter Included.

- Input Voltage:

100.

- 240 AC.

- Input Current:

0.3 A.

- Output Voltage:

5 DC.

- Output Current:

1 A.

- Center Tip Polarity:

Positive.

- Plug Type:

M.

- Power Consumption (In Watts):

5 What´s in the Box:

- 1.

- Included in Package:

RS-232 to RS-422/485 Converter.

- Universal Power Adapter (NA/EU/UK).

- Instruction Manual.
