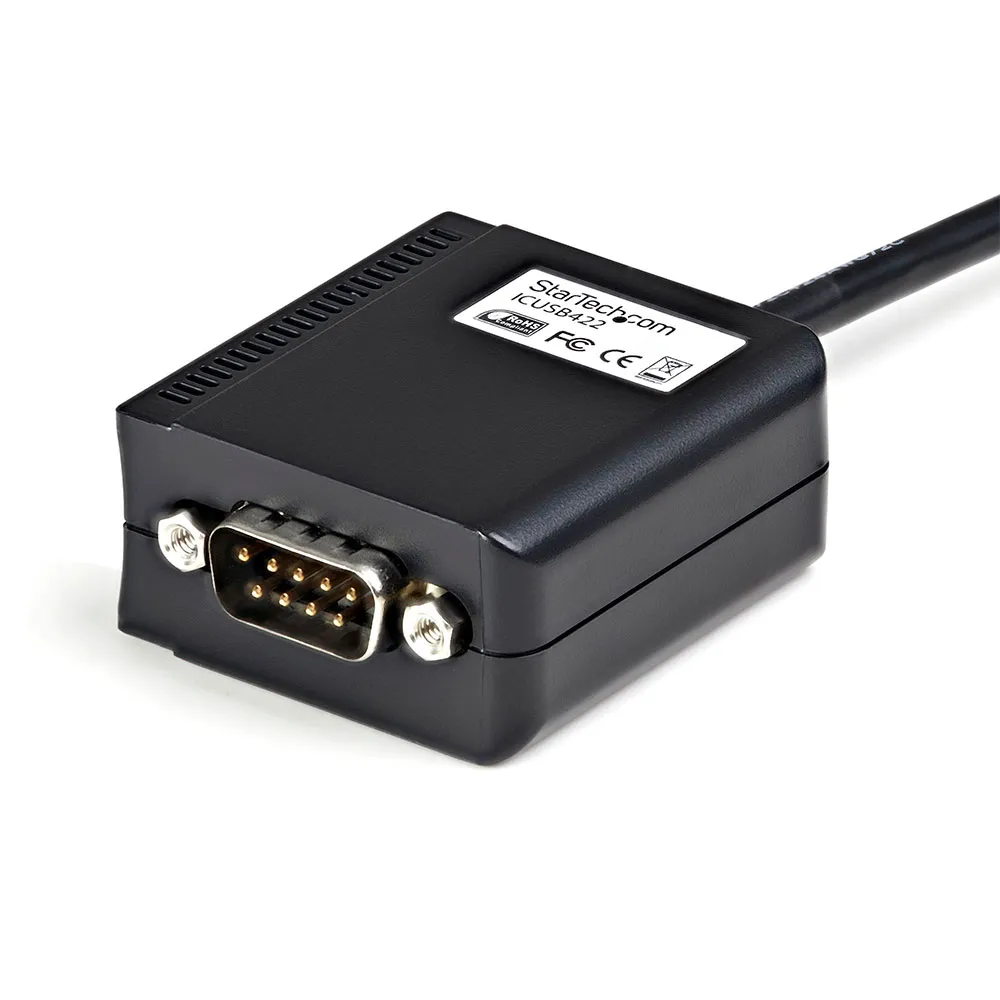

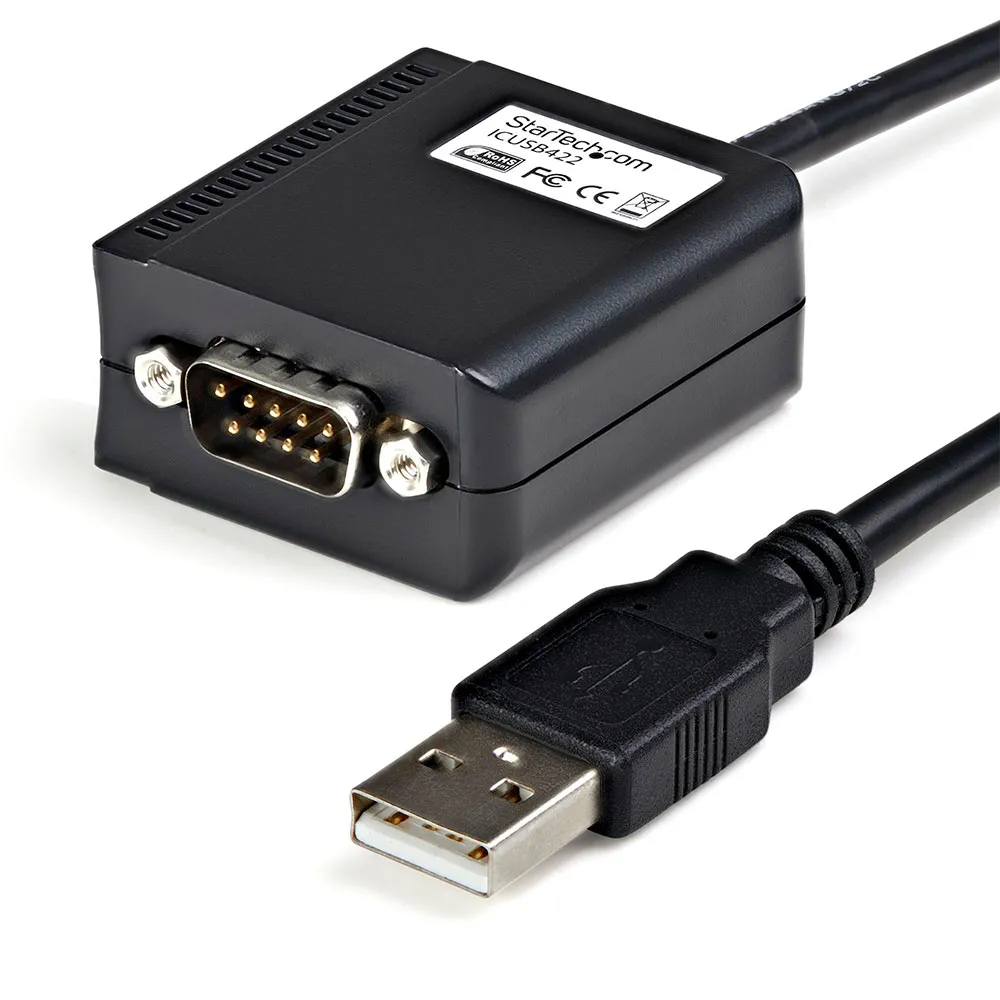

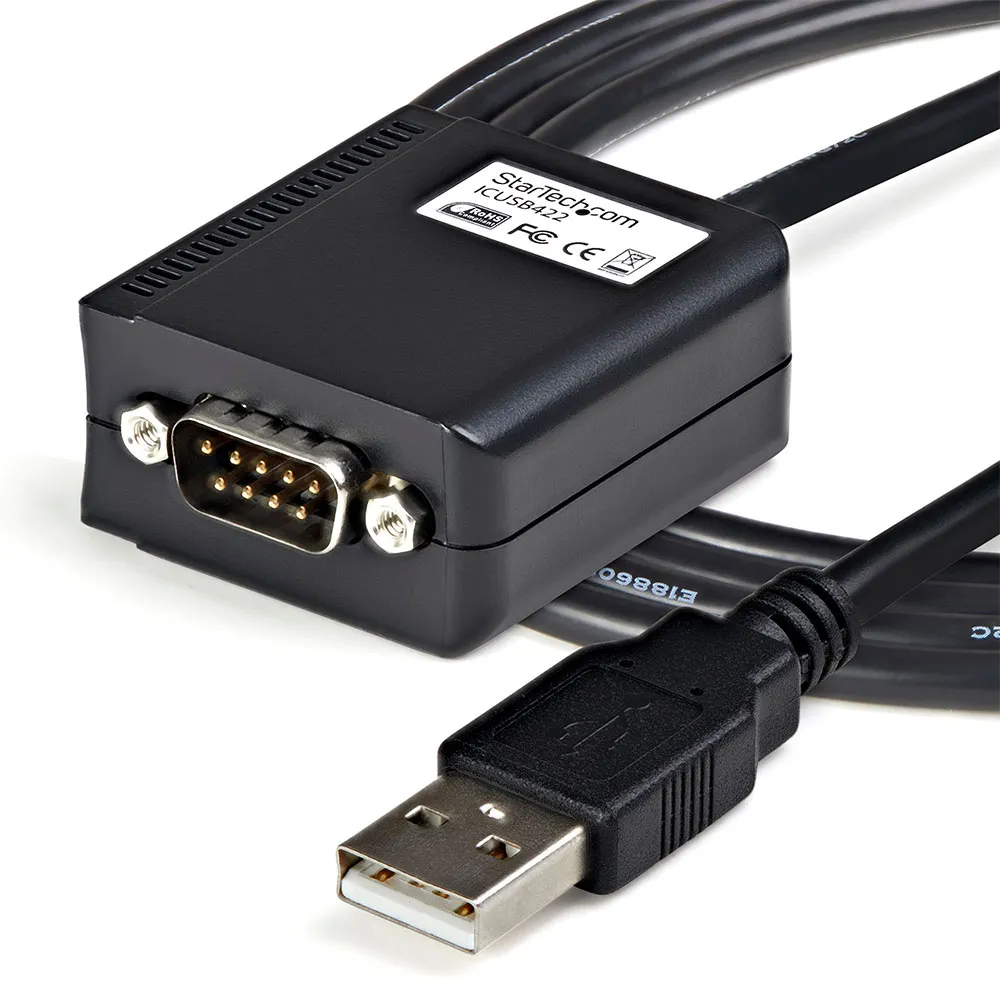

Startech RS422 RS485 USB Serial Cable adapter

StarTech.com RS422/RS485 USB Serial Cable Adapter - 6 ft

Bridge the gap between modern and legacy industrial devices with the professional-grade StarTech.com RS422/RS485 USB Serial Adapter. This robust adapter provides a reliable and high-performance solution for connecting industrial and commercial serial equipment to any computer through a standard USB-A port. It is an essential tool for IT professionals, engineers, and technicians working in automation, security, and point-of-sale environments.

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer.

The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.

The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter.

With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

Unmatched Reliability and Broad Compatibility

Engineered for maximum stability, this adapter incorporates a high-quality FTDI chipset. This industry-leading component ensures broad operating system compatibility, including support for Windows®, macOS, and Linux, guaranteeing a seamless integration into virtually any work environment. The FTDI chipset is renowned for its reliable drivers and consistent performance, preventing the connection dropouts and system conflicts often associated with lesser adapters.

Effortless Configuration and Ultimate Convenience

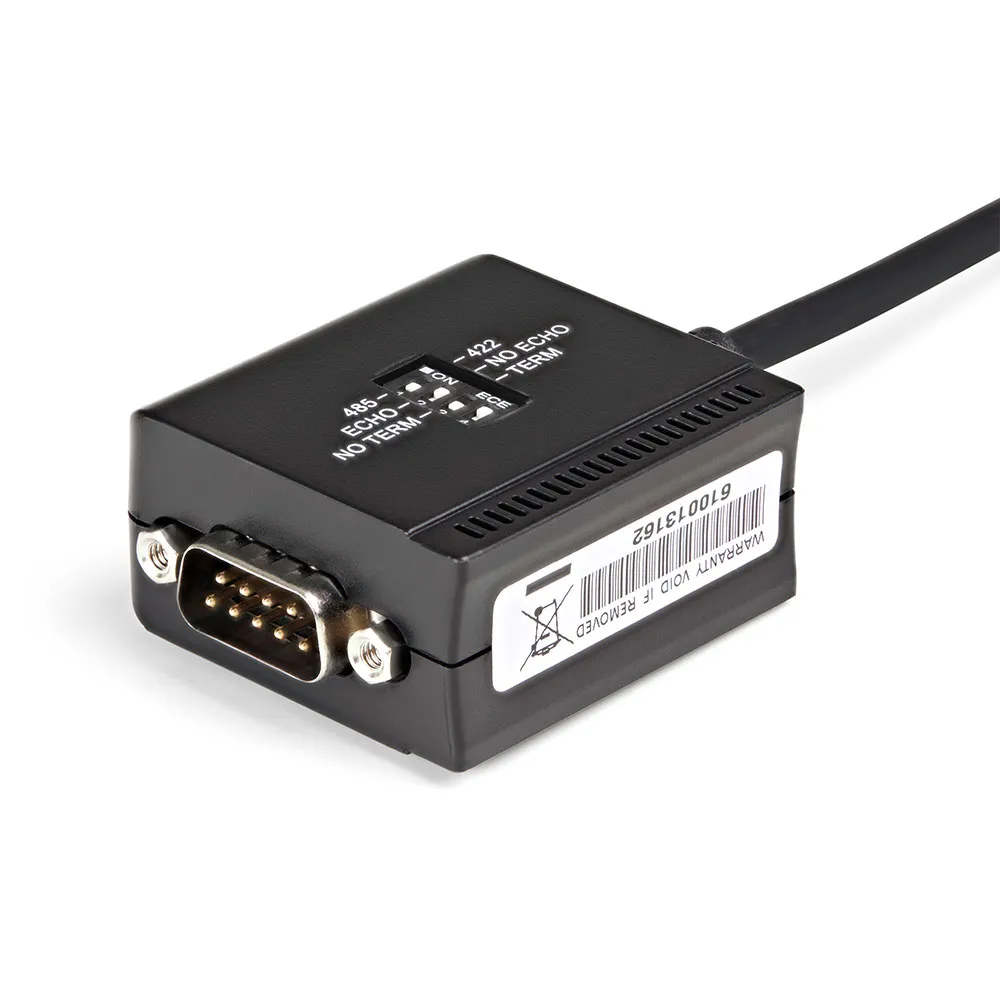

Experience true plug-and-play functionality. The adapter´s intelligent COM Port Retention feature automatically reassigns the same COM port value to the port if the cable is disconnected and reconnected to the host computer, or if the system is rebooted. This eliminates the hassle of reconfiguring your software each time, saving valuable time and frustration, especially in mobile or field applications. Further simplifying setup, the unit is entirely USB-powered, drawing power directly from the host USB-A port and removing the need for a cumbersome external power adapter. Onboard dipswitches provide tactile, straightforward control for switching between RS422 (4-wire) and RS485 (2-wire) modes and managing termination.

High-Speed Performance for Demanding Applications

Designed for performance, this USB to serial adapter supports high-speed data transfer rates of up to 921.6 Kbps. This capability ensures it can handle the communication demands of high-bandwidth devices such as industrial sensors, PLC controllers, security cameras, scientific instruments, and retail scanners without creating a data bottleneck. The integrated 6-foot cable provides ample reach for connecting devices, offering flexibility in your workspace layout.

Main Features
* USB to RS-422/485 Serial Port Conversion
* Integrated high-quality FTDI Chipset for superior reliability
* COM Port Retention saves assigned settings for easy reconnection
* Conveniently powered directly from the host USB port
* Easy-to-configure dipswitches for mode and termination selection
* High-speed data transfer support
* Provides a standard DB9 male serial connector
* Integrated 6 ft (1.8m) connection cable

Technical Specifications

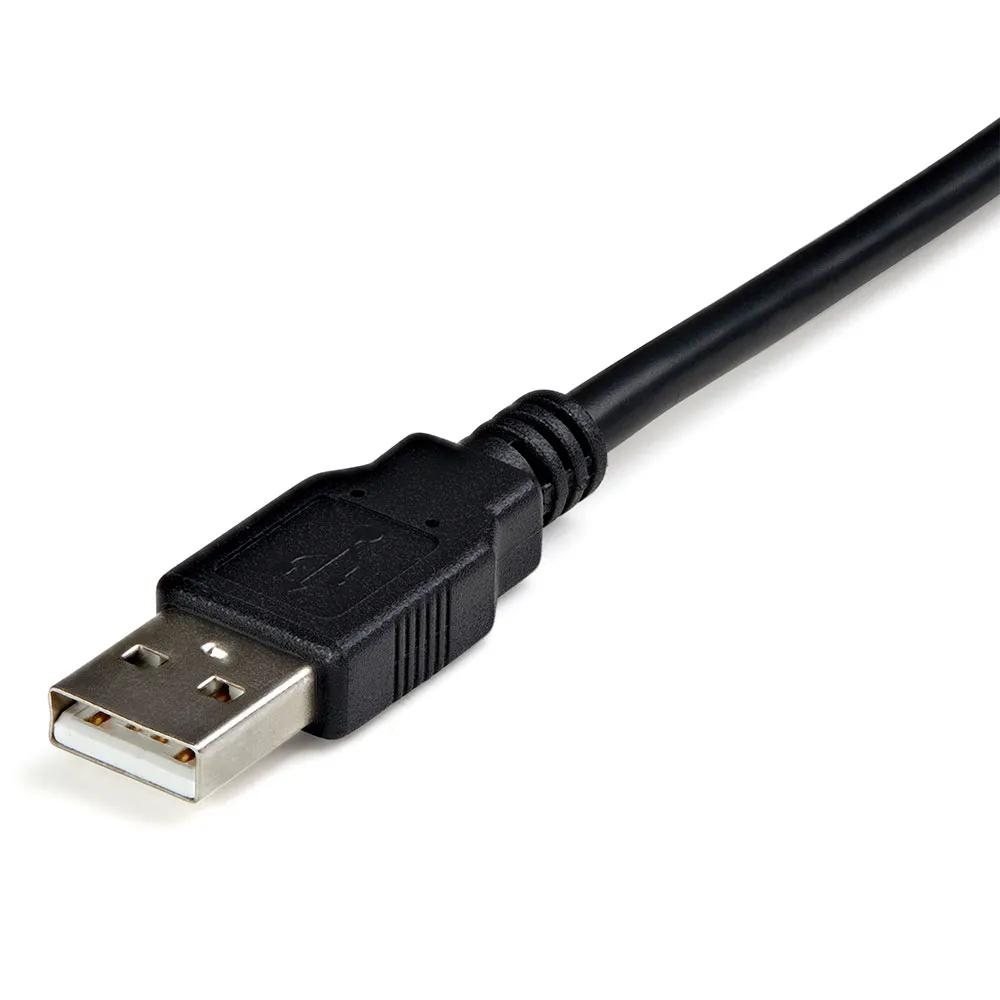

* Host Connector: 1x USB-A (4 pin)
* Device Connector: 1x DB-9 (9 pin) Male
* Interface: Serial
* Chipset ID: FTDI - FT232RL
* Serial Protocol: RS-422, RS-485 (2-wire and 4-wire)
* Max Baud Rate: 921.6 Kbps
* Data Bits: 7, 8
* Parity: None, Odd, Even, Mark, Space
* Stop Bits: 1, 2
* Power Source: USB-Powered
* OS Compatibility: Windows® 7, 8, 8.1, 10, 11; Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019; macOS 10.9 to 10.15, 11.0, 12.0; Linux 2.4.x to 4.11.x (LTS Versions only)
