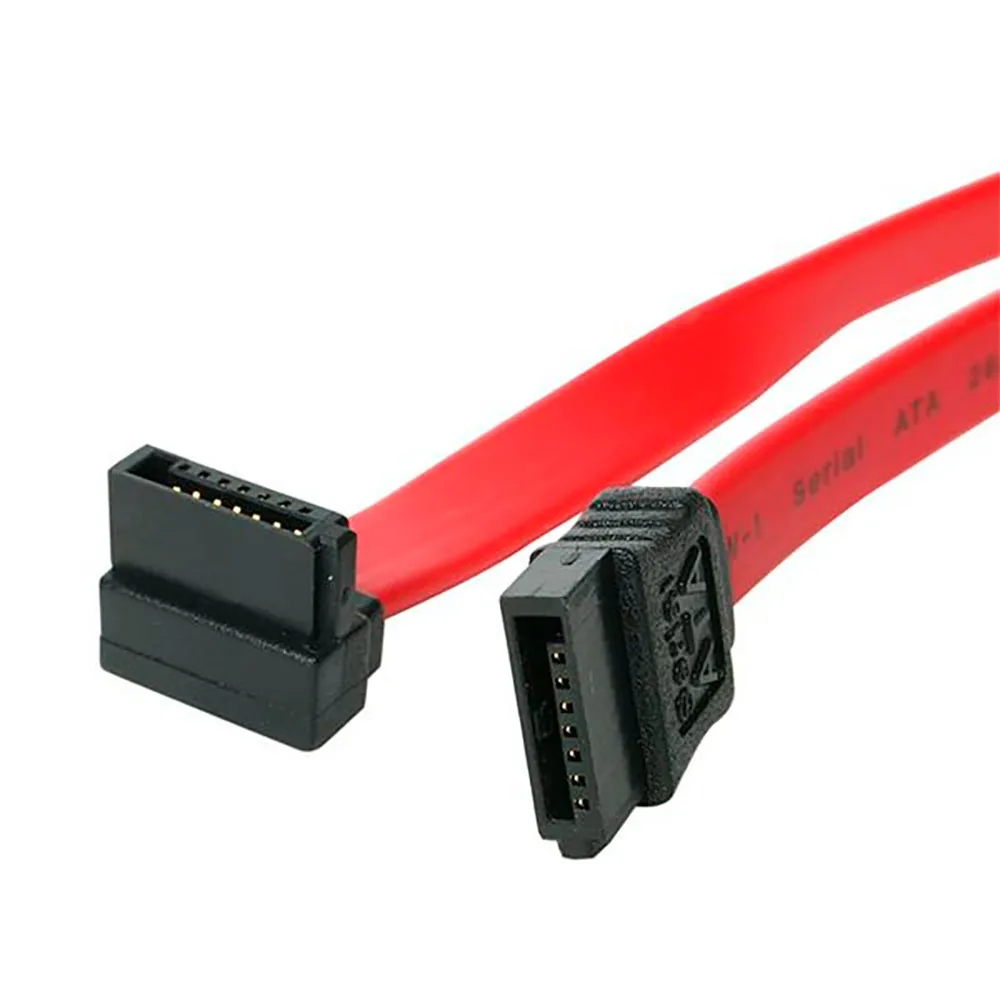

Startech SATA Right Angle Cable 45 cm

The SATA18RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 18-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives. The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool. As an alternative, StarTech.com also offers an 18in Left Angle SATA cable (SATA18LA1), which provides the same simple installation as this right angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.


Features:

- 1x SATA connector
- 1x Right-angled/90-degree SATA connector
- Supports full SATA 3.0 6Gbps bandwidth

Applications:
- Installing Serial ATA hard drives, and DVD drives in Small Form Factor computer cases
- Server and storage subsystem applications
- High-end workstation drive installations
- Connections to SATA Drive Arrays


Specifications:

Connector(s):
- 1 - Connector A: SATA (7 pin, Data)
- 1 - Connector B: SATA (7 pin, Data)

Environmental:
- Operating Temperature: 20°C to 80°C (68°F to 176°F)
- Storage Temperature: 24°C to 25°C (75.2°F to 77°F)
- Humidity: 50% relative humidity

Hardware:
- Cable Jacket Material:PVC - Polyvinyl Chloride

Packaging Information:
- Package Height: 0.0 in [0.6 mm]
- Package Length: 5.0 in [12.8 cm]
- Shipping (Package) Weight: 0.7 oz [19.0 g]
- Package Width: 8.6 in [22.0 cm]

Performance:
- Type and Rate: SATA III (6 Gbps)

Physical Characteristics:
- Product Height: 0.0 in [0.0 mm]
- Weight of Product: 0.5 oz [14.0 g]
- Product Width: 0.0 in [0.0 mm]
- Connector Style: Straight to Right Angle
- Cable Length: 18.0 in [45.7 cm]
- Product Length: 18.0 in [45.7 cm]

What´s in the Box:
- 1 - Included in Package: 18in SATA to Right Angle SATA Serial ATA Cable
