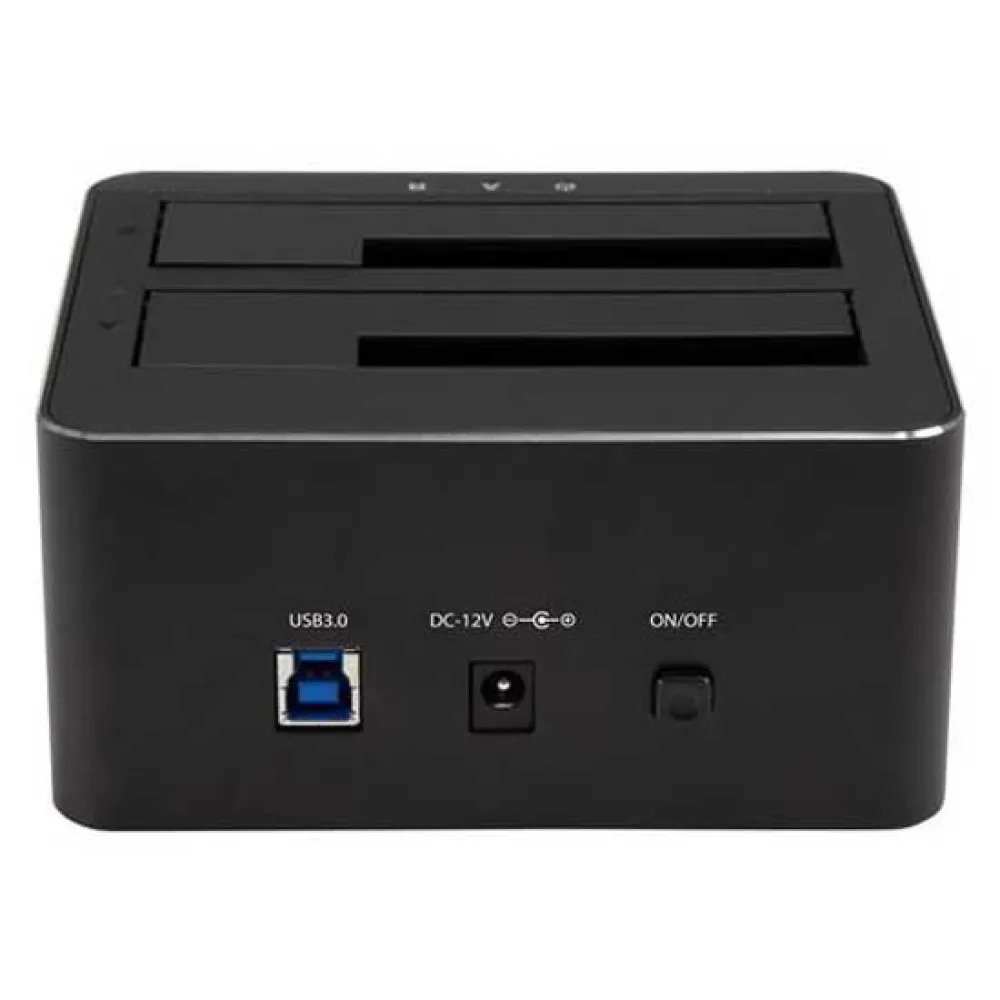

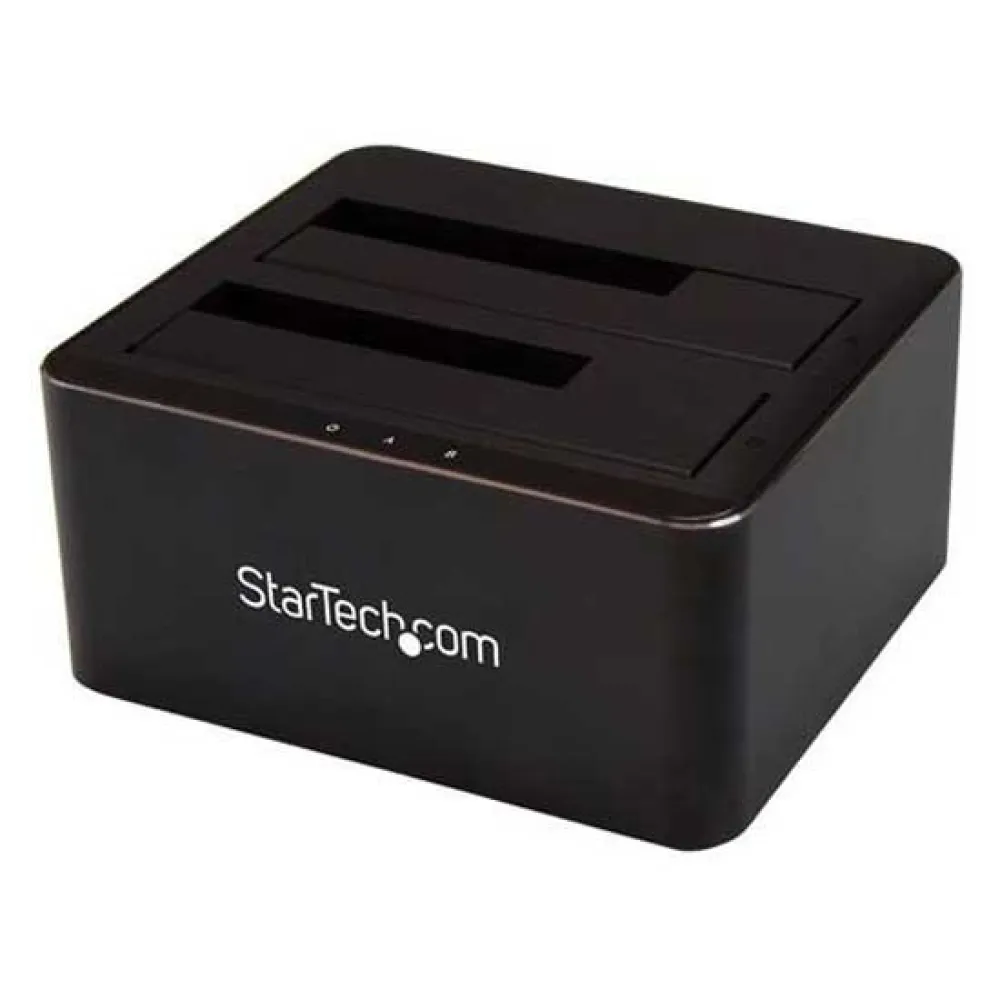

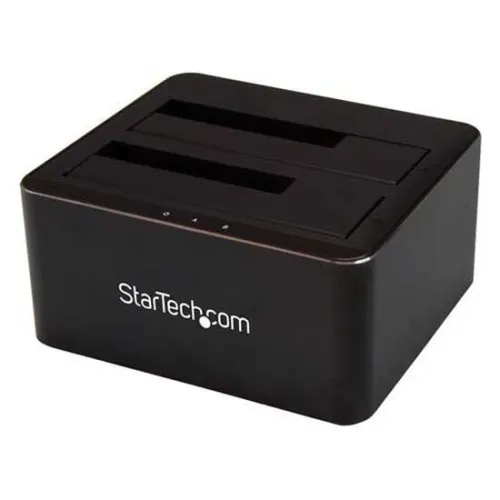

Startech SDOCK2U33V 2.5/3.5´´ HDD Docking Station

This dual-bay SATA HDD/SSD docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port.

It supports two 2.5/3.5´´ SATA hard drives or solid-state drives.

Transfer files quickly:

- The dual-bay docking station supports USB 3.0, also known as USB 3.1 Gen 1, providing fast data transfer speeds of up to 5Gbps.

It also supports UASP, for enhanced performance.

Ideal for IT professionals, such as system administrators and technicians, the hard drive dock enables you to complete device-management tasks more efficiently, such as disk image duplication, data recovery, backing up and archiving hard drives, and transferring content between drives and devices.

It also enhances your workflow, by providing quick access to your hard drives, with the ability to easily swap drives in and out as needed.

Easy drive access:

- Designed for easy drive access, the hard drive dock enhances your workflow, by providing quick access to two hard drives, with the ability to easily swap drives in and out as needed.

The hard drive dock features a convenient top-loading design with independent drive doors that make it easy to add or remove drives.

Get up and running quickly:

- The dual-bay SATA HDD/SSD docking station is OS independent, with no drivers or software installation required, for easy setup.

The SDOCK2U33V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications:

- Ideal for system builders and other IT specialists who need quick access to drives for imaging.

- Backup data quickly to an external drive for archiving.

- Transfer data from one hard drive to another.

- Backup important data and easily take the drive to an offsite location for safekeeping.

Features:

- Access two 2.5/3.5´´ SATA hard drives (HDD) or solid state drives (SSD) simultaneously and hot swap drives in and out.

- USB 3.0 with data transfer speeds of up to 5Gbps.

- Convenient top-loading design with independent drive doors.

- Plug-and-play functionality.

- Easy to set up with no driver or software installation required.

Specifications:

Compatibility:

- OS Independent logo:

OS independent.

No software or drivers required Connector(s):

- 2.

- Drive Connectors:

SATA Data & Power Combo (7+15 pin).

- 1.

- Host Connectors:

USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) Environmental:

- Operating Temperature:

5°C to 35°C (41°F to 95°F).

- Storage Temperature:

-20°C to 50°C (-4°F to 122°F).

- Humidity:

20%RH~80%RH Hardware:

- Interface:

USB 3.0.

- Bus Type:

USB 3.0.

- Number of Drives:

2.

- Drive Size:

2.5in & 3.5in.

- Compatible Drive Types:

SATA.

- Drive Installation:

Removable.

- Chipset ID:

ASMedia.

- ASM1153E Indicators:

- LED Indicators:

drive activity LED.

- LED Indicators:

power LED Packaging Information:

- Shipping (Package) Weight:

27.6 oz [782.0 g].

- Package Length:

5.3 in [13.5 cm].

- Package Width:

4.9 in [12.5 cm].

- Package Height:

4.7 in [12.0 cm].

Performance:

- Type and Rate:

USB 3.0.

- 5 Gbit/s.

- UASP Support:

Yes.

- TRIM Support:

Yes.

- 4Kn Support:

Yes.

- S.M.A.R.T.

Support:

Yes.

- Type and Rate:

SATA III (6 Gbps).

- Max Drive Capacity:

Currently tested with hard drives up to 10TB at 7200 RPM Physical Characteristics:

- Material:

Aluminum and Plastic.

- Product Length:

4.5 in [11.4 cm].

- Product Width:

5.1 in [13.0 cm].

- Product Height:

2.4 in [62.0 mm].

- Weight of Product:

13.1 oz [370.0 g] Power:

- Power Source:

AC Adapter Included.

- Input Voltage:

100.

- 240 AC.

- Input Current:

1.5 A.

- Output Voltage:

12V DC.

- Output Current:

3 A.

- Center Tip Polarity:

Positive.

- Plug Type:

M.

- Power Consumption (In Watts):

36 Software:

- OS Compatibility:

OS independent.

No software or drivers required Special Notes / Requirements:

- Note:

Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

What´s in the Box:

1.

- Included in Package:

- drive docking station.

- 1.2 m USB 3.0 cable.

- universal power adapter (NA/JP, UK, EU, ANZ).

- quick-start guide.
