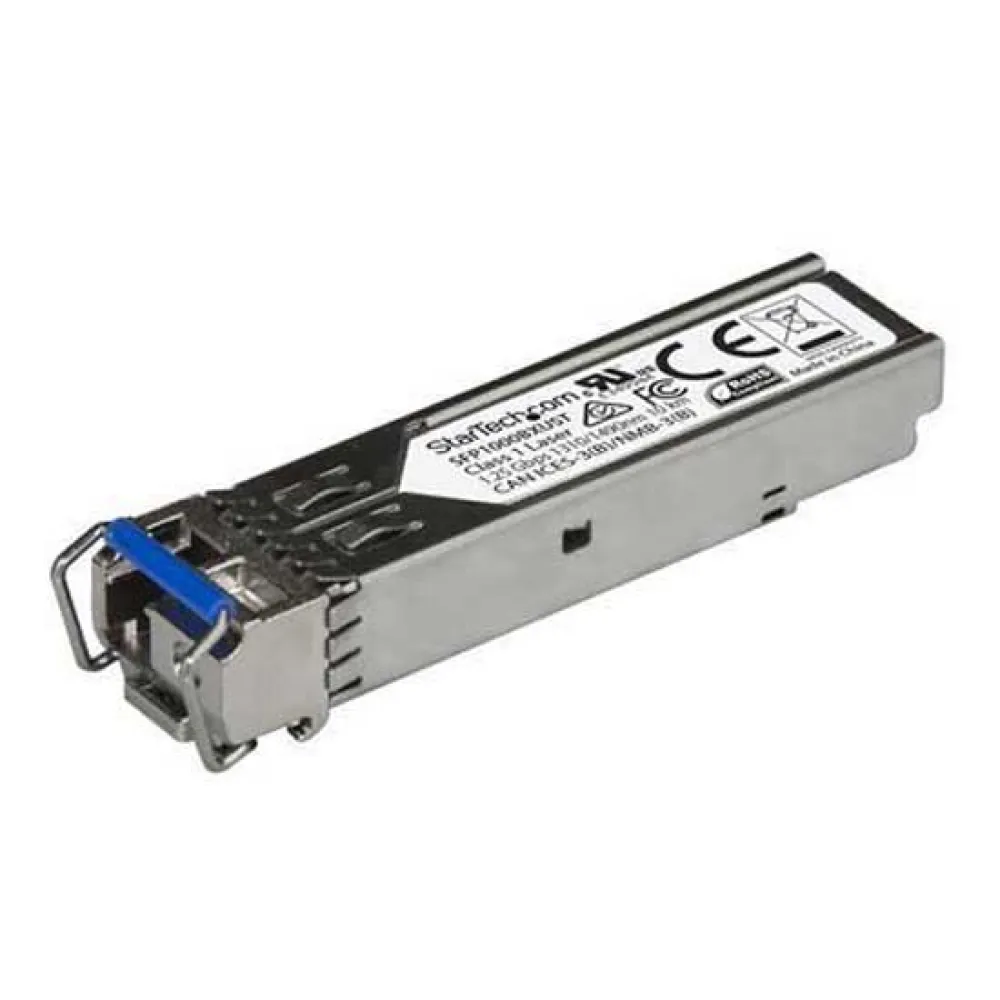

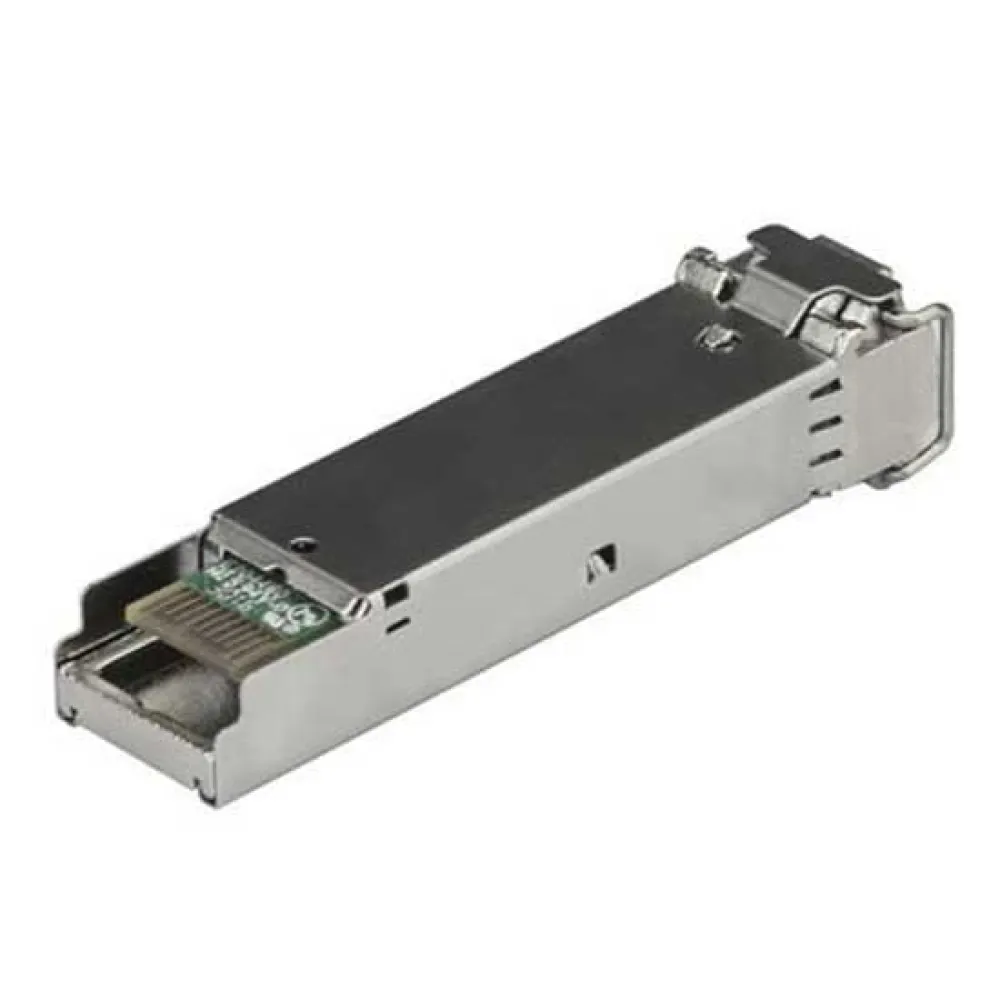

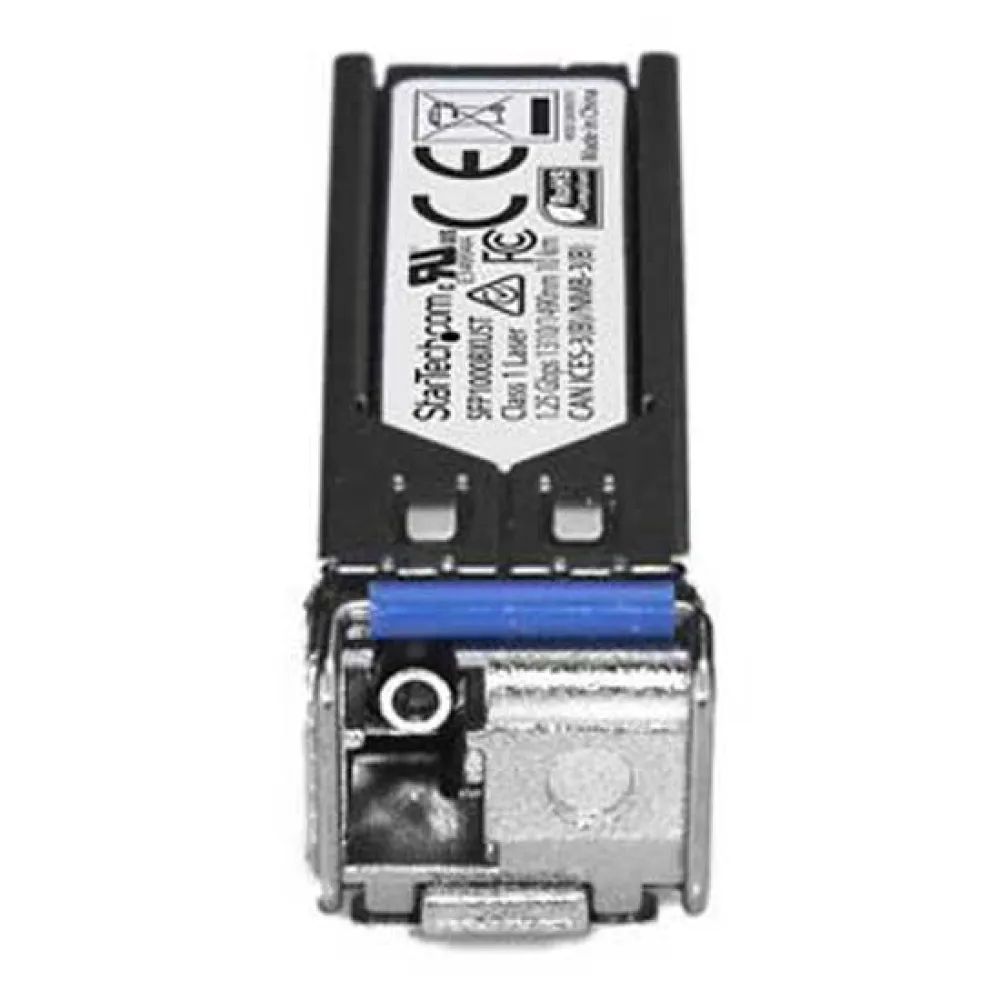

Startech SFP1000BXUST fiber optic converter

EU Plug.

1000 Mbps (1 Gbps) Single Mode Fiber LC 10 km (6.2 mi) Lifetime Warranty.

The SFP1000BXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com´s SFP1000BXDST.

They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers.

The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical.

Specifications:

• Wavelength:1310nmTx/1490nmRx.

• Maximum Data Transfer Rate:1.25 Gbps.

• Type:Single Mode Fiber.

• Connection Type:LC Connector.

• Maximum Transfer Distance:10 km (6.2 mi).

• Power Consumption:Less than 1 Watt.

• DDM:Yes.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs.

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support.

StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage.

StarTech.com MSA Compliant SFP Transceiver Module.

- 1000BASE-BX~MSA Uncoded SFP Transceiver Module.

- 1000BASE-BX.

- 1 GbE Gigabit Ethernet BiDi Fiber (SMF).

SFP transceiver type:Fiber optic, Maximum data transfer rate:1250 Mbit/s, Interface type:SFP.

Product colour:Silver, Housing material:Aluminium.

Power consumption (typical):1 W.

Compliance certificates:RoHS, Certification:CE, FCC, UR.

Width:14 mm, Depth:57 mm, Height:13 mm.

MSA UNCODED SFP TRANSCEIVER:1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 1GbE connectivity.

INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE:This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.

TECHNICAL SPECS:1000BASE-BX / 1Gbps / 1G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1310nmTx/1490nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi).

WORKS WITH MSA COMPLIANT SWITCHES:Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules.

THE IT PRO´S CHOICE:Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
