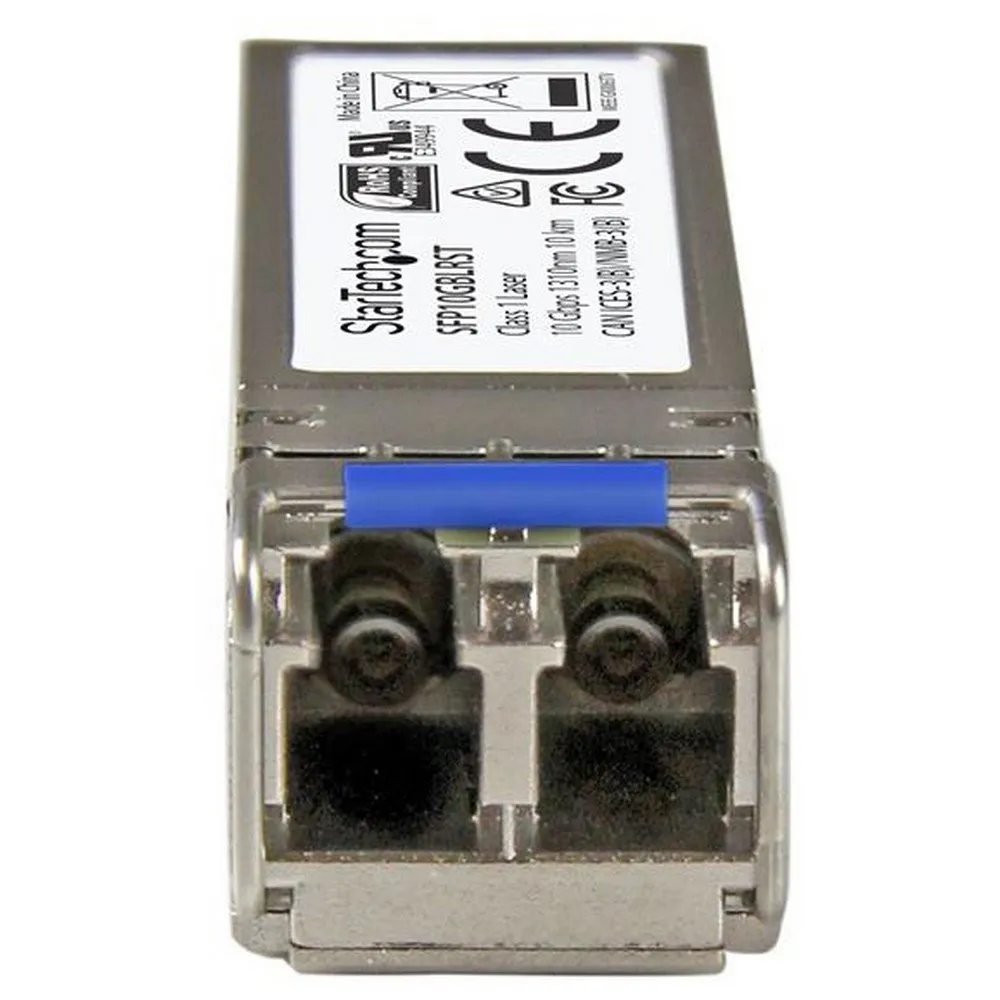

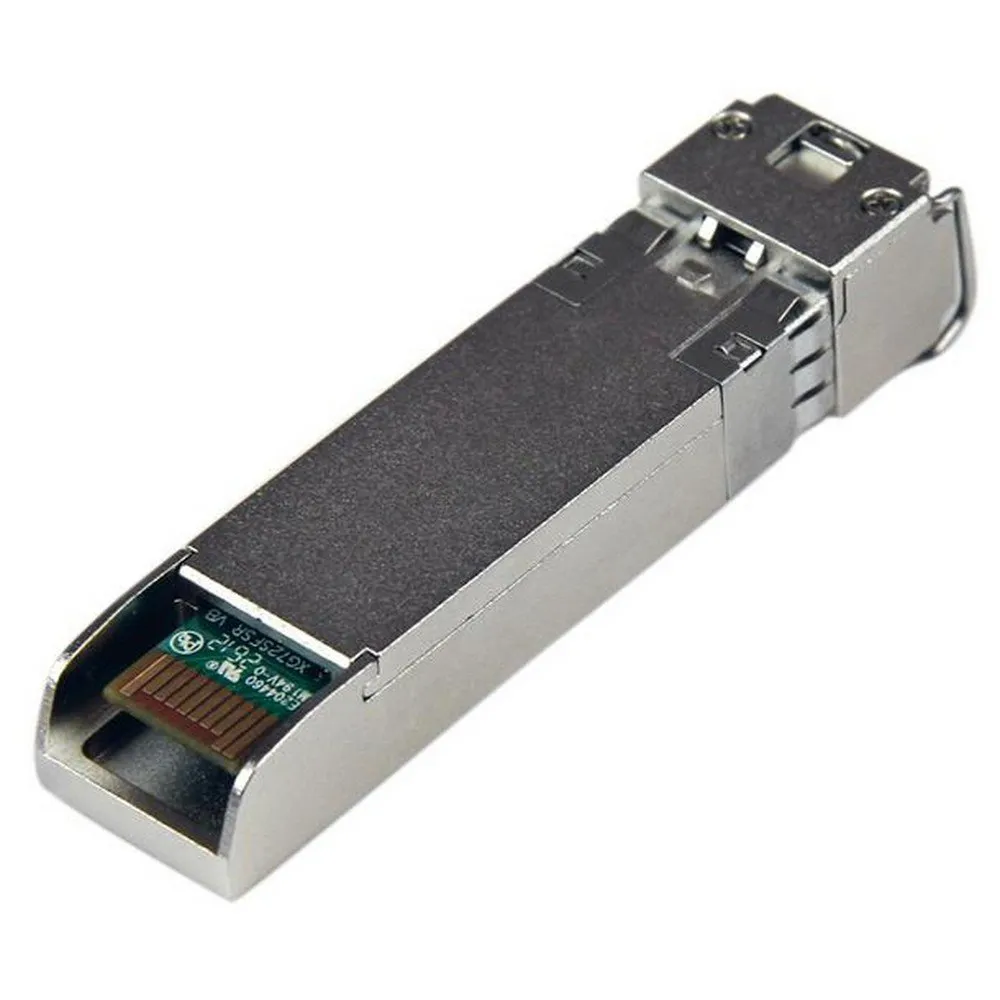

Startech SFP10GBLRST transceiver

The SFP10GBLRST is an MSA compliant fiber SFP transceiver that´s designed, programmed and tested to work with 10GBASE-LR compatible MSA switches and routers.

The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs:

- All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support.

StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage:

- 100% MSA UNCODED SFP+ TRANSCEIVER:

Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity.

- TECHNICAL SPECS:

10GBASE-LR.

- 10Gbps.

Specifications:

Performance:

- SFP transceiver type:

Fiber optic.

- Maximum data transfer rate:

10000 Mbit/s.

- Interface type:

SFP+.

- Single-mode fiber (SMF) supported:

Yes.

- Fiber optic connector:

LC.

- SFP transceiver standard:

LR.

- Maximum transfer distance:

10000 m.

- Wavelength:

1310 nm.

- Networking standards:

IEEE 802.3ae.

- Duplex system:

Full.

- Digital Diagnostics Monitoring (DDM):

Yes.

- Wavelength-division multiplexing (WDM):

No.

Features:

- Housing material:

Aluminium.

- Hot-Plug support:

Yes.

-.

Certification:

CE, FCC, UR Power:

- Power consumption (typical):

1.3 W Operational conditions:

- Operating temperature (T-T):

0.

- 70 °C.

- Storage temperature (T-T):

-40.

- 85 °C.

- Operating relative humidity (H-H):

5.

- 95% Weight & dimensions:

- Width:

13.9 mm.

- Depth:

58.4 mm.

- Height:

12.6 mm.

- Weight:

22 g Packaging data:

- Number of products included:

1 pc(s).

- Package width:

90 mm.

- Package depth:

115 mm.

- Package height:

30 mm.

- Package weight:

52 g Technical details:

- Sustainability certificates:

RoHS Logistics data:

- Master (outer) case width:

32 cm.

- Master (outer) case length:

40.5 cm.

- Master (outer) case height:

32 cm.

- Quantity per master (outer) case:

80 pc(s).
