Startech UNIDOCKU33 HUB 3.0 HDD/SSD Docking Station

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE.

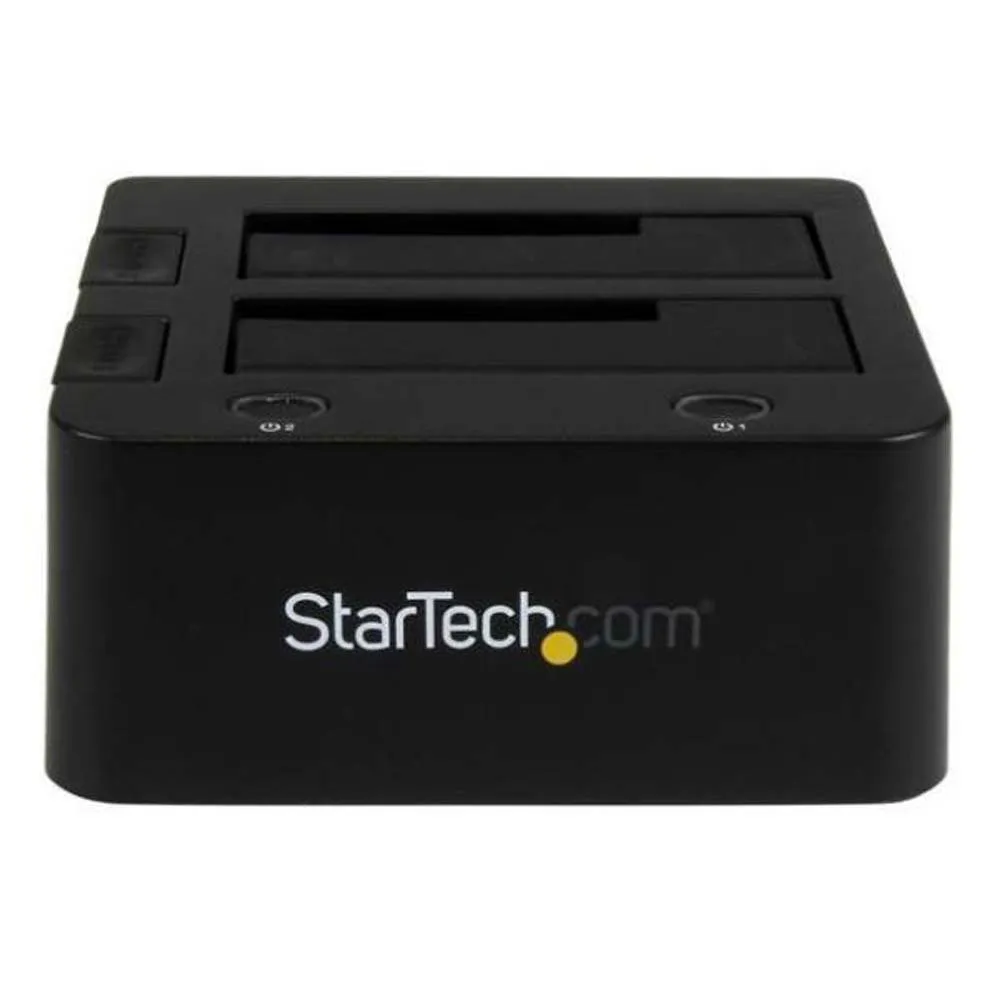

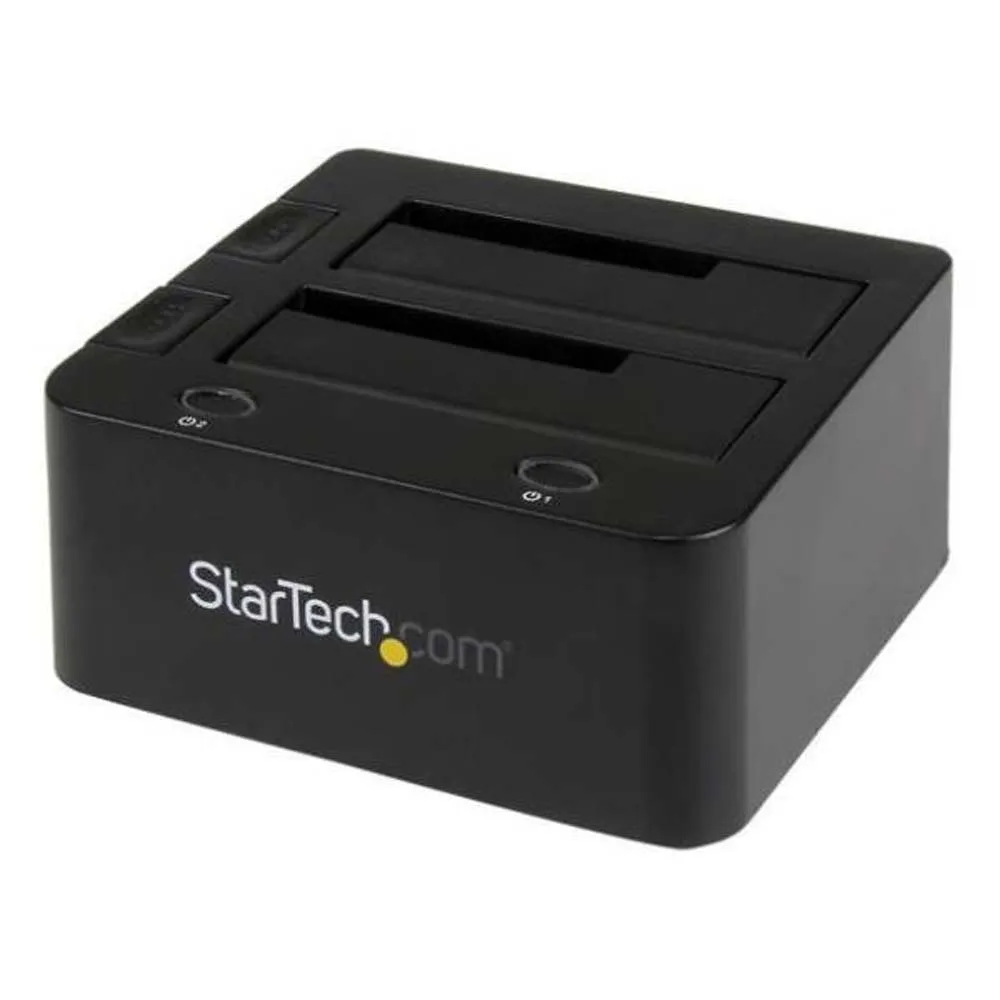

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots.

saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol).

this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps).

solid state drives (SSD) and hybrid.

drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.

See our UASP testing results below for further details.

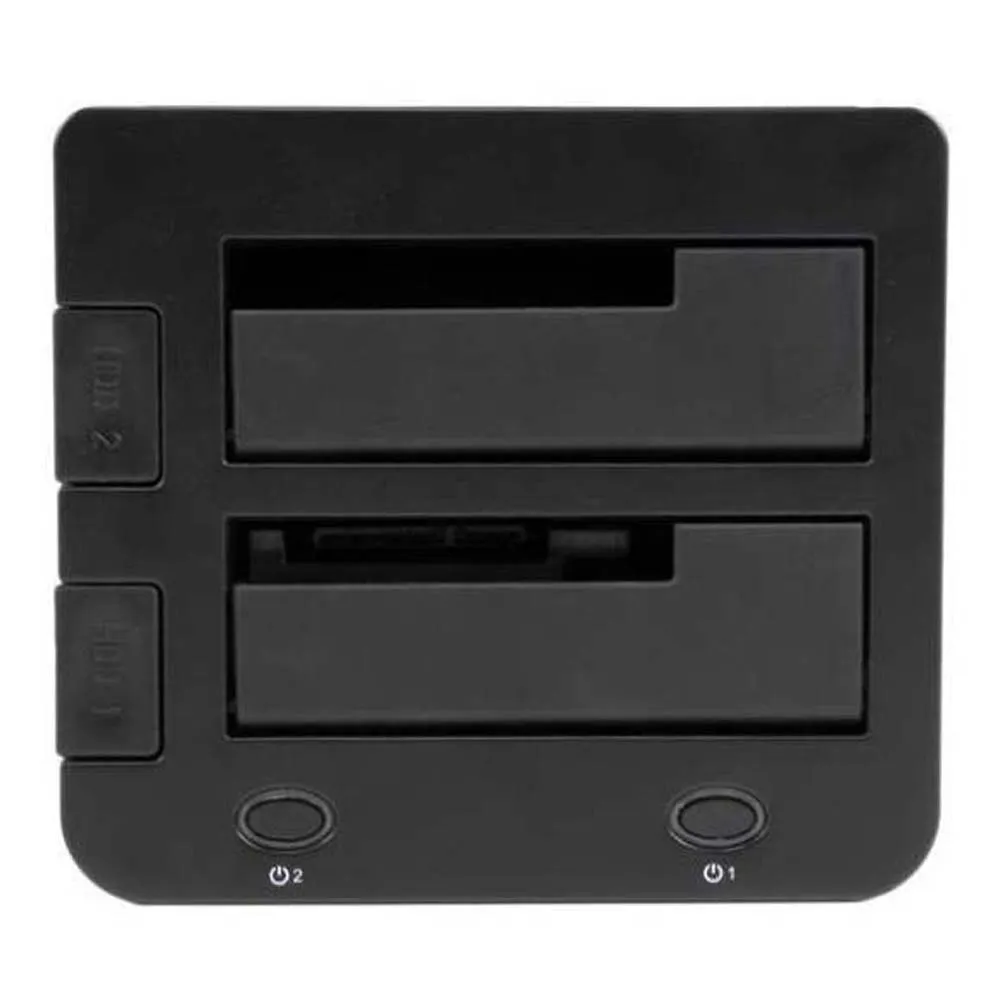

The slot-loading design holds the SATA and IDE drives upright inside the docks.

neatly keeping them off the desk.

for convenience and a clutter-free setup.

For SATA drives.

the HDD can be inserted and connected directly through the designated dock slot.

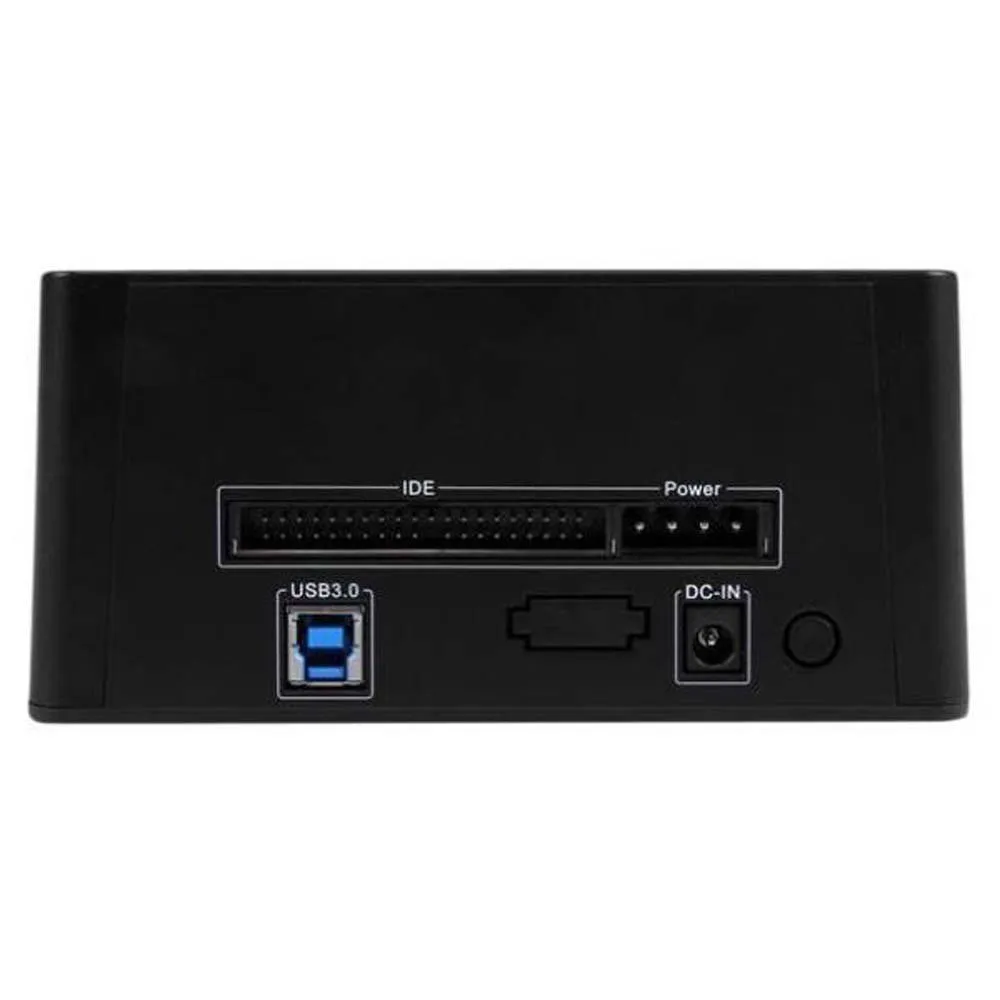

while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections.

making it easy to connect to the dock using the included IDE data and power cables.

A single USB 3.0 connection to your host computer.

enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa.

The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5´´ and 2TB 2.5´´ drives).

The UNIDOCKU33 is backed by a StarTech.

Improved Performance with UASP.

UASP is supported in Windows 8.

Mac OSX (10.8 or above).

and Linux.

In testing.

UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system.

a UASP-enabled StarTech.com Enclosure.

and a SATA III solid state drive.StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station.

USB Hard Drive Dock.

External 2.5/3.5´´ SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station.

Hot-Swap Hard Drive Bays.

Top-Loading.

Storage media type:HDD.

SSD.

Storage drive interface:Parallel ATA (IDE).

Serial ATA.

Serial ATA II.

Serial ATA III.

Storage drive sizes supported:2.5.

5´´.

Host interface:USB 3.2 Gen 1 (3.1 Gen 1) Type-B.

Product colour:Black.

Material:Plastic.

Maximum data transfer rate:5 Gbit/s.

AC input voltage:110-240 V.

Input current:1.3 A.

Output voltage:12 V.

Width:130 mm.

Depth:147 mm.

Height:70 mmHARD DRIVE DOCKING.

STATION:This 2-bay hard drive dock enables access to 2.5/3.5´´ SATA and IDE hard drives for file backup.

disk imaging.

or data transfer over USB 3.2 Gen 1 (5 Gbps).

Toolless design facilitates quick drive hot-swapping.

DRIVE COMPATIBILITY:Supports 2.5/3.5´´ SATA I/II/III SSDs/HDDs and IDE HDDs (40 pin.

EIDE/PATA).

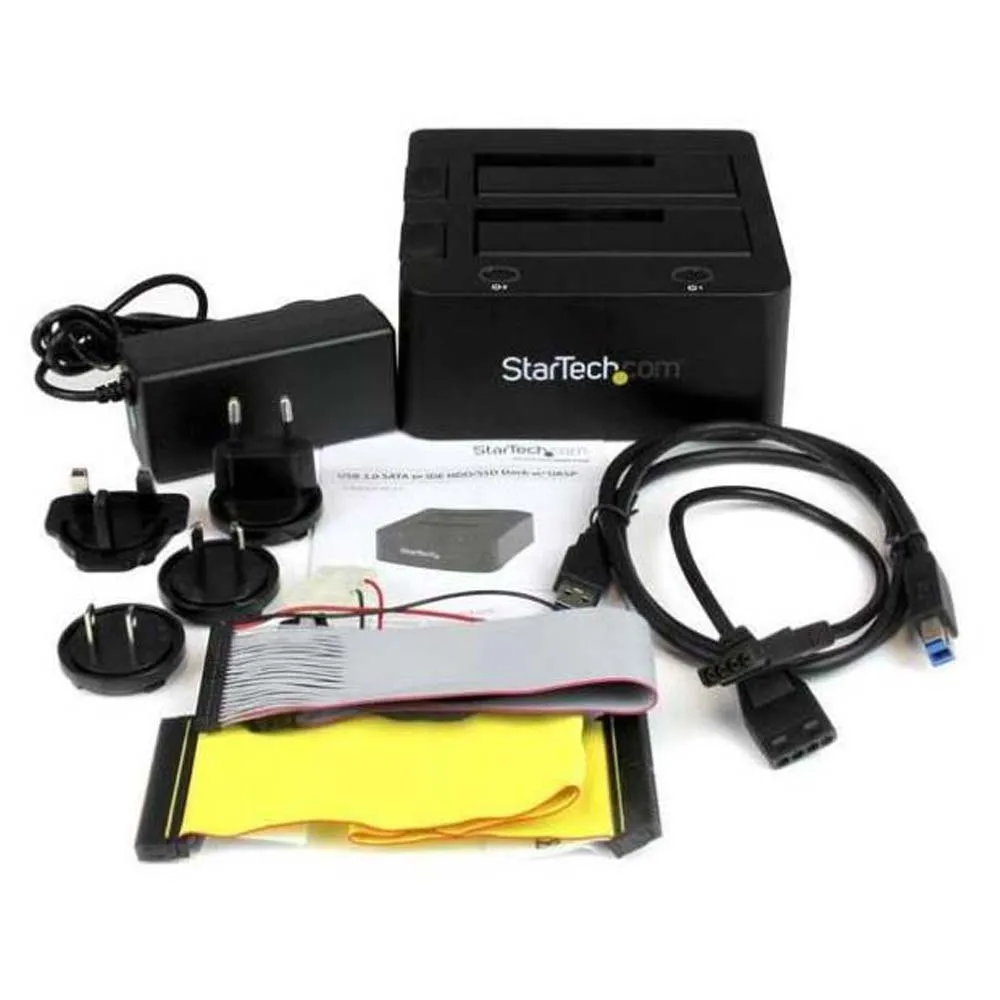

OS independent - Includes 4.7´´ (12cm) IDE.

LP4.

and 3ft (1m) USB-A cables and universal power adapter.

PERFORMANCE:Power and eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use.

Dedicated slots for SATA (slot 1).

and IDE (slot 2).

Drive bays with 15.

00 insertion/removal cycle rating for maximum durability.

SPECS:2-Bay Hard Drive Dock.

SATA I/II/III and IDE (40 pin.

EIDE/PATA 66/100/133 MBps).

USB 3.2 Gen 1 (5 Gbps) Host Connection.

Toolless Design.

Hot-Swappable Drive Bays.

Top-Loading with Eject Button.

LED Activity Lights
