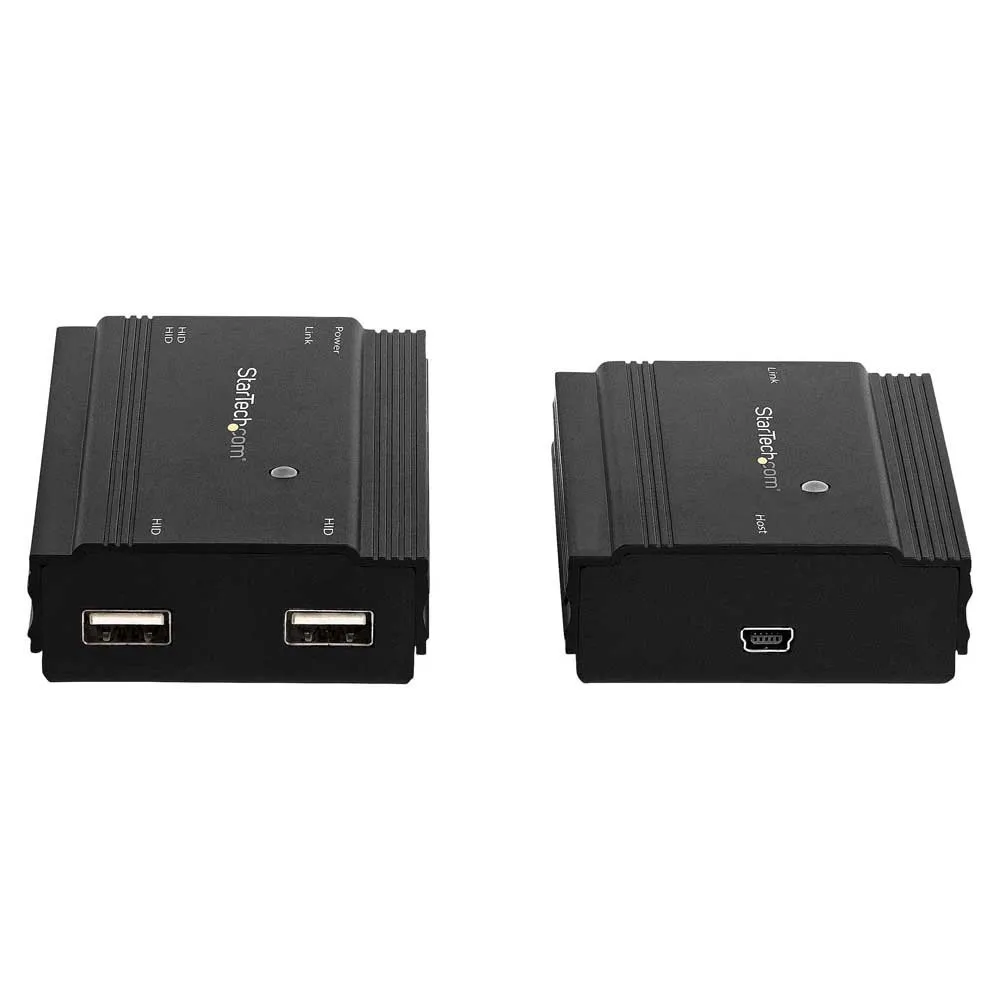

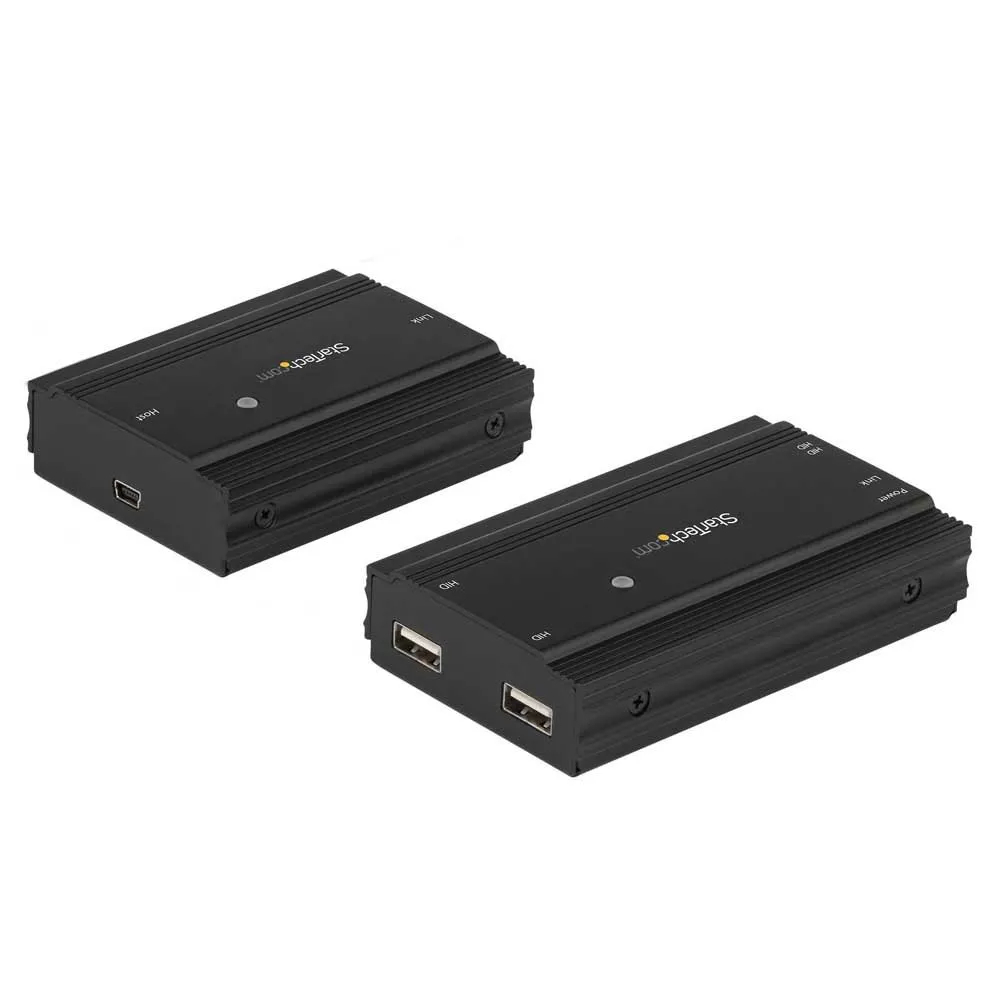

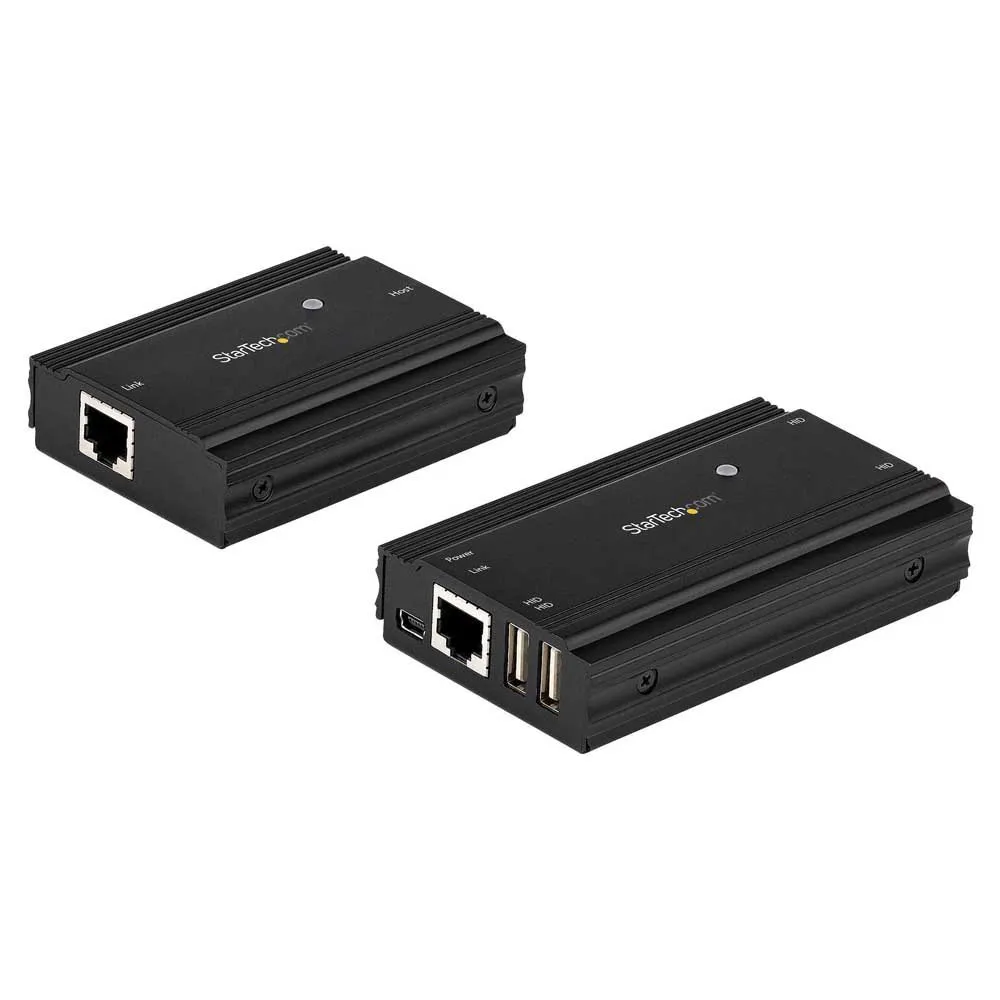

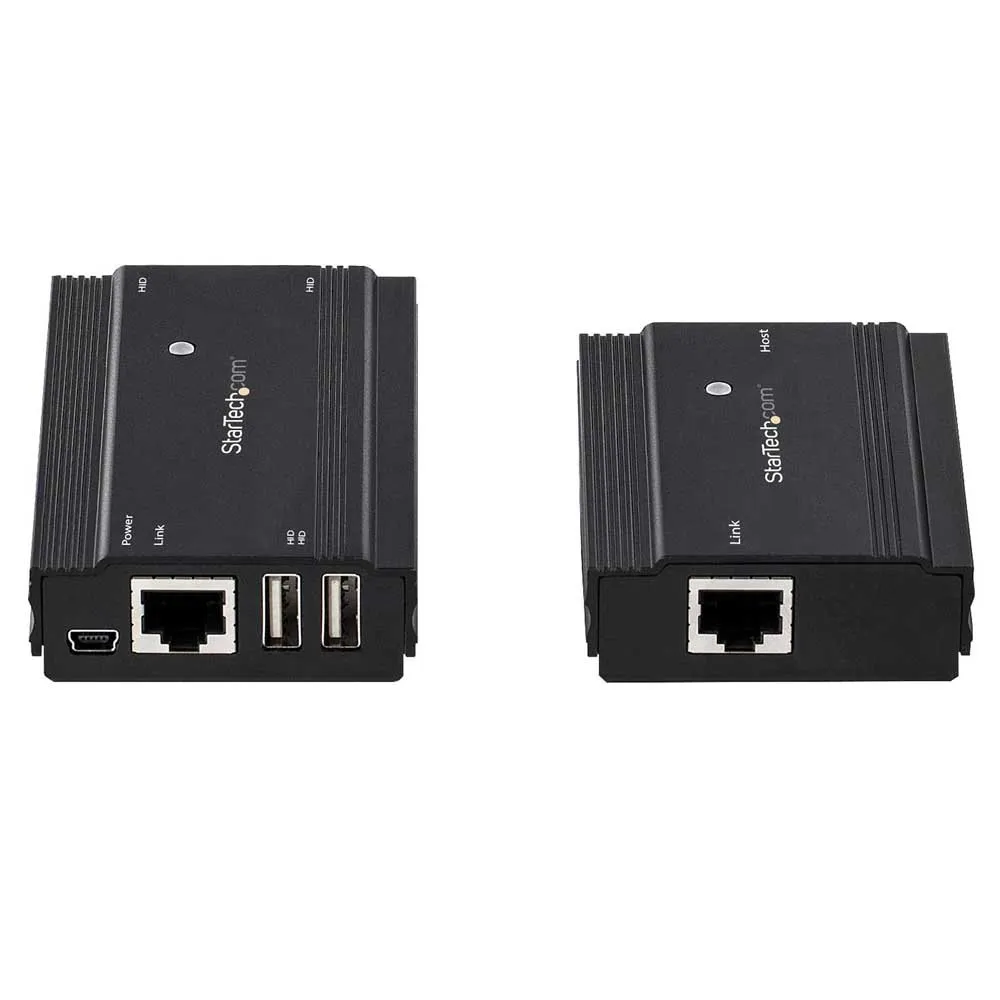

Startech USB2004EXT100 hub

This USB 2.0 extender allows you to connect up to four USB 2.0 devices at distances of up to 330 feet (100 meters), over standard Cat5e/Cat6/Cat7 Ethernet LAN cabling.

Features:

High Speed ​​USB.

Performance:

- With data bandwidth up to 480Mbps and no software to install, the USB extender over Cat5e, Cat6 or Cat7 network cabling offers a fast, easy and versatile solution for business or commercial applications with a durable metal housing, included surface mount bracket kit and simple plug-and-play installation.

- Additionally, the 330 ft.

(100 m) USB extender provides up to 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.

Compatible with USB 2.0/1.1/1.0 devices:

- Connecting low-speed peripherals or HID devices is no problem.

This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four types of USB devices from your remote location, away from the host computer.

- Reliable Long Range.

Performance:

Provides extension of 4 USB 2.0 devices up to 100 meters via a RJ45 CAT5e/CAT6 ethernet network cable with speeds of up to 480Mbps.

LEDs monitor power and link status.

- Rugged Construction:

Featuring an extruded metal and aluminum housing, this USB 2.0 extender is ideal for high-wear commercial environments.

Remotely access USB printers, cameras, plotters, keyboards/mice, displays, and CCTV systems.

- Active Usb Extender Kit:

With the included power adapter, the receiver hub at the remote end shares 10W of total power by providing up to 5V, 500mA/2.5W of power per port.

The local transmitter is powered by the PC´s USB port.

- Plug-And-Play:

The extender features driver-free installation and is compatible with major operating systems including Windows, macOS, Linux.

Backwards compatible with USB 1.1 and USB 1.0 devices.

Specifications:

- Guy:

Console transmitter and receiver.

- Data transfer speed:

480 Mbit/s.

- Maximum transfer distance:

100 m.

- Case material:

Aluminum.

- LED indicators:

State.

- Rubber foot:

Yes.

- Supported cable types:

Cat5e, Cat6.

- Sustainability certificates:

CE, RoHS Ports and Interfaces:

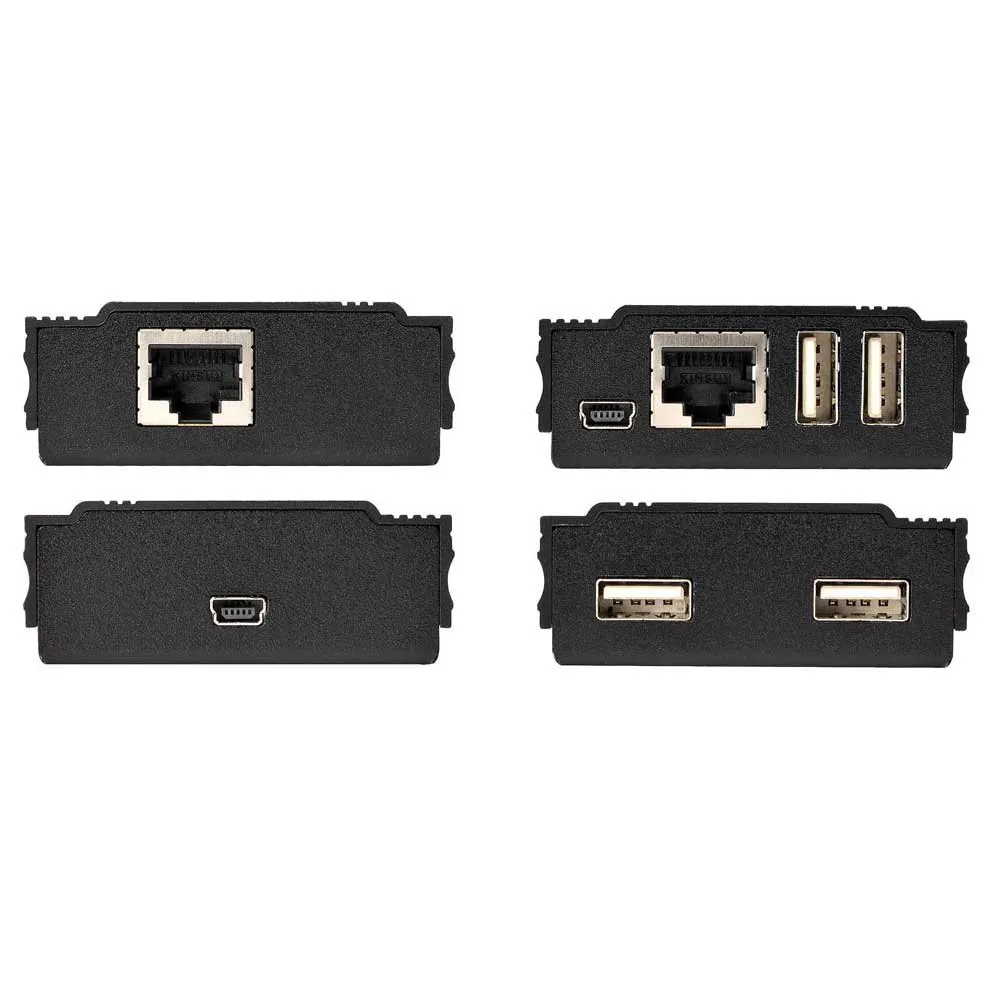

- Number of USB 2.0 Type A ports:

4.

- Number of Mini-USB 2.0 ports:

2.

- Number of RJ-45 ports:

2 Weight and measurements:

- Broad:

60 mm.

- Depth:

100 mm.

- Height:

22 mm.

- Weight:

143 g Environmental conditions:

- Operating temperature range:

0.

- 40 °C.

- Storage temperature range:

-10.

- 60 °C.

- Relative humidity range for operation:

0.

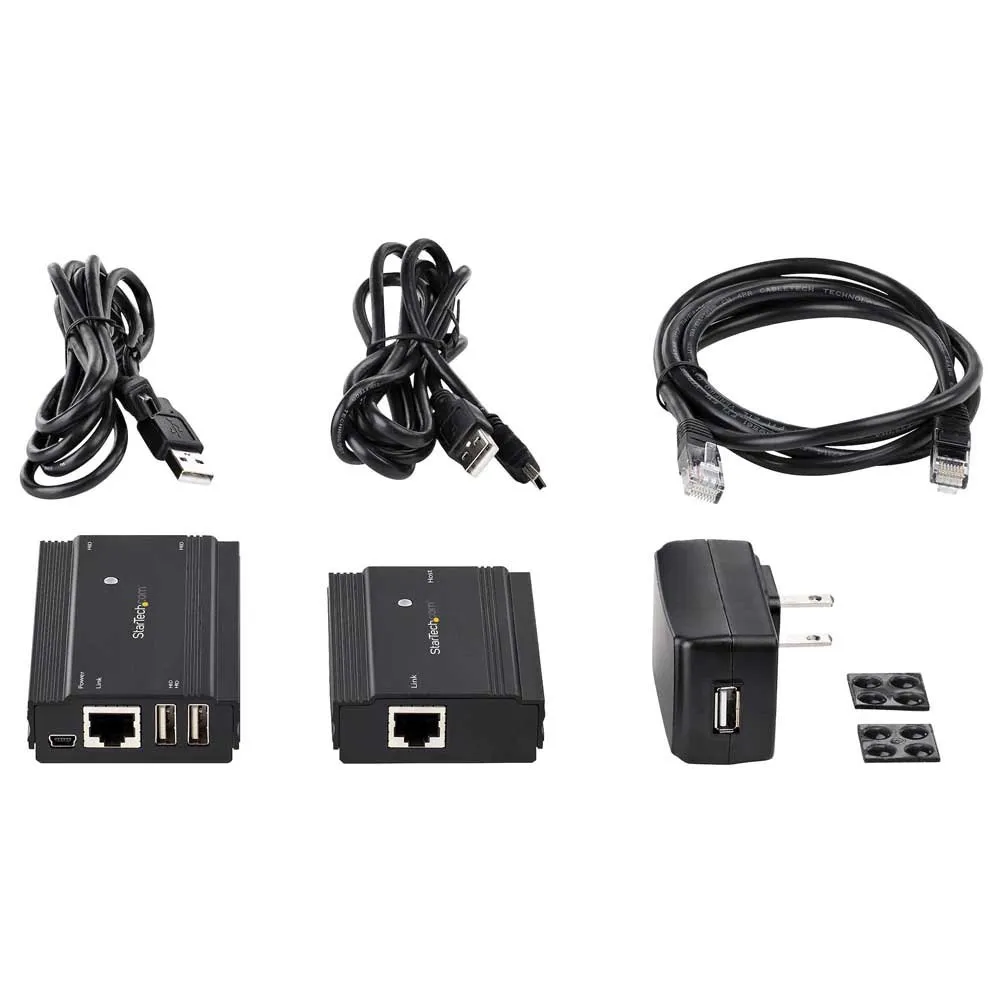

- 80% Package contents:

- Cables included:

LAN (RJ-45), USB.

- Quick Setup Guide:

Yes.

- AC adapter included:

Yes Energy control:

- Energy consumption:

10 W.

- Input voltage:

100.

- 240 V.

- Output voltage:

5 V.

- Output current:

2 A.
