Teka DPL 1185

Features:

Your hood always clean:
- Decorative filters with 12 layers ready to absorb up to 98% of grease and helping you to keep your hood clean. And you can wash the filters in the dishwasher.

Maximum efficiency with lower consumption:
- Our hoods have 4A Energy Class so will reduce your next electric bill significantly.

Extraction from any angle:
- Teka hoods have optimal absorption capacity by extraction to enjoy your kitchen free of smoke and odors.

Ambient lighting: adjust the ligh temperature and intensity to your kitchen:
- LED lighting bars is our best tool to provide light to a bigger area over the cooking zone, and being more efficient and environmentally friendly at the same time.

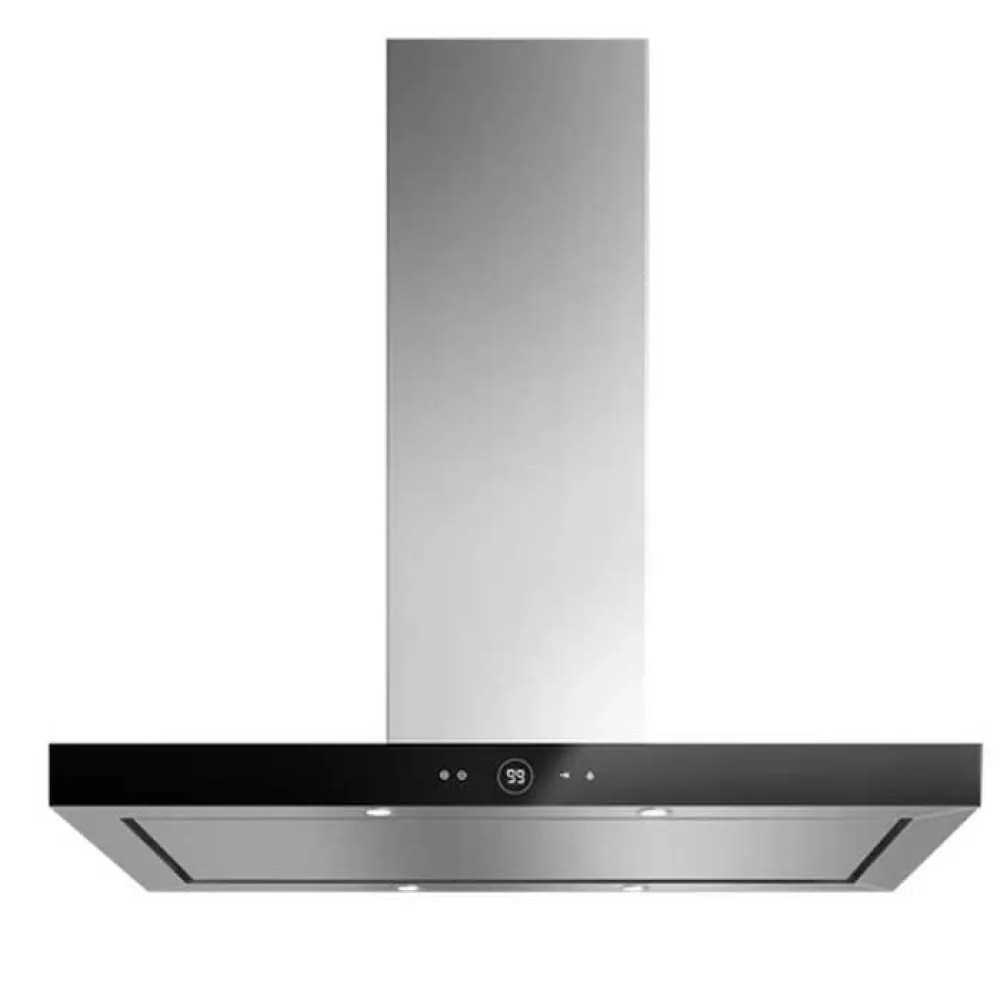

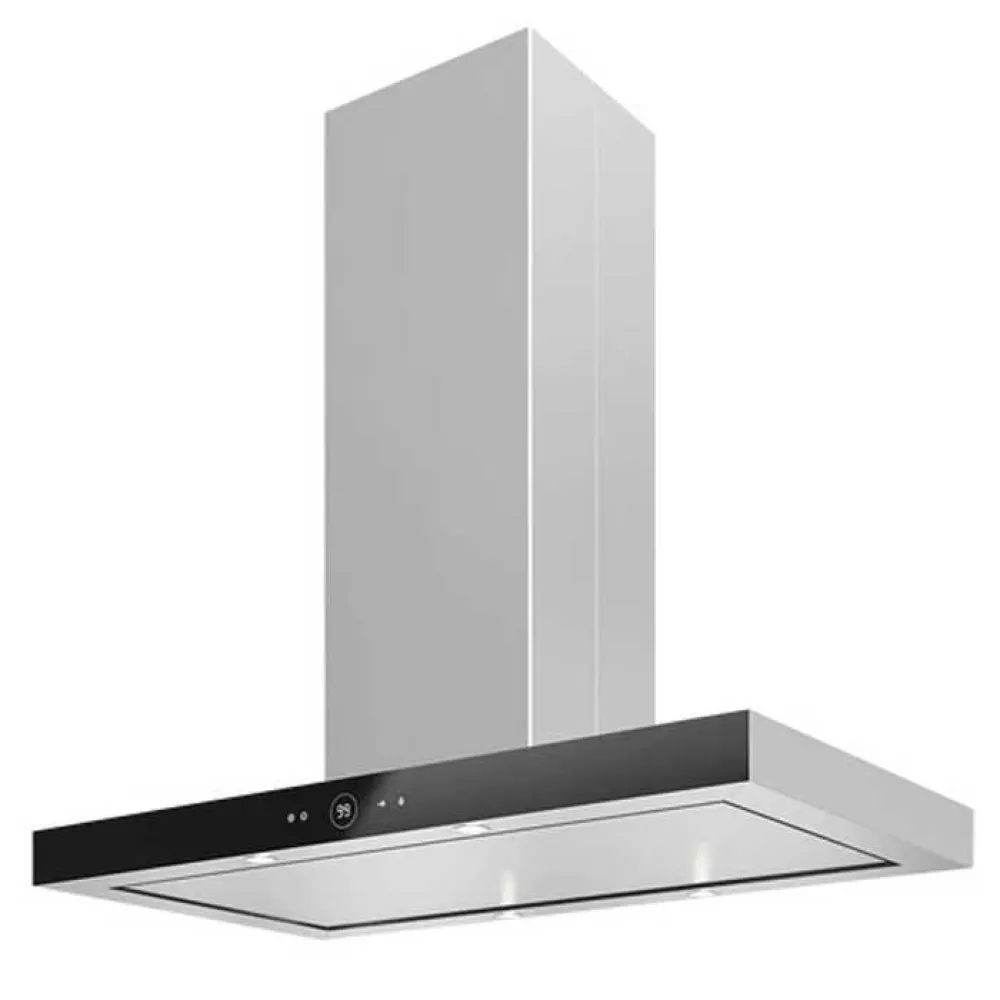

- Decorative horizontal island hood
- Electronic control with display
- Rim extraction
- EcoPower motor
- 3 speeds + 1 intensive
- Free Outlet exhaust capacity (m3/h): 920
- Intensive speed exhaust capacity (m3/h): 782
- Max speed exhaust capacity (m3/h): 629
- Min speed exhaust capacity (m3/h): 331
- Intensive speed sound level (dBA): 69
- Max speed sound level (dBA): 66
- Min speed sound level (dBA): 54

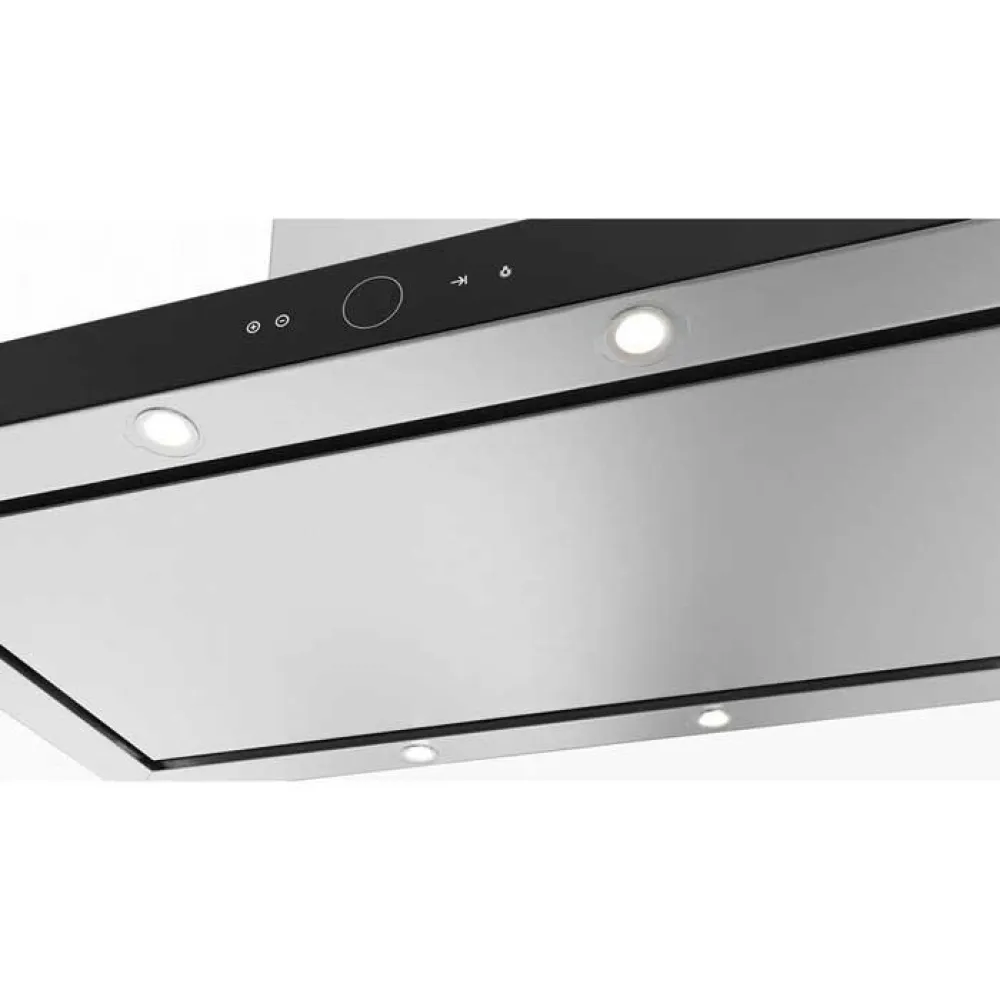

- 4 LED lamps
- 3 aluminium filters
- Stop delay timer
- Filter saturation indicator
- Operating pilot light
- Anti-return valve included
- Outlet reduction included
- Optional recirculation kit with tube cover installation: SET 1/T1
- Optional Charcoal Filter: D4C


Specifications:

Interior measurements:
- Inner Height (mm): 1000

General measures:
- Product height (mm): 817 - 1117
- Product width (mm): 1100
- Product depth (mm): 605
- Net weight (Kg): 17,4

Features:
- Ø Outlet (mm): 150
- Type of inner light: LED
- Inside light Consumption (W): 3
- Plug type: European plug
- Power rate (V): 220-240
- Frequency (Hz): 50
- Total hood power (W): 292
- Number of motors: 1
- Motor power (W): 280
- Air flow (Qmin) m3/h: 331
- Air flow (Qmax): 629
- Air flow (Qboost): 782

Accessories:
- Anti Return valve: Yes
- Outlet reduction: Yes
- Optional Charcoal Filter: D4C
- Conventional recirculation kit (opt) - w/tube cover: SET 1/T1

Models:
- Number of filters: 3
- Filter description: inox panel; aluminum filters below

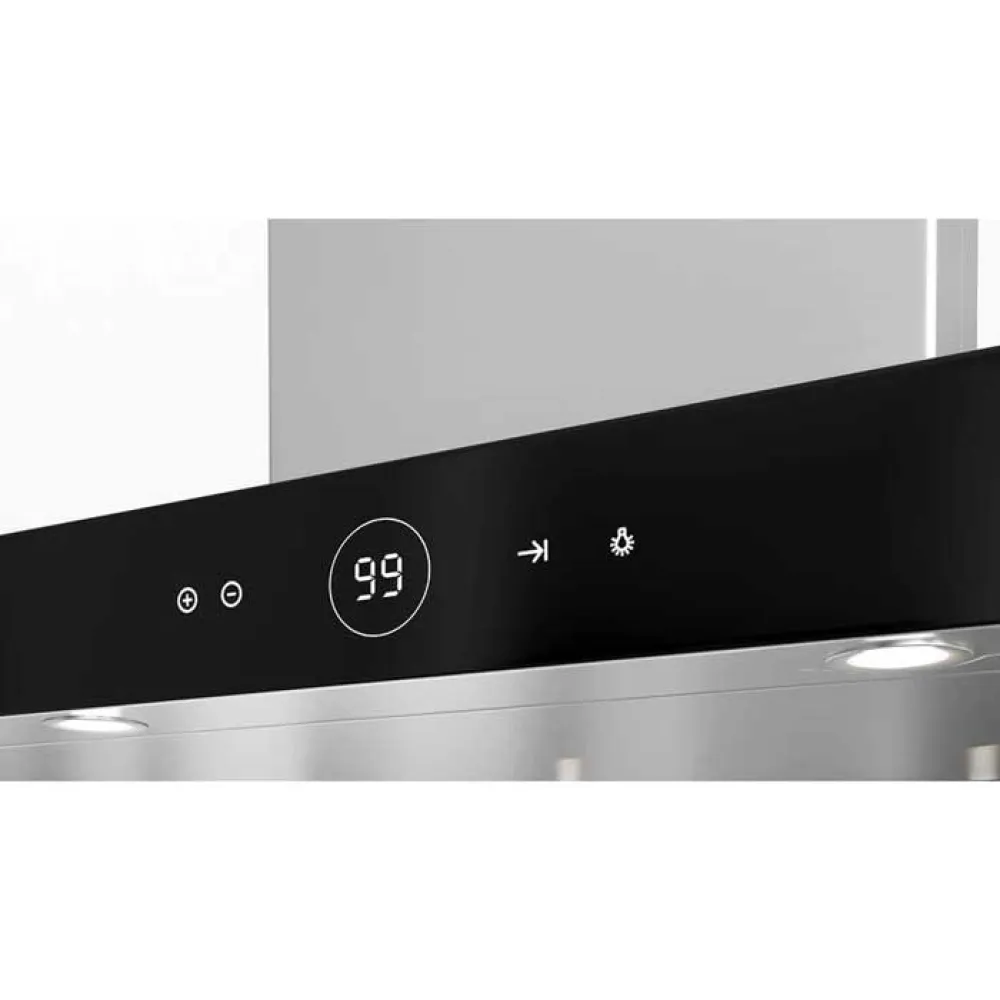

- Control panel: Touch control with white display
- Stop delay timer: Yes
- Filter saturation indicator: Yes
- Number of speeds: 3+1
