Thermaltake The Tower 500 PC Tower Case With Window

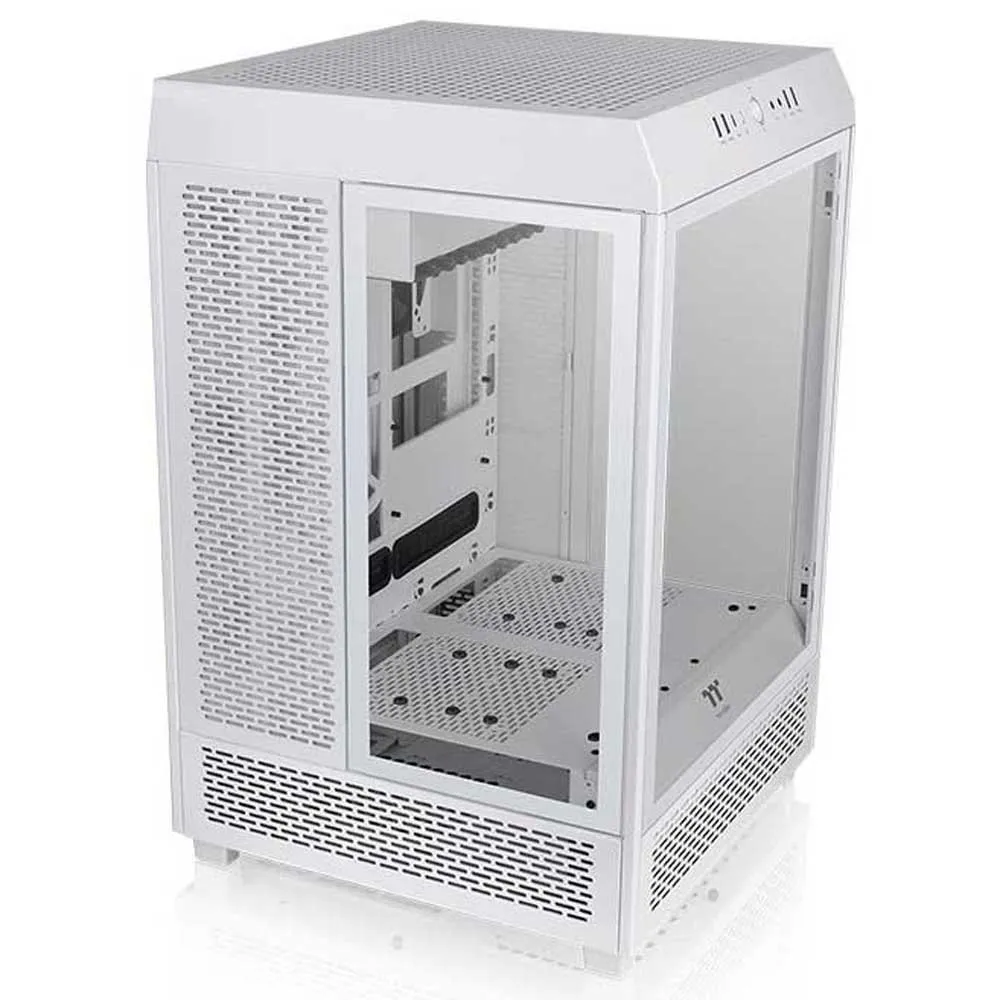

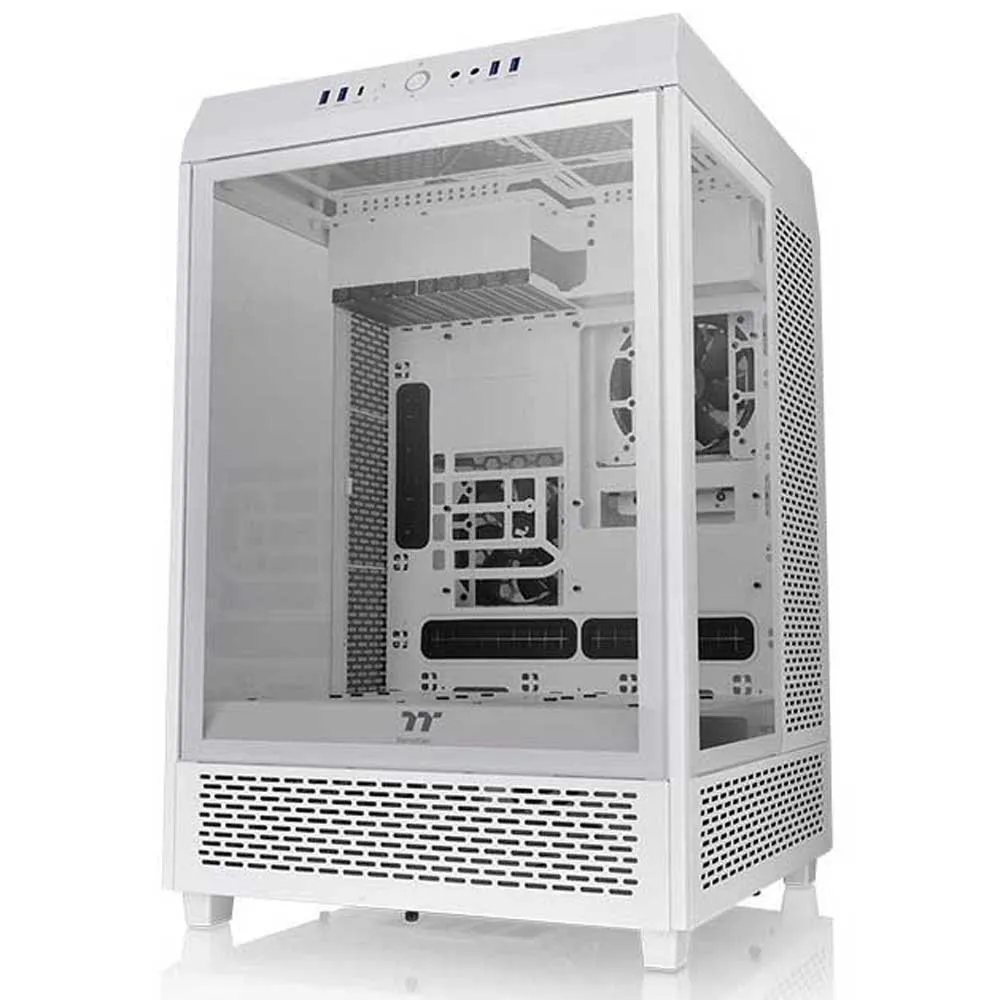

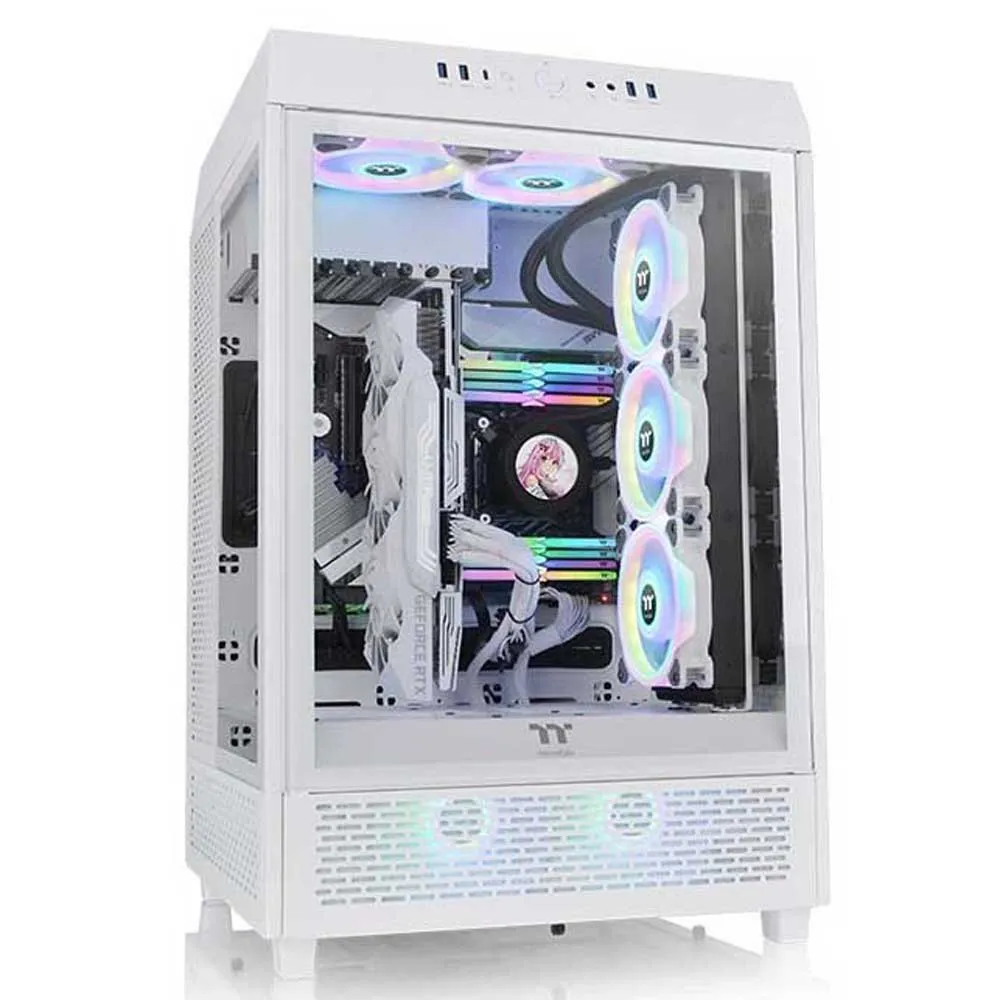

The Tower 500 Snow is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm standard fans. This chassis supports up to 12´´ x 12´´ E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9´´ LCD Display for maximizing the PC´s visual effects.


Features:

Space is never a problem:
- Modeled after our legendary Tower 900 super chassis, the Tower 500 snow was created with the direction of inheriting all the significant functions while minimizing the overall footprint. On top of that, the Tower 500 snow allows additional support for an All-In-One liquid cooler, support for an E-ATX motherboard (max 12”x 12”), or any ATX motherboard. Users can build their PC the way they want.

Create and display your dream build:
- The Tower 500 snow’s versatile interior is designed to suit the needs of both all-in-one and custom liquid cooling solutions, and it offers three 4mm tempered glass panels located at the front and sides, serving simultaneous protection while allowing the perfect showcase of your internal components.

Visually pleasing, totally interactive:
- The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes climate mode and time mode for users to expand the usage of our LCD displays.

Powerful cooling performance for 360mm AIOs:
- The enclosed radiator bracket can be installed on the right side, supporting up to a 360mm All-in-One radiator or any LCS radiators under 399mm. The space is sufficient for a push-pull configuration, with a total of six fans installed on the radiator to pursue extreme performance. The right-side panel can also be flipped 180 degrees to allow direct heat extraction from the mesh and further enhance ventilation.

Say goodbye to heat congestion:
- The vertical design of the Tower Series products adopts a chimney effect design to direct the heat vertically. With the Tower 500 snow’s reimagined thermal design, you can pursue extreme system performance without worries.

We’ve tested everything, so you don’t have to:
- At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 500 snow products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Brilliant airflow & Incredible performance:
- Thermal images were taken during thermal testing. As you can see in the below photos, we were able to ensure that the cold air intakes and hot air exhausts are well-developed when designing this chassis, ensuring the interior temperature stays low and stable at all times.

Blow your world away with 2 powerful pre-installed cooling fans:
- 2 x 120mm pre-installed rear fans were tested to be placed at specific positions to enhance cooling performance, preventing overheating for the CPU and GPU.

Choose the way you install:
- The Tower 500 snow has a new fan bracket that can be either installed vertically or horizontally to house 2 extra 120mm fans or a 240mm radiator.

Cleaning made easy, we’ve got you covered:
- Covered by seven magnetic easily detachable particle filters, the chassis is designed to keep out dust, dirt, and grime. The quick release mechanism makes cleaning easy and straightforward giving the user more freedom to what they like while spending less time on maintenance.

How much storage is totally up to you:
- The equipped HDD bracket for 3.5” or 2.5” hard drives can be expanded to mount up to eight 3.5” HDDs or four 3.5” HDDs plus eight 2.5” SSDs for additional space-saving.

Everything you need is located in one place:
- Four USB 3.0 ports and one USB 3.2 Gen 2 Type-C are placed on the top panel to grant direct access when needed.


Specifications:

- Series: The Tower
- Case Type: Mid Tower

Dimension (H X W X D):
- 608 x 388 x 398 mm
- (23.9 x 15.3 x 15.7 inches)

- Net Weight: 14.8 kg / 32.6 lbs.
- Side Panel: 4mm Tempered Glass x 3

Material: SPCC
Cooling System:
- Rear(exhaust)
- 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2

- Drive Bays: 4 x 3.5”, 8 x 2.5” or 8 x 3.5”
- Expansion Slots: 9

Motherboards:
- 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
- 12” x 9.6” (ATX), 12” x 12” (E-ATX)

- I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
- PSU: Standard PS2 PSU (optional)

Fan Support:
Top:
- 2 x 120mm, 1 x 120mm
- 2 x 140mm, 1 x 140mm

Right Side:
- 3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
- 2 x 120mm, 1 x 120mm
- 2 x 140mm, 1 x 140mm

Power Cover:
- 2 x 120mm, 1 x 120mm
- 2 x 140mm, 1 x 140mm

Bottom(Vertical/Horizontal):
- 2 x 120mm, 1 x 120mm

Radiator Support:
Top:
- 1 x 240mm, 1 x 120mm
- 1 x 280mm, 1 x 140mm

Right Side:
- 1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm

Bottom(Vertical/Horizontal):
- 1 x 240mm, 1 x 120mm

Clearance:
- CPU cooler height limitation:
- 275mm

VGA length limitation:
- 325mm(With power cover)
- 355mm(Without power cover)

PSU length limitation:
- 200mm
