Tp-link TL-SF1016 switch

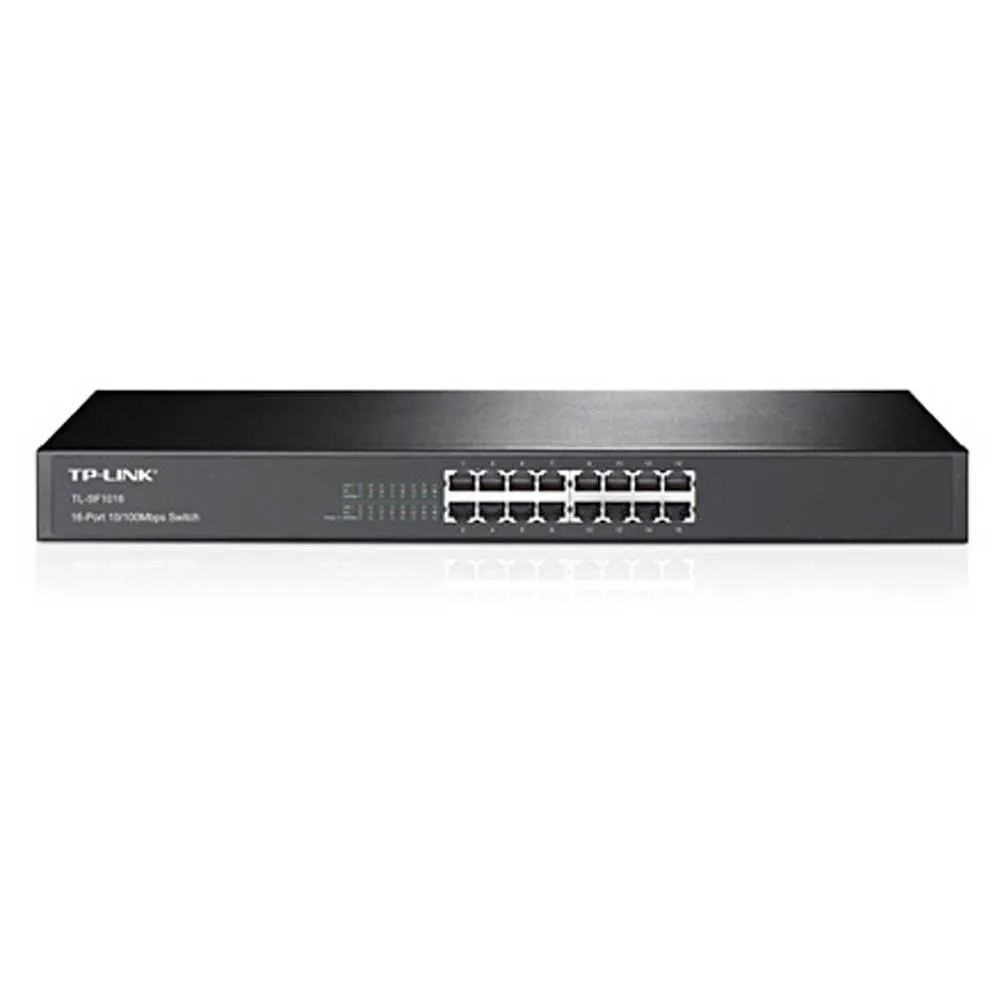

TP-LINK TL-SF1016 16-Port 10/100Mbps Rackmount Switch

Upgrade and expand your network with the TP-LINK TL-SF1016, a high-performance 16-Port 10/100Mbps Switch designed for exceptional reliability and ease of use. This device is the perfect, cost-effective solution for small and medium-sized businesses, workgroups, or advanced home networks seeking a seamless way to increase network capacity. It combines powerful performance with plug-and-play simplicity, all housed in a durable, rack-mountable chassis for a professional and organized installation.

High-Performance and Reliable Connectivity
The TL-SF1016 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With a 3.2 Gbps switching capacity, your network will handle high-bandwidth tasks without bottlenecks. The 8K MAC address table provides excellent scalability for even larger networks, while IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode work to alleviate traffic congestion, ensuring reliable data transfer and a stable network connection for all 16 ports.

TP-LINK Green Technology for Power Savings
This new-generation switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status of each port and the length of the connected cable. By powering down idle ports, the TL-SF1016 significantly reduces energy use. This not only lowers your operational costs but also contributes to a more environmentally friendly network infrastructure.

Effortless Plug and Play Installation
The auto features of this fast ethernet switch make installation a simple and hassle-free experience. As an unmanaged switch, no configuration is required. The Auto MDI/MDIX function eliminates the need for crossover cables, simplifying your setup. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100 Mbps) and intelligently adjusts for compatibility and optimal performance, ensuring you get the best connection automatically.

Robust and Professional Design
Built to last, the TL-SF1016 is enclosed in a sturdy, 19-inch rack-mountable steel case. This makes it easy to integrate into a standard server rack, providing a clean and secure setup for your business´s wiring closet or server room. The internal power supply adds to its robustness and convenience.

Key Benefits:

* 16x 10/100Mbps RJ45 ports for significant network expansion.
* Innovative energy-efficient technology reduces power consumption.
* Supports MAC address self-learning, auto MDI/MDIX, and Auto Negotiation.
* Plug and play design for simple, configuration-free installation.
* Standard 19-inch rack-mountable steel case for professional deployment.
* Non-blocking switching architecture for maximum throughput and performance.

EU Plug.

Specifications:

Management.

Features:

- Switch type:Unmanaged.

Ports & interfaces:- Basic switching RJ-45 Ethernet ports quantity:16.

- Basic switching RJ-45 Ethernet ports type:Fast Ethernet (10/100).

- Console port:RJ-45.

- Power connector:DC-in jack.

Network:Networking standards:- IEEE 802.3i.

- IEEE 802.3u.

- IEEE 802.3x Copper ethernet cabling.

Technology:- 100BASE-TX.

- 10BASE-T.

- Auto MDI/MDI-X:Yes Data transmission:- Switching capacity:3.2 Gbit/s.

- MAC address table:8000 entries.

- Packet buffer.

Memory:2 MB Design:- Rack mounting:Yes.

- Form factor:1U.

- LED indicators:Yes.

Power:- AC input voltage:100.

- 240 V.

- AC input frequency:50.

- 60 Hz.

- Power consumption (max):2.23 W Operational conditions:- Operating temperature (T-T):0.

- 40 °C.

- Storage temperature (T-T):-40.

- 70 °C.

- Operating relative humidity (H-H):10.

- 90%.

- Storage relative humidity (H-H):5.

- 90%.

Weight & dimensions:- Width:440 mm.

- Depth:180 mm.

- Height:44 mm.
