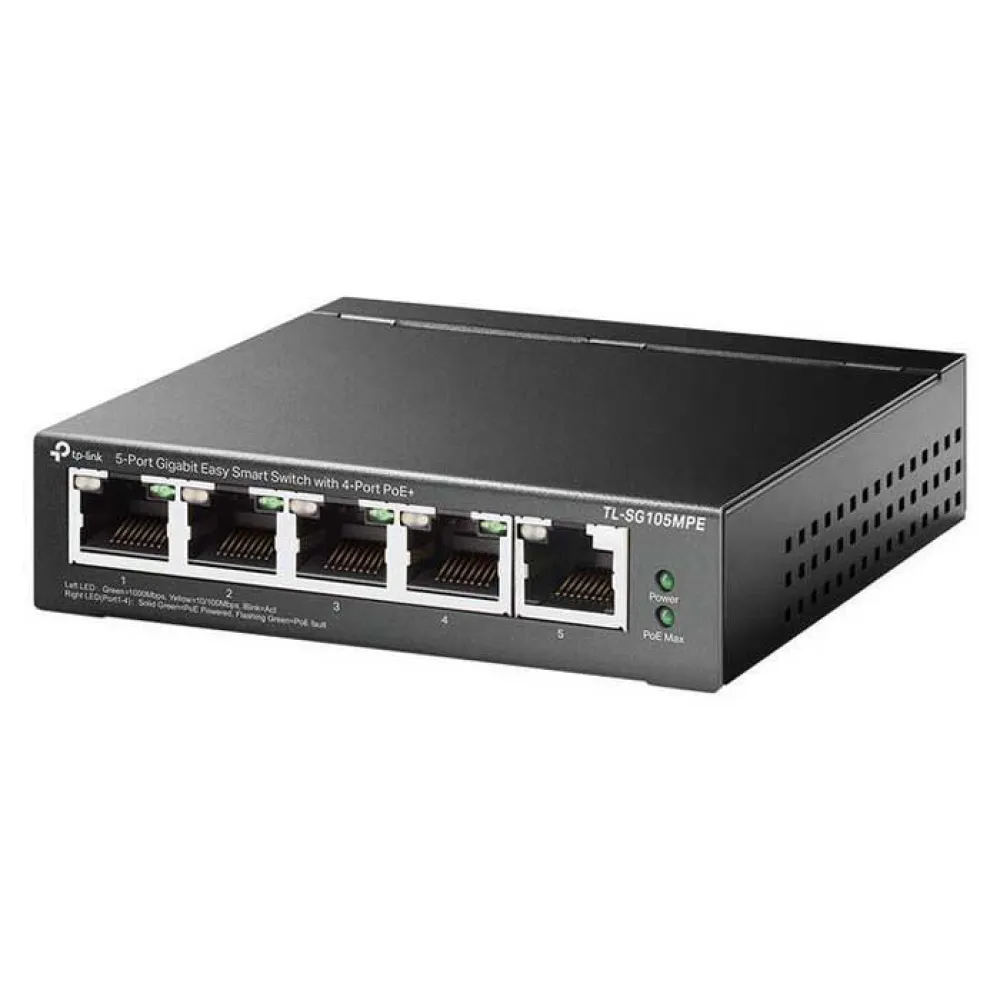

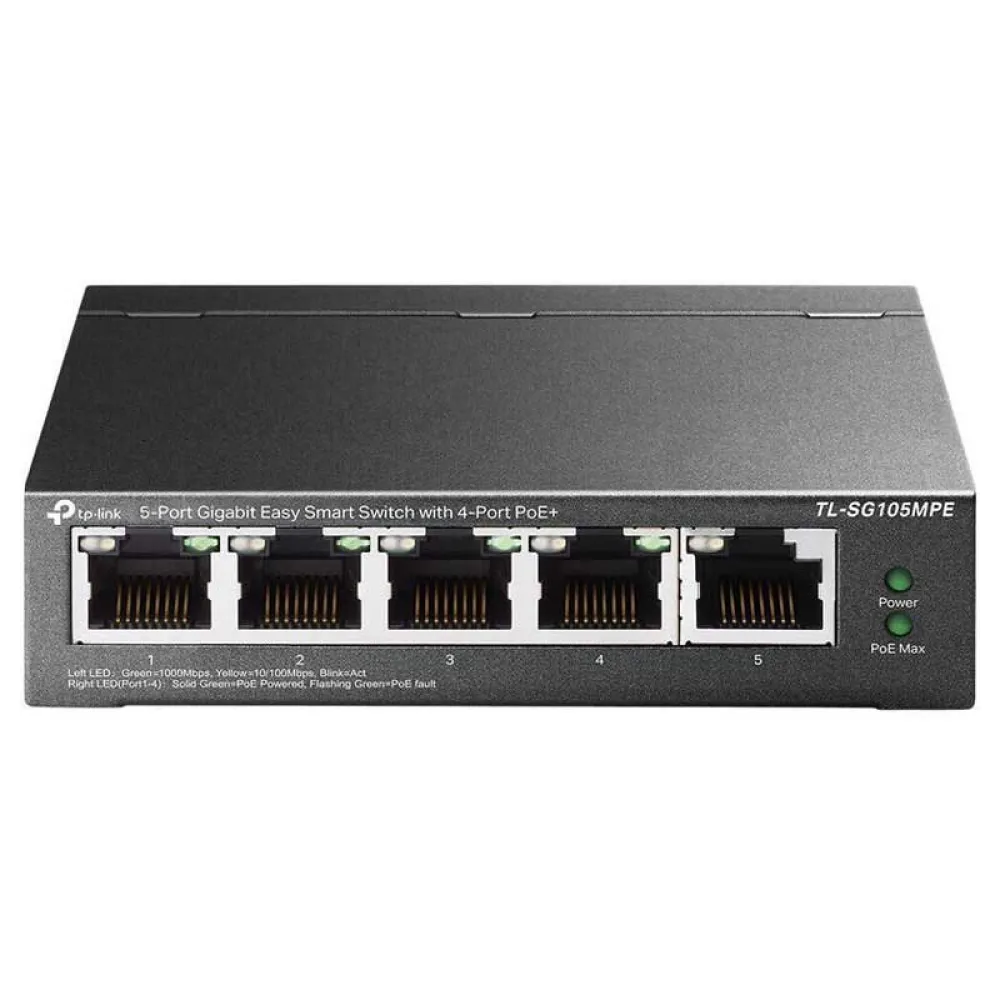

Tp-link TL-SG105MPE switch

EU Plug.

Simple intelligent switch.

Gigabit of 5 ports with poe+ of 4 ports.

Five rj45 ports of 10/100/1000mbps.

Equipped with four 802.

3af/at poe+ ports with up to 30 w for each port, data and food can be transferred into a single cable.

Admit poe food up to 120 w for all poe ports.

Provides network monitoring, traffic prioritization, vlan functions and poe´s automatic recovery.

Simple network configuration in addition to plug-and-play connectivity.

The web -based user interface and easy smart configuration usefulness simplify the configuration.

Fan design reduces energy consumption and eliminates operating noise.

Brand:tp link.

Model:tl-sg105mpe.

Hardware characteristics.

-standards and protocols:ieee 802.

3i, ieee 802.

3u, ieee 802.

3ab, ieee 802.

3af, ieee 802.

3x, ieee 802.

1q, ieee 802.

1p, ieee 802.

3at.

-interface:five rj45 ports of 10/100/1000mbps automatic/mdi/mdix mdi.

Network media.

-10base -t:utp cable category 3, 4, 5 (maximum 100 m).

-eia/tia-568 100 ω stp (maximum 100 m).

-100base-tx:utp category 5, cable 5e (maximum 100m).

-eia/tia-568 100 ω stp (maximum 100 m).

-1000base-t:utp cable category 5, 5e, 6 or higher (maximum 100 m).

-eia/tia-568 100 ω stp (maximum 100 m).

-power supply:external feed adapter (output:53.

5 vcc / 2.

43 a).

Poe ports (rj45).

-standard:compatible with 802.

3 af/at.

-poe ports:port 1- puerto 4.

-poe energy budget:120 w.

Software characteristics.

Quality of service.

-port -based priority compatibility/802.

1p/dscp.

-admit 4 priority tails.

-rate limit.

-storm control.

Features:

l2.

-igmp v1/v2/v3 inquiry.

-aggregation of static links.

-duplication of ports.

-cable diagnosis.

-loops prevention.

-poe automatic recovery.

-extended mode.

Vlan.

-admits up to 32 vlan simultaneously (4k vlan id).

-mtu/port/vlan label.

Management.

-web -based gui.

-easy intelligent configuration utility.

-transmission method:storage and forwarding.

Performance.

-switching capacity:10 gbps.

-package forwarder rate:7.

44 mpps.

-mac addresses table:2 k.

-package buffer.

Memory:1 mb.

-jumbo frame:16 kb.

Other features.

-certifications:fcc, ce, rohs.

-dimensions:99.

8 x 98 x 25 mm.

-assembly:rack assembly.

-maximum power consumption:4.

34 w (220 v/50 hz without connected pd), 137.

01 w (110 v/50 hz with 120 w pd connected).

-max heat dissipation:14.

8 btu/h (without connected pd), 467.

17 btu/h (with 120 w pd connected).

-system requirements:microsoft® windows® to execute the utility.

Content.

-tl-sg105mpe.

-power adapter.

-installation guide.

-rubber legs.
