Need a way of safely supporting and moving your expensive and heavy interactive flat panel.

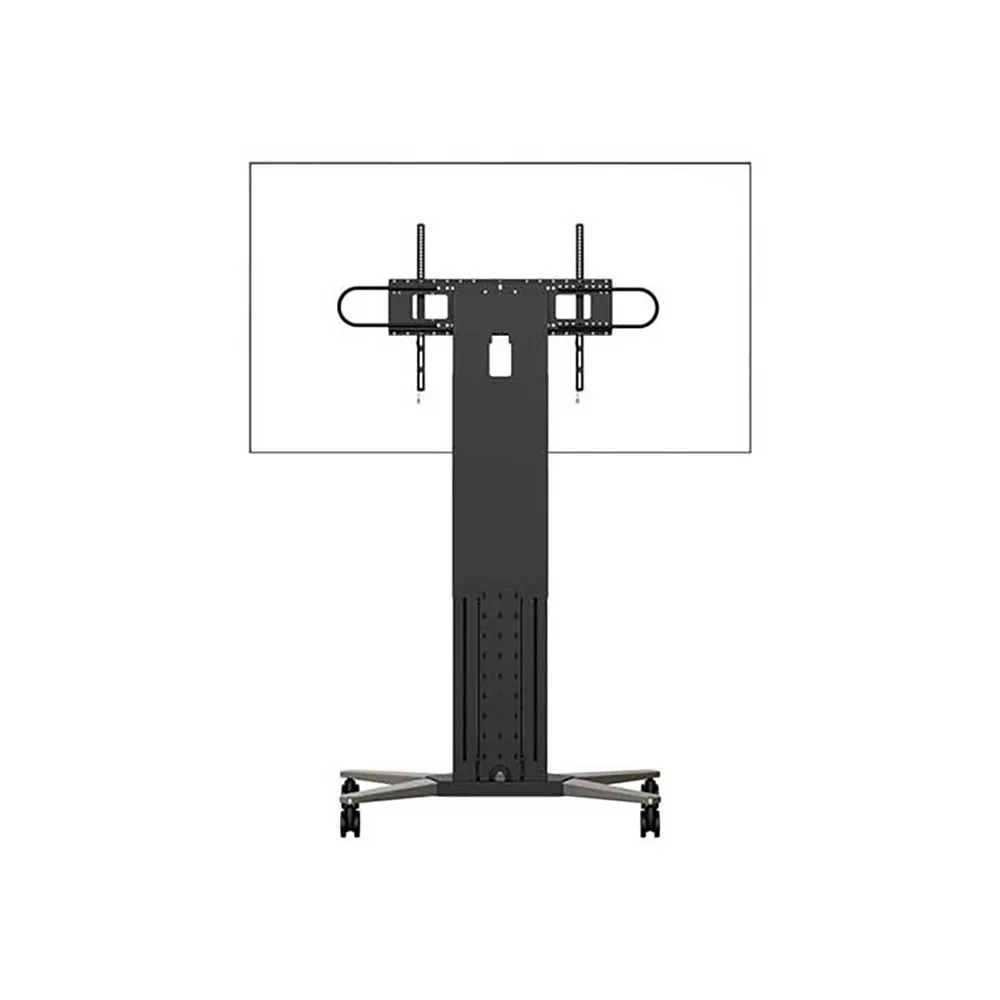

Vision´s F51T mobile cart is stable, strong, and easy to roll smoothly.

The F51T can also convert into a free-standing non-portable floor stand suited to temporary or rental AV installations.

Featuring manual height adjustment, so you can raise it to so even distant audience members can see the presentation clearly over the heads of the audience, or lower it so young children can engage with it in a learning setting.

These products take specialist knowledge to design, build and install.

Vision has extensive experience having built and sold many thousands of floor stands over the years and we have developed a design that ensures they are reliable to use, easy and quick to install and service.

- Portable heavy-duty mobile cart.

- For large-format flat panels 47-100´´.

- 680 mm (26.8´´) height adjustment, non-motorised.

- Angle brackets for optional kiosk-style installation.

- Removeable wheels for non-portable variation.

- Removeable rear legs to lean against walls Features:

SWL 130kg (286 lbs):

- The F51T uses heavy-gauge components to take the weight.

All Parts in One Box:

- The F51T has all components - including the wall mount and wheel assembly - in one box.

We have ruggedized the packaging to help withstand the rigours of transit to site.

Kiosk Angle Brackets Included:

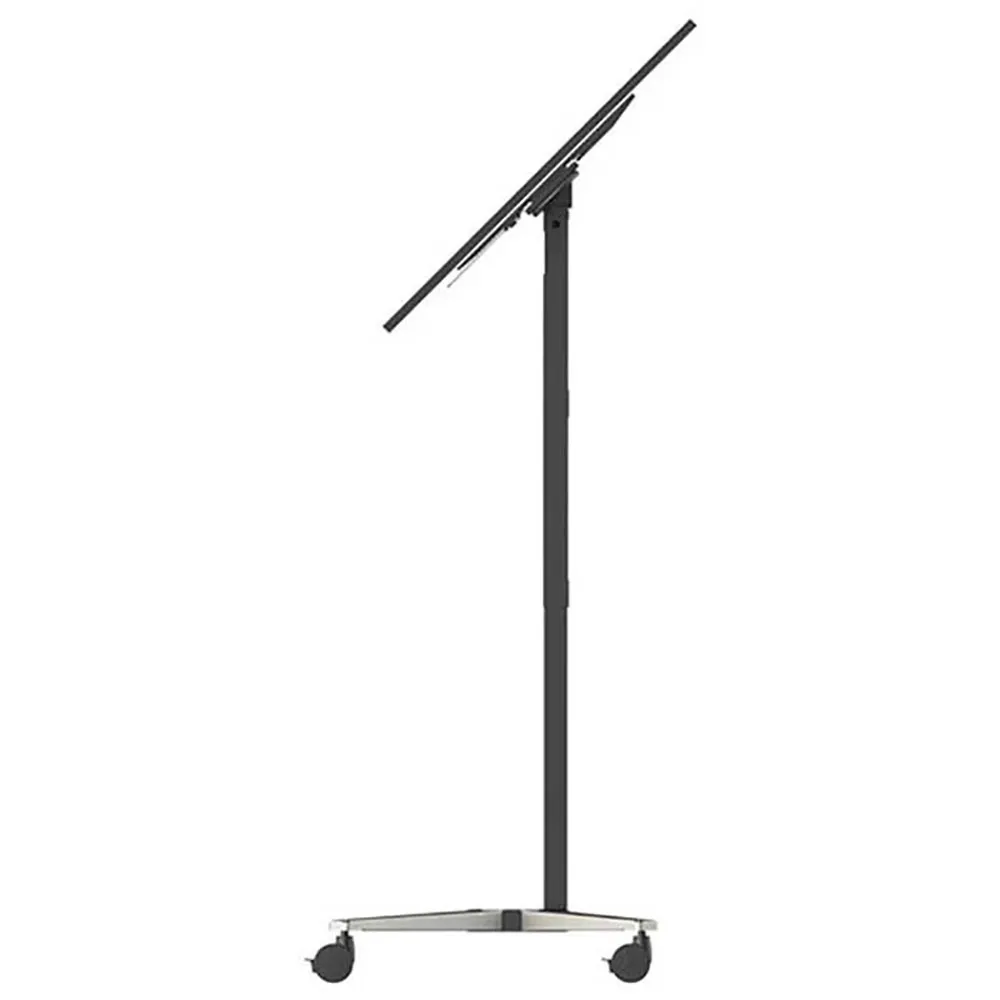

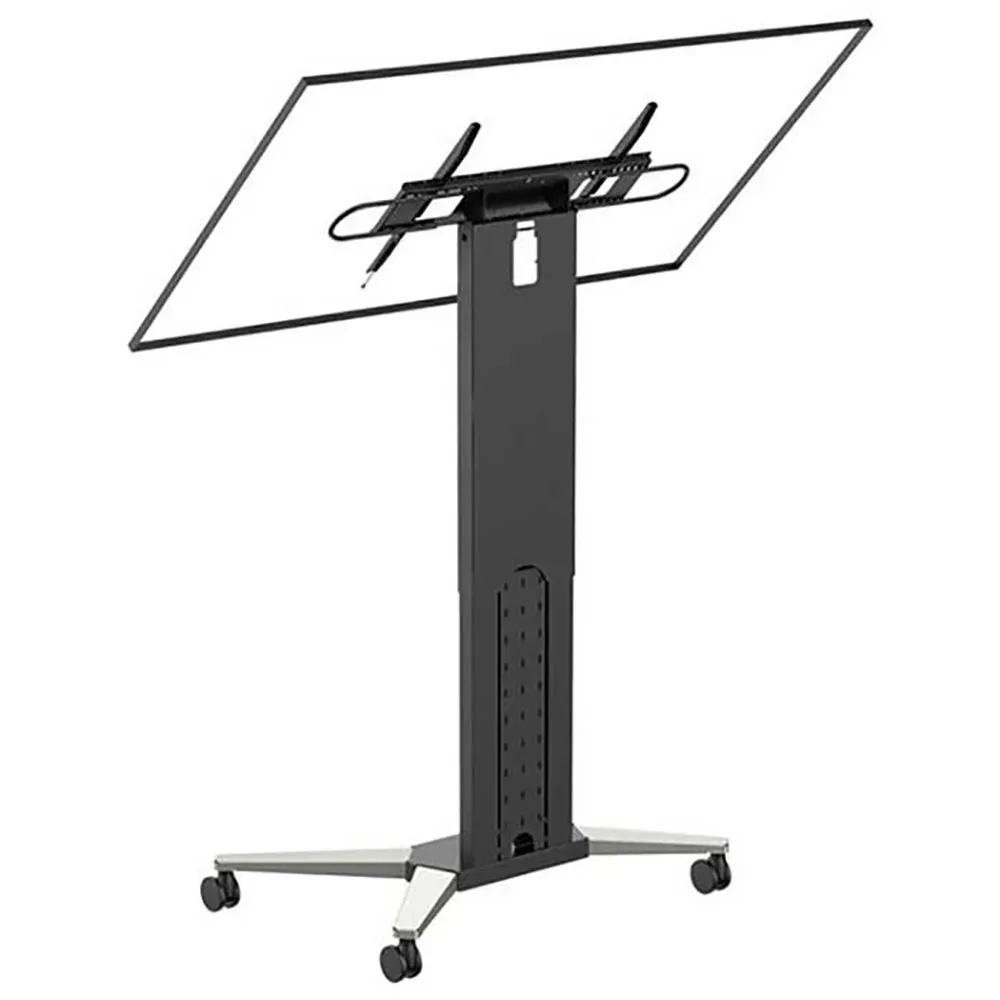

- The display mount can be fixed on a 45° angle to allow kiosk use, but note, the SWL of the display is reduced to 50 kg / 110 lb when using these brackets.

Anti Tip Over:

- To ensure real-world stability we set it to maximum height with a 100 kg (220 lb) load, with all four wheels locked.

The tipping point is 16° side to side or fore and aft, which means it exceeds strict UL 1678 stability requirements.

Note:

this was done for testing purposes only.

Do not attempt this.

4´´ Wheels:

- Medical-grade 4´´ (100 mm) castors glide over any bumps, making the stand easy to pull even on deep carpet.

Big wheels reduce vibration of your expensive AV equipment.

All wheels are lockable.

Non-Portable Variation:

- We know sometimes users need a non-portable free-standing solution, so simply remove the wheels and fit the adjustable feet.

The feet are low profile to reduce trip hazards.

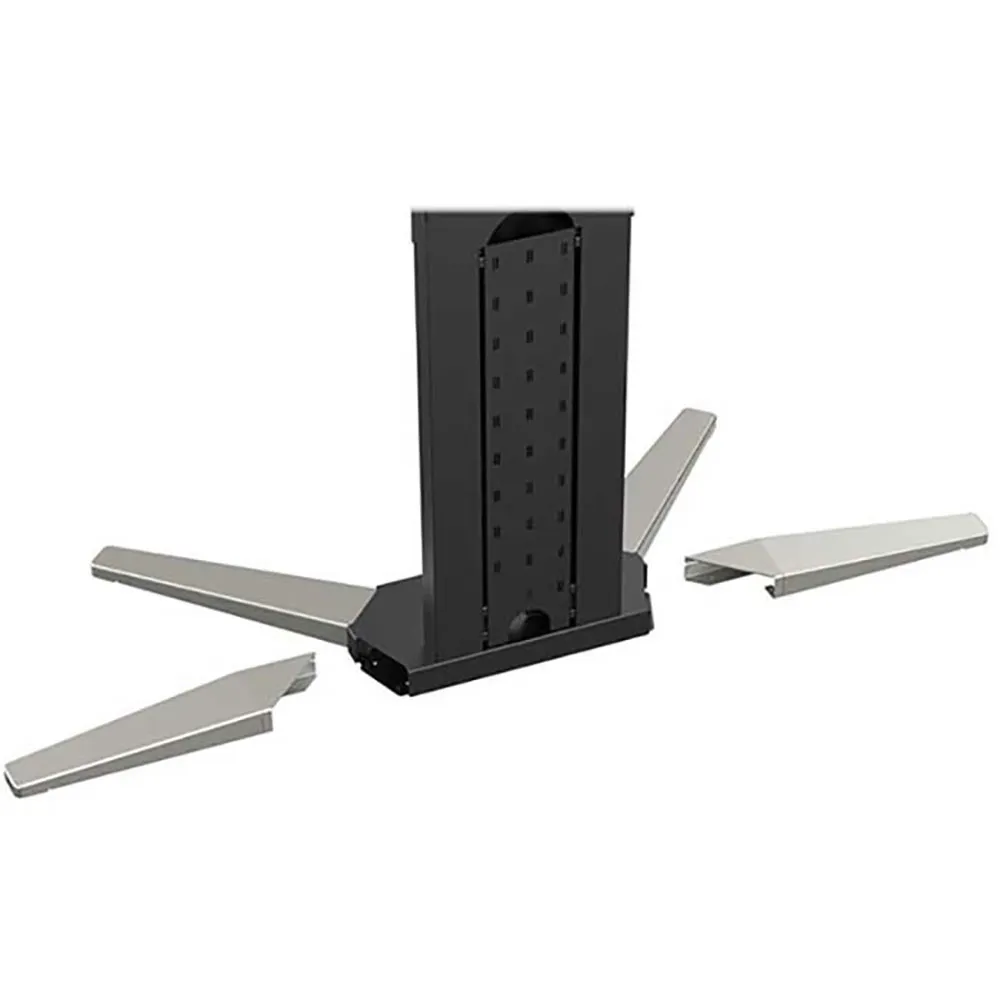

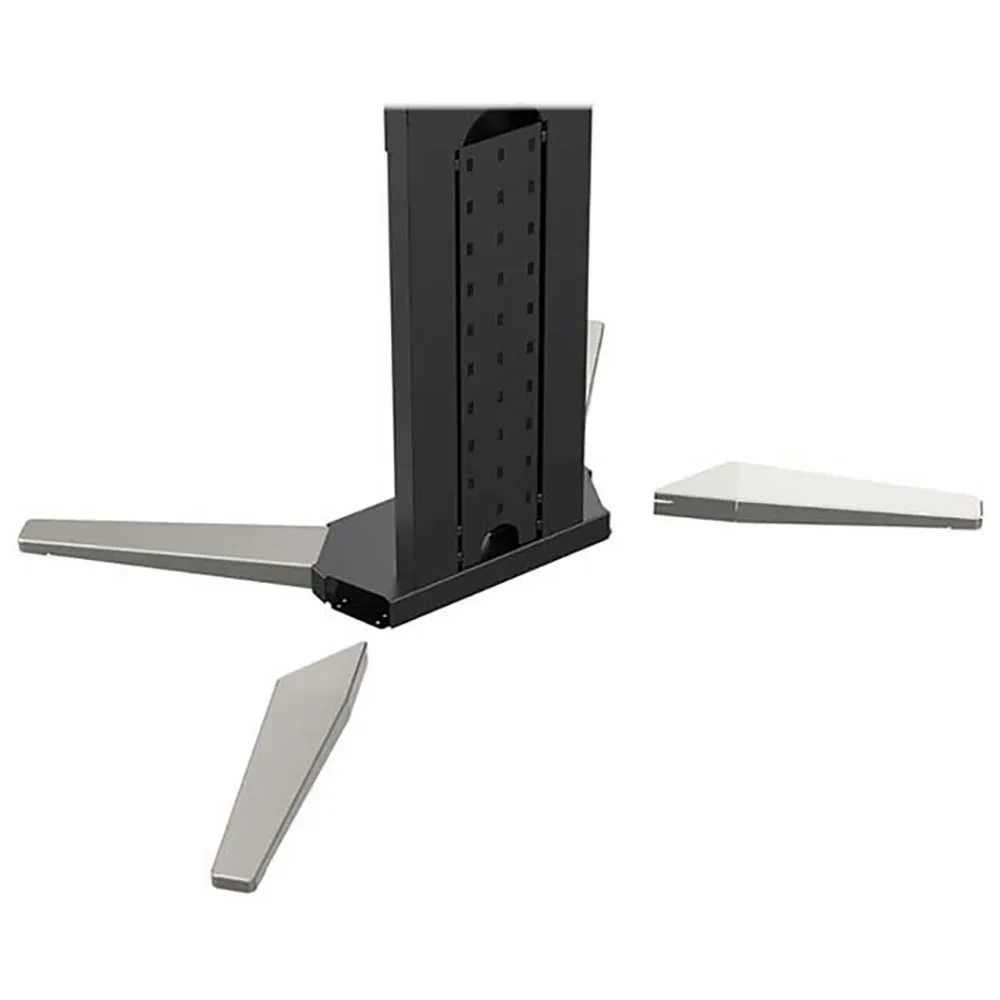

Optimised for Exhibitions:

- On exhibition stands often space is at a premium, and the back wall is not structural.

Removing the wheels and rear legs allows positioning of the display hard up against the back wall safely, without placing any load on the wall.

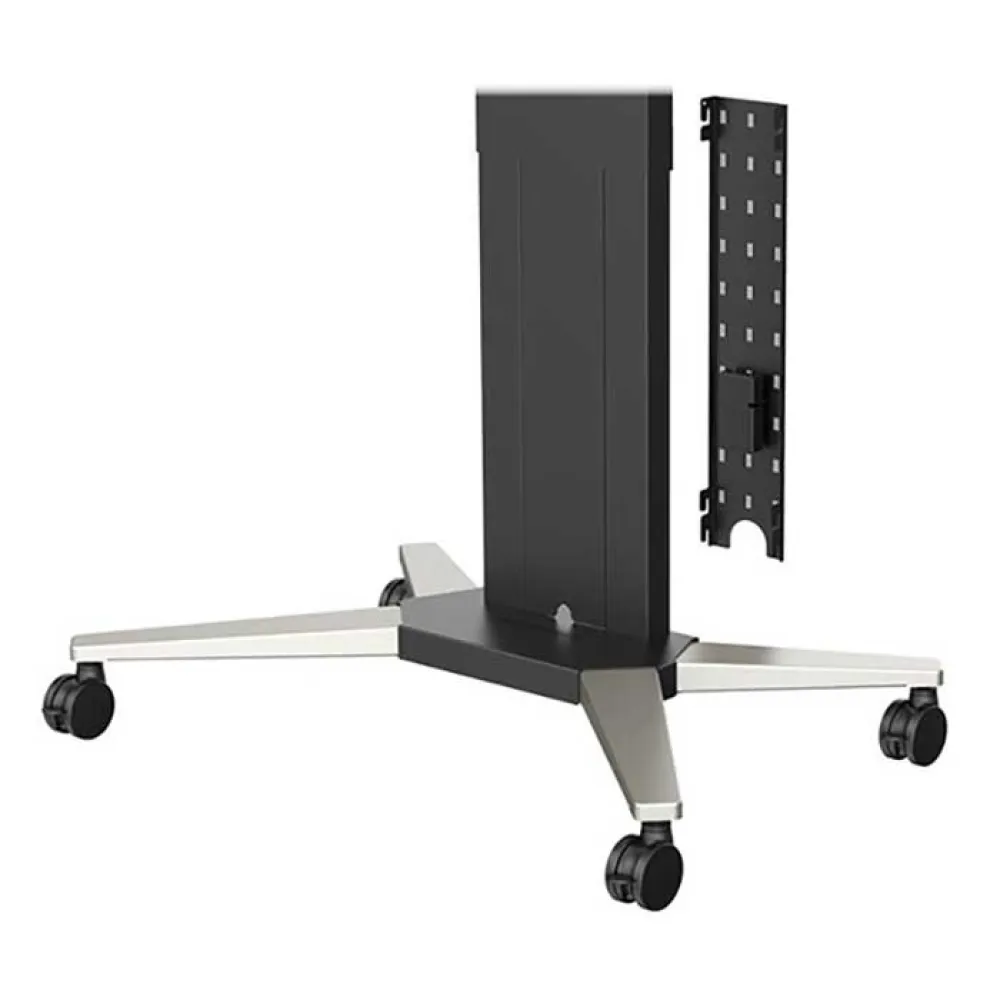

Hide Mess:

- Generous cable entry holes make routing cables quick and easy.

The front and rear covers can be removed for end users to easily access anything they need.

There is also plenty of space to hide cables, media players, mini PCs, and power distribution boards inside the column.

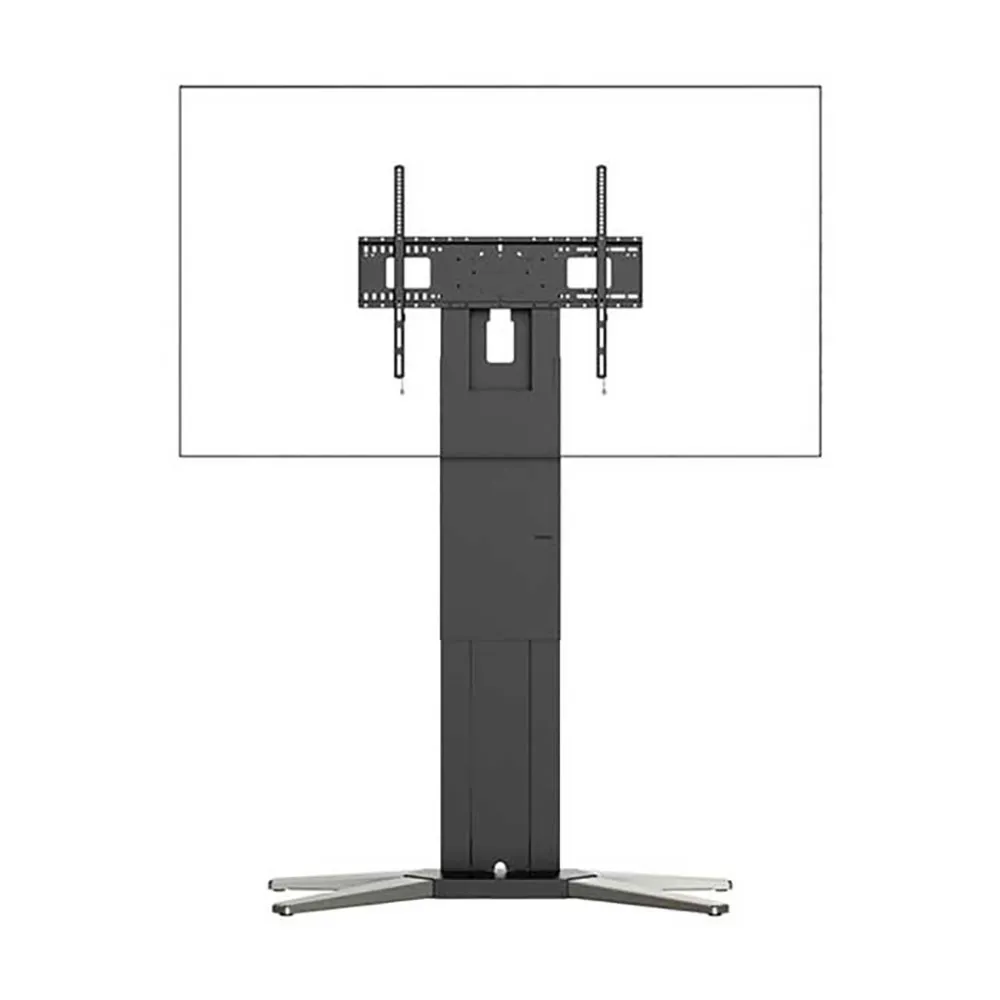

VESA 800 x 600:

- This product includes Vision´s heavy-duty 800×600 wall mount, which fits most large-format flat panels from 47-90´´ subject to VESA pattern and weight limit.

If your display has an alternative VESA pattern, Vision´s other heavy-duty wall mounts (VFM-W4X4, VFM-W6X4, or VFM-W10X6) also fit the F50T stand.

Supports Small Displays:

- If you have a kiosk application where you need to mount smaller displays you can replace the included mount with one of Vision´s smaller 200 x 200 (VFM-W2X2TV2) or 100 x 100 (VFM-W1X1TV2) mounts.

These can be fixed vertically or on a 45° angle.

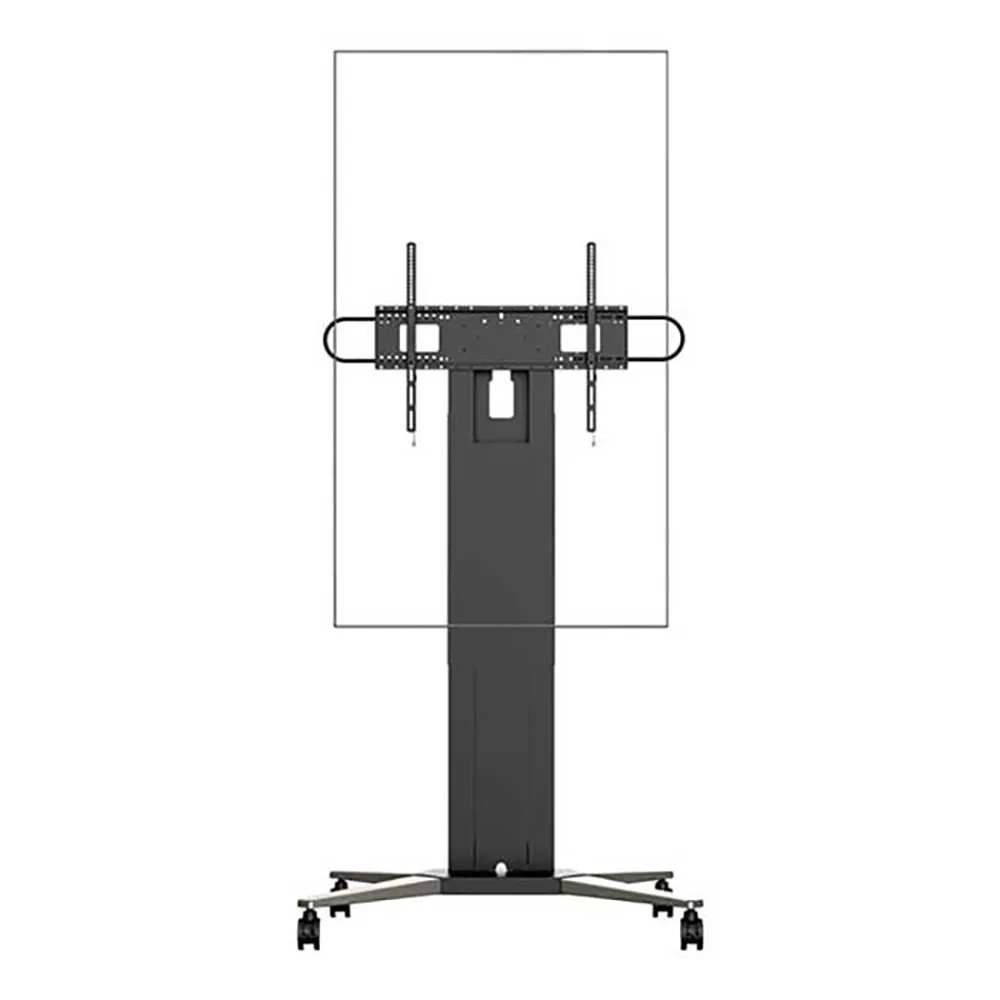

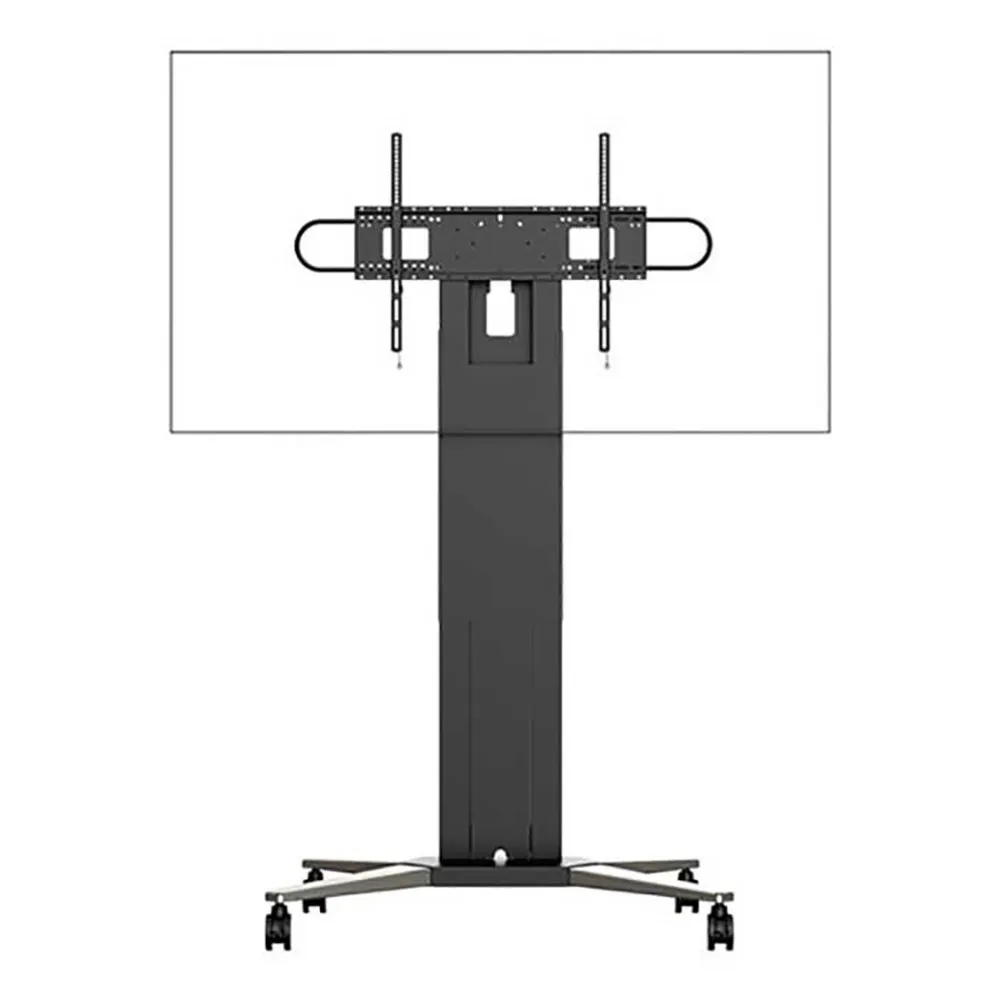

Landscape or Portrait:

- All of these VESA mount options support portrait or landscape orientation.

Optional Laptop Shelf:

- The optional shelf fixes onto the horizontal part of the wall mount at four different heights in 80 mm (3.1´´) increments.

The shelf platform is 450 mm (18´´) wide by 306 mm (12´´) deep.

At the lowest height setting the shelf is 680 mm (27´´) below the centre of screen.

Part Number:

VFM-WLS Optional Video Conference Shelf:

- The optional video conference shelf fixes in the centre above or below the display.

It will accommodate cameras such as the Logitech Rally or Meetup, Yamaha YVC-1000, or Barco Clickshare CSE-200 base stations.

Thanks to the VESA100 holes on the vertical section, additional products, such as iPad enclosures, can be fixed above or below the display.

Part Number:

VFM-WVC Logitech Rally speakers can be fixed in place with an additional bracket added to the VFM-WVC.

Part Number:

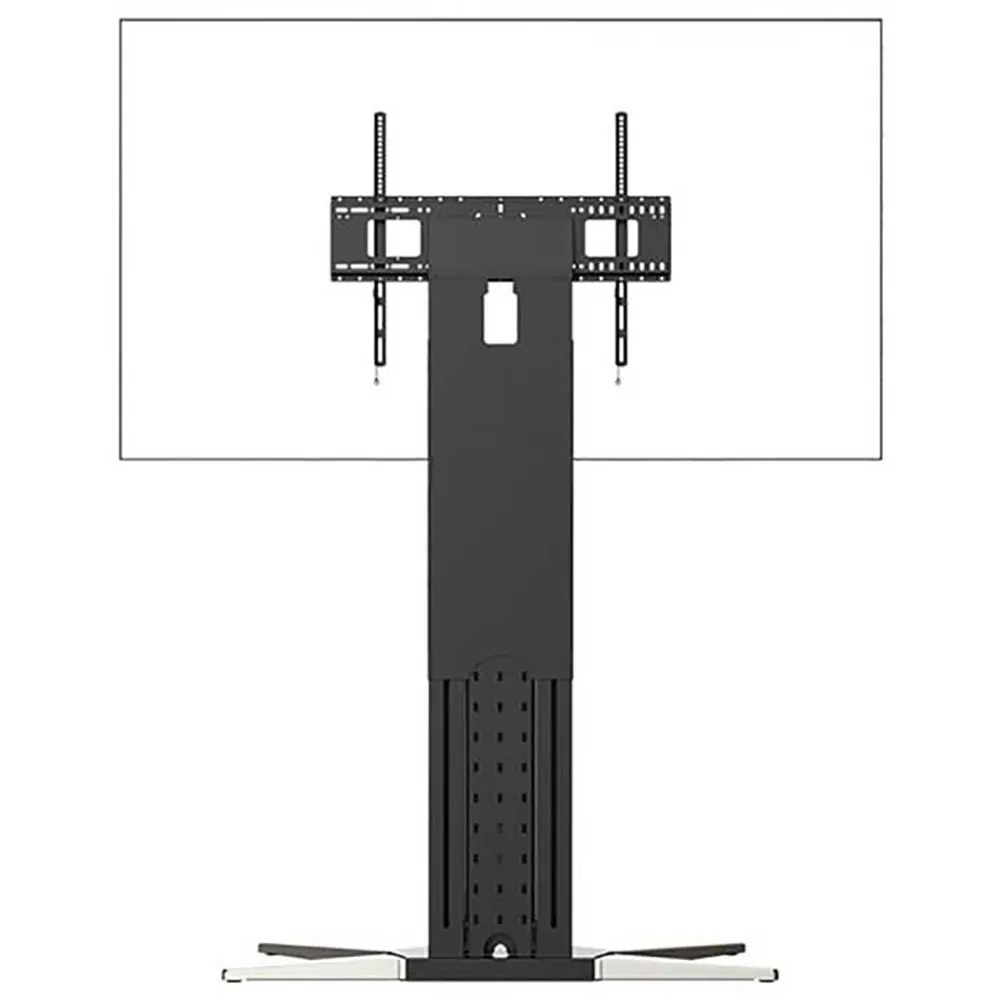

VFM-WVC /RSB 680 mm / 26.8´´ Height Adjustment:

- The height of the display can be altered to suit the audience.

The telescopic column movement range is 680 mm / 26.8´´.

Compatible with Surface Hub:

- Spacers are included to work with the 85´´ Microsoft Surface Hub.

Specifications:

- Product Weight:

56 Kg / 123.46 Lb.

- Safe Working Load:

130 Kg / 286 Lbs.

- Height Adjustment Range:

800 Mm / 31.5´´ Packaged Dimensions:

- 1112 x 422 x 376 mm/ 43.78´´ x 16.61´´ x 14.8´´.

- Note:

comprises two cartons strapped together.

- Packaged Weight:

57 Kg / 125.66 Lb.

- Construction Material:

Steel Vesa Sizes:

- 800 x 600 mm.

- 800 x 500 mm.

- 800 x 400 mm.

- 600 × 600 mm.

- 600 x 500 mm.

- 600 × 400 mm.

- 500 x 500 mm.

- 500 x 400 mm.

- 400 x 600 mm.

- 400 × 400 mm.

- 400 x 300 mm.

- 400 × 200 mm.

- 300 × 400 mm.

- 300 × 300 mm By adding additional brackets:

- 200 x 200 (VFM-W2X2TV2).

- 100 x 100 (VFM-W1X1TV2) Accessories Included:

- 4 x M5 16 mm screw.

- 4 x M6 16 mm screw.

- 4 x M6 25 mm screw.

- 4 x M8 30 mm screw.

- 4 x M8 50 mm screw.

- 4 x 15 mm thick nylon spacers (for 2S 85´´ Microsoft Surface Hub).

- 4 x 20 mm thick nylon spacers (for 2S 85´´ Microsoft Surface Hub).
