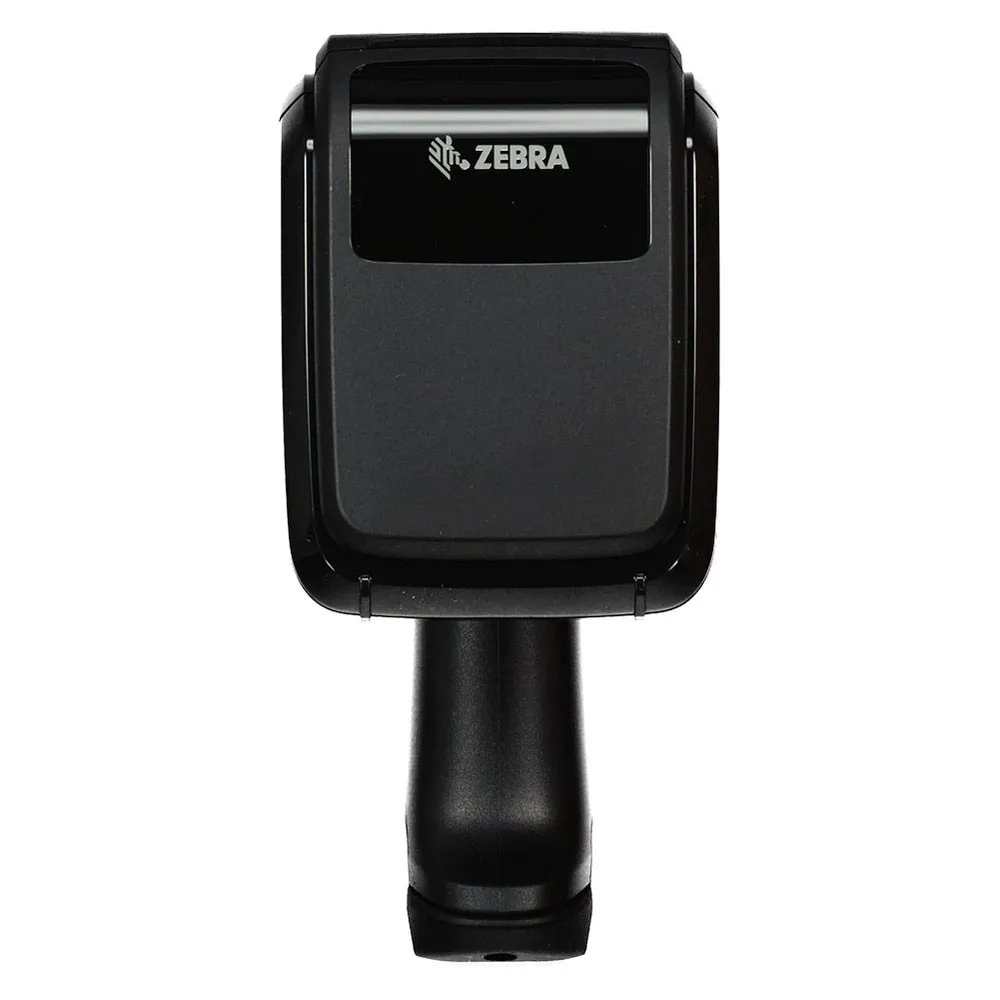

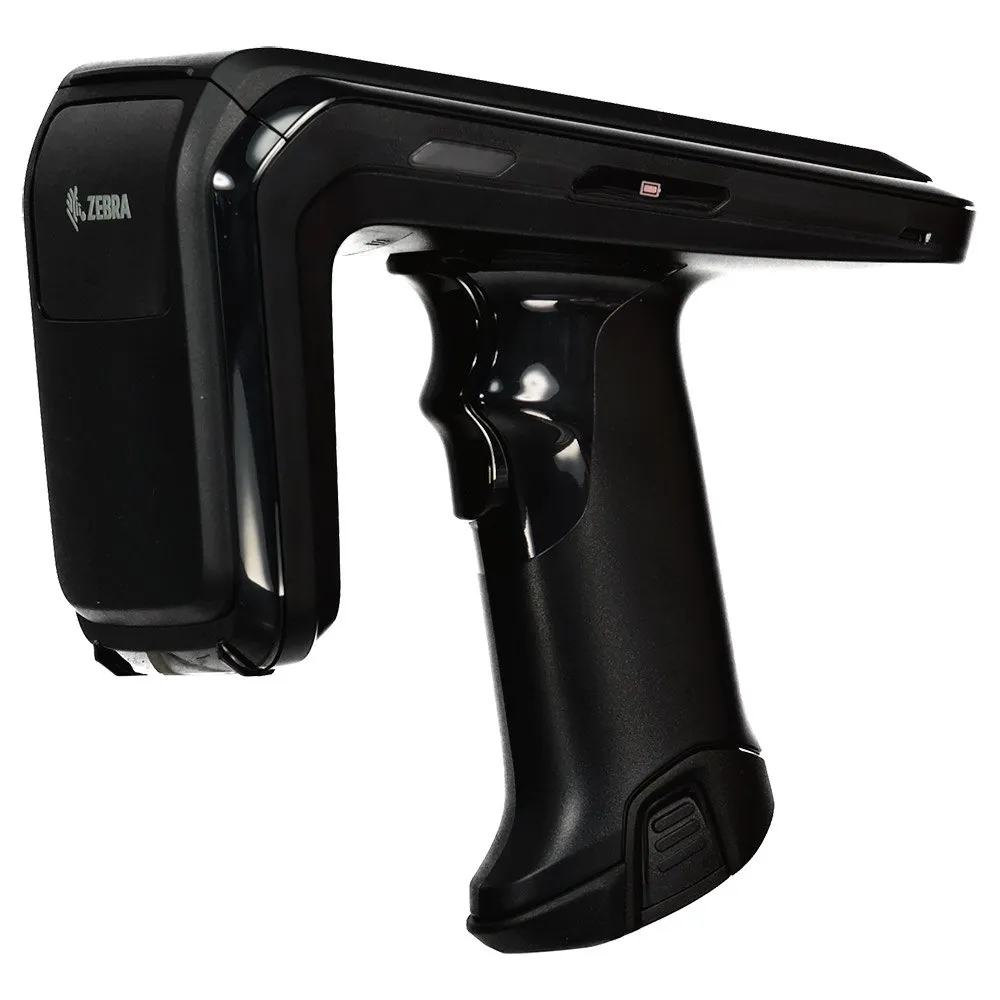

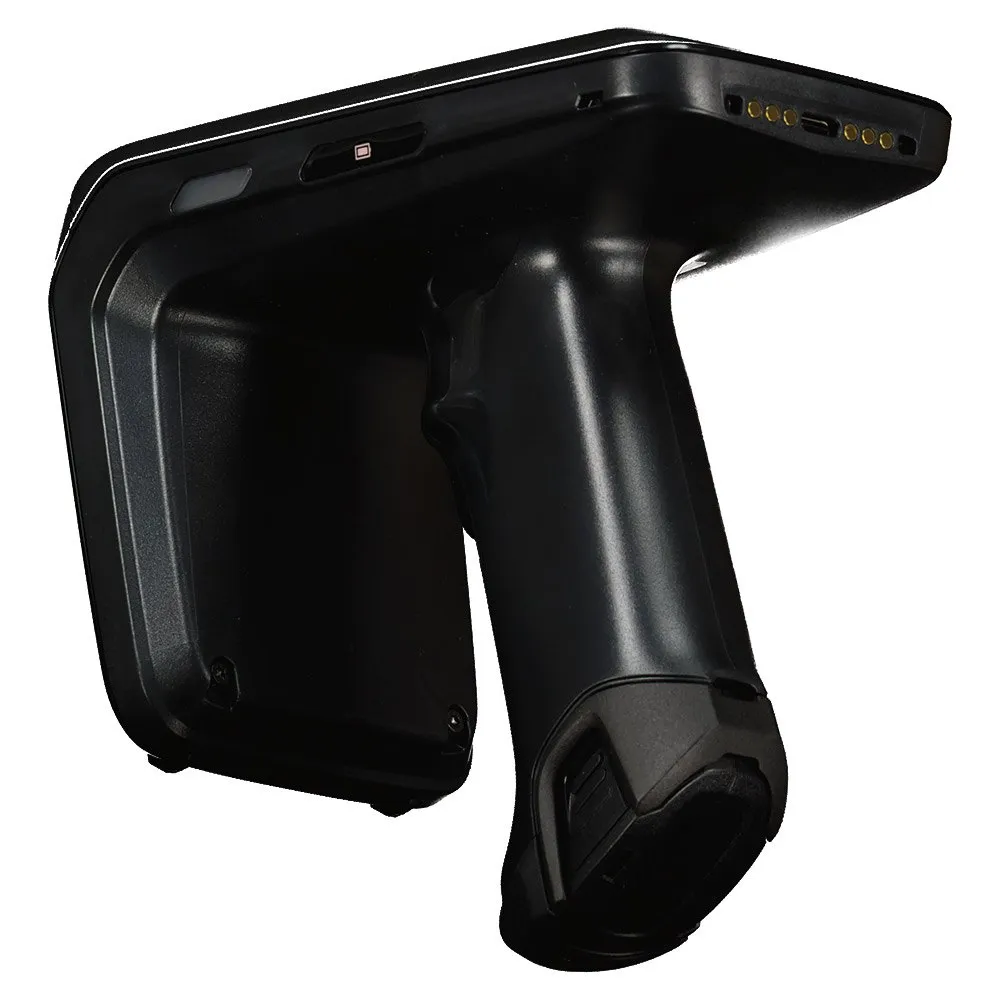

Zebra RFD40 RFID Scanner

EU Plug.

Your business is being challenged to work faster and more efficiently than ever before.

Gain the edge you need with the RFD40 UHF RFID Standard Sled.

Decrease cycle counting time with more tag reads per second.

Take inventory faster or locate critical assets and patients with ease with the ultra-accurate item-finder mode and a tri-function trigger.

Adapt to new and emerging technologies with this state-of-the-art sled that connects to the latest eConnex™-enabled Zebra mobile computers.

This capable RAIN RFID powerhouse is ready to tackle all your RFID and data capture needs long into the future.

Achieve the flexibility and connectivity you need to become more efficient and adapt quickly to new and emerging technologies with the RFD40 UHF RFID Standard Sled from Zebra.

Features:

Unparalleled Efficiency:- The RFD40 Sled outperforms the competition with 1,300+ tag reads per second (up to 30% faster than the next leading competitor), a 20+ foot read range and ultra-accurate item-finder mode.

With a 7000mAh battery and quick release function that´s accessible without removing the mobile computer, it can keep going hour after hour.

The tri-function trigger lets associates quickly access RFID reading, barcode scanning and a programmable third function of your choice, such as the enter key or push-to-talk.

Adaptive Solutions:- The RFD40 Sled is fully enabled to support Zebr´s current mobile computers as well as new mobile computers as they come out.

The easy-to-change, tool-free sled adaptors allow associates to swap out the adaptor quickly while maintaining compatibility without the need to send devices to IT for retrofitting.

Durability You Can Depend On:- Zebra devices have the ability to withstand everyday environments.

The RFD40 Sled has a 5-foot drop to concrete specification and a 500 cycle 0.5 meter/1.6 foot tumble specification to replicate real world knocks and bumps.

It has an IP54 sealing for dust and water protection, and an extended operating temperature range of -10°C to 50°C/14°F to 122°F.

With these durable specifications you can feel confident that the RFD40 Sled will meet the demanding needs of your workplace.

Next Generation Connectivity:- With the new eConnex™ technology that allows for snap-and-go pairing, you can future-proof your workplace with a sled that supports the latest Zebra mobile computers including WWAN-enabled variants.

What´s more, the sled has the ability to instantly connect to supported Zebra eConnex™-enabled devices including the TC21/26, EC50/55 and future models.

Specifications:

Dimensions:- 5.94 in.

H x 3.3 in.

W x in.

6.5 in.

L.

- 15.1 cm H x 8.4 cm W x 16.65 cm L.

- Weight:~19.1 oz./~541 grams (sled with battery).

Power:Quick-Release, PowerPrecision+ Li-Ion 7000 mAh battery Notification:- Decode LEDs.

- Battery Status LED.

- Beeper.

- User Input:Tri-Function User Programmable Trigger RFID.

Performance:- Standards Supported:EPC Class 1 Gen 2.

EPC Gen2 V2.

- RFID Engine:Zebra Proprietary Radio Technology.

- Fastest Read Rate:1300+ tags/sec.

- Nominal Read Range:~19.7+ ft./ ~6+ m Frequency Range and RF System Output:- US:902-928MHz.

0 - 30 dBm (EIRP).

- EU:865-868MHz.

0 - 30 dBm (EIRP).

- 916.3, 917.5, and 918.7 MHz.

0 30 dBm (EIRP).

- Japan:916-921MHz (w LBT), 0 - 30 dBm (EIRP) User Environment:- Drop Specification:Multiple 5 ft./1.5 m drops to concrete Tumble Specification:- 500 cycles (1000 drops, 1.6 ft./0.5 m) at room temperature.

- Operating Temp:-10°C to 50°C/14°F to 122°F.

- Storage Temp:-40°C to 70°C/-40°F to 158°F.

- Humidity:5-85% non-condensing Electrostatic Discharge:- +/-15kV air discharge.

- +/-8kV direct discharge.

- +/-8kVdc indirect discharge.

- Sealing:IP54 Accessories:- Cradles and Charging:- Cable Cup.

- USB-C Cable.

- USB Wall Brick for USB-C Cable and Cable Cup.

- 1-Slot Charging Cradle.

- 1-Slot Charging and USB Cradle.

- Multi-Slot Charging Cradle.

- Multi-Slot Charging and Ethernet Cradle.

- 4-Slot Battery Toaster Other Accessories:- eConnexTM Adaptors for Supported Zebra Mobile Computers.

- Battery Locking Foot.

- Belt Holster Communication:Host Connection:- eConnex™ (Electric 8-pin Connection).

- USB-C Cable.

- USB Cable Cup Host Computer:- Zebra mobile computers and tablets.

- Windows-Based PCs Mobile Computer Adaptors:- eConnex™ Regulatory:EMI/EMC:- FCC Part 15 Subpart B Class B.

ICES 003 Class B.

- EN 301 489-1.

EN 301 489-3.

EN 55035.

EN 55032 Class B.

EN 60601-1-2 Electrical Safety:- IEC 62368-1 (ed.2).

- UL 62368-1, second edition, CAN/CSA-C22.2.

- No.

62368-1-14 RF Exposure:- EU:EN 50364, EN 62369-1, EN 50566, EN 62311.

- USA:FCC Part 2.

1093 OET Bulletin 65 Supplement ‘C´.

Canada:RSS-102 RFID:- EU EN 302 208, FCC Part 15 Subpart C.

- Canada:RSS-247.
