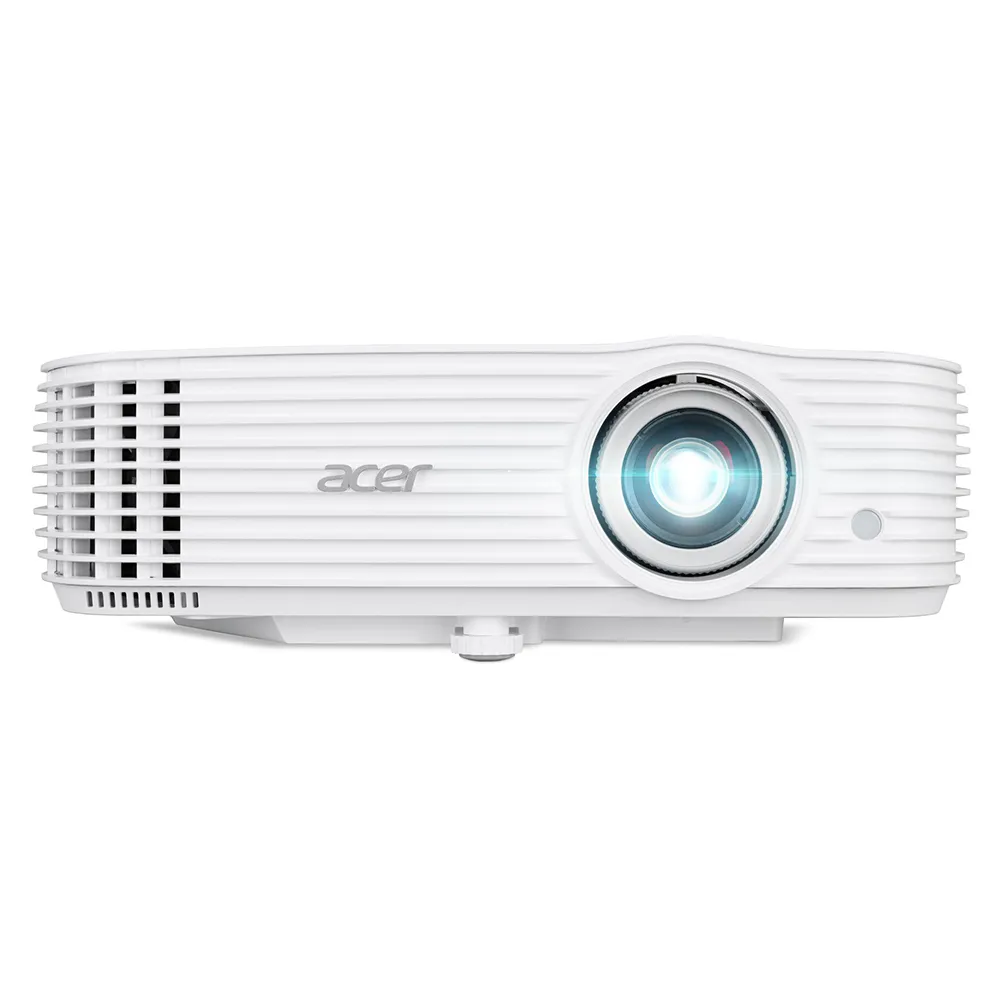

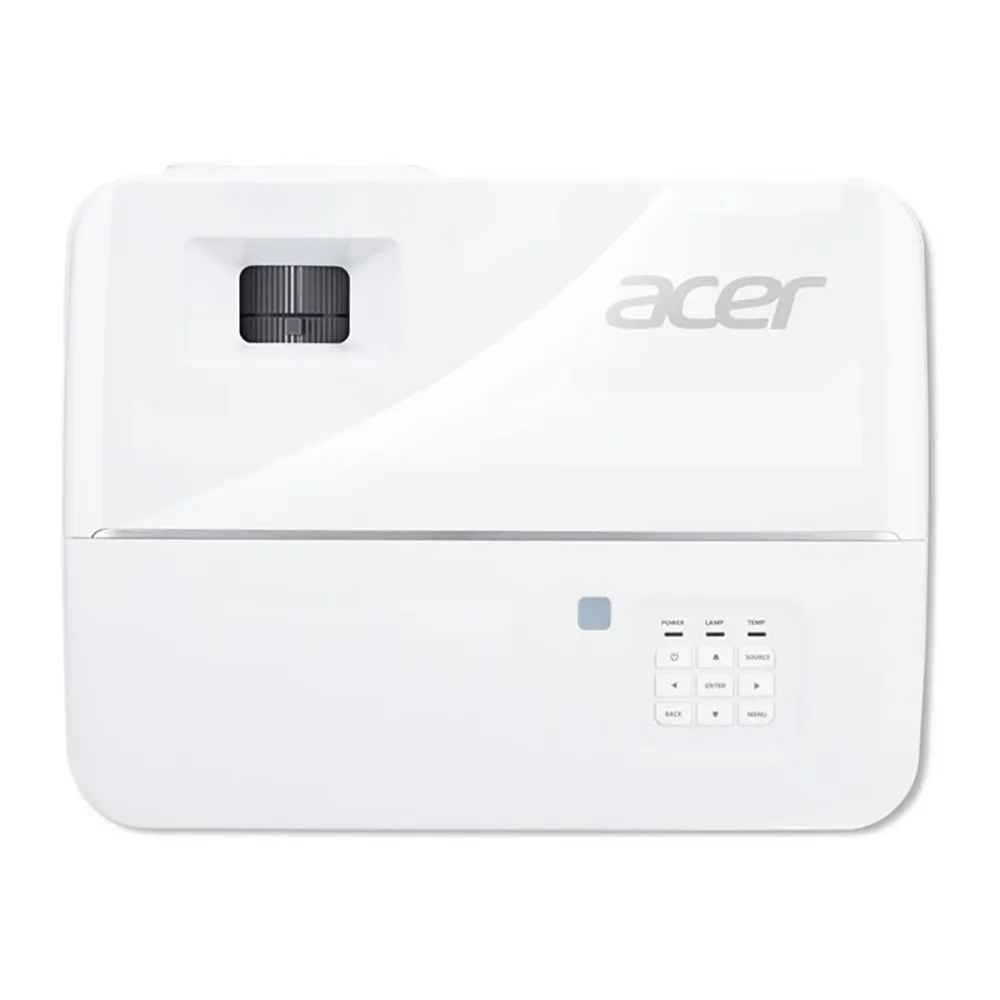

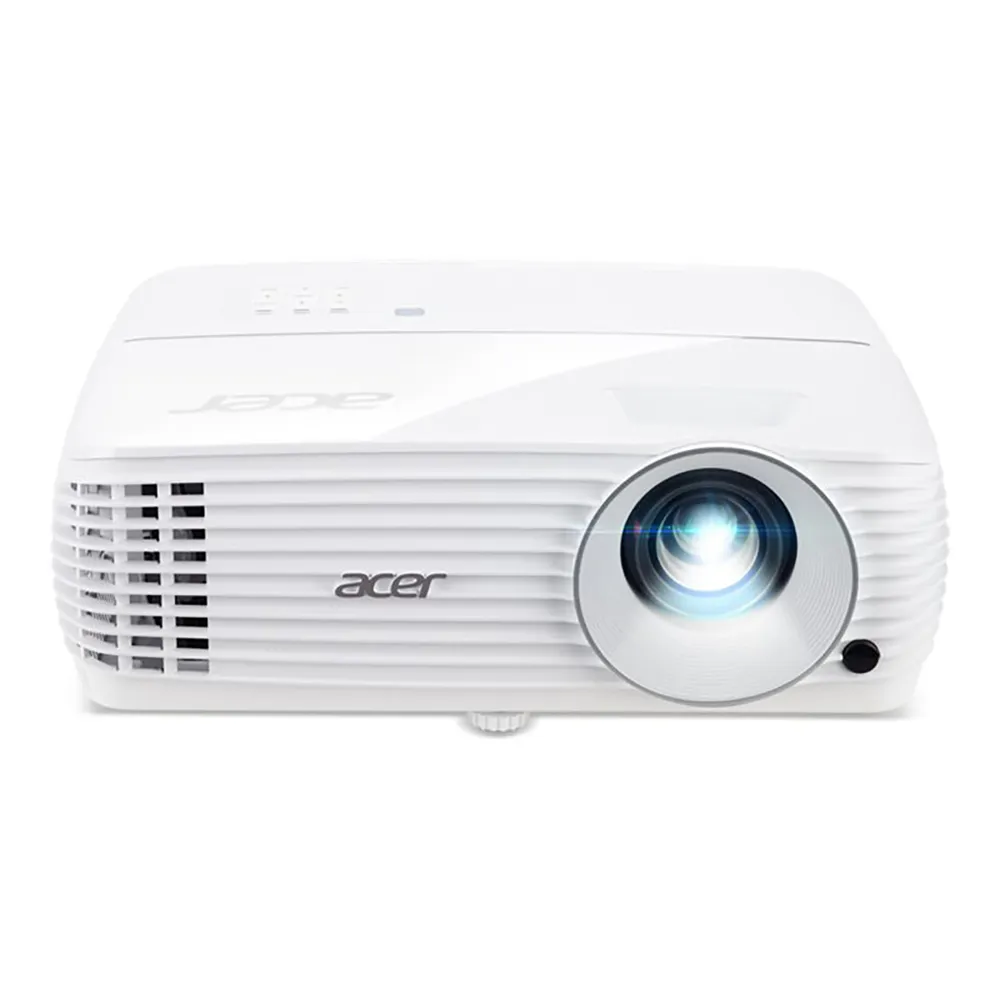

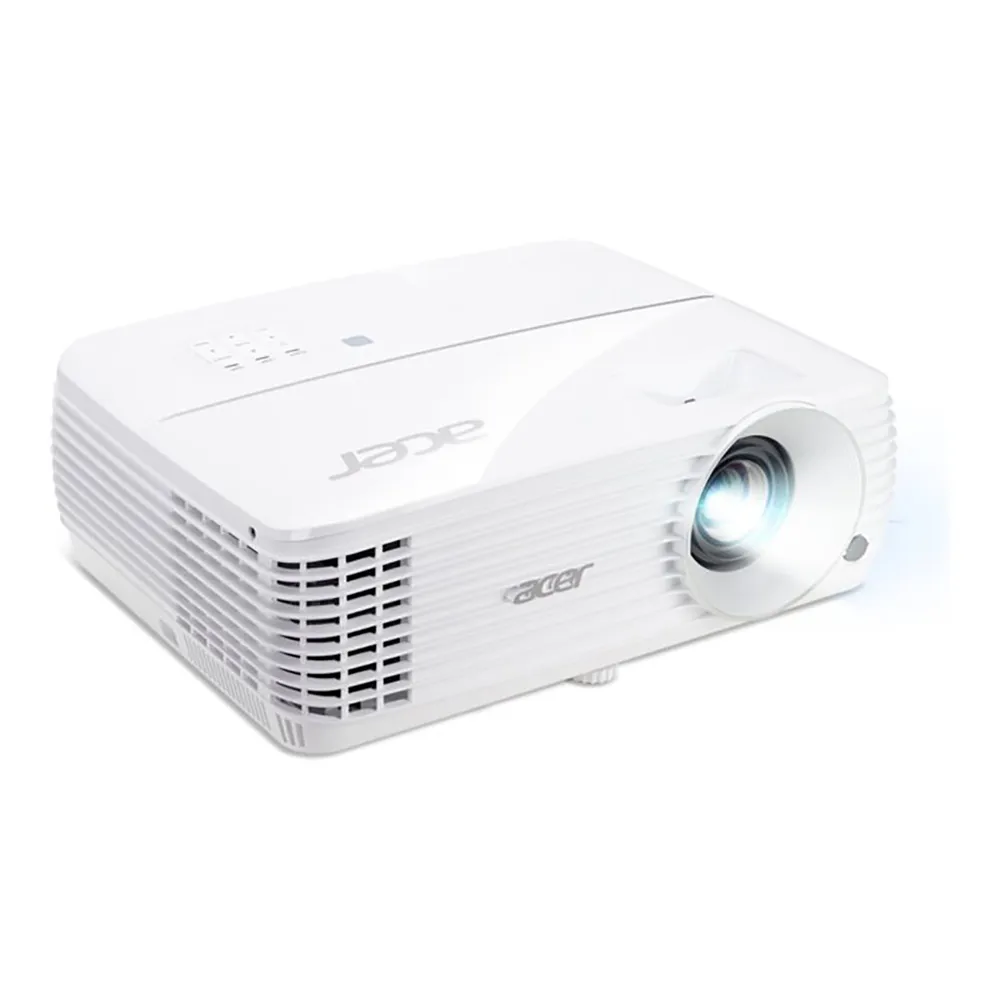

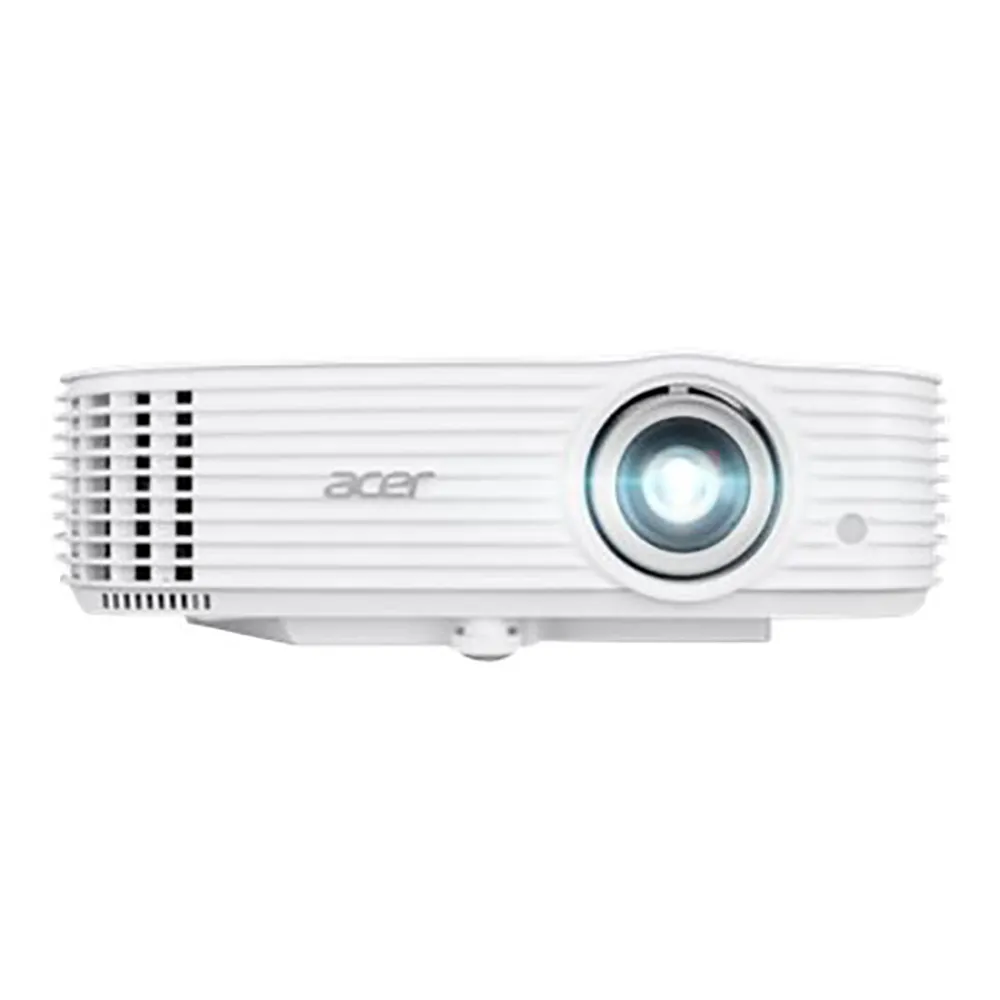

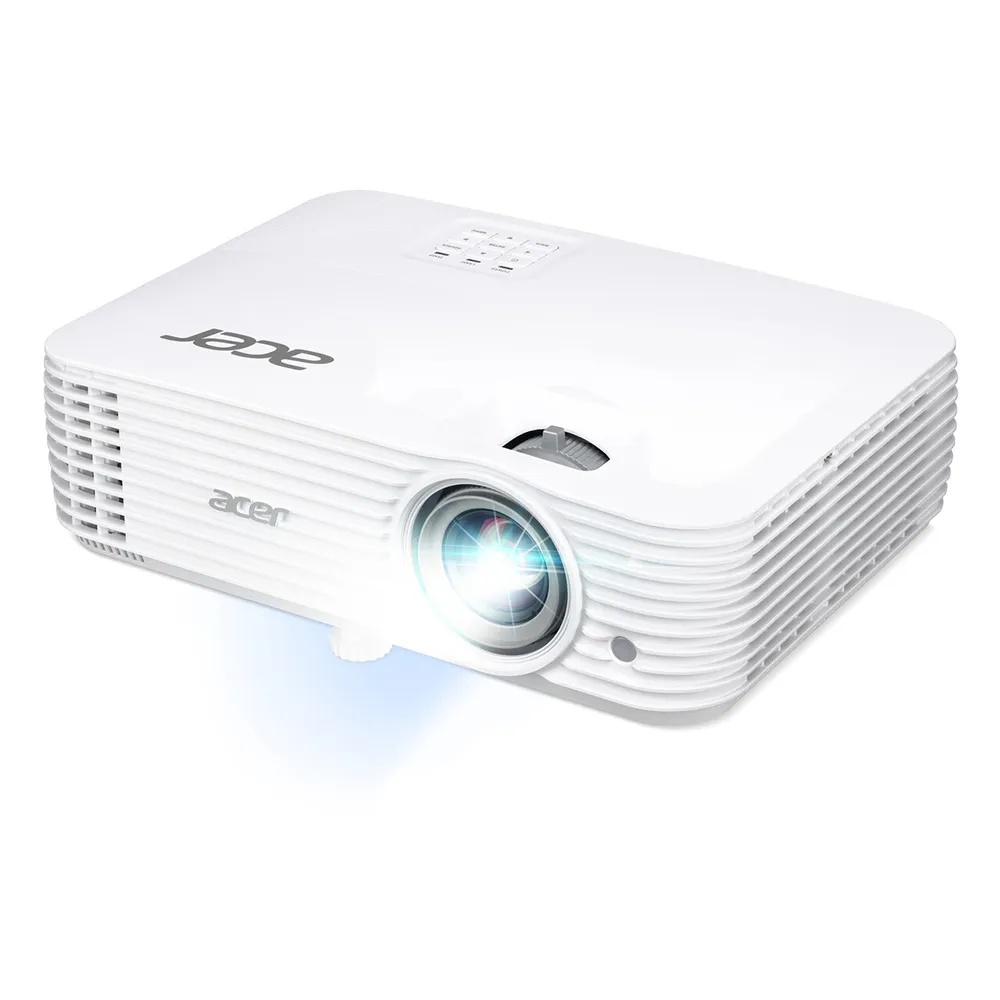

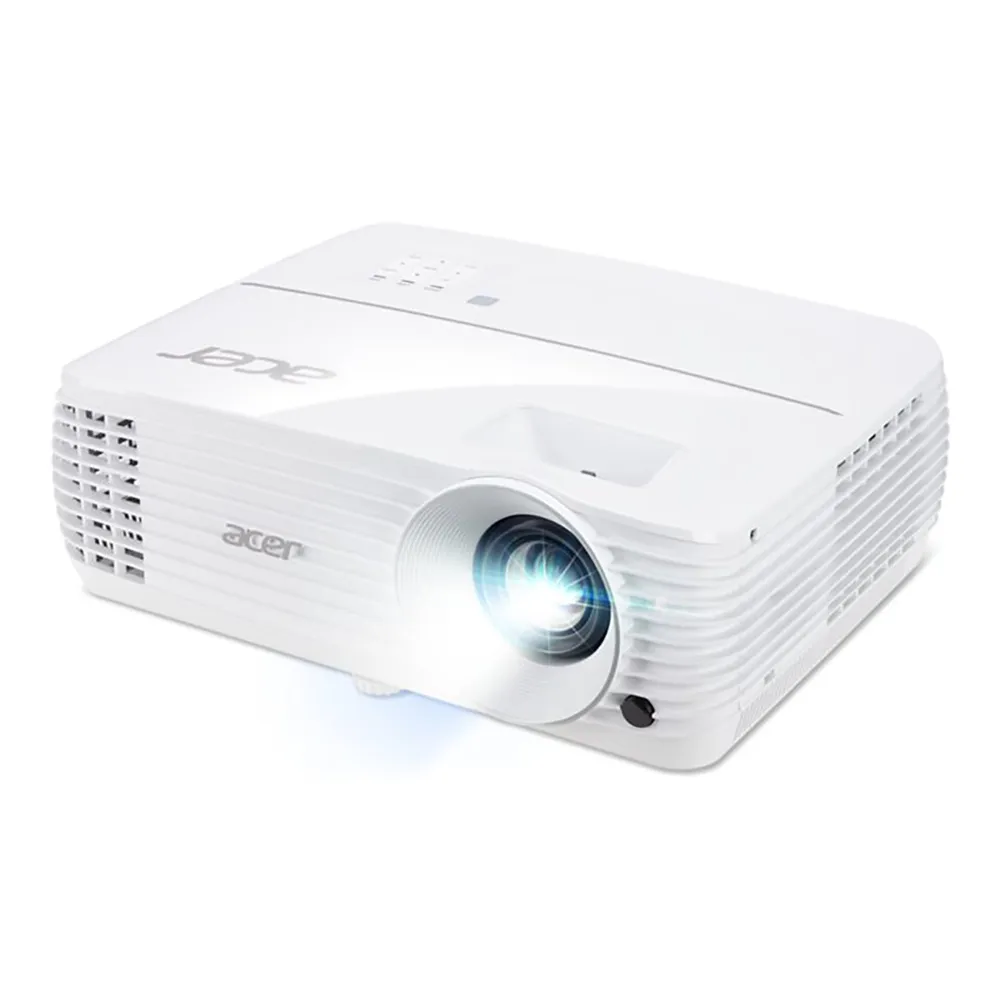

Acer H6830BD Projector

The Acer H6830BD boasts 4K resolution, football mode, 1080p 240Hz, and 4000 ANSI lumens of brightness for an authentic cinematic experience.

Features:

4K UHD Resolution:
- Immerse yourself in a whole new environment with unprecedented detail and color accuracy. 4K UHD projections show details in 8.3million pixels to give a four times higher resolution than Full HD.

4,000 Lumens Brightness:
- See crystal-clear, vibrant images from a distance in daylight or medium to large rooms with up to 4,000 lumens of brightness.

Acer BlueLightShield™:
- Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.

Acer LumiSense™:
- Acer LumiSense™ adjusts the image brightness and color saturation based on the content you´re viewing.

ISFccc Professional Calibration:
- Get the most out of your projector’s images with professional calibration from an ISF-qualified technician.

Acer ColorSafe II:
- Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.

Image Shift:
- Project with precision and avoid setup problems. Using Image Shift and digital zoom, you can shift the image precisely to fit your screen without having to alter the existing mounting location.

4 Corner Correction:
- Quickly and easily adjust distortion in each individual corner with 4 Corner Correction.

Keystone Correction for Distortion:
- Finding the right angle for your presentation is easier with keystone correction, which corrects horizontal and vertical distortion.

Specifications:

Image:
- Native Resolution:3840 x 2160
- Maximum Resolution: 3840 x 2160
- Standard Mode Brightness: 4000 lm
- Low Mode Brightness: 3200 lm
- Compatible Aspect Ratio: 4:3
- Native Aspect Ratio: 16:9
- Contrast Ratio: 10,000:1
- Throw Ratio: 1.127 to 1.46 (2540 mm@2500 mm)
- Digital Zoom: 2x
- Zoom Ratio: 1.3:1
- Vertical Keystone Correction: -40°/+40°
- Horizontal Keystone Correction: -40°/+40°
- Maximum Vertical Sync: 240 Hz
- Minimum Vertical Sync: 24 Hz
- Maximum Horizontal Sync: 135 kHz
- Minimum Horizontal Sync: 15 kHz
- Colour Supported: 1.07 Billion Colors
- Uniformity: 85%
- Graphic Mode: 4K
- Standard Mode Brightness Disclaimer: Compliant with ISO 21118 standard

Projection Lens:
- Minimum Lens Aperture: f/1.94
- Maximum Lens Aperture: f/2.12
- Minimum Focal Length: 11.90 mm
- Maximum Focal Length: 15.50 mm
- Minimum Diagonal Image Size: 787.40 mm
- Maximum Diagonal Image Size: 7.62 m (300´´)
- Minimum Projection Distance: 1 m
- Maximum Projection Distance: 7.50 m
- Optical Zoom: 1.3x

Lens Type:
- Manual Focus
- Manual Zoom

Lamp:
- Lamp Type: E20.7i
- Number of Lamps: 1
- Lamp Power: 240 W
- Normal Mode Lamp Life: 5000 Hour
- Economy Mode Lamp Life: 10000 Hour

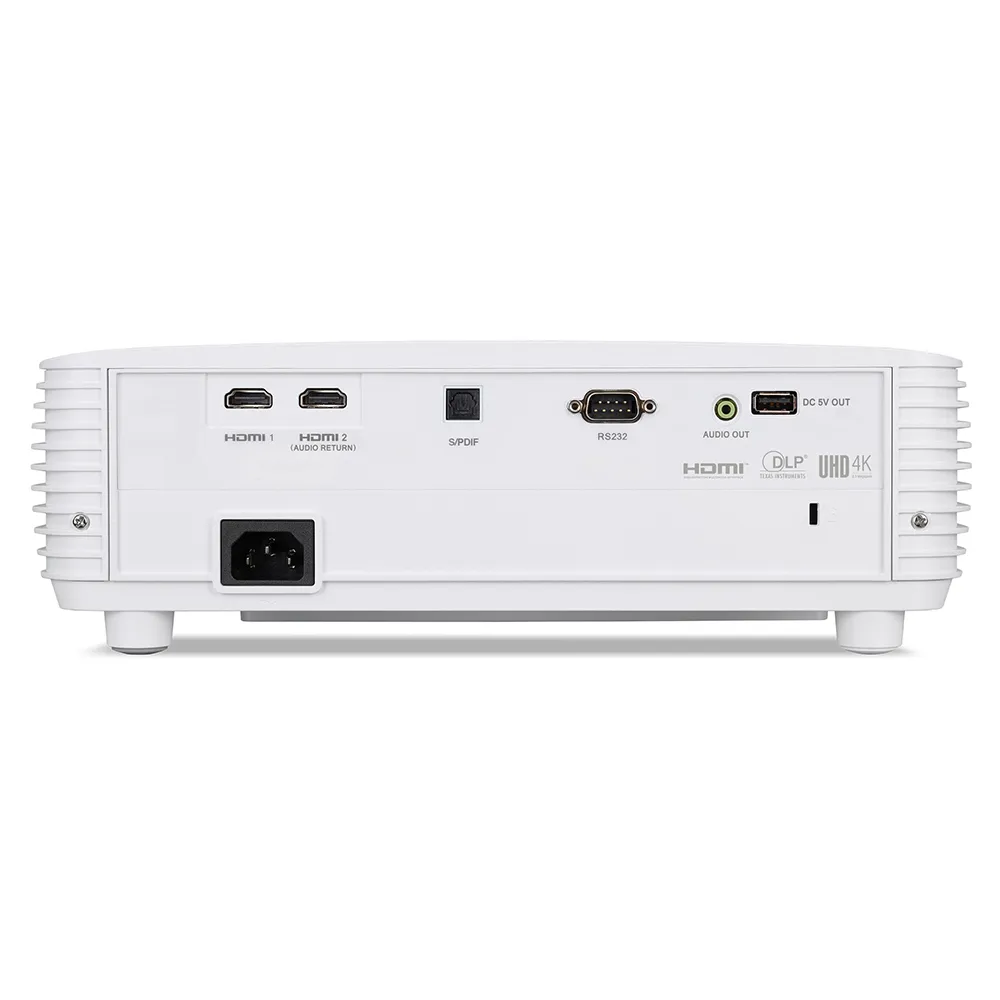

Interfaces/Ports:
- HDMI: Yes
- HDMI Version: HDMI 2.0
- S/PDIF: Yes
- Number of USB Ports: 1
- USB: Yes
- USB Standard: USB 2.0
- USB Connector Type: 1 x Type-A
- Number Of Audio Outputs: 1
- Audio Line Out: Yes
- Total Number of HDMI Ports: 2
- RS-232 (D-sub): 1
- Audio Out: x1, 3.5mm mini jack

S/PDIF:
- Speaker: x1.0, 10 W Speaker

Technical Information:
- Projection System: DLP
- Horizontal Scan Range: 15 kHz - 135 kHz
- Vertical Scan Range: 24 Hz - 240 Hz
- Offset: 120%
- Noise Level (Economy Mode): 30 dB

Projection Method:
- Front Ceiling
- Rear
- Front
- Rear Ceiling

Video Compatibility:
- HDTV
- SDTV
- EDTV
- NTSC
- PAL
- SECAM

Computer Compatibility:
- Mac PC
- Windows PC
- Google Chrome PC

Audio:
- Number of Speakers: 1.0
- Speaker Output Power: 10 W
- Speaker Output Mode: Mono

Display/Image:
- Projection System: DLP™
- Light Source: 240 W E20.7i
- Light Source Life: 5000 hours (Standard), 10000 hours (ECO)
- Native Resolution: 3840 x 2160
- Maximum Resolution: 3840 x 2160
- Brightness: 4000 ANSI Lumens (Standard), 3200 lm (ECO), (Compliant with ISO 21118 standard)
- Aspect Ratio: 16:9 (Native), 4:3 (Supported)
- Contrast Ratio: 10,000:1
- Image Size: 31´´ (78.7 cm) ~ 7.62 m (300´´)
- Keystone Correction: 4-corner Correction Vertical +/- 40° (Vertical, Manual & Auto), 4-corner Correction Horizontal +/- 40° (Horizontal, Manual)
- Throw Ratio: 1.127 to 1.46 (2540 mm@2500 mm)
- Zoom Ratio: 1.3x
- Digital Zoom: 2x
- Lens: F = f/1.94~f/2.12, f = 11.90 mm~15.50 mm, Manual Focus, Manual Zoom
- Projection Mode: Front Ceiling, Rear, Front, Rear Ceiling
- Display Color: 1.07 billion
- Vertical Sync Rate: 24 ~ 240 Hz
- Horizontal Sync Rate: 15 to 135 kHz

Control & Network:
- RS232: x1, D-sub

General:
- Noise Level: 30 dB

Security:
- Kensington Lock
- Security Bar

Power Description:
- Power Supply: 100 V AC ~ 240 V AC
- Operating Power Consumption: 310 W
- Standby Power Consumption: 500 mW
- Power Supply Input Voltage Range: AC input 100~240V

Input Voltage:
- 120 V AC
- 230 V AC

Physical Characteristics:
- Fan Noise: 30 dB Approximate Economy Mode
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 80%
- Installation: Ceiling Mount
- Weight (Approximate): 2.92 kg
- Form Factor: Ceiling Mountable
- Height: 93.8 mm
- Width: 322 mm
- Depth: 225 mm

Miscellaneous:
Optional Accessories:
- Carrying Case (MC.JR211.005)
- 3D Glasses (MC.JFZ11.00B)
- Lamp (MC.JTA11.001)
- Ceiling Mount (MC.JLC11.003)

Standard Accessories:
- AC Power Cord
- Battery for remote control
- HDMI Cable
- Quick Start Guide
- Remote Control
- Security Card
- User´s Guide (CD-ROM)
- Carrying Case
