Act AC4438 Injector

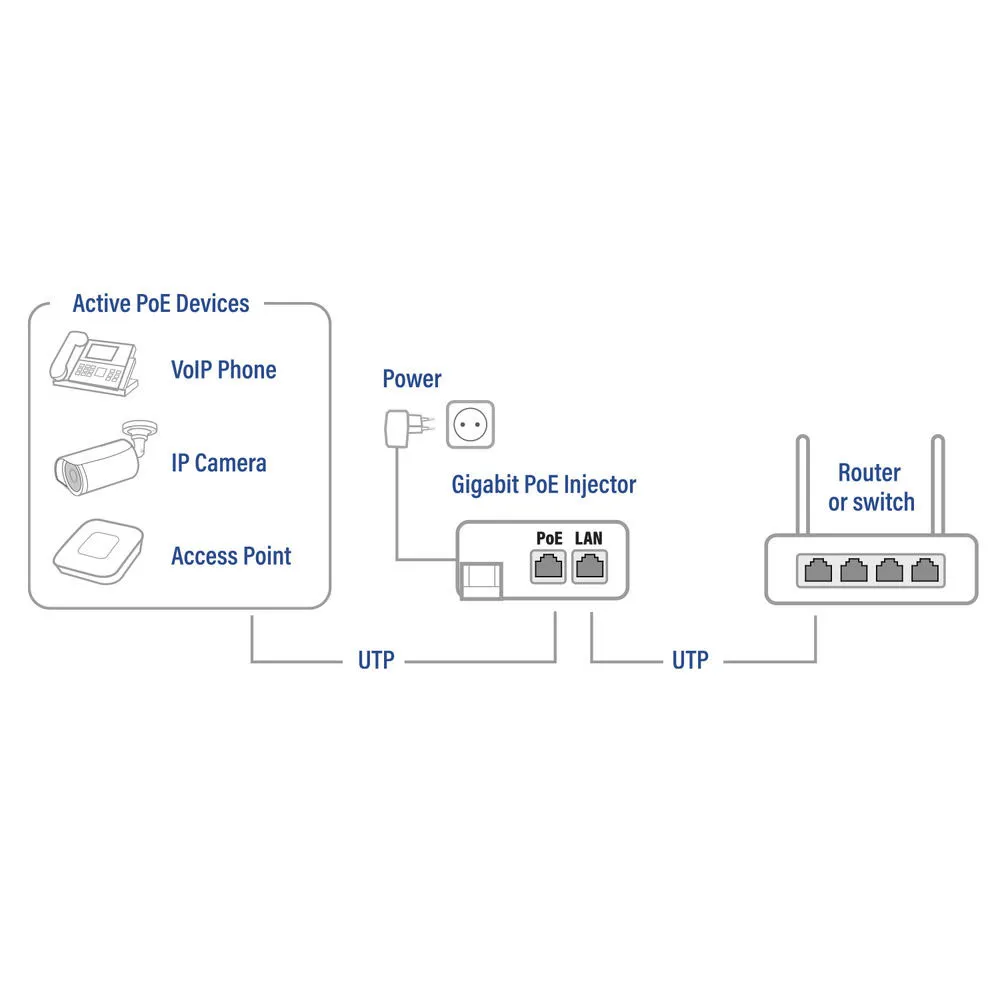

EU PlugPower your network equipment such as:an access point or VOIP telephone via a single network cable with the AC4438 Gigabit PoE+ Injector.

This PoE+ injector is a perfect solution when installing a network device at a location where there is no power socket available.

Or whether you want to connect an active PoE+ device which cannot be powered by an power supply.

The PoE+ injector automatically determines the correct power.

It complies with the 802.3af/at PoE+ standard (max.

30W) and is therefore suitable for all hardware that supports this standard.

Besides, the AC4438 has a Gigabit ethernet connection to ensure fast data transfer.

The AC4438 is equipped with an integrated wall mount.

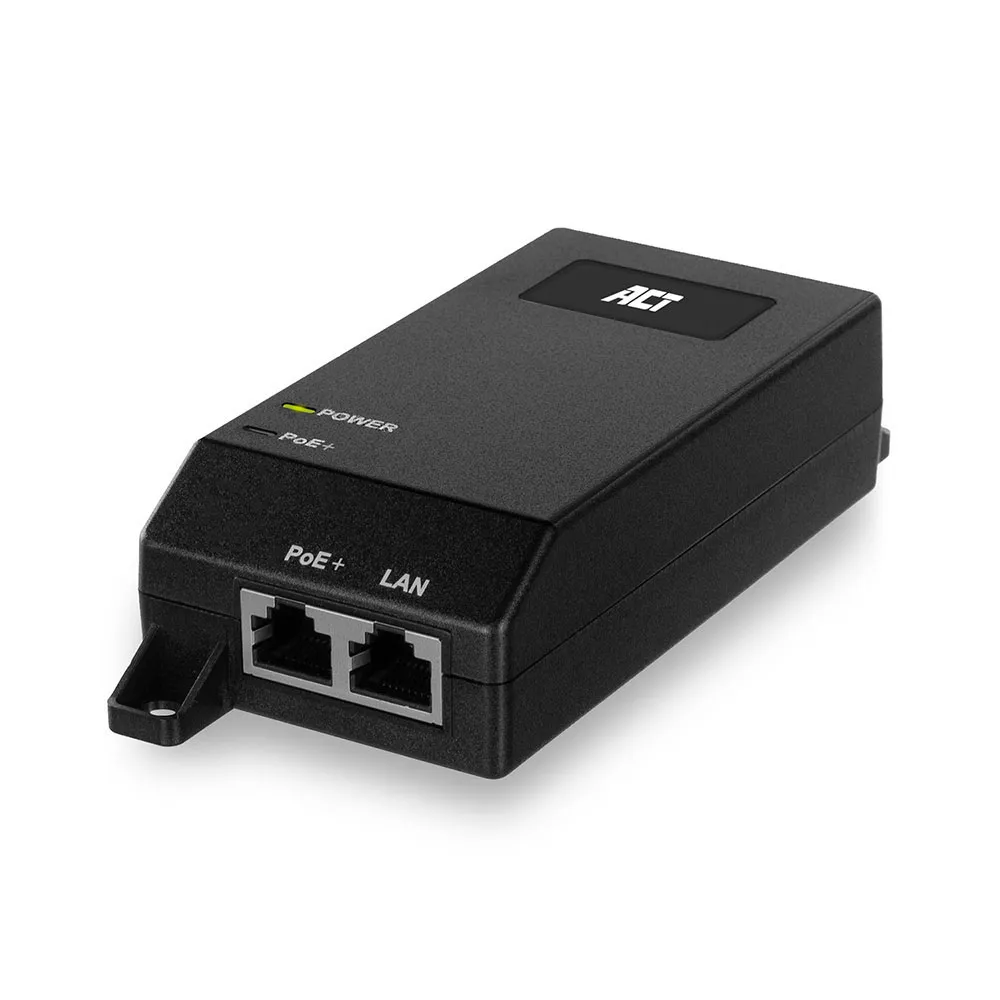

ACT Gigabit PoE+ (30W) Injector.

Ethernet interface type:Gigabit Ethernet, Ethernet.

LAN data rates:10,100,1000 Mbit/s.

Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u.

Product colour:Black.

Power over Ethernet (PoE) voltage:30 V.

AC adapter input voltage:100 - 240 V.

Width:198 mm.

Depth:168 mm.

Height:61 mm.

Number of products included:1 pc(s).

Powers IP devices at locations without power outlet via a single UTP cable.

Automatic power detection:IEEE 802.3af/at compliant.

Gigabit ethernet connection.

PoE Power:Power+:pin 1 & pin 2.

Power-:pin 3 & pin 6.

Integrated wall mount.

Plug and play.
