Act AC7091 docking station

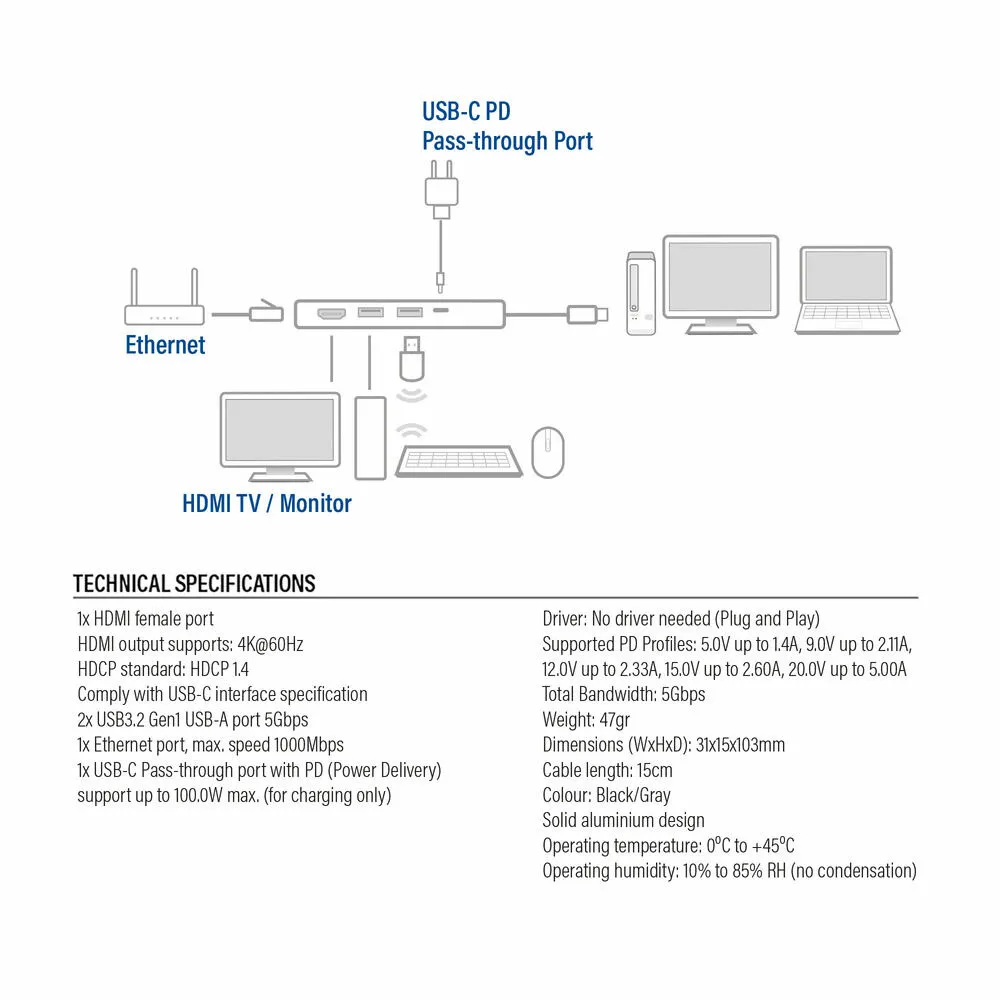

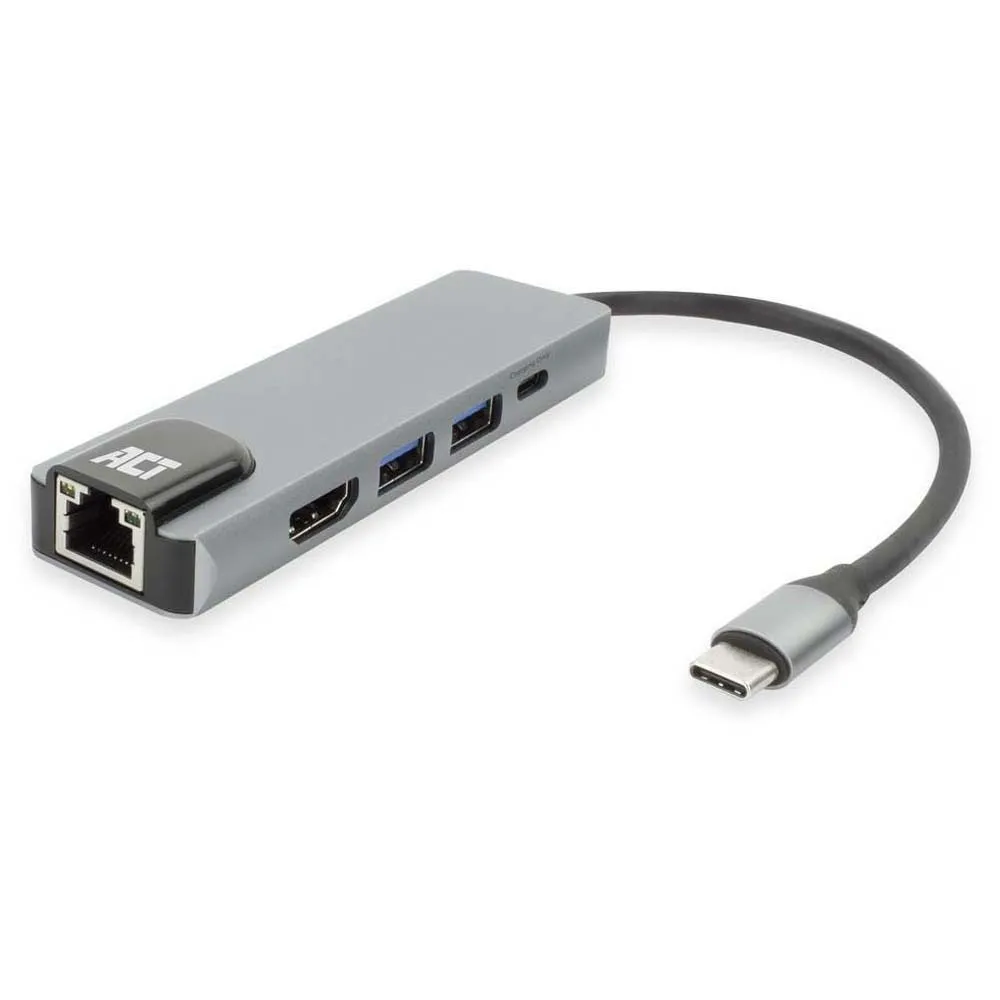

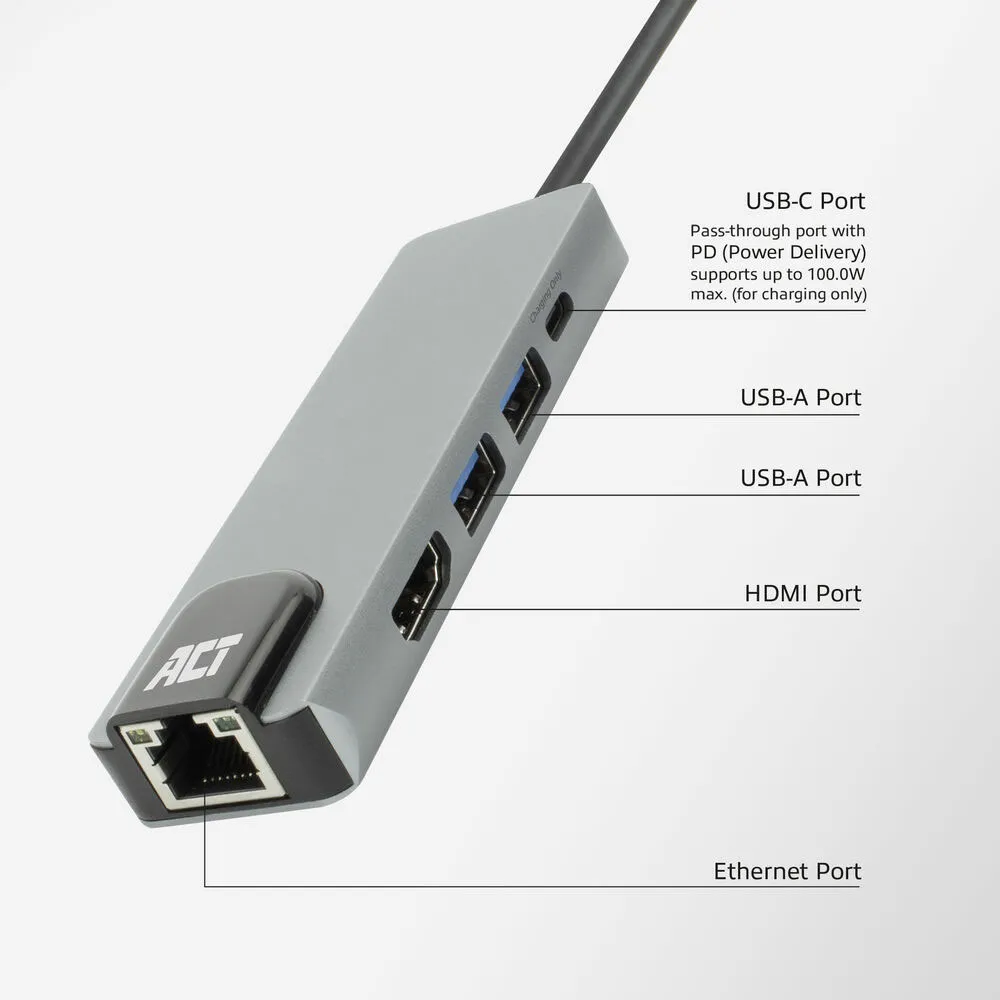

The USB-C 4K Docking Station transforms your laptop into a complete workstation with a single USB-C cable. This 5-in-1 multiport dock adds HDMI, Gigabit Ethernet, two USB-A ports and a USB-C PD pass-through port to your laptop. This solid aluminium multiport dock is USB powered, no external power supply required.

Turn your laptop into a workstation:
- The is a complete 5-in-1 portable docking station, also known as a multiport adapter. Add an external display via the HDMI port. Suitable for a monitor with a maximum resolution of 4K@60Hz.
- The is equipped with Gigabit LAN. In most offices, Gigabit LAN is used to connect to the corporate network rather than the Wi-Fi network.
- The built-in USB hub provides two USB-A 3.0 ports with SuperSpeed USB 5Gbps for transferring data to and from an external SSD or USB adapter.

Supports 100W Power Delivery pass-through:

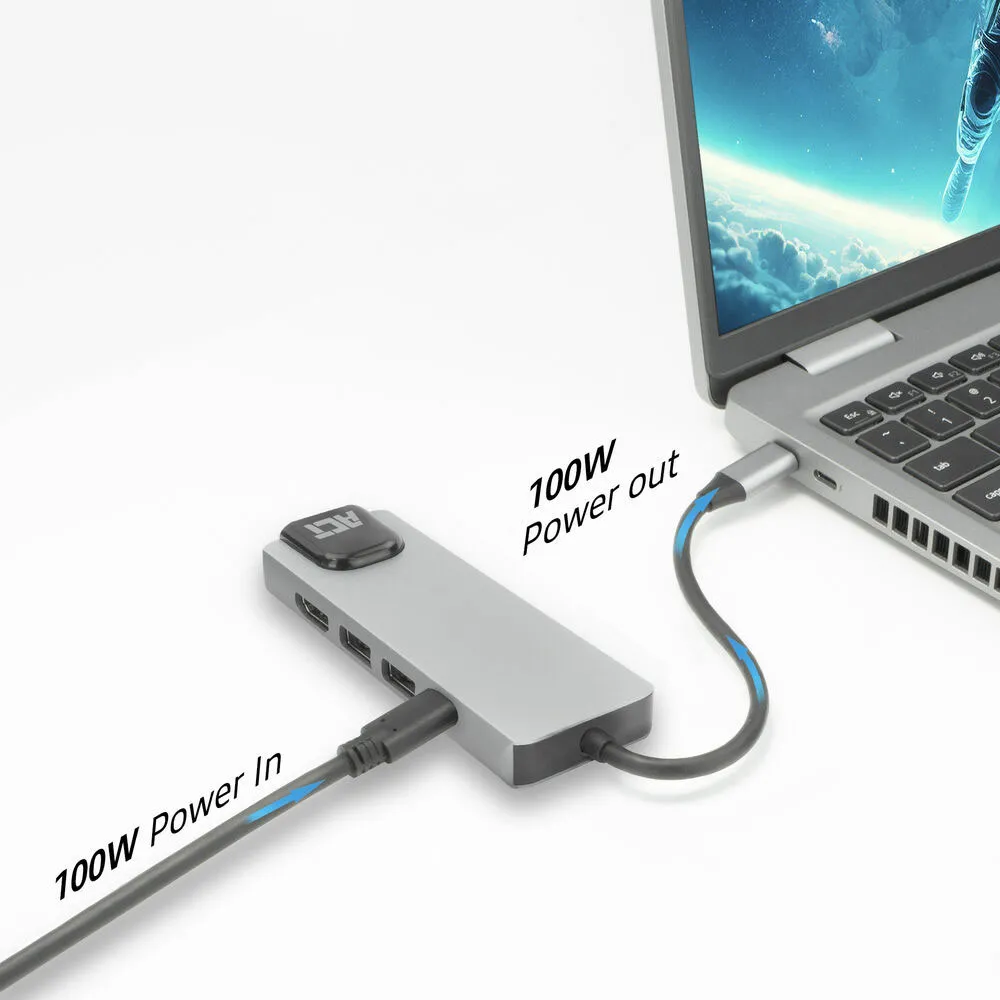

- A USB-C port can generally support data, video, power or a combination of the three. If your notebook has a USB-C port that supports all three: data, video and power, the PD pass-through port on the can be used to charge your laptop. Once connected to the multiport dock, the laptop is powered through the USB-C Power Delivery pass-through port, which is powered by the laptop’s USB-C power supply.

Portable aluminium design:
- The is a compact yet versatile device with a aluminium body. Perfect for taking along in your laptop bag.

User scenarios:

Flexible Working at the Office and Home:
- With the USB-C 4K Docking Station, employees can easily transform their laptops into fully functional workstations, both at the office and at home. At the office, the laptop can be connected to the dock, providing immediate access to a 4K monitor, a Gigabit Ethernet connection for stable internet access, and two additional USB-A ports for peripherals such as mice and keyboards. Thanks to the 100W Power Delivery pass-through function, the laptop remains charged, allowing continuous work without interruptions. The plug-and-play design minimizes the time required for installation, increasing efficiency.

Presentations at Various Locations:
- For business presentations at different locations, the multiport dock offers an excellent solution. The laptop can be easily connected to any HDMI-compatible monitor or projector, enabling presentations to be displayed in sharp 4K resolution. There is no need to carry multiple adapters or chargers, as the dock provides all necessary connections and keeps the laptop charged via the USB-C Power Delivery pass-through. The solid aluminum housing ensures protection during travel and adds a professional appearance.

Mobile Working in Coworking Spaces:
- For employees who frequently use coworking spaces, the USB-C 4K Docking Station offers a reliable and versatile workstation solution. The laptop can be quickly connected to a 4K monitor for additional screen space and improved productivity, while the Gigabit Ethernet port ensures a stable and fast internet connection. The two USB-A ports provide flexibility for connecting additional devices such as external hard drives. Thanks to the dock´s compact and portable design, it can be easily carried in a laptop bag, ensuring employees are always ready to work efficiently, regardless of the location.

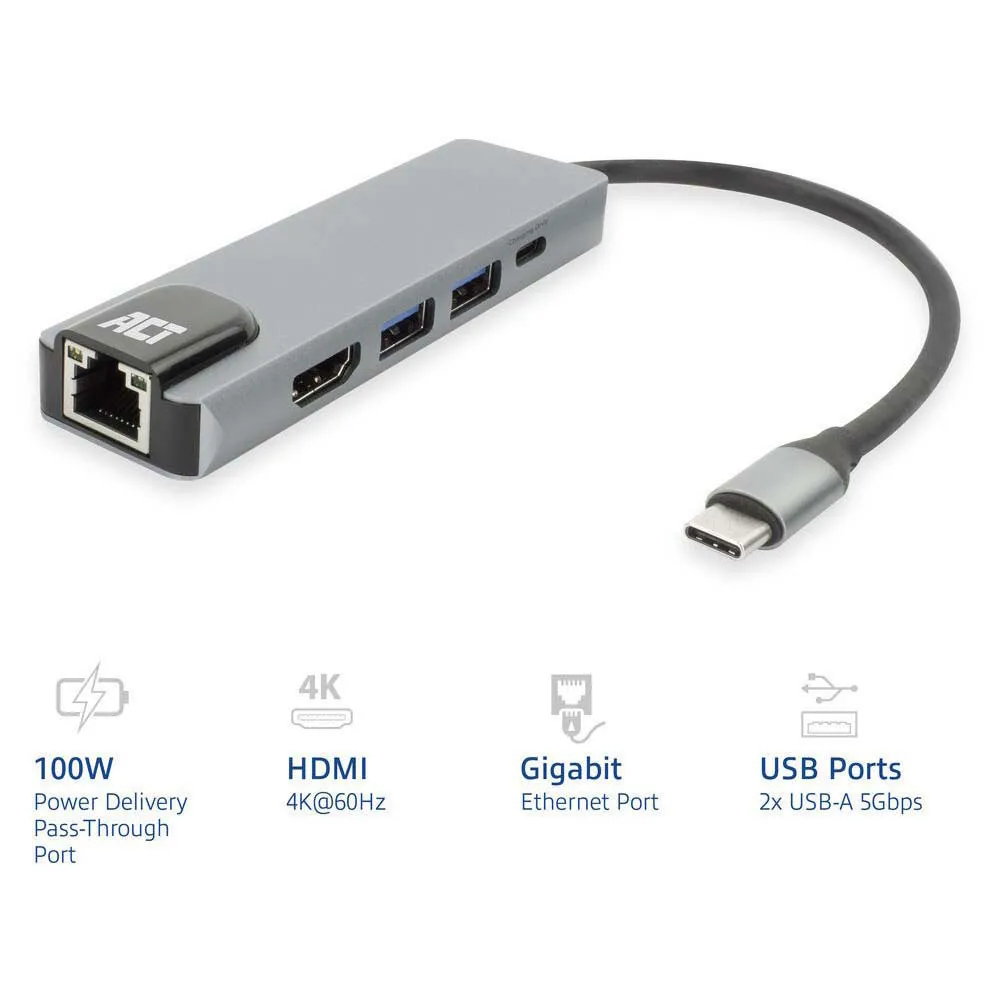

Feature:

- Multiport dock for connecting one 4K@60Hz HDMI monitor to a USB-C laptop
- 2 USB-A data ports (5Gbps) and Gigabit ethernet
- 100W Power Delivery Pass-Through port for charging the connected laptop
- Solid aluminium design
- Plug and play: USB-C port with DisplayPort Alternate Mode (DP Alt Mode) is needed

Specifications:

- Product category: Docking stations
- USB Type-C: Yes
- Connection cable connectors: USB C
- Connection cable: 30 cm
- Connection cable type: Fixed
- Power Delivery ports: 1
- Power Delivery pass-through: Yes
- Max. Power Delivery power: 100 W
- Supported Power Delivery profiles: 12.0V up to 2.33A, 15.0V up to 2.67A, 20.0V up to 5.0A, 5.0V up to 1.4A, 9.0V up to 2.11A
- Device charging ports: USB C Power Delivery 100W
- Connections: HDMI, RJ45, USB
- Peripheral ports: USB
- USB 2.0 - HighSpeed 480 Mbps peripheral ports: USB
- USB 3.2 Gen 1 - SuperSpeed 5 Gbps peripheral ports: USB (x2)
- Needed on laptop: One free USB 3.2 Gen 1 - SuperSpeed (USB 3.0) C port with DisplayPort alternate mode
- Display ports: HDMI
- 4K compatible: Yes
- Max. resolution @ 30Hz: 4096 x 2160
- Max. resolution @ 60Hz: 4096 x 2160
- Number of displays: 1
- Video signal: HDMI
- Video specification: HDMI High Speed
- Video version: HDMI 2.0
- LAN speed: 10/100/1000 Mbps
- PXE boot support: Yes
- Power supply: Optional external power supply, USB powered
