Act AC7092 docking station

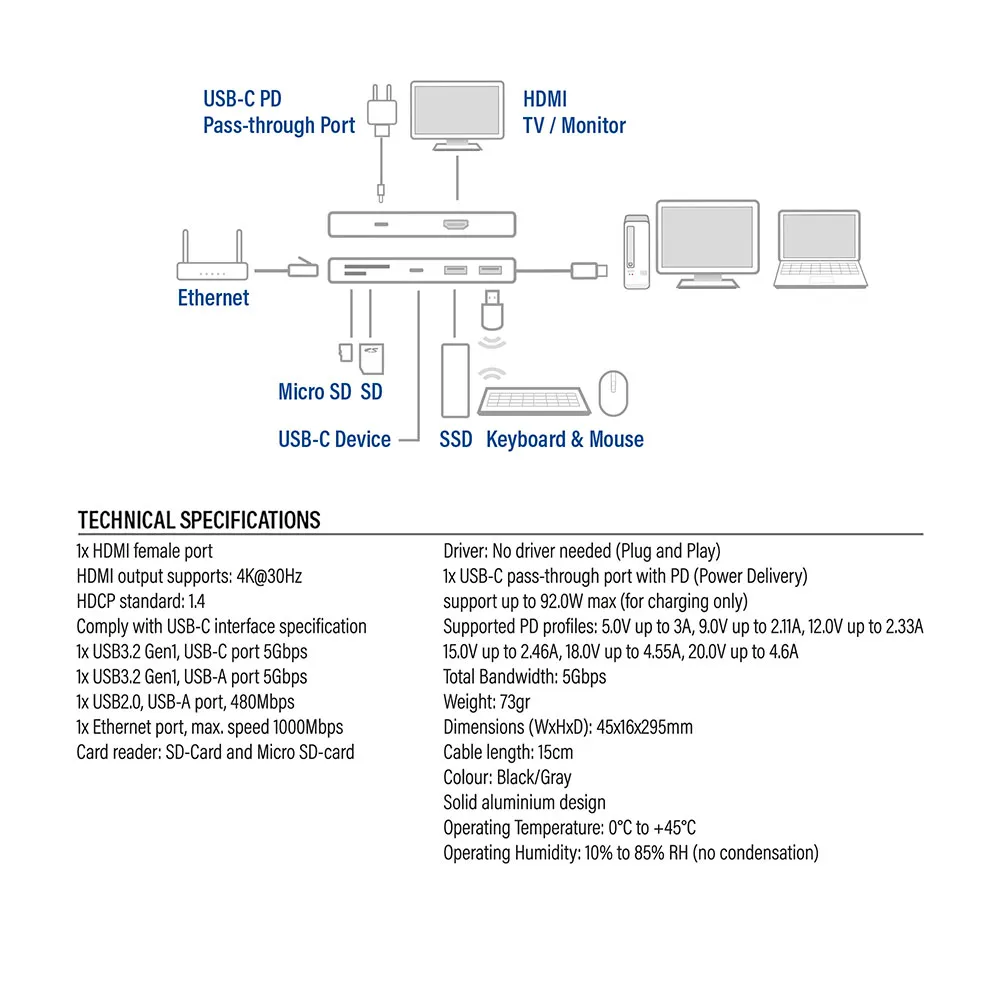

The USB-C 4K Docking Station transforms your laptop into a complete workstation with a single USB-C cable. This 7-in-1 multiport dock adds HDMI, Gigabit Ethernet, one USB-C port, two USB-A ports, one USB-C PD pass-through port and an SD/Micro SD card reader to your laptop. This solid aluminium multiport dock is USB powered, no external power supply required.

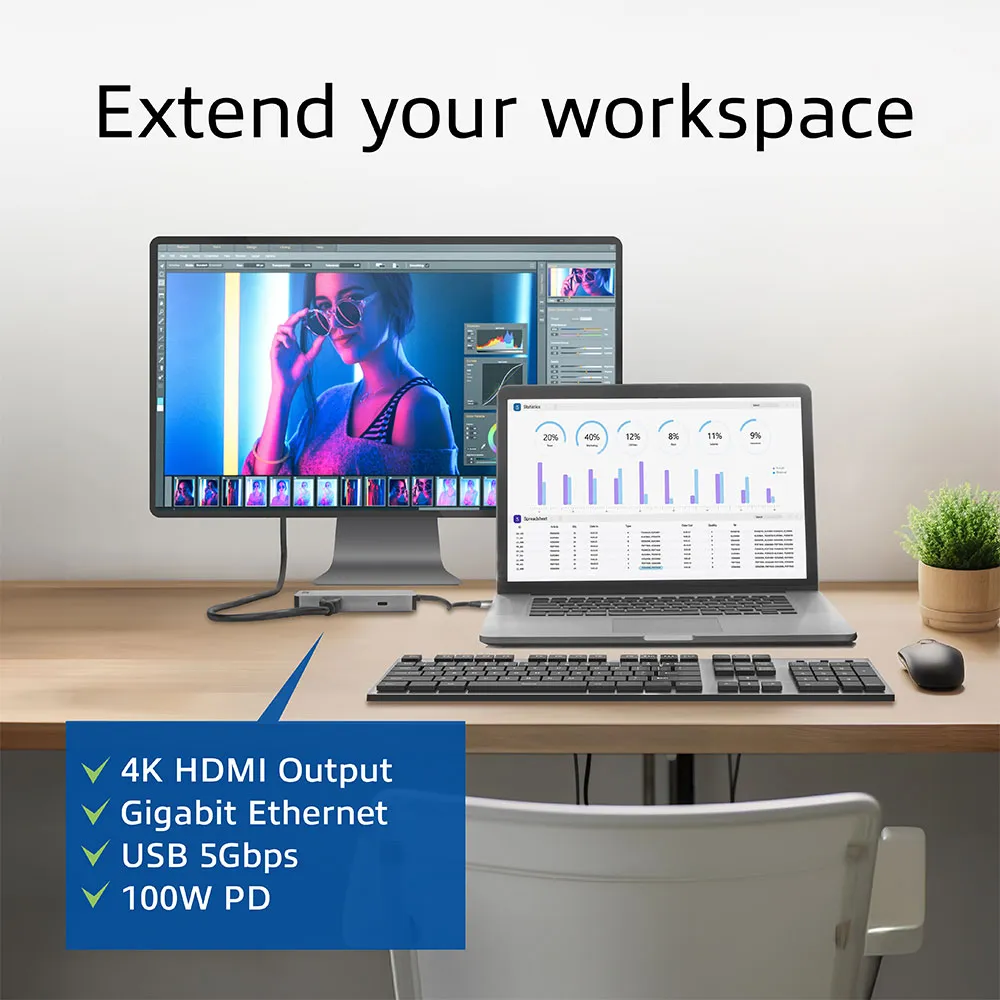

Turn your laptop into a workstation:
- The is a complete 7-in-1 portable docking station, also known as a multiport adapter. Add an external display by using the HDMI port. Suited for a monitor with a maximum resolution of 4K@60Hz.

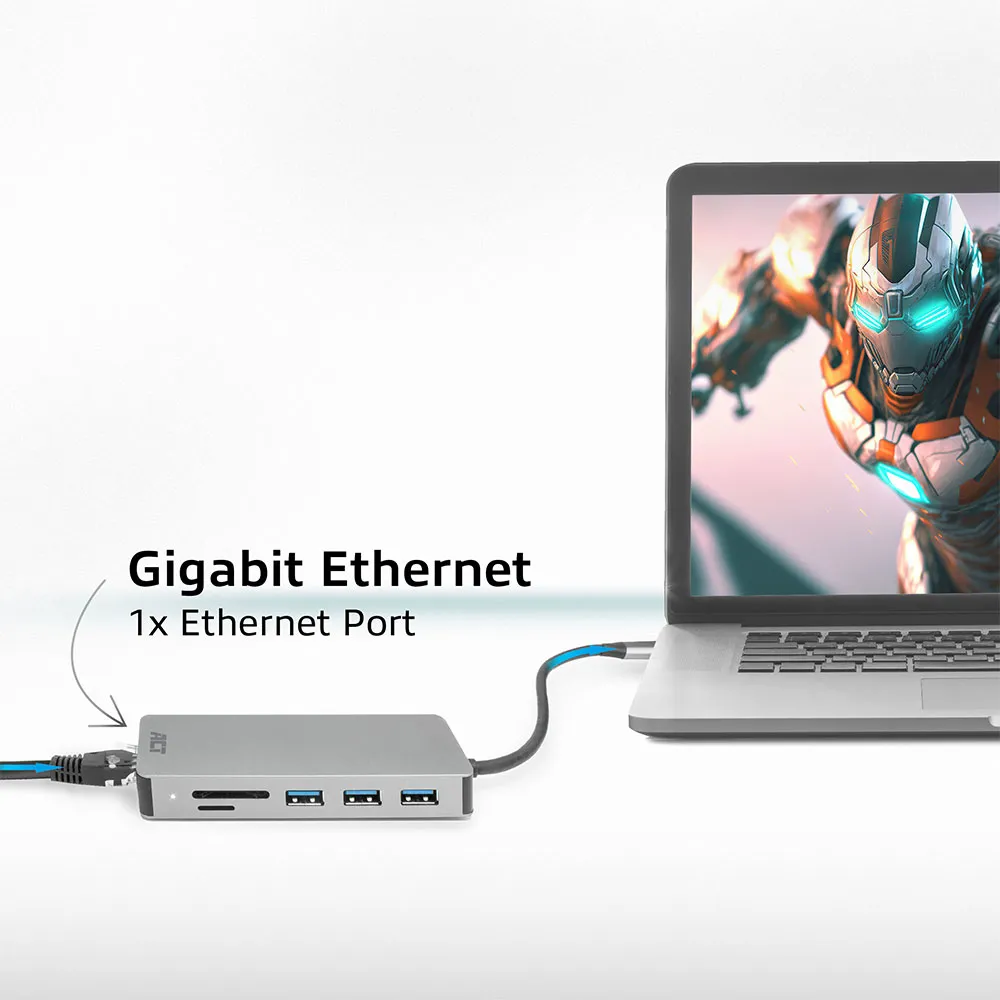

- The features Gigabit LAN. In most offices, Gigabit LAN is used to connect to the corporate network rather than the Wi-Fi network.

The built-in USB hub provides a USB-A 2.0 port for connecting peripherals, such as the receiver of your wireless keyboard and mouse and a USB-A 3.0 port for connecting a USB drive. Additionally, the multiport dock also has a USB-C 3.0 port, so you are ready for future products. The 3.0 ports offer SuperSpeed USB 5Gbps for transferring data to and from an external SSD or USB adapter. The built-in card reader accepts SD and Micro SD cards.

Supports Power Delivery pass-through:

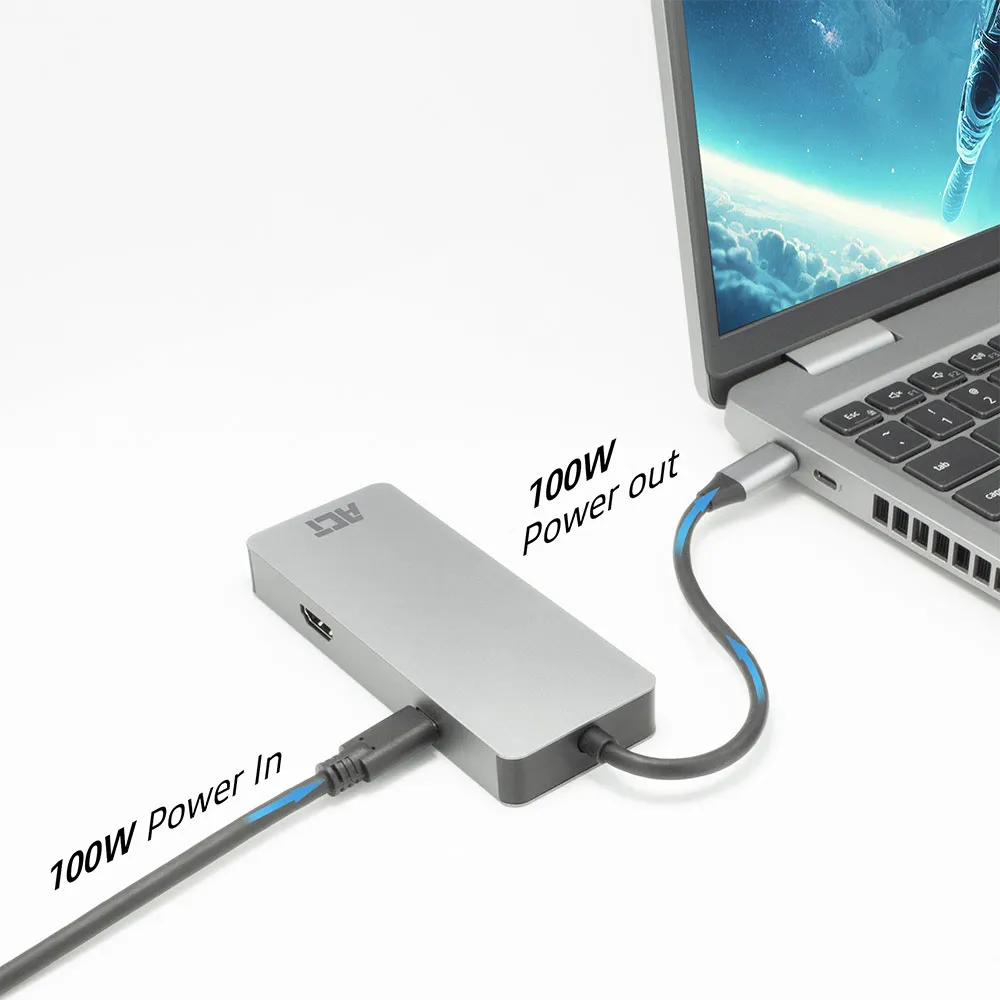

- A USB-C port can generally support data, video, power or a combination of the three. If your notebook has a USB-C port that supports all three: data, video and power, the PD pass-through port on the AC7092 can be used to charge your laptop. Once connected to the multiport dock, the laptop is powered through the USB-C Power Delivery pass-through port, which is powered by the laptop’s USB-C power supply.

Portable aluminium design:

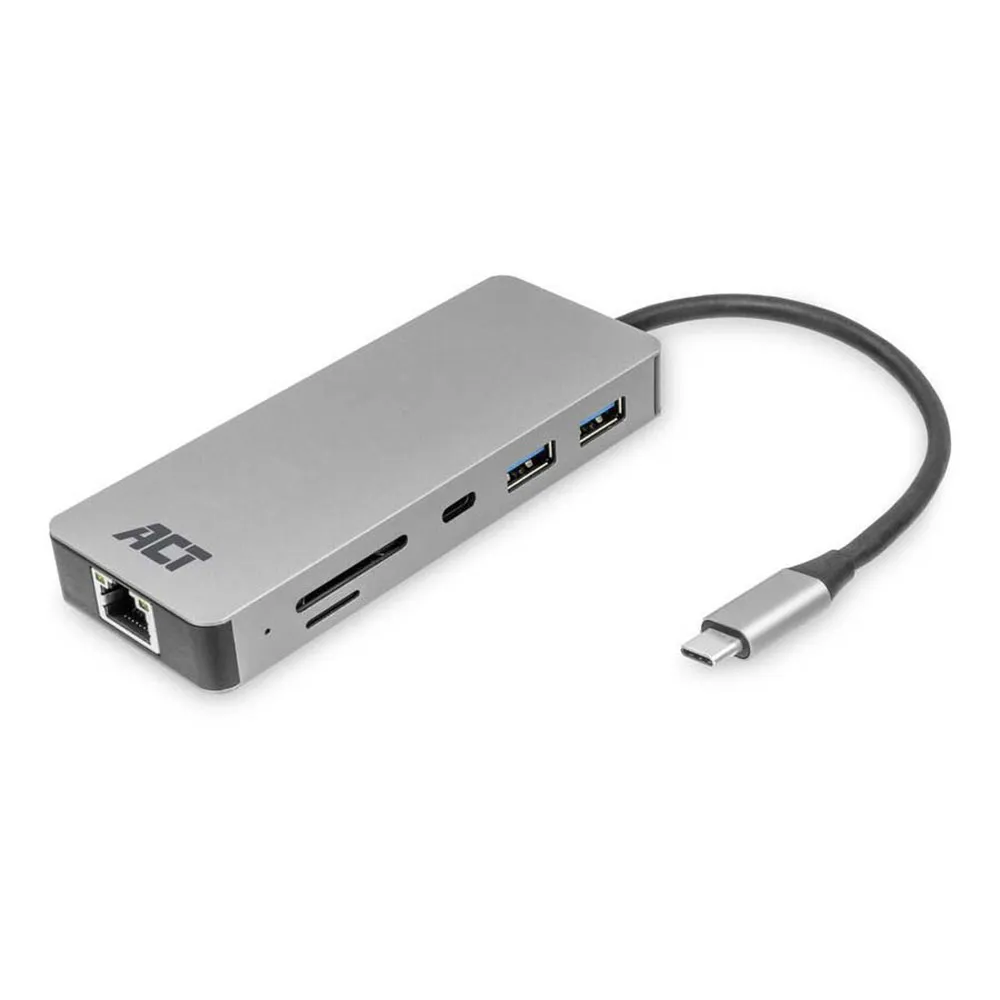

- The is a compact yet versatile device with a rugged aluminium body. Perfect for taking along in your laptop bag.

Feature:

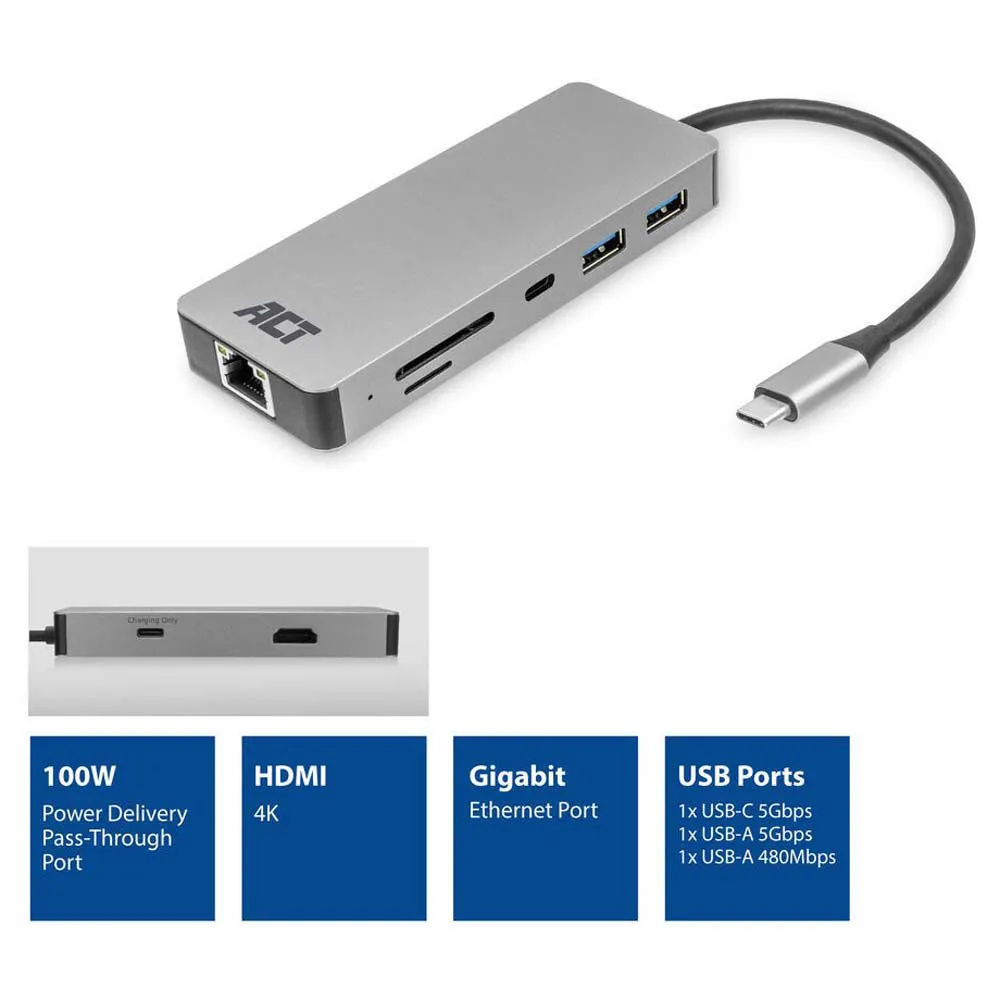

- Multiport dock for connecting a 4K@60Hz HDMI monitor to a USB-C laptop

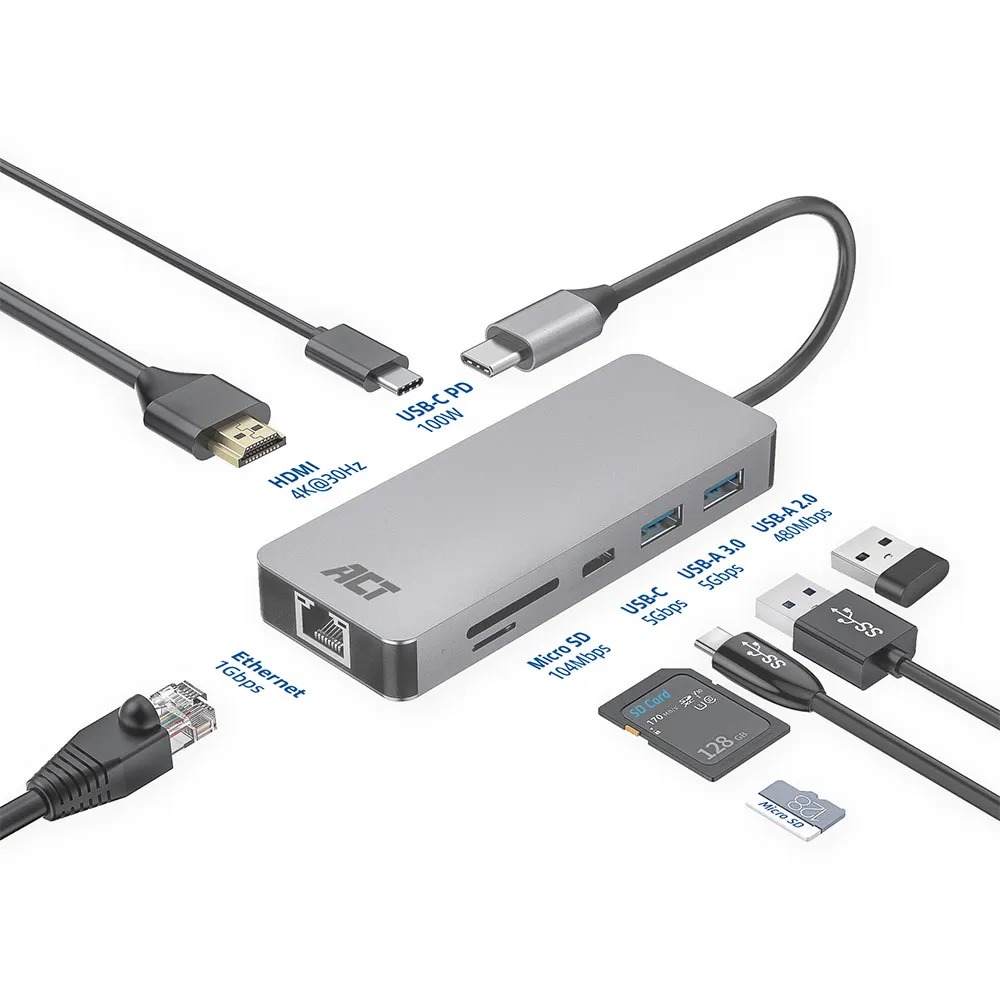

- 1x USB-C data port (5Gbps), 1x USB-A data port (5Gbps), 1x USB-A data port (480Mbps) Gigabit Ethernet, SD and micro SD card reader
- 100W Power Delivery pass-through port for charging the connected laptop
- Solid aluminium design
- Plug and Play: USB-C port with DisplayPort Alternate Mode (DP Alt Mode) required

Specifications:

- Product category: Docking stations
- USB Type-C: Yes
- Connection cable connectors: USB C
- Connection cable: 18 cm
- Connection cable type: Fixed
- Power Delivery ports: 1
- Power Delivery pass-through: Yes
- Max. Power Delivery power: 100 W
- Supported Power Delivery profiles: 12.0V up to 2.33A, 15.0V up to 2.5A, 20.0V up to 5.0A, 5.0V up to 1.4A, 9.0V up to 2.17A
- Device charging ports: USB C Power Delivery 100W

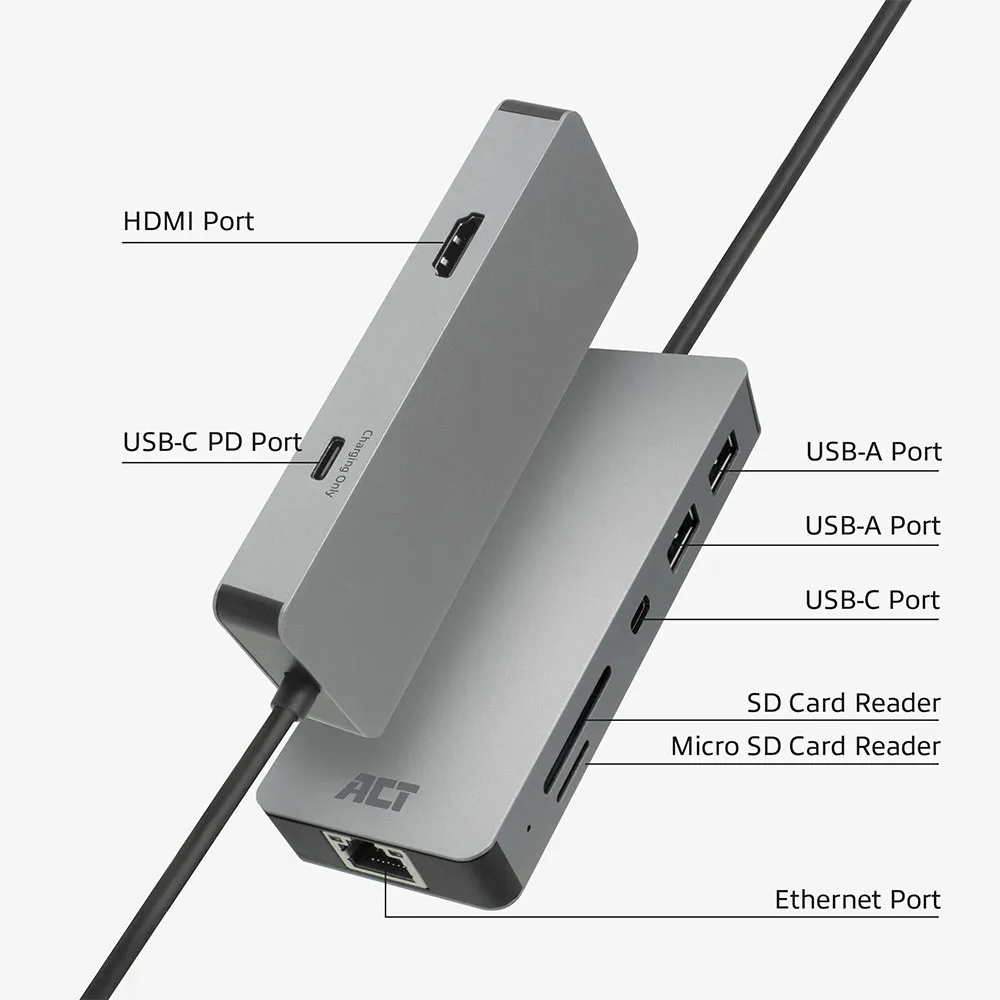

- Connections: HDMI, RJ45, USB
- Peripheral ports: Micro SD card reader, SD card reader, USB (x2), USB C
- USB 2.0 - HighSpeed 480 Mbps peripheral ports: USB
- USB 3.2 Gen 1 - SuperSpeed 5 Gbps peripheral ports: USB, USB C
- Needed on laptop: One free USB 3.2 Gen 1 - SuperSpeed (USB 3.0) C port with DisplayPort alternate mode
- Display ports: HDMI
- 4K compatible: Yes
- Max. resolution @ 30Hz: 4096 x 2160
- Max. resolution @ 60Hz: 4096 x 2160
- Number of displays: 1
- Video signal: HDMI
- Video specification: HDMI High Speed
- Video version: HDMI 2.0
- LAN speed: 10/100/1000 Mbps
- PXE boot support: Yes
- Power supply: Bus powered, Optional external power supply
