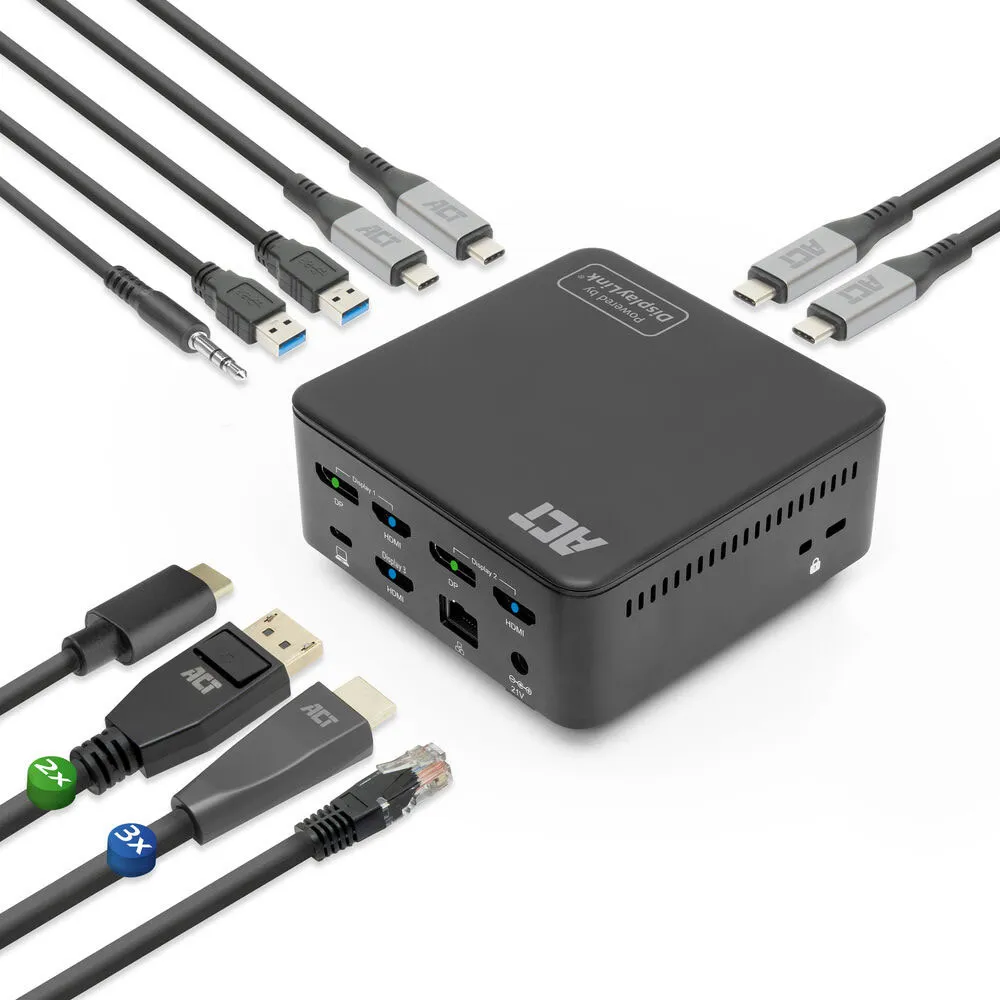

Act AC7148 docking station

The Triple 4K Monitor Docking Station transforms your Windows laptop or MacBook into a complete workstation with just a single USB-C cable. Connect up to three 4K HDMI/DisplayPort screens for extended monitor view on both Windows and Apple computers by using the integrated DisplayLink® technology. The docking station is equipped with a Gigabit LAN Ethernet port, two USB-A ports, three USB-C data ports, one USB-C 20W PD port and a headset connection. The 135W power adapter powers the docking station and provides up to 100W of charging power to your laptop. This universal docking station is compatible with most laptop brands, including HP, Dell, Lenovo, Aces and Asus.

Turn your Windows laptop or MacBook into a complete working station with a single USB-C cable:
- The docking station offers everything you need to turn your laptop into a complete workstation by connecting a single USB-C cable to your laptop. Connect up to three* 4K monitors (max. resolution 4096x2160p @ 60Hz) using the HDMI or DisplayPort ports.

Two monitors can be connected via HDMI and DisplayPort, while the third monitor connects through an additional HDMI port, ensuring versatile display options.

Additionally, the docking station features a Gigabit LAN Ethernet port, a headset port and two security slots (normal and nano). The extends your laptop with six additional USB ports: three USB-C data ports, one USB-C 20W PD port and two USB-A ports.

Universal use with laptop brands by using DisplayLink® technology:
- The is compatible with a wide range of modern laptop brands, such as HP, Dell, Lenovo, Acer and Asus. The DisplayLink® technology provides a stable and reliable docking station solution for extending your laptop’s capabilities by using a dedicated chipset.

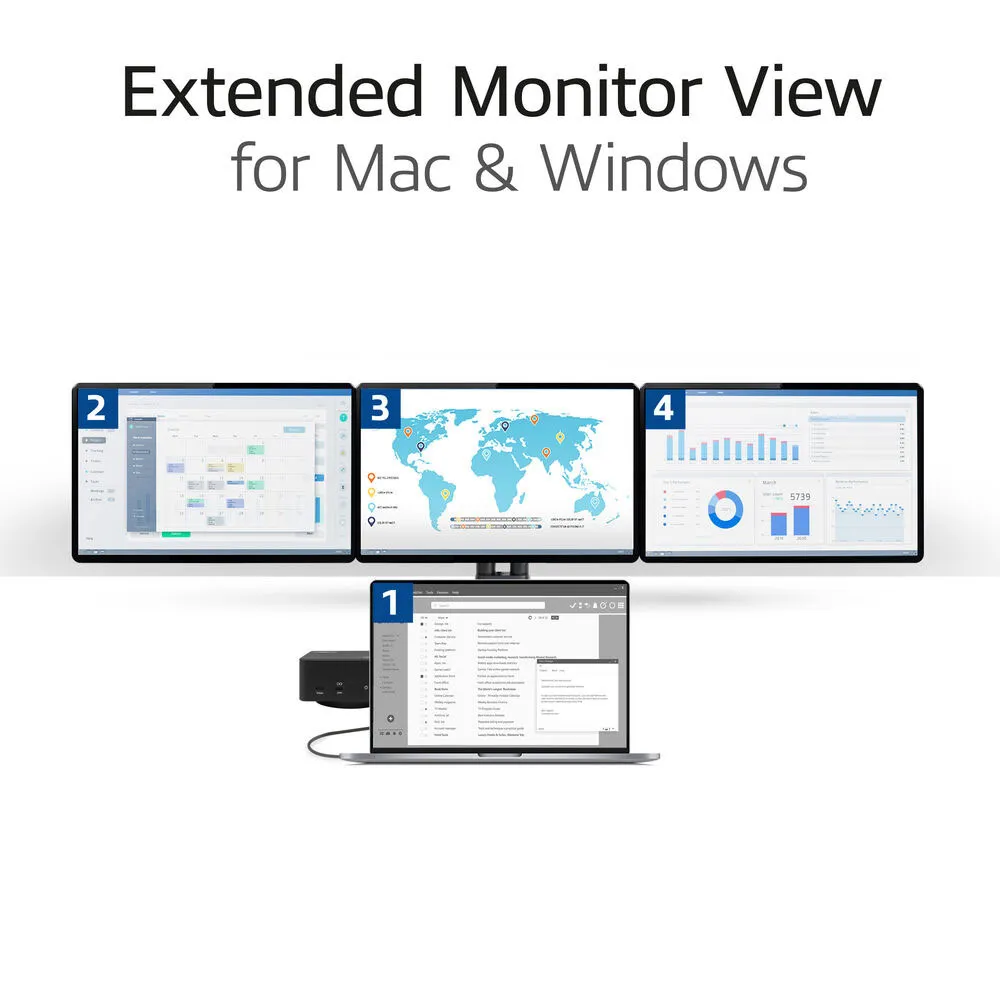

Windows extended monitor view:
- The docking station features DisplayLink® technology. The device’s desktop can be extended to three additional screens. In total, you will have four monitor views (1x laptop screen, 3x external monitors). This technology is compatible with any Windows computer that supports USB-C.

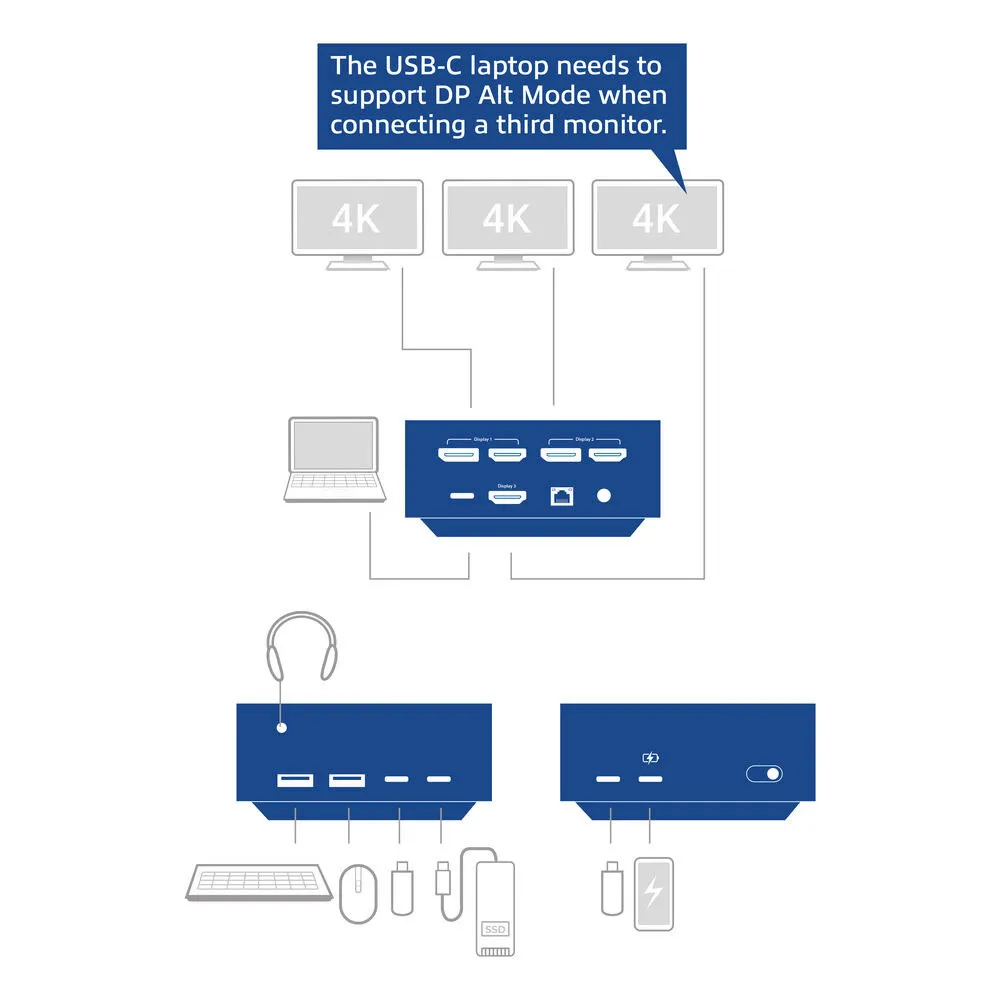

Two external monitors use the DisplayLink® technology. If you want to connect a third external monitor, the USB-C laptop needs to support DP Alt Mode.

MacOS extended monitor view:
- It is also possible to extend your MacBook’s desktop with three additional monitors using docking station. Two monitors use DisplayLink® technology, while the third monitor requires DP Alternate Mode.

This setup allows you to have a total of four monitor views (1x laptop screen, 3x external monitors), similar to the Windows configuration.

Charge your laptop with up to 100W via the docking station:
- The docking station is equipped with a 135W power supply. This power supply powers the docking station itself and is able to charge the connected laptop at up to 100W. You do not need to connect an additional charger for your laptop. The laptop will be charged via the USB-C connection cable. The laptop must be equipped with a USB-C port that supports Power Delivery. Note that the enclosed USB-A to USB-C adapter does not support USB-C charging.

Additional features:

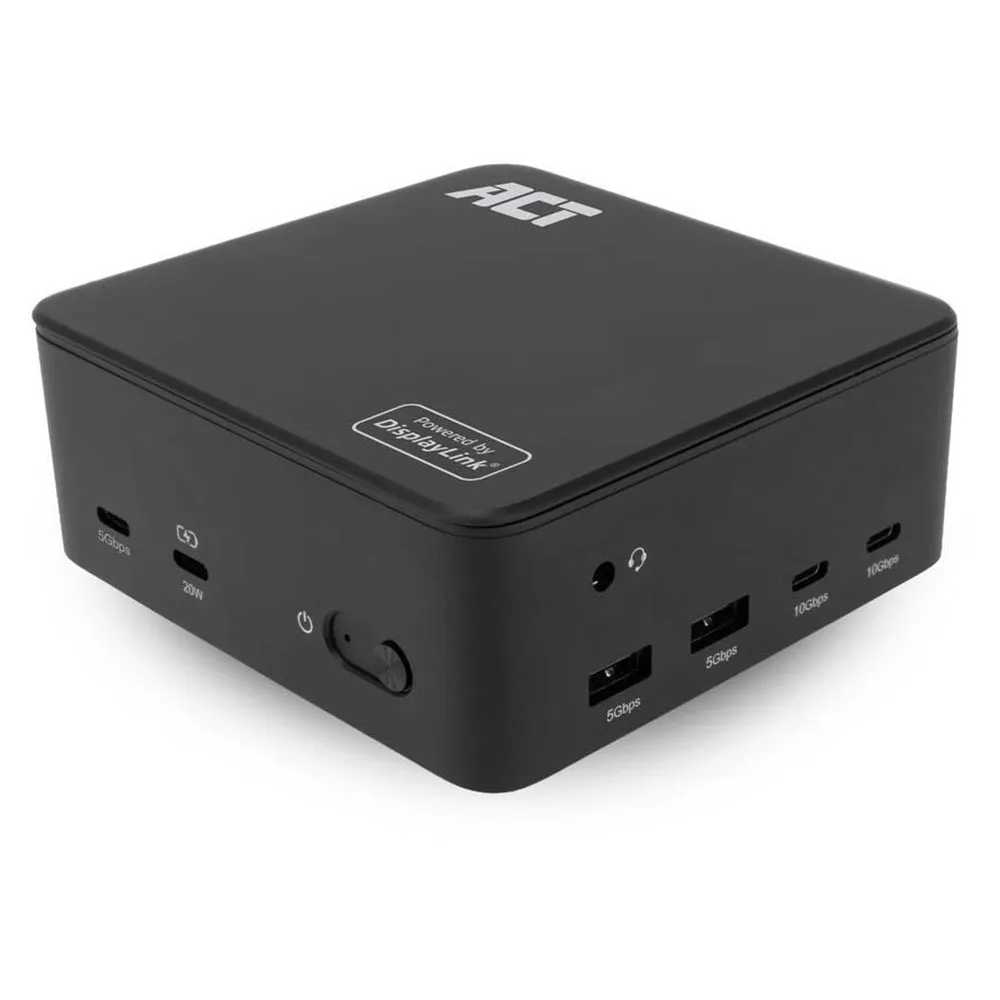

- Use the on/off button to control the docking station and all peripherals simultaneously. The USB-C ports are divided into two USB 3.2 Gen2 data ports with maximum throughput speeds of 10Gbps and one USB 3.2 Gen1 data port with a maximum throughput speed of 5Gbps. The 20W Power Delivery USB-C port can be used to charge your smartphone or tablet. The USB-A ports are USB 3.2 Gen1 data ports with maximum throughput speeds of 5Gbps. Additionally, you can connect a headset to the 3.5mm audio port.

Also works with a USB-A laptop:
- The is also compatible with USB-A laptops via the supplied USB-A to USB-C adapter. Note that when using the docking station with a USB-A laptop, the Power Delivery passthrough function is disabled. In this case, the laptop requires an additional power supply and supports up to two extra screens.

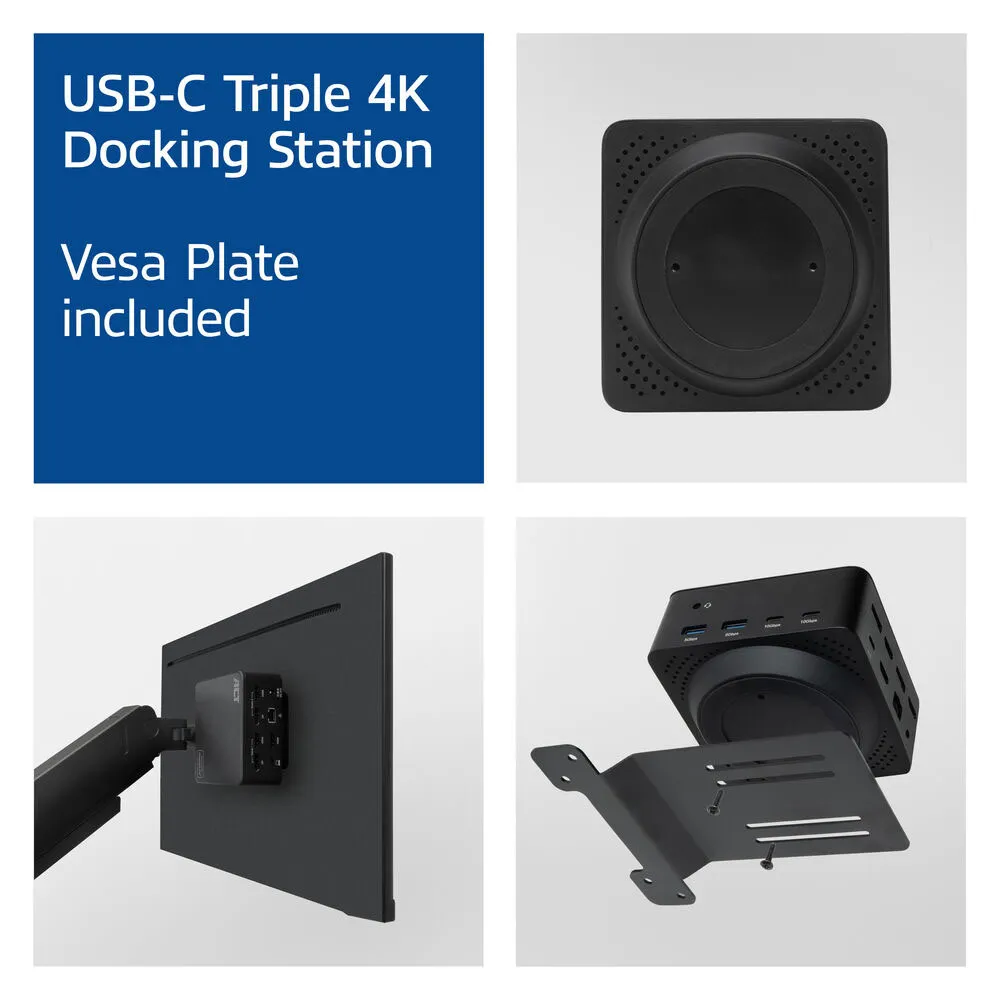

VESA mounting:
- Did you know that the can be mounted behind a display using the included VESA mounting bracket?

User scenarios:
- Eliminate cable clutter and connection issues with a single USB-C cable. For many users connecting multiple cables can be a hassle.
With the docking station, you can create a tidy desk and work environment where you can start working as soon as you plug in a single cable. Whether you’re at the office or at home, you can connect multiple monitors, a keyboard and a mouse.

Flexible workspaces are more common in offices today. A universal docking station enables you to work comfortably at different desks. Simply plug in one cable, and you are ready to go.

Using an ACT docking station like the, which uses DisplayLink technologies, solves compatibility issues with DP Alternate Mode MST docking stations. The independent drivers used by DisplayLink technologies ensure stable connections regardless of the laptop or monitors used.

Feature:

- Expand the workspace of your Windows or MacOS computer with three 4K HDMI/DisplayPort screens using the DisplayLink technology
- Power adapter (135 Watt) included for powering the docking station and charging the USB-C laptop (max. 100W) via the enclosed USB-C cable
- USB-C 20 Watt Power Delivery port for fast charging a smartphone or tablet

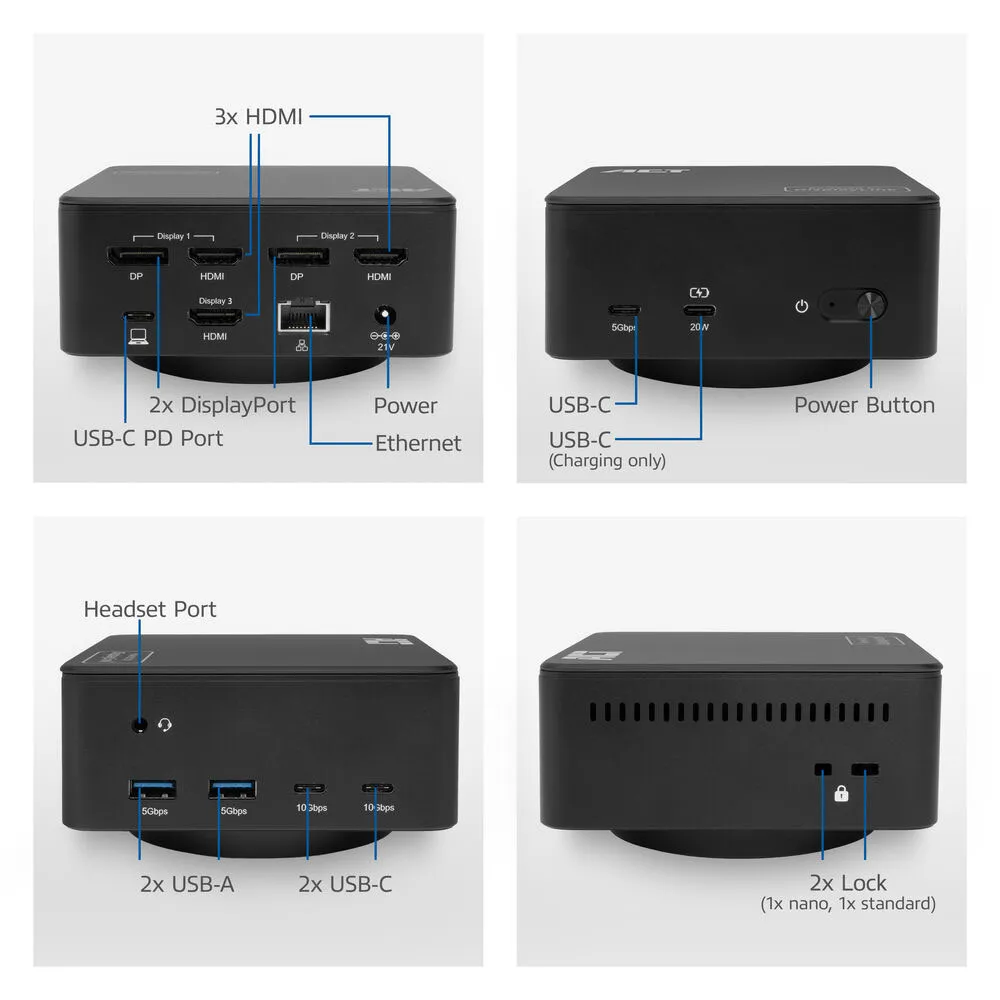

- Additional features: three USB-C ports (2x 10Gbps + 1x 5Gbps), two USB-A ports (5Gbps), Gigabit LAN port, headset connection, security slots (standard + nano) and USB-A to USB-C adapter
- On/off button for energy saving
- Can be mounted to a monitor by using the included VESA adapter plate
- Universal use with most laptop brands like HP, Dell, Lenovo, Acer and Asus

Specifications:

- Product category: Docking stations
- USB Type-C: Yes
- Connection cable connectors: USB C - USB C
- Connection cable: 100 cm
- Connection cable type: Replaceable
- Power Delivery ports: 1
- Power Delivery pass-through: Yes
- Power Delivery device charging: Yes
- Max. Power Delivery power: 100 W
- Supported Power Delivery profiles: 12.0V up to 3.0A, 15.0V up to 3.0A, 20.0V up to 5.0A, 5.0V up to 3.0A, 9.0V up to 3.0A
- Device charging ports: USB C Power Delivery 20W
- Connections: 3.5 mm jack, DisplayPort, HDMI, RJ45, USB, USB C
- Peripheral ports: 3.5 mm jack, USB (x2), USB C (x3)
- USB 3.2 Gen 1 - SuperSpeed 5 Gbps peripheral ports: USB (x2), USB C
- USB 3.2 Gen 2 - SuperSpeed 10 Gbps peripheral ports: USB C (x2)
- Needed on laptop: One free USB 3.2 Gen 1 - SuperSpeed (USB 3.0) C port with DisplayPort alternate mode
- Display ports: DisplayPort (x2), HDMI (x3)
- MST support: Yes
- 4K compatible: Yes
- Max. resolution @ 30Hz: 4096 x 2160
- Max. resolution @ 60Hz: 4096 x 2160
- Number of displays: 3
- Video signal: DisplayPort, HDMI, USB-C (Alt mode)
- Video specification: DisplayPort 1.4, HDMI Ultra High Speed
- Video version: DisplayPort 1.4, HDMI 2.0
- LAN speed: 10/100/1000 Mbps
- PXE boot support: Yes
- Chipset: DisplayLink DL6950
- Power supply: External power supply
- Power supply specification: 21.0V 6.43A 135.0W

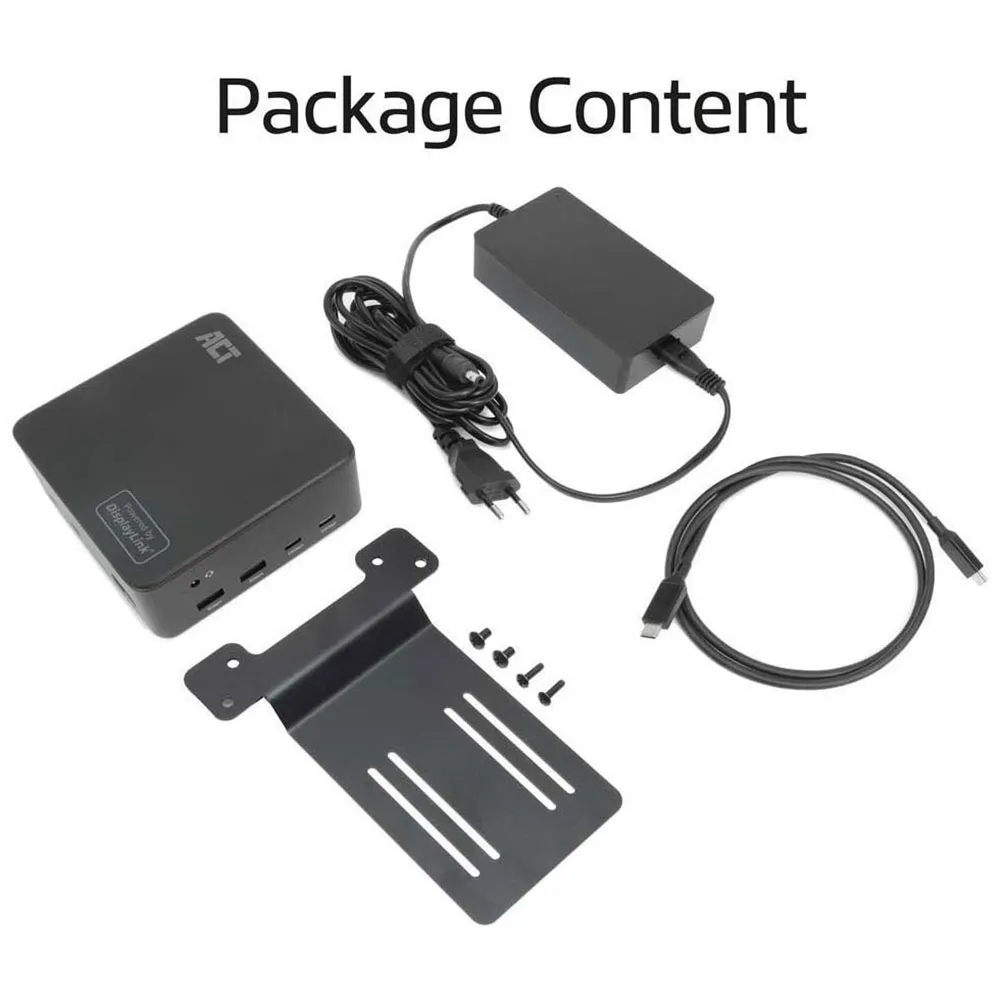

- Included: VESA mounting plate
- Extra functionality: Gigabit network adapter
