Act AC8354 wall TV bracket

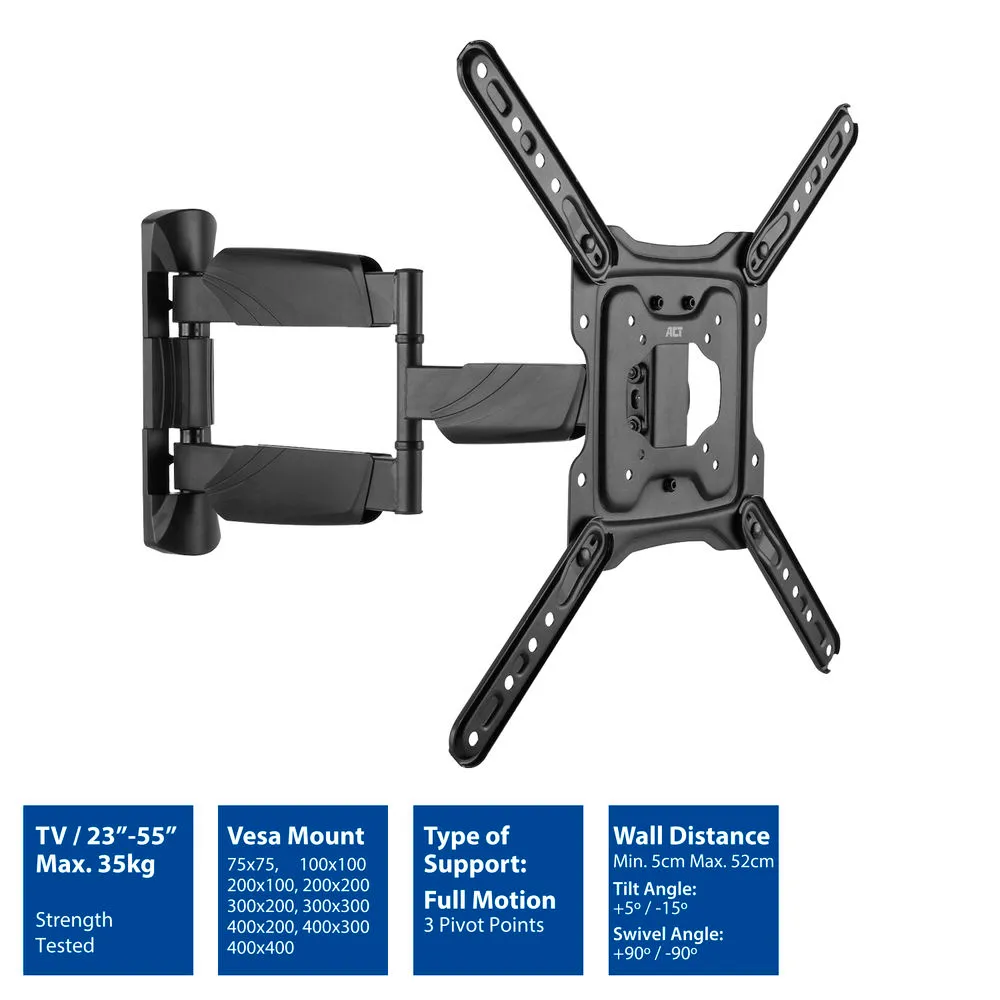

The AC8354 Full Motion TV Wall Mount is the ideal solution for mounting your TV (23 inch up to 55 inch, max weight 35 kg) on the wall.

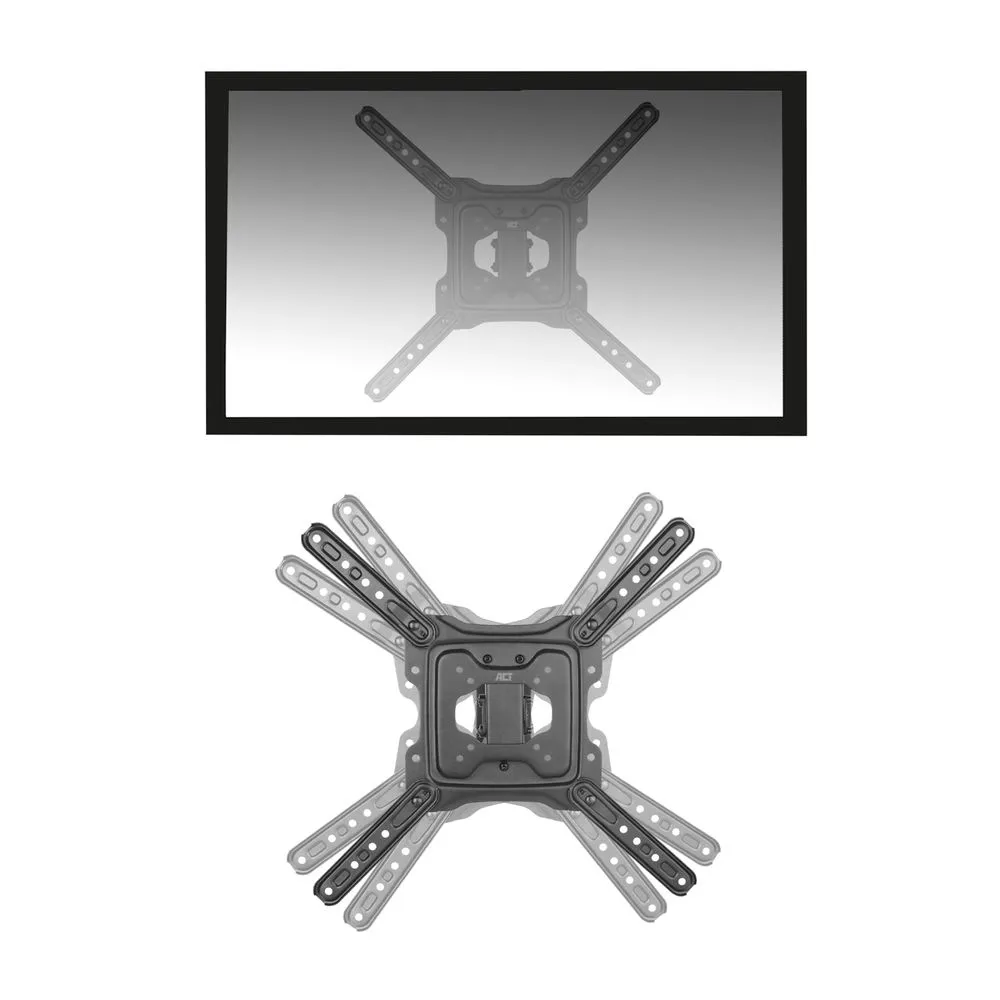

The mount is suitable for all TVs with a VESA 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mounting standard.

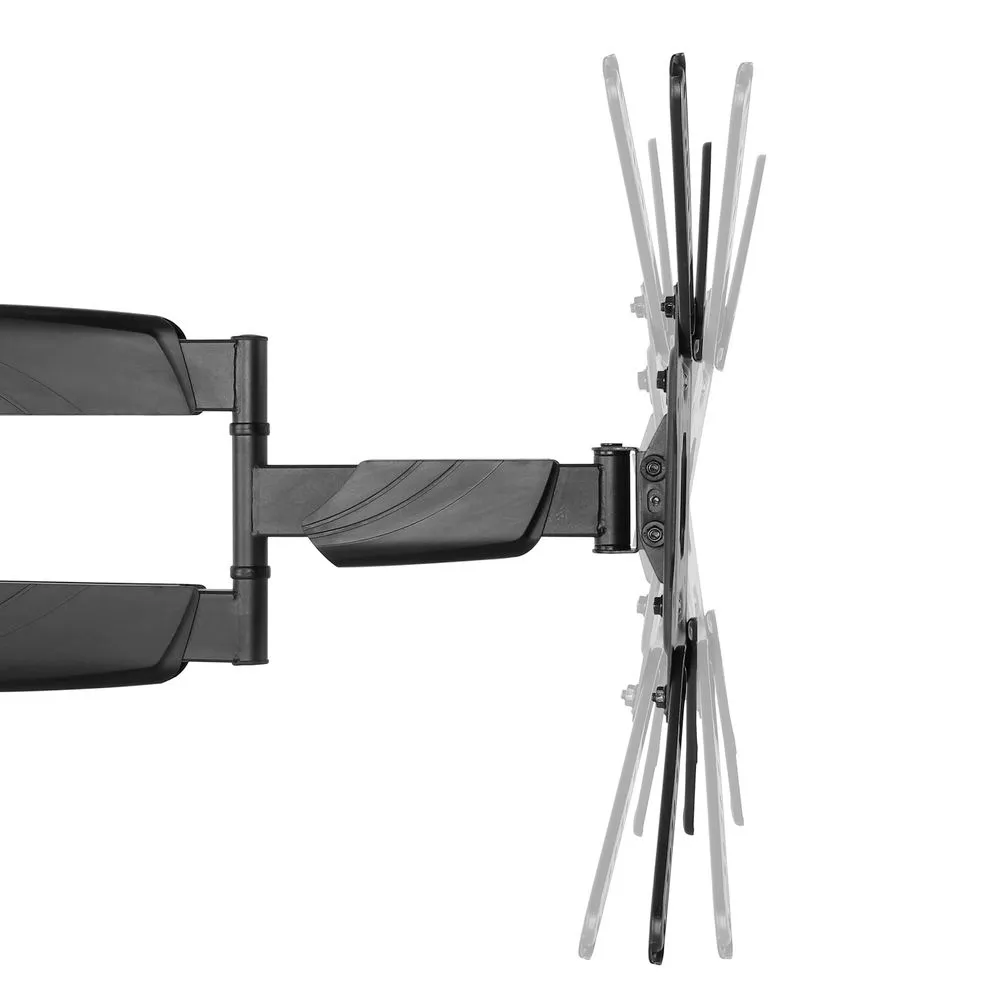

The TV can tilt upwards/downwards with an angle of +5°/-12° and swivel left/right with an angle of +15°/-15°.

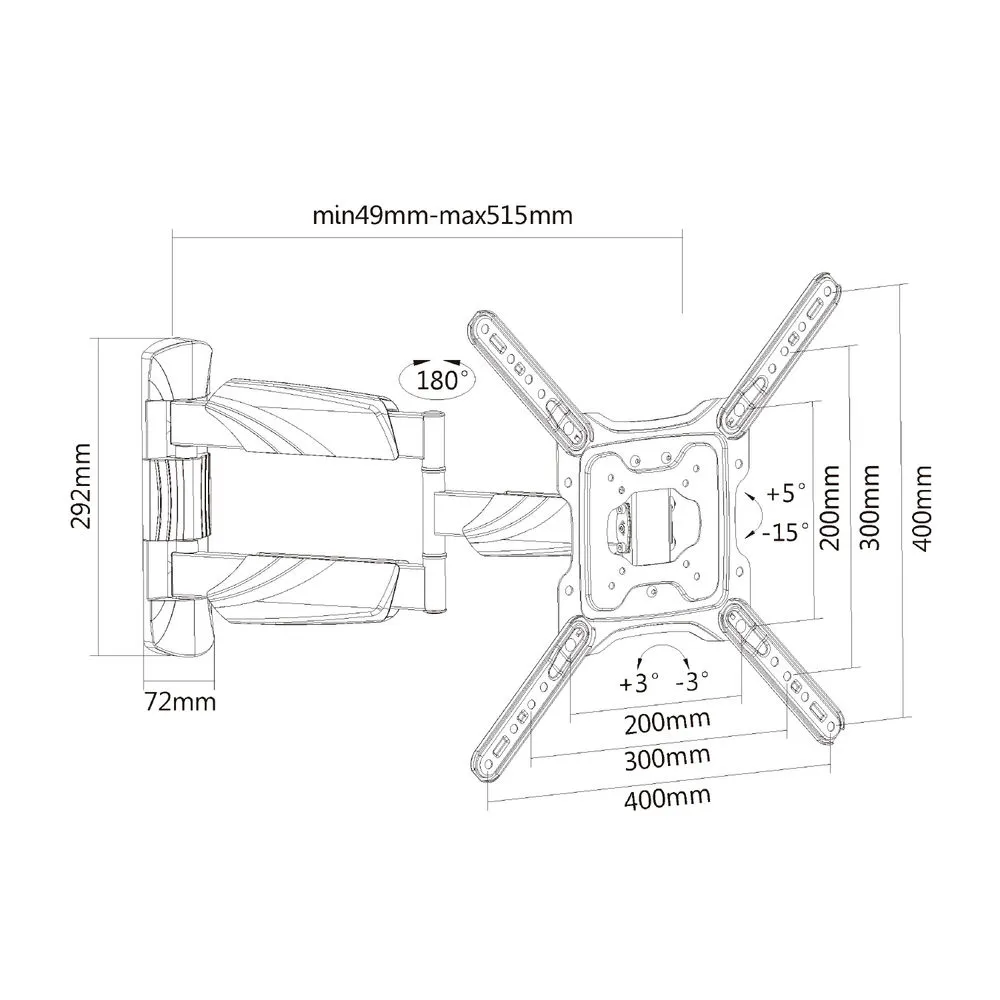

The AC8354 Wall Mount has 3 pivot point with a maximum extension of 51 cm.

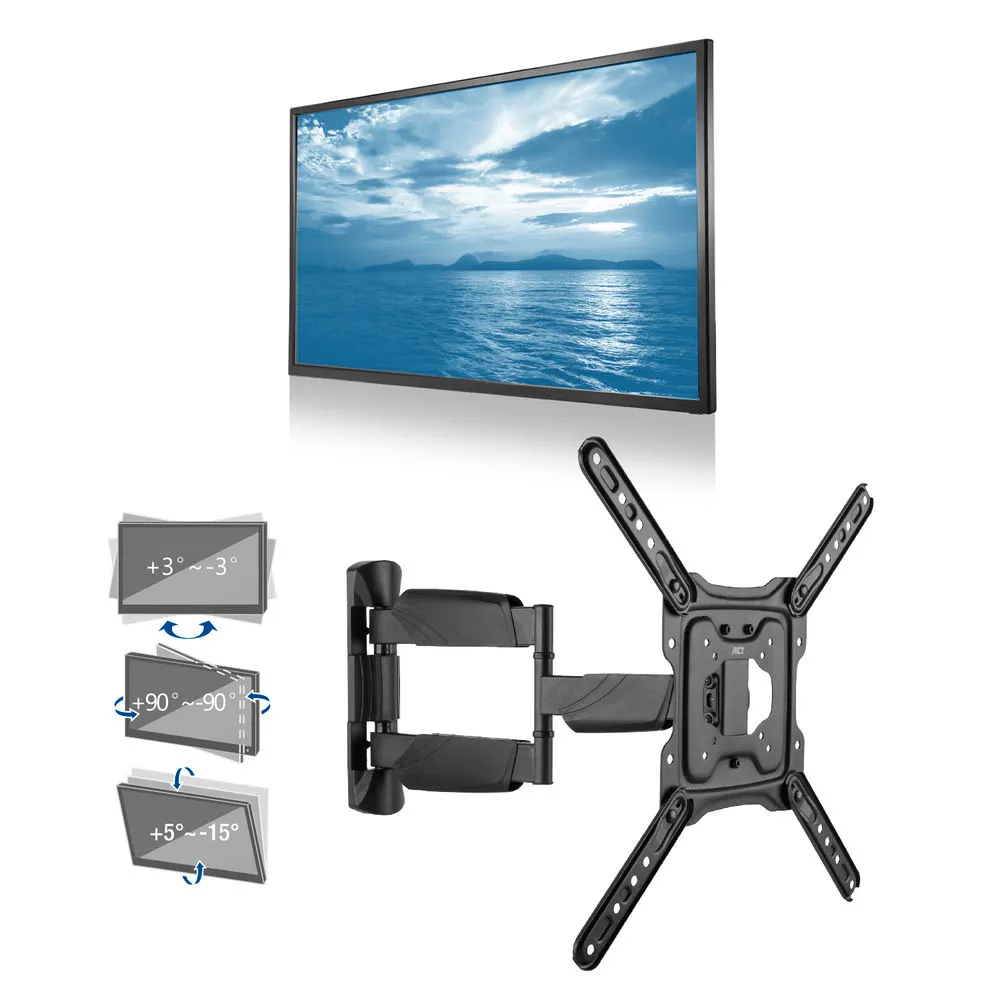

Turn the TV in any direction to get the best viewing angle.

Besides, the AC8354 also has a level adjustment of +3°/-3°.

Cables are kept out of sight thanks to the cable management system.

The easy mounting system makes it possible to attach the mount to the wall first.

Next, attach the VESA mount to the TV and connect the VESA mount to the wall mount by connecting the bolts and nuts.

ACT Full Motion TV Wall Mount, 23´´ up to 55´´, VESA.

Maximum weight capacity:35 kg, Minimum screen size:58.4 cm (23´´), Maximum screen size:139.7 cm (55´´), Minimum VESA mount:75 x 75 mm, Maximum VESA mount:400 x 400 mm.

Tilt angle range:-10 - 10°, Swivel angle range:-90 - 90°, Distance to the wall (min):5 cm, Distance to the wall (max):52 cm.

Product colour:Black.

Suitable for TVs from 23 inch up to 55 inch With VESA mount:75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 Three pivot points with a maximum extension of 51 cm Tilt angle:+5°/-12°.
