Act DC7352 CAT6a network cable

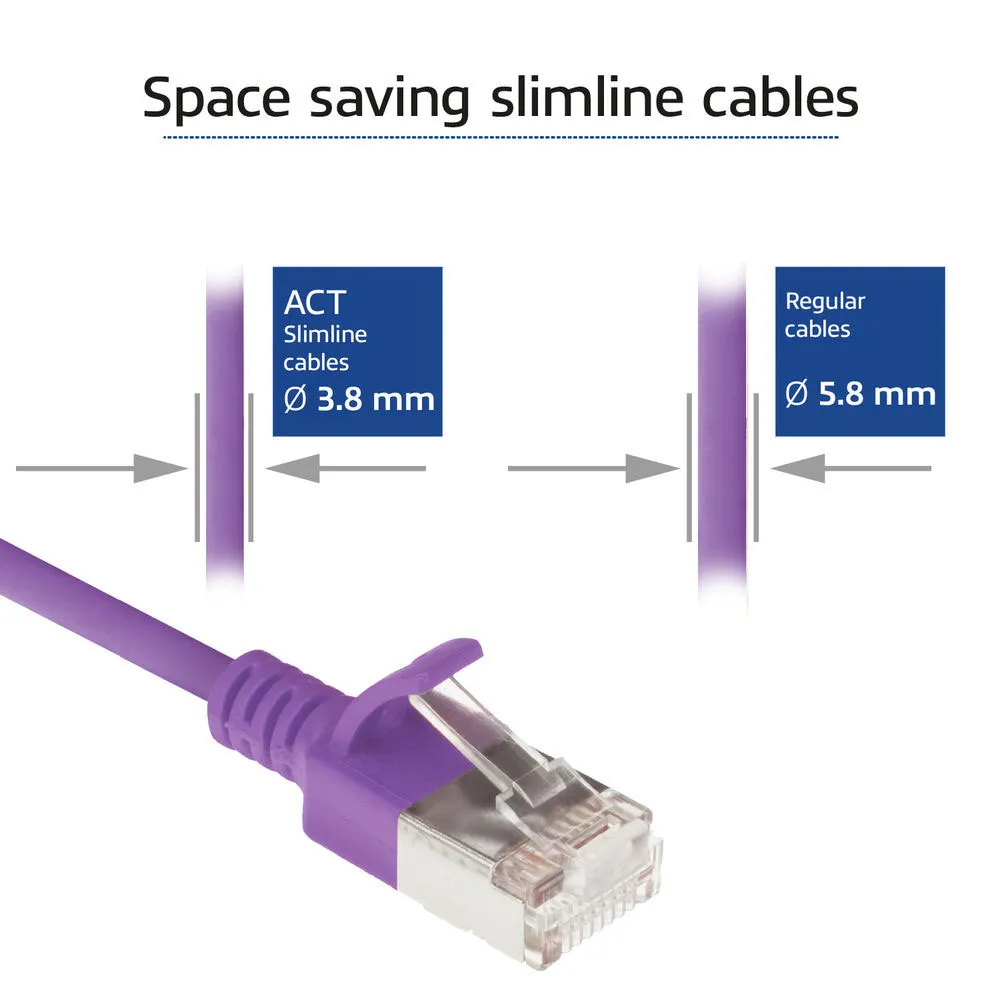

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords.

The bending radius is lower in comparison with regular patch cords.

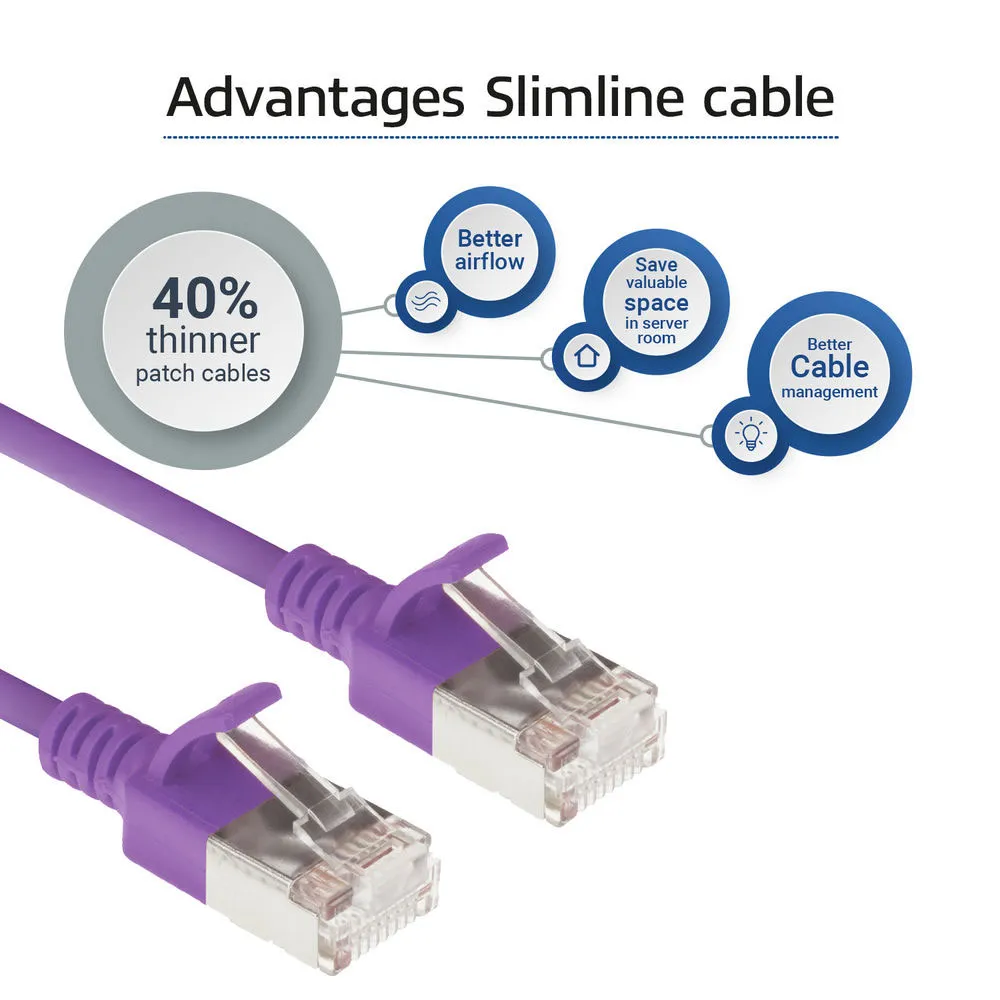

This results in a better airflow in the server rack/network cabinet.

Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 32 AWG patch cables.

This results in a higher attenuation, particularly at higher frequencies.

ACT advises a maximum bundle size of 24 cables in PoE applications.

In this case the temperature of the cables, that are delivering PoE deployments, will not increase.

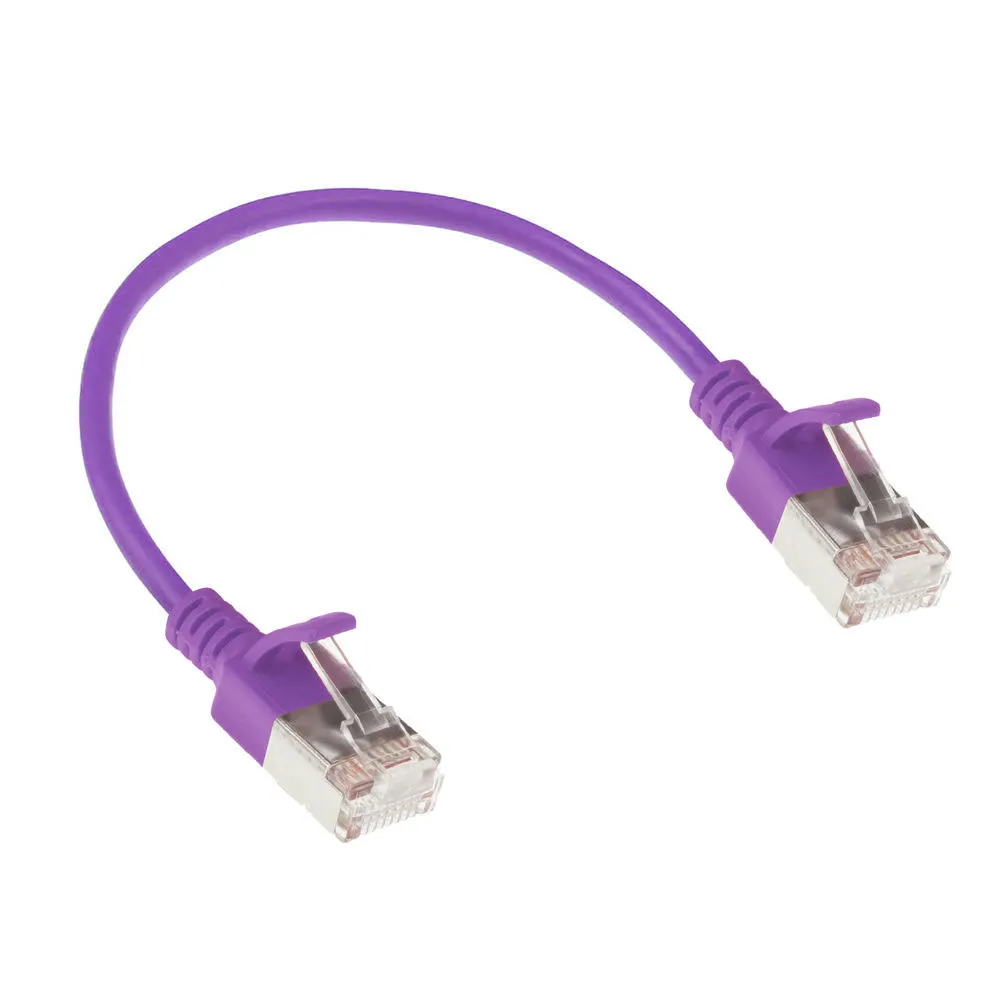

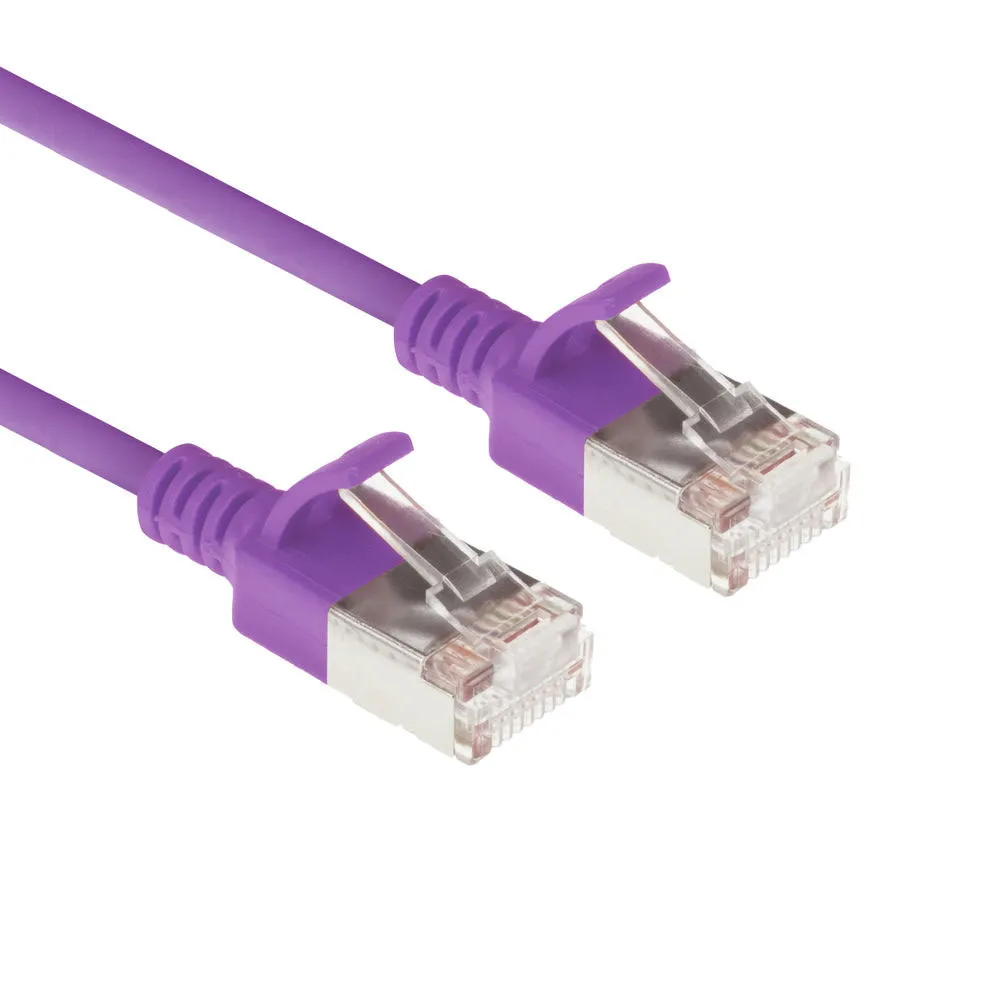

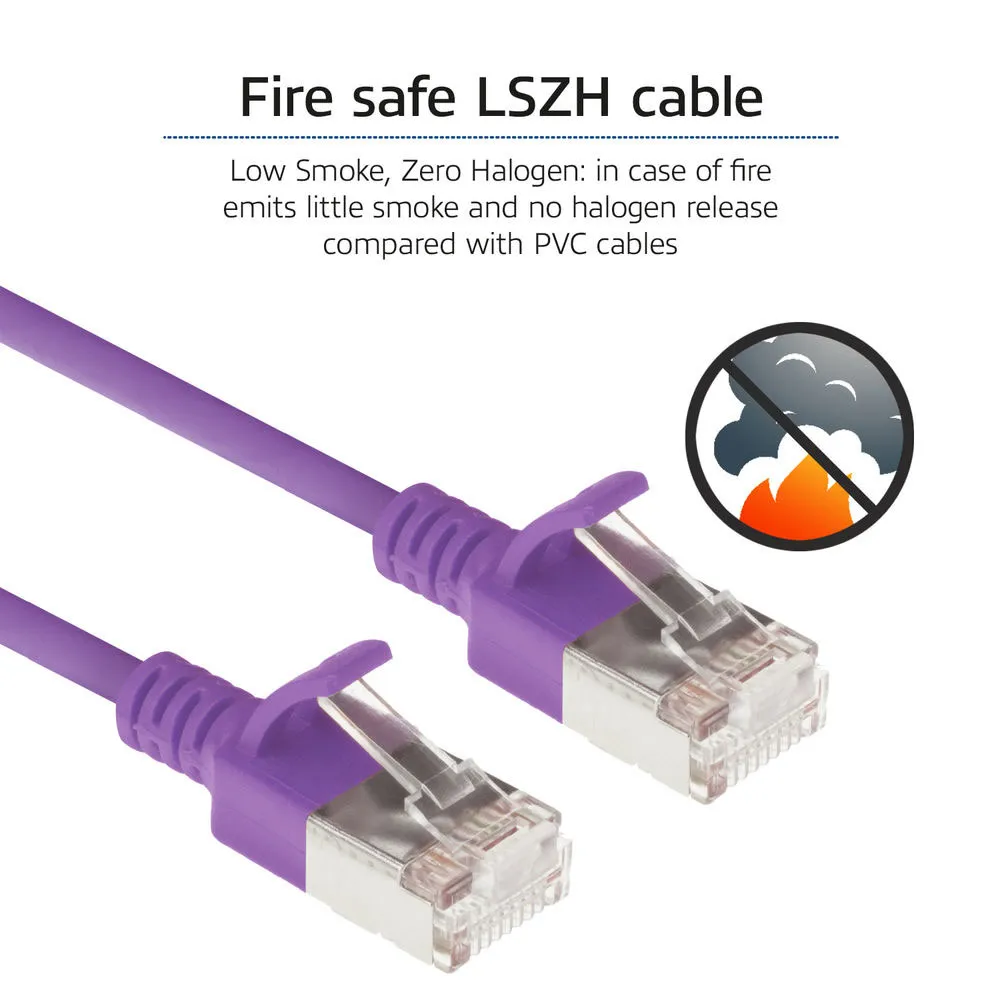

The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.ACT Purple 0.25 meter LSZH U/FTP CAT6A datacenter slimline patch cable snagless with RJ45 connectors.

Cable length:0.25 m, Cable standard:Cat6a.

Cable shielding:U/FTP (STP).

Connector 1:RJ-45.

Connector 2:RJ-45.

Connector contacts plating:Gold.

Product colour:PurpleCable length:0.25 m.

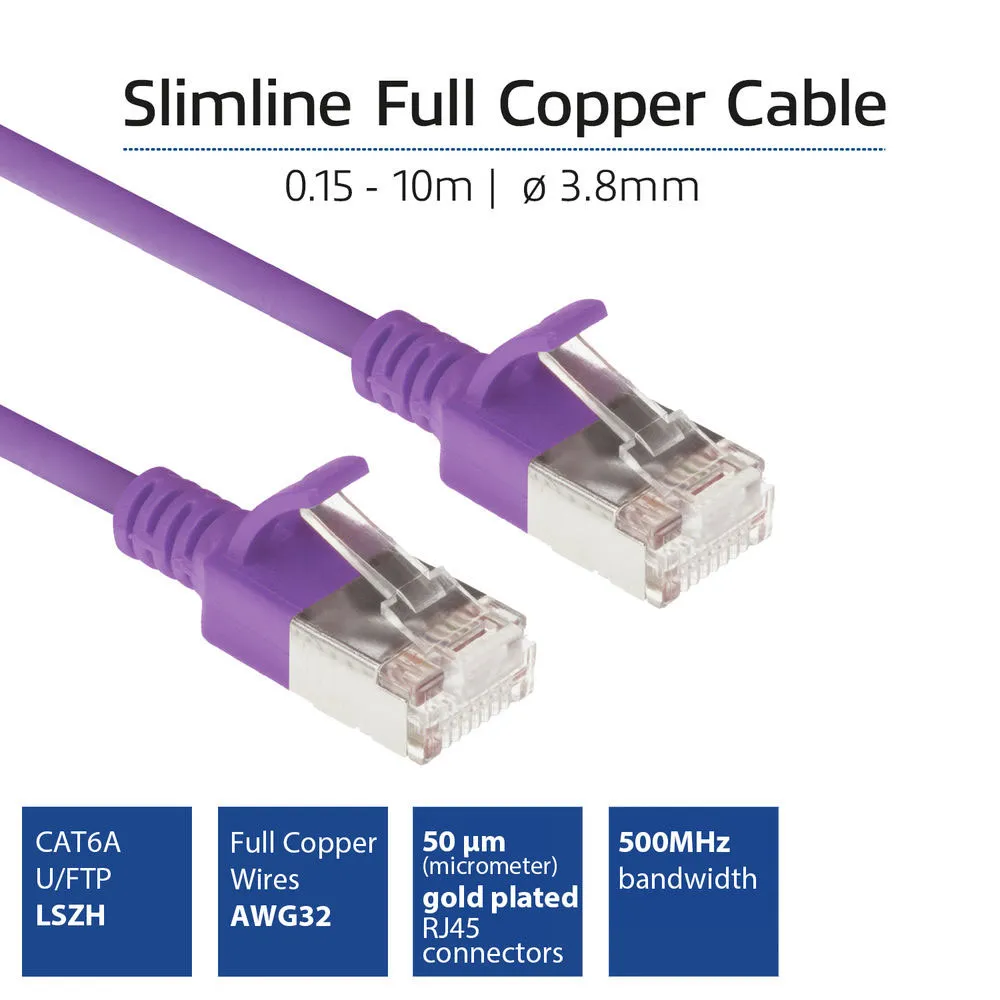

Full copper 32AWG wires, 50µ gold RJ-45 contacts.

Outer diameter jacket of only 3.8mm to improve air flow in cabinet.

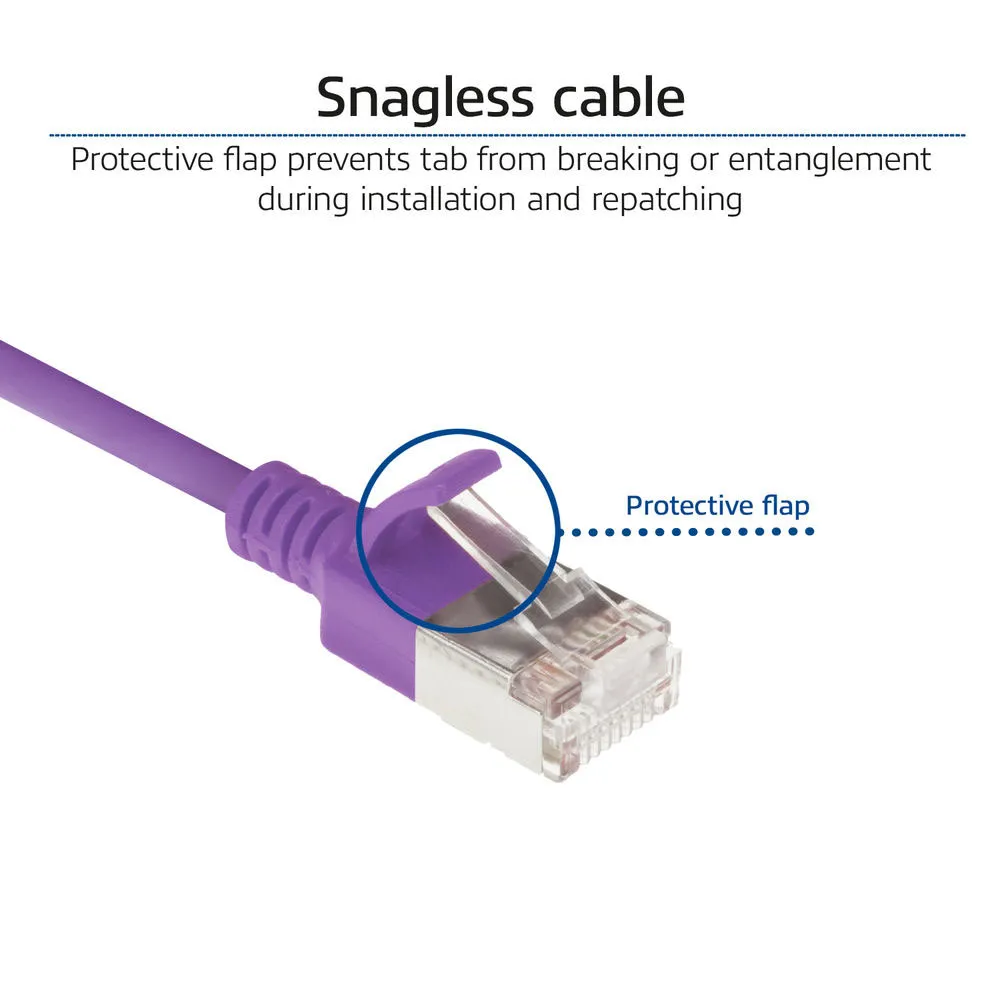

Snagless boots.

For connecting active equipment.

Specifications comply to international standards.

Cables are 100% tested
