Act RL7310 fiber optic cable

Application IP67 patchkabels.

For outside you can use fiber optic patchcables with an IP67 connector for IP67 water- and dust resistance.

These cables are often used for connecting antennas in a mobile base station to the ground cabling for applications like wifi or wireless internet.

The antenn´s are also called RRH what is short for Remote Radio Head or RRU what is short for Remote Radio Unit.

The speed of wifi and wireless internet are increasing, especially when multiple users are simultaneously connected fiber is necessary to provide sufficient speed.

Using fiber optic cabling in base stations, also known as FTTA / FTTT what is short for Fiber to the Antenna / Tower has the following advantages:.

- Speed:From 4G and modern wifi versions fiber optic cabling is the only option for high enough speed.

- Distributed:By using fiber optic cabling it is possible to use smaller distributed antenn´s instead of one large antenna for connecting to the same equipment.

This is called DAS and stands for Distributed Antenna System.

- Efficient base stations:Less active equipment and power usage in the base station.

Different options for IP67 connectors.

There are different standards for IP67 connectors available in ACT.

We have patchcables with ODVA connectors on stock but we also provide cables with the following connectors:.

- CPRI*.

- NSN*.

- RRU*.

- IPFX*.

- ODC*.

- AARC*.

- Hoptic*.

IP67 fiber optic patchcables are also available in other lengths, with other connectors (SC and MTP|MPO), other cable diameters (5/7mm) and armored jackets.

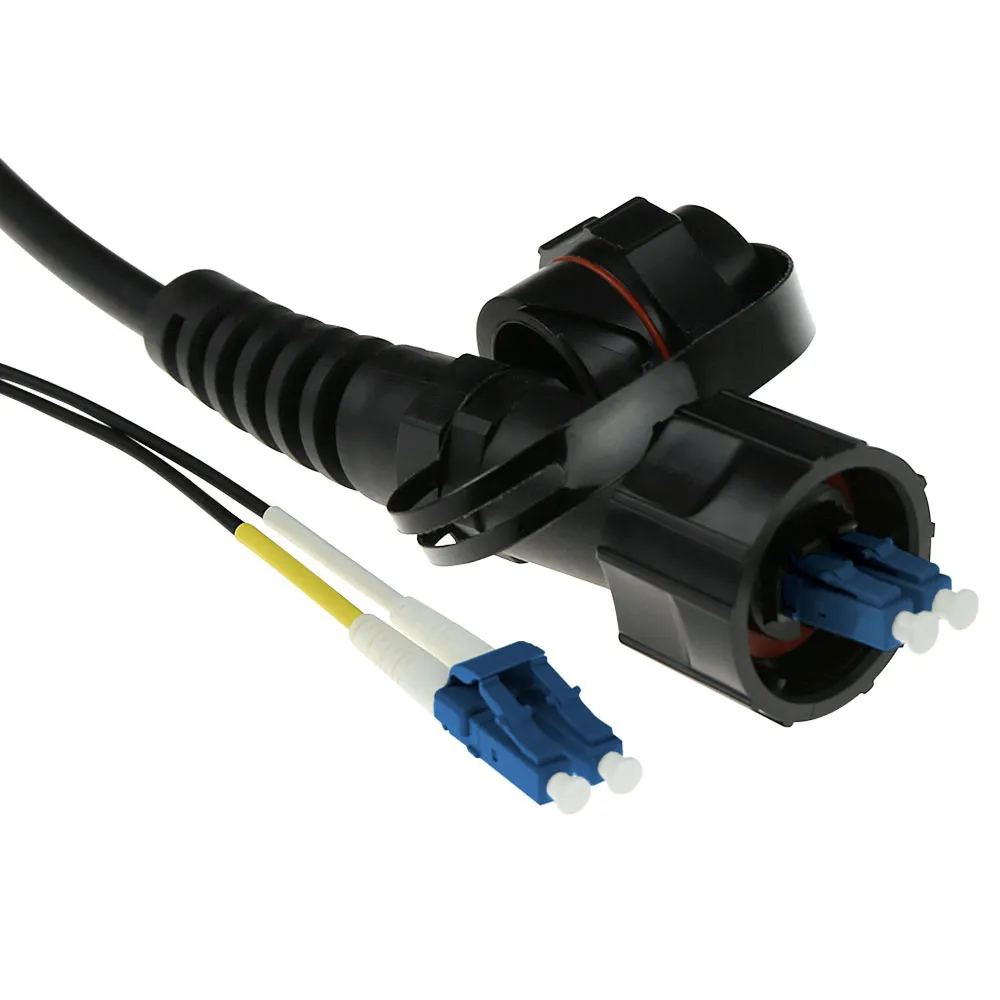

(*all mentioned brand names are the property of the respective brand owners)ACT 10 meter singlemode 9/125 OS2 duplex fiber patch cable with LC and IP67 LC connectors.

Cable length:10 m.

Fibre optic type:OS2.

Connector 1:2x LC.

Connector 2:2x LC ODVA.

Core diameter:9 µm, Full duplexFiber optic patchcables with ODVA connectors with an IP67 rating.

Suitable for outside use in FTTA/FTTT, DAS and RRU/RRH applications.

Also available in the following IP67 options CPRI, NSN, RRU, Fullaxs, IPFX, ODC, AARC, Hoptic.

- compatible connectors with short leadtimes (all mentioned brand names are the property of the respective brand owners).

100% clarity, Each cable is tested on IL (Insertion Loss) and comes with an individual test report.

Galvanic isolated because of no use of metals
