Adder AD2003 Splitter

ADDER AD2003 Digital Signage VGA Splitter & Extender

Elevate your professional audio and video installations with the ADDER AD2003 Splitter, a high-performance solution engineered for robust and reliable digital signage distribution. Designed to broadcast high-quality VGA video to multiple screens over long distances, this device is the cornerstone of any demanding AV setup, from retail displays and corporate boardrooms to transport hubs and educational facilities. The AD2003 simplifies complex wiring challenges by using standard, cost-effective CATx network cable, proving that powerful performance can also be incredibly efficient. By integrating essential components into a single, streamlined unit, it ensures your message is delivered with perfect clarity and precision, every time.

Effortless Installation and Unmatched Convenience

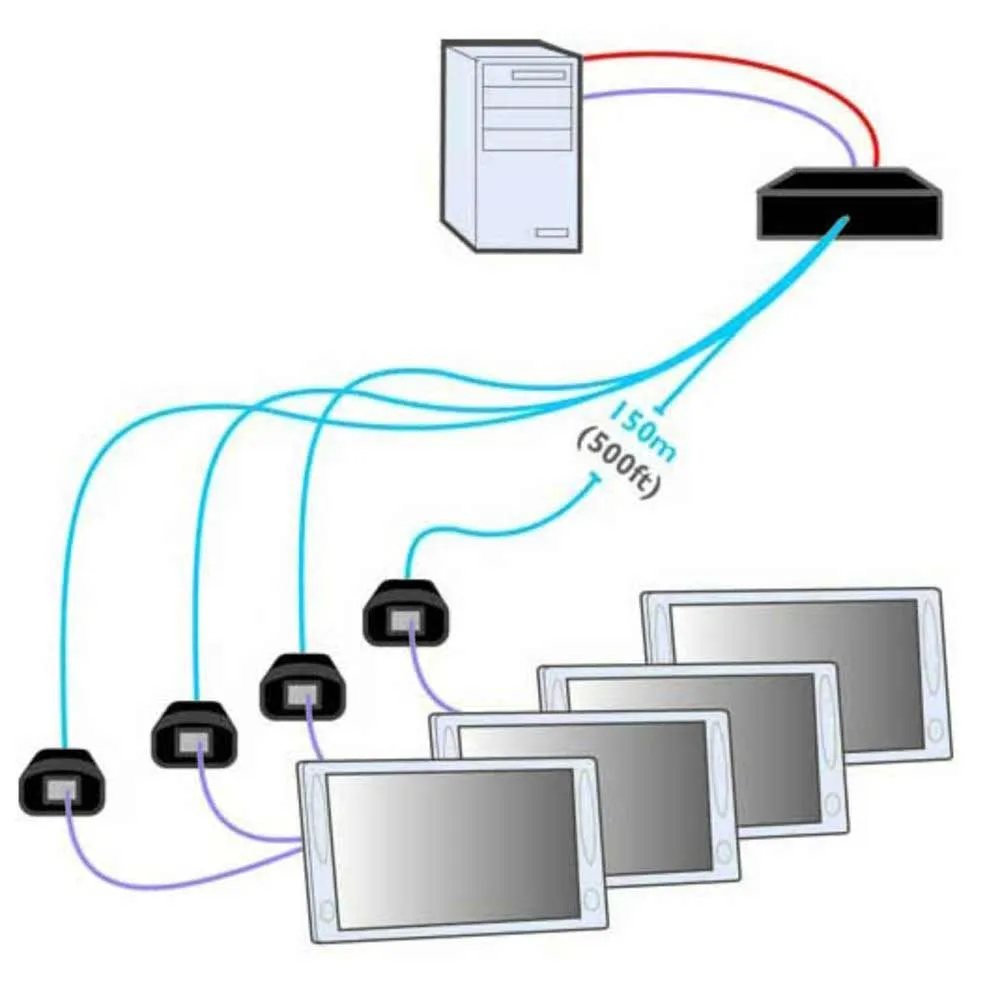

This digital signage splitter is a very easy to install point-to-point extender, designed to significantly reduce setup time and complexity. A key benefit is its ability to send power directly via the cable to the receiver, meaning extra power supplies at the display end are no longer necessary. This innovative feature streamlines the installation process, reduces potential points of failure, and creates a cleaner, more professional-looking setup. As a 4 channel transmitter, the AD2003 is perfect for point-to-multipoint transmission, allowing a single source to be broadcast to four separate locations with ease.

Superior Performance and Remote Management

Achieve flawless video quality over significant distances. The ADDER AD2003 can transmit a crisp, clear 1080p high-definition video signal up to a maximum extension distance of 150 metres (492 feet). This capability makes it ideal for large venues where the source and display are far apart. To ensure optimal image integrity, the system supports DDC and EDID, allowing for seamless communication between the source and the displays. Furthermore, the unit contains a built-in serial port, a powerful feature that enables you to switch displays on or off when you are on a remote site, providing unparalleled control and energy management for your entire digital signage network. The local loop-through port also allows for a monitor to be connected at the transmitter end for easy monitoring and configuration.

Main Features:

* High-Definition 1080p Video Extension
* Signal Transmission up to 150 Metres
* Distribution to Four Remote Screens
* Power Delivery to Receiver via CATx Cable
* Remote Display Control via Serial Port
* Local VGA Output for Monitoring (Loop-Through)
* Full DDC and EDID Support
* Utilizes Standard RJ45 and VGA Components
* Designed for 24/7 Professional Use

Technical Specifications:

* Product category: Splitters / VGA
* Connections: RJ45, VGA

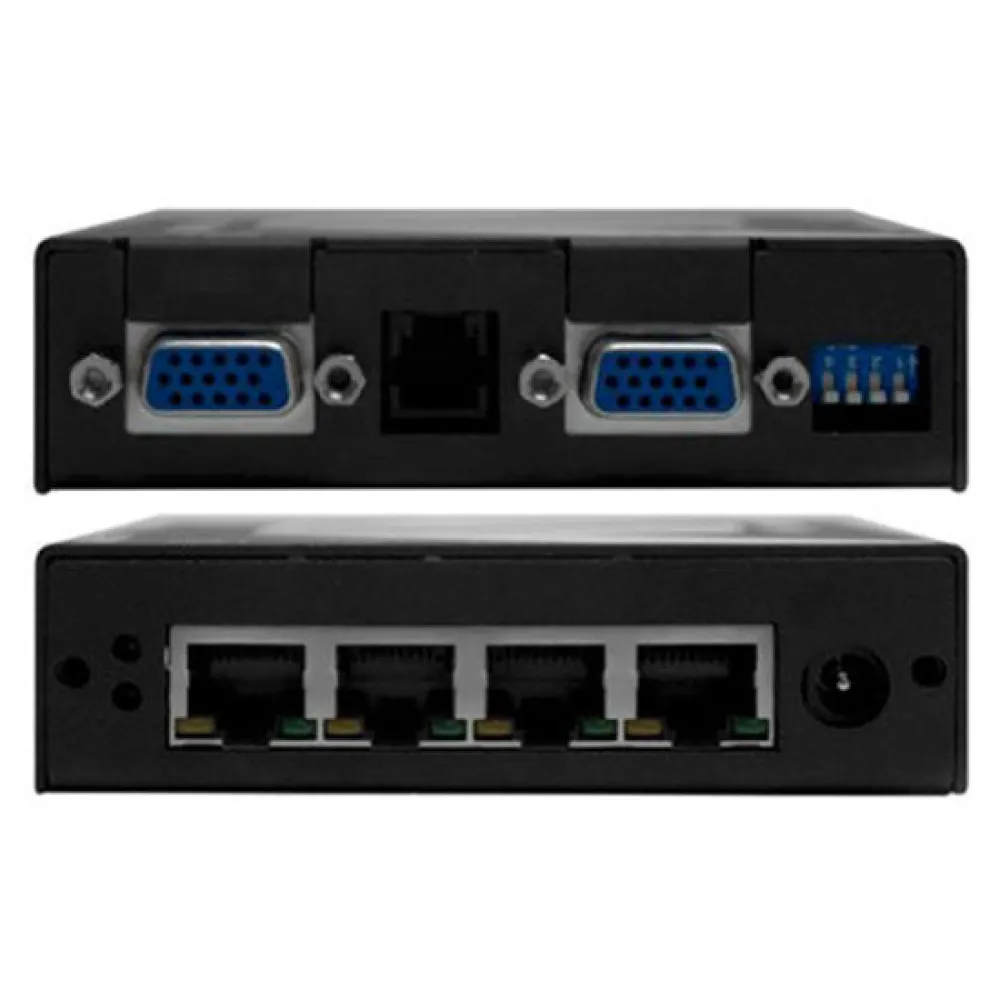

* Connections (in): RJ45 female (x4), VGA HD D-sub 15-pin female (x1)
* Connections (out): VGA HD D-sub 15-pin female (x2)
* Extender category: 101-300 m
* Max. extension distance: 150 m
* Extension over: CATx
* Extension cable: CATx (x1)
* Extension connector: RJ45
* Extension protocol: Own
* Max. resolution @ 60Hz: 1080p
* Video signal: VGA
* Supported features: DDC, EDID
* Included: Power adapter, video cable
