Antec Csk750Dc Power Supply

EU Plug.

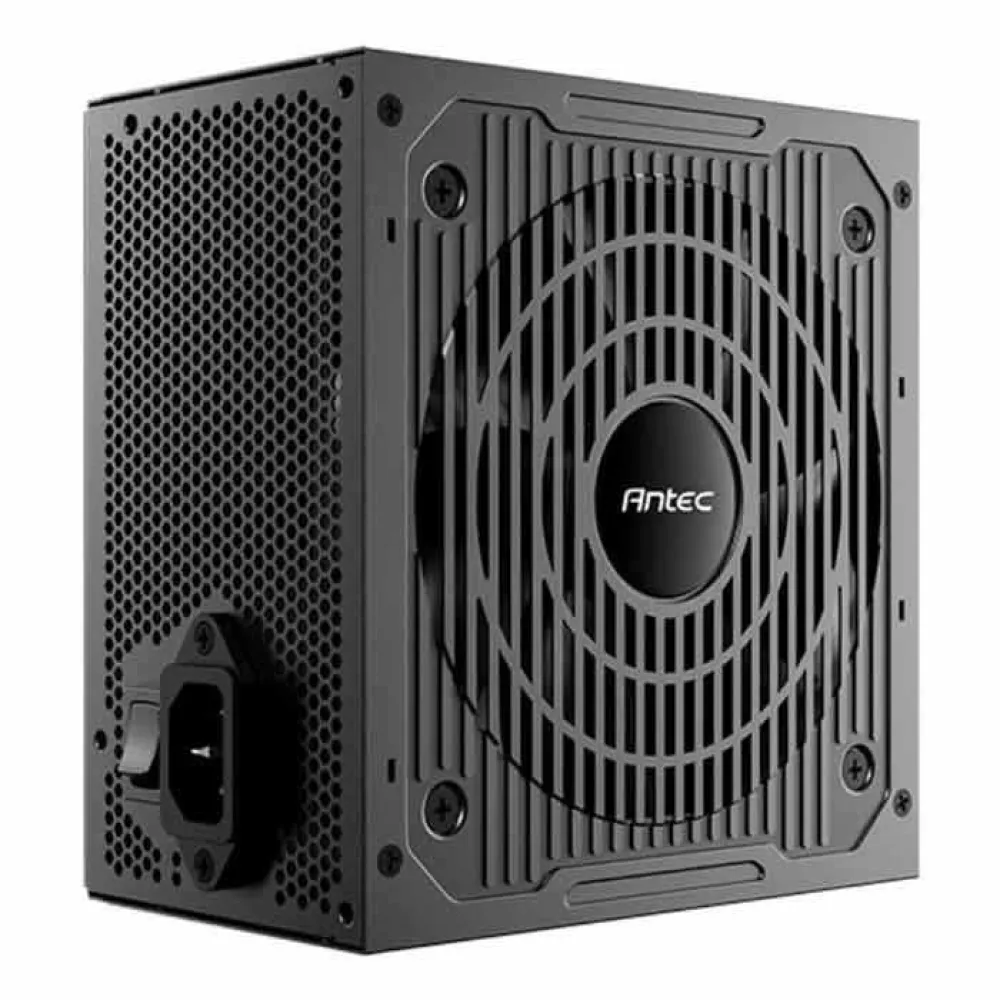

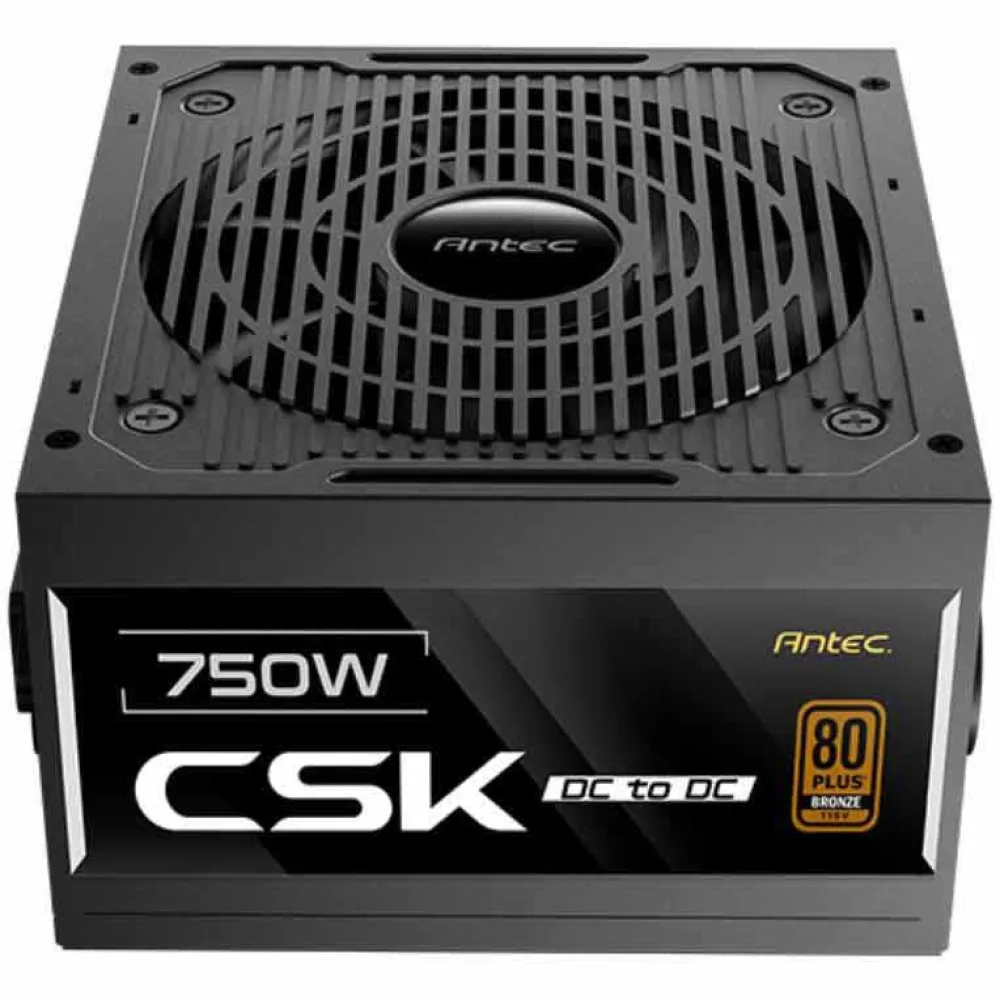

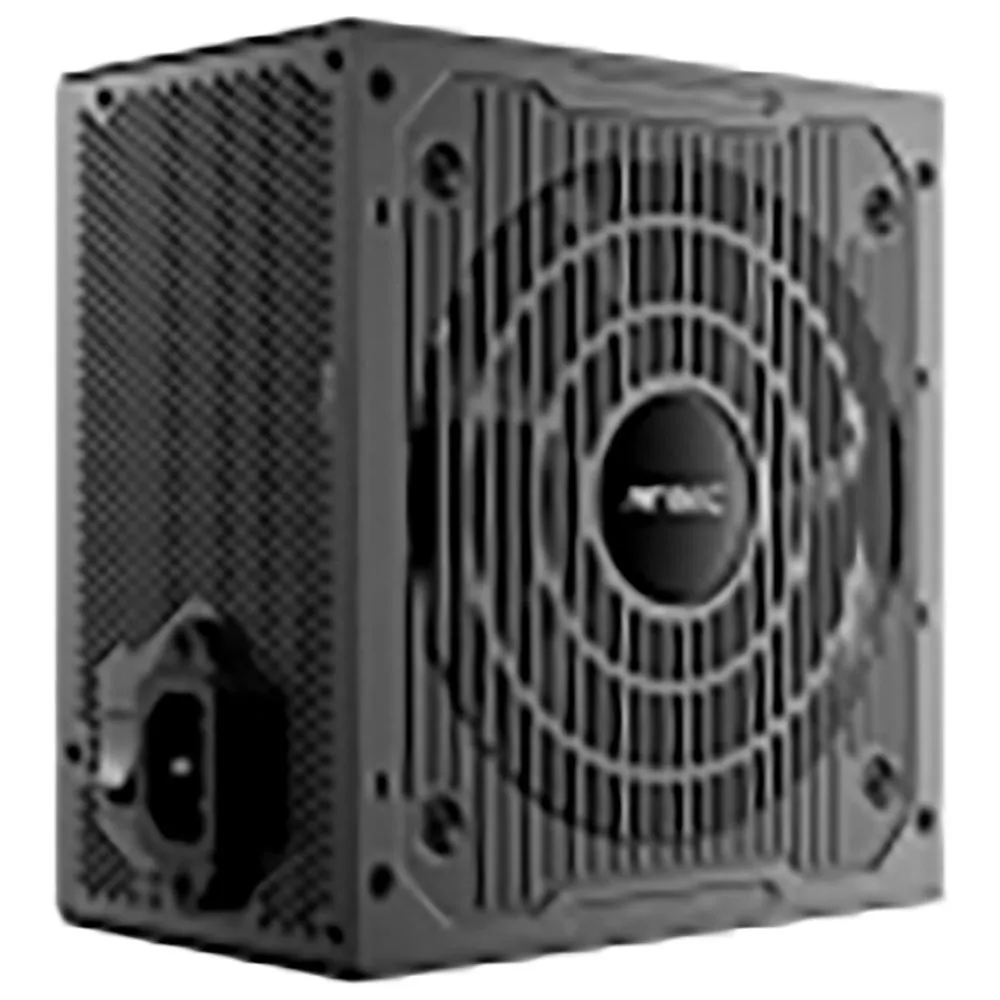

Antec CSK750DC 750W ATX Power Supply - Reliable and Efficient PC Power Power your PC build with confidence using the Antec CSK750DC, a high-performance 750W power supply designed for stability, efficiency, and reliability.

As a cornerstone of the Antec CSK series, this unit delivers 750 watts of continuous, stable power, making it an excellent choice for demanding gaming rigs, content creation workstations, and high-performance desktop systems.

Its standard ATX form factor ensures broad compatibility with the majority of PC cases on the market.

The non-modular design provides a straightforward installation experience, with all essential cables attached and ready for connection, perfect for builders who prioritize simplicity and a quick, hassle-free setup.

Engineered for superior performance, the CSK750DC features an advanced DC-to-DC converter design.

This technology ensures tighter voltage regulation and exceptional stability, especially under heavy cross-load conditions.

This means your sensitive components, like the CPU and GPU, receive clean and consistent power, maximizing their performance and lifespan.

The unit is 80 PLUS Bronze certified, guaranteeing up to 88% efficiency at typical loads.

This high efficiency translates into lower energy consumption, reduced heat output, and a smaller electricity bill, all while contributing to a cooler and quieter system.

A thermally controlled 120mm silent fan provides optimal airflow to keep the PSU cool, adjusting its speed based on the load to maintain a perfect balance between cooling performance and low-noise operation.

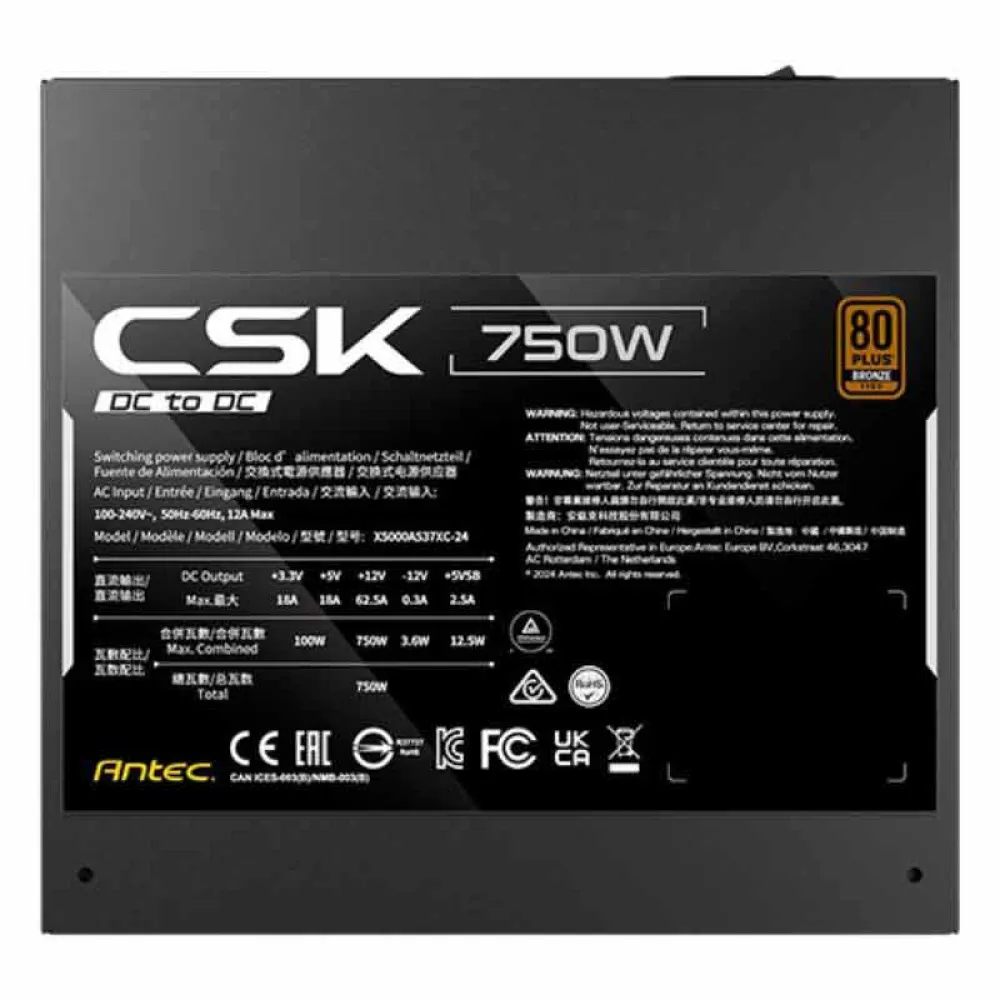

Main Features * 750W of Continuous Power Output * 80 PLUS Bronze Certified for High Efficiency * Advanced DC-to-DC Converter Topology * 120mm Low-Noise Silent Fan * CircuitShield™ Suite of Industrial-Grade Protections * Straightforward Non-Modular Cable Design * Standard ATX Form Factor for Wide Compatibility * Active Power Factor Correction (PFC) Technical Specifications * Model:

Antec CSK750DC * Type:

ATX 12V 2.31 * Modularity:

Non-Modular * Wattage:

750 W * Efficiency Certification:

80 PLUS Bronze * Input Voltage:

100-240 VAC * Input Current:

10A-5A * Input Frequency Range:

47-63Hz * Protections:

Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Current Protection (OCP), No Load Operation (NLO) * Regulatory:

cTUVus, CB, CE, FCC, KC, TUV, RCM, EAC * Dimensions (L x W x H):

140x150 x 86 mm Connectors * 1x24-pin Main Connector * 2x8(4+4)-pin EPS12V CPU Connector * 4x8(6+2)-pin PCI-E Connector * 8 x SATA Connector * 3 x Molex Connector * 1 x FDD Connector.
