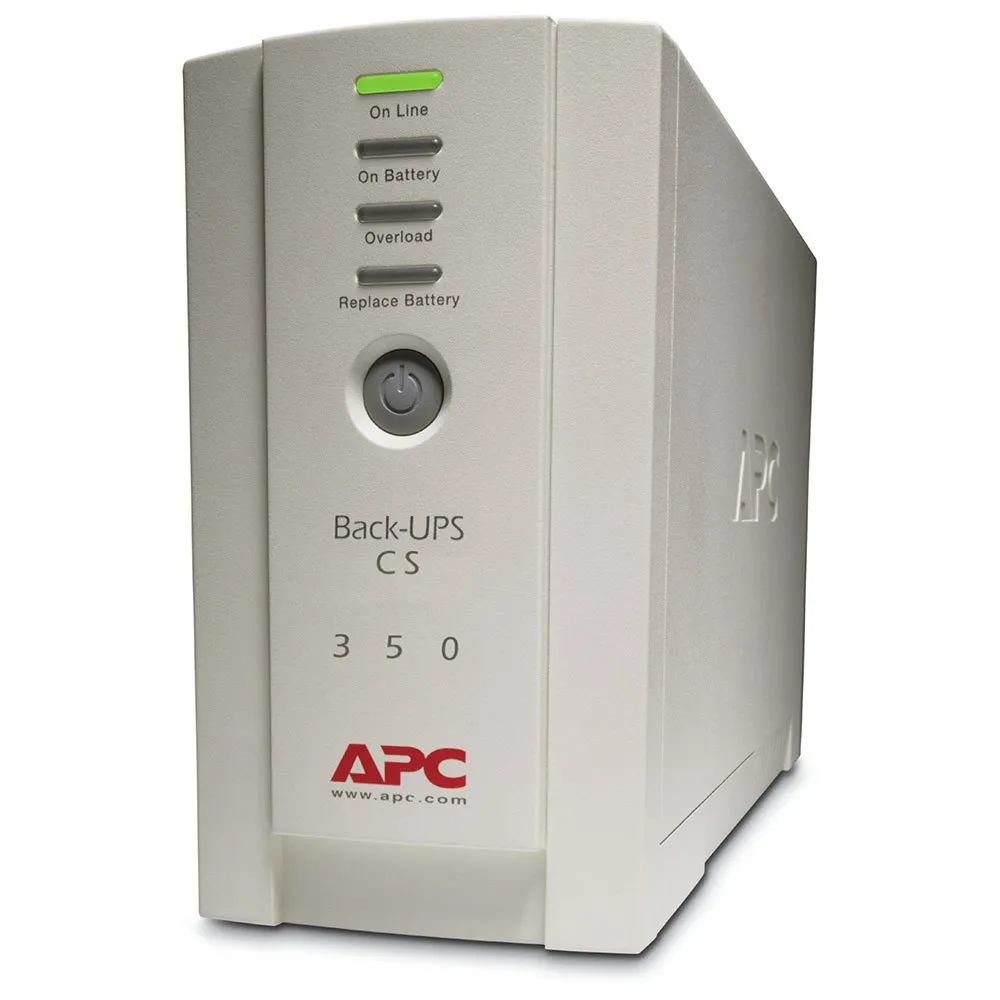

Apc BK350EI Back UPS

EU PLUG.

Serial connectivity Provides management of the UPS via a serial port.

USB connectivity Provides management of the UPS via a USB port (not available on all models).

Back-UPS Features & Benefits Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability Audible alarms Provides notification of changing utility power and UPS power conditions LED status display Quickly understand unit and power status with visual indicators.

Marketing Features Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment Availability Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.

Output Output power capacity 210Watts / 350VA Max Configurable Power (Watts) 210Watts / 350VA Nominal Output Voltage 230V Output Frequency (sync to mains) 47.

- 63 Hz Output Frequency (not synced) 50/60 Hz +/-1 Hz Topology Standby Output Connections (2) IEC Jumpers (Battery Backup) (3) IEC 320 C13 (Battery Backup) (1) IEC 320 C13 (Surge Protection) Transfer Time 6ms typical:

10ms maximum Input Nominal Input Voltage 230V Input frequency 50/60 Hz +/- 3 Hz (auto sensing) Input Connections IEC-320-C14 inlet Cord Length 1.16meters Input voltage range for main operations 180.

- 266V Number of Power Cords 2 Maximum Input Current 7.0A Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte:

leakproof Typical recharge time 6hour(s) Replacement Battery RBC2 Expected Battery Life (years) 4.

- 6 RBC Quantity 1 Battery Volt-Amp-Hour Capacity 84 Communications & Management Interface Port(s) Optional Simple Signalling RS232 cable, USB Control panel LED status display with On Line:

On Battery:

Replace Battery and Overload indicators Audible Alarm Alarm when on battery:

distinctive low battery alarm:

overload continuous tone alarm Surge Protection and Filtering Surge energy rating 310Joules Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector) Filtering Full time multi-pole noise filtering:

5% IEEE surge let-through:

zero clamping response time:

meets UL 1449 Physical Maximum Height 165MM, 16.5CM Maximum Width 91MM, 9.1CM Maximum Depth 284MM, 28.4CM Net Weight 6.32KG Shipping weight 7.05KG Shipping Height 178MM, 17.8CM Shipping Width 241MM, 24.1CM Shipping Depth 368MM, 36.8CM Color Beige Master Carton Units 2.0 Units per Pallet 48.0 SCC Codes 1073130401634 9 Environmental Operating Temperature 0.

- 40 °C Operating Relative Humidity 0.

- 95 % Operating Elevation 0-3000meters Storage Temperature -15.

- 45 °C Storage Relative Humidity 0.

- 95 % Storage Elevation 0-15000meters Online thermal dissipation 19.0BTU/hr.
