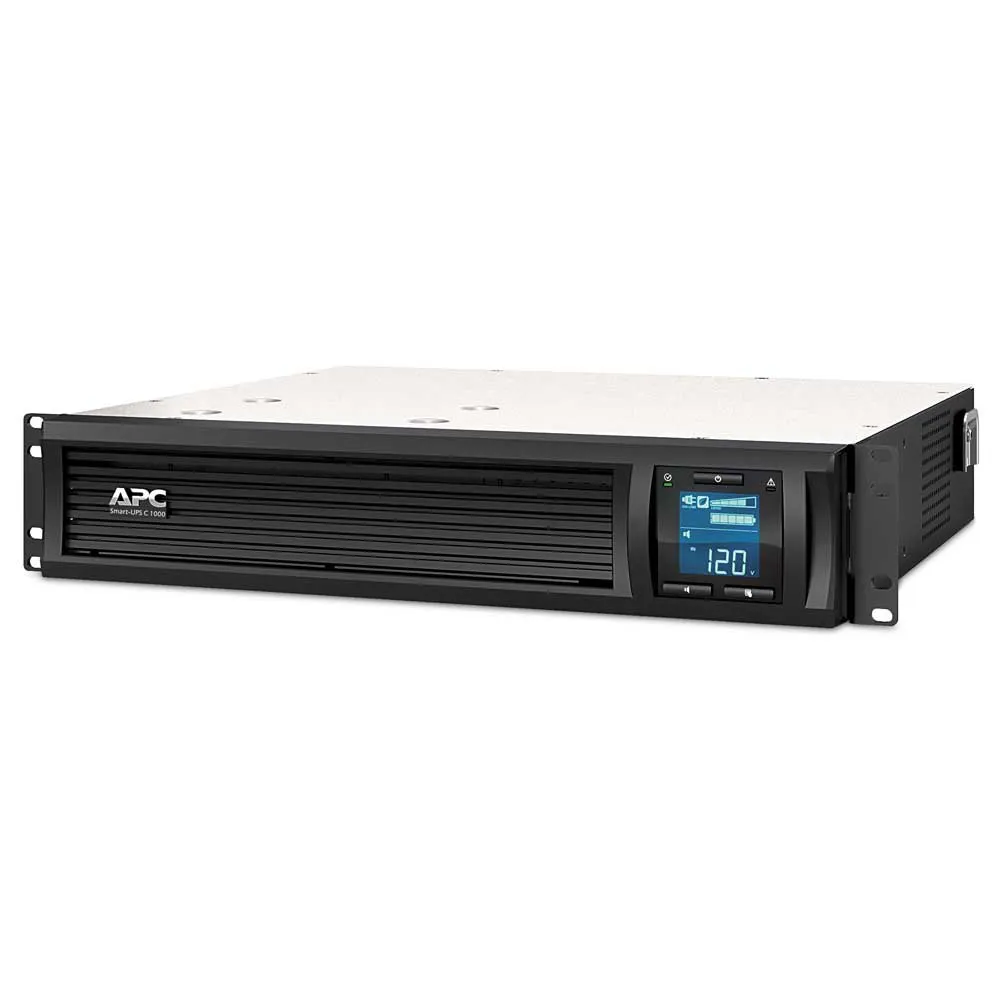

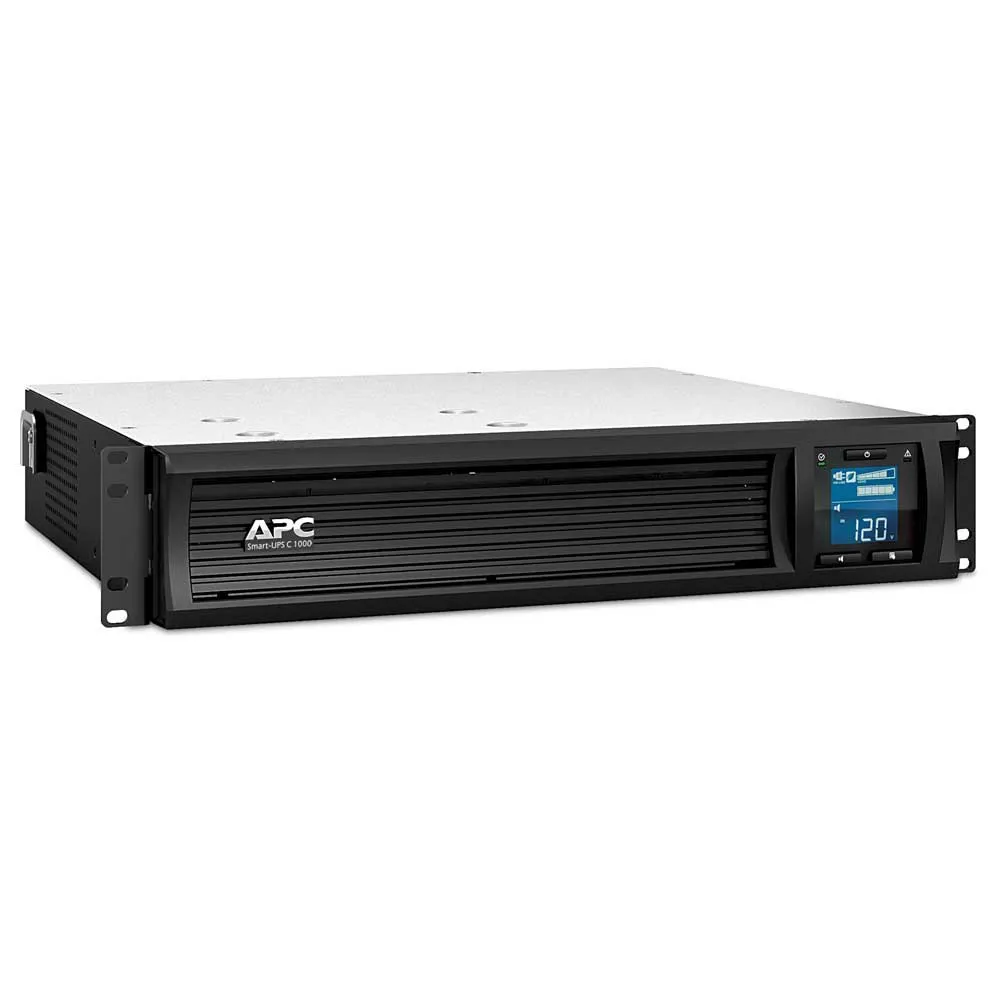

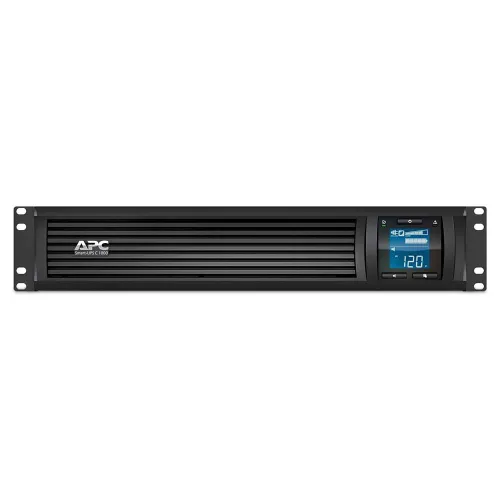

Apc Smart-1000VA Rack Mount UPS

EU PLUG.

Protect your entry-level servers, small switches, networking devices, and point-of-sale (POS) equipment with the Smart-UPS SMC1000-2UC with APC SmartConnect.

- the first cloud enabled UPS for distributed IT.

The SMC1000-2UC UPS provides backup battery power in the event of a power outage, while safeguarding your equipment from harmful power conditions, spikes and surges.

The included service-free cloud monitoring feature is accessible from any internet connected device, and maximizes the life and performance of your UPS by providing proactive advice and life cycle recommendations so you can remotely monitor your power infrastructure from anywhere in the world.

Automatic green mode ensures you are operating at the highest level of efficiency, and intelligent battery management maximizes performance.

With a 600-watt output power capacity and six battery and surge protected outlets, this Smart-UPS is ideal for home users and small- to medium-sized businesses.

The first cloud enabled UPS for distributed IT:

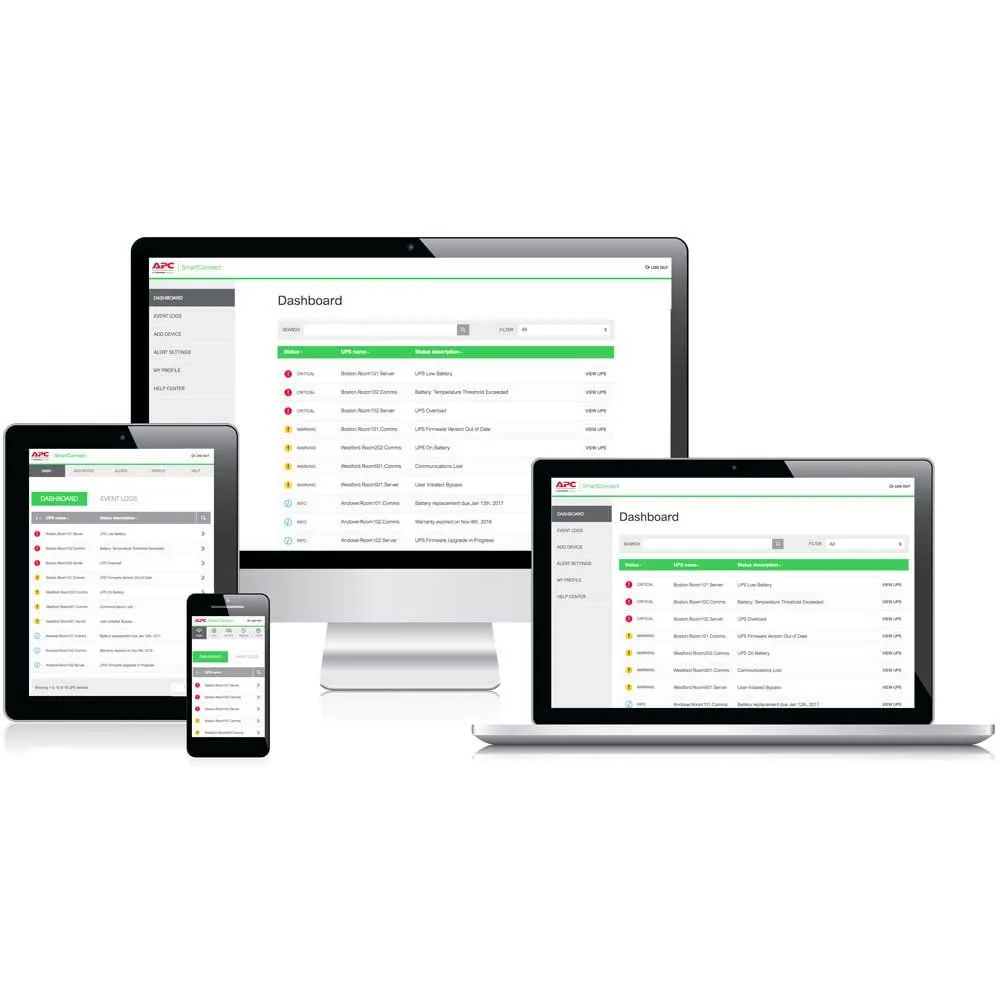

- The SMC1000-2UC comes with our innovative remote cloud monitoring solution, APC SmartConnect, a feature which allows you to view the status of your UPS on a secure web portal via any internet connected device.

APC SmartConnect maximizes the life and performance of your UPS through automatic notifications, firmware updates, and advanced support.

Intuitive LCD interface for status updates and configuration:

- The bright, easy-to-read LCD interface provides real-time status updates of your APC UPS with multiple language options, and intuitive navigation keys.

Intelligent battery management:

- For easy maintenance, the Smart-UPS SMC1000-2UC provides a predictive month and year when battery replacement is recommended.

It also prolongs battery life by regulating the charge voltage in relation to battery temperature.

Detect faulty batteries with the periodic battery self-test and disconnected battery notification Automatic Voltage Regulation (AVR):

- AVR adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery.

Pure sine wave output:

- Pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Green mode for reduced power consumption:

- Operate efficiently with the Smart-UPS green mode, which allows you to conserve energy without sacrificing any protection when power quality is within optimal levels and power conditioning is not necessary.

PowerChute software for safe system shutdown:

- Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption.

Find cost savings by using PowerChute to monitor your equipment´s energy consumption.

ENERGY STAR Qualified:

- Acknowledged for meeting standardized energy efficiency requirements and passing the program´s testing, the Smart-UPS SMC1000-2UC has been recognized for its ability to save you money while protecting the environment.

Any UPS that is ENERGY STAR Qualified must achieve operational efficiency in the top 25 percent of the market, thus demonstrating the ability to allow you to realize lower electrical operating costs, and a reduced carbon footprint.

Specifications:

- UPS topology:

Line-Interactive.

- Output power capacity (VA):

1000 VA.

- Output power:

600 W.

- Waveform:

Sine.

- Input operation voltage (min):

170 V.

- Input operation voltage (max):

300 V.

- Input frequency:

50/60 Hz.

- Output operation voltage (min):

220 V.

- Output operation voltage (max):

240 V.

- Output frequency:

50/60 Hz.

- Automatic Voltage Regulation (AVR):

Yes.

- Surge energy rating:

680 J.

- Output voltage THD:

5%.

- Noise level:

41 dB.

- Surge protection:

Yes.

- Audible Alarms:

Yes.

- Audible alarm modes:

Alarm when on battery, Low battery alarm, Overload alarm Ports & interfaces:

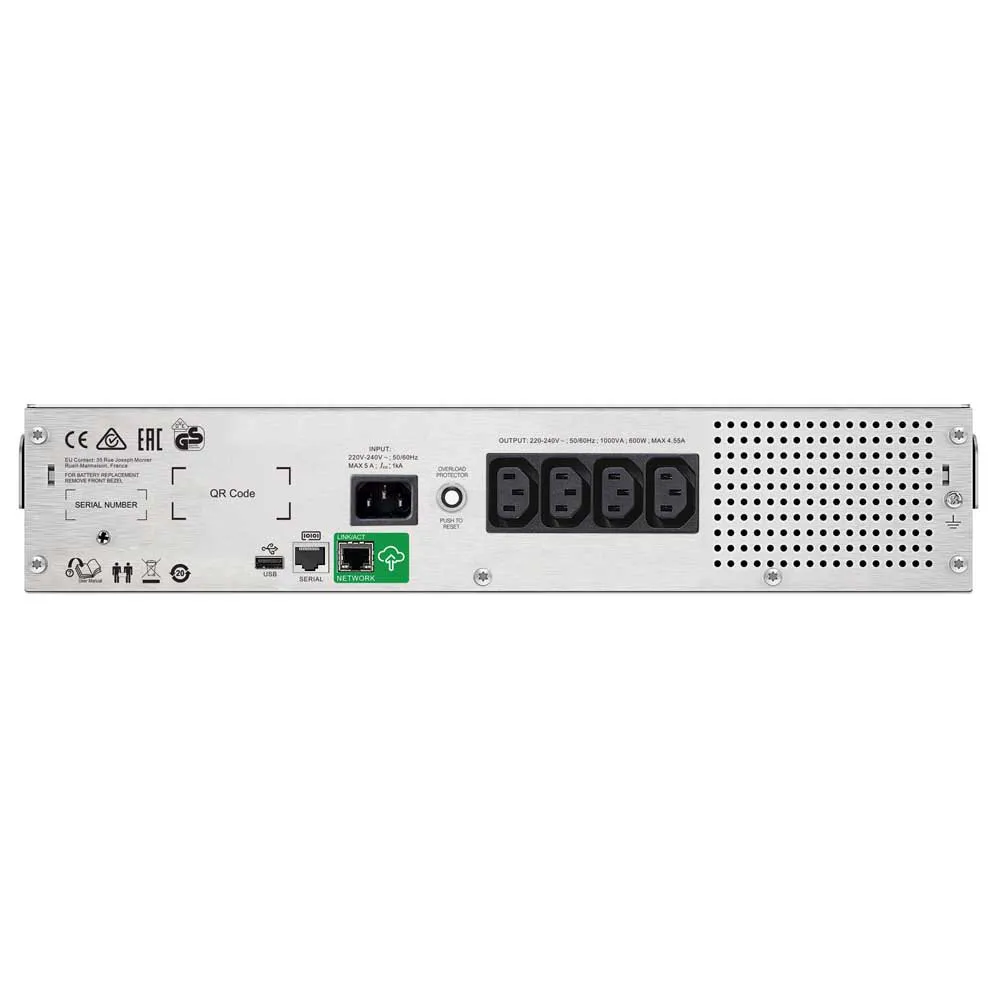

- AC outlet types:

C13 coupler.

- Power plugC:

14 coupler.

- AC outlets quantity:

4 AC outlet(s).

- Number of outlets (Battery backup & protection):

4.

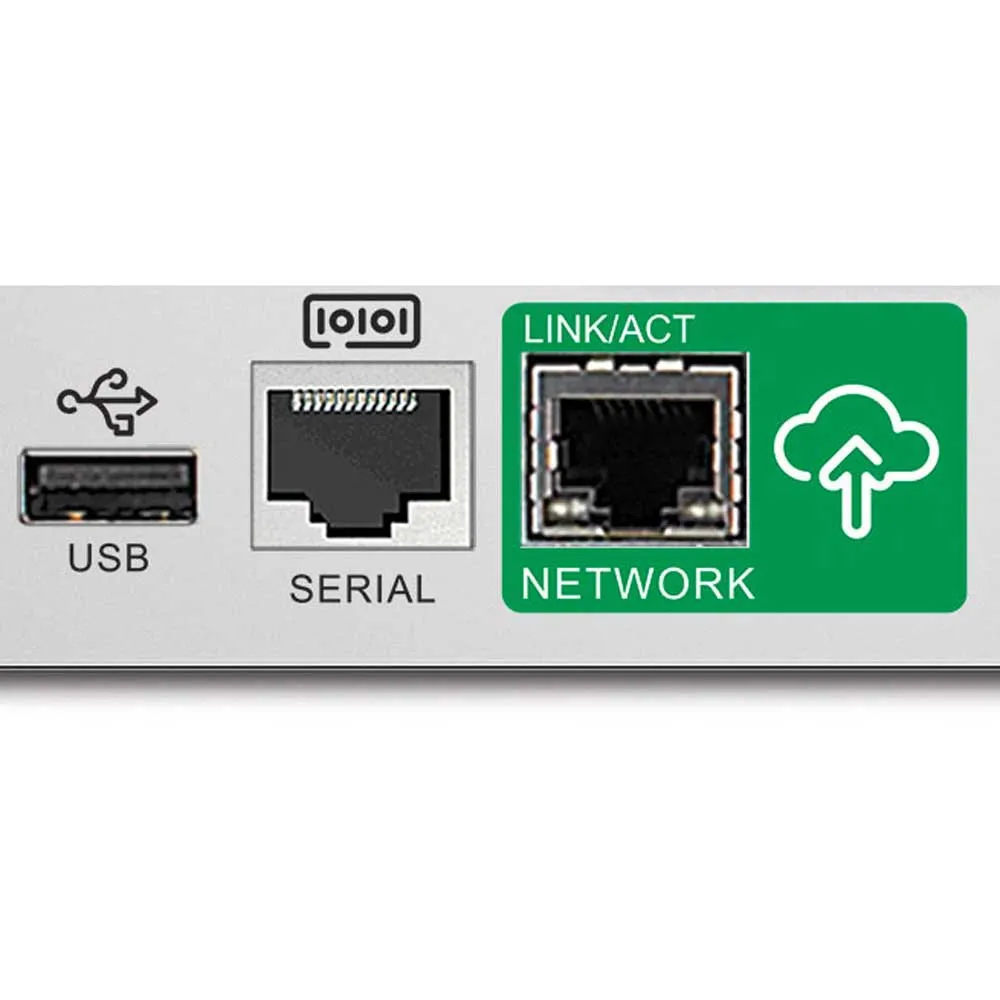

- USB port:

Yes.

- USB 2.0 ports quantity:

1.

- Serial interface:

Yes.

- Serial interface type:

RS-232.

- Ethernet LAN (RJ-45) ports quantity:

1.

- SmartSlot:

Yes Battery:

- Battery.

Technology:

Sealed Lead Acid (VRLA).

- Number of batteries supported:

1.

- Battery life (max):

6 year(s).

- Battery recharge time:

3 h.

- Replacement battery cartridge:

APCRBC124 Design:

- Form factor:

Rackmount.

- Rack capacity:

2U.

- Cable length:

2.44 m.

- Display:

LCD.

- Energy Star certified:

Yes.

- RoHS compliance:

Yes.

-.

Certification:

CSA, CSA C22.2 No.

107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH Operational Conditions:

- Operating temperature range (T-T):

0.

- 40 °C.

- Storage temperature range (T-T):

-15.

- 45 °C.

- Operating relative humidity range:

0.

- 95%.

- Storage relative humidity range:

0.

- 95%.

- Operating altitude:

0.

- 3000 m.

- Non-operating altitude:

0.

- 15000 m.

Weight & dimensions:

- Width:

432 mm.

- Depth:

406 mm.

- Height:

86 mm.

- Weight:

20.5 kg Packaging Data:

- Rack mount kit:

Yes.

- Cables included:

RJ-45,RS-232.

- Resource CD:

Yes.

- Software CD:

Yes.

- Package width:

535 mm.

- Package depth:

570 mm.

- Package height:

235 mm.

- Package weight:

20.7 kg Logistics data:

- Quantity per pallet:

16 pc(s).
