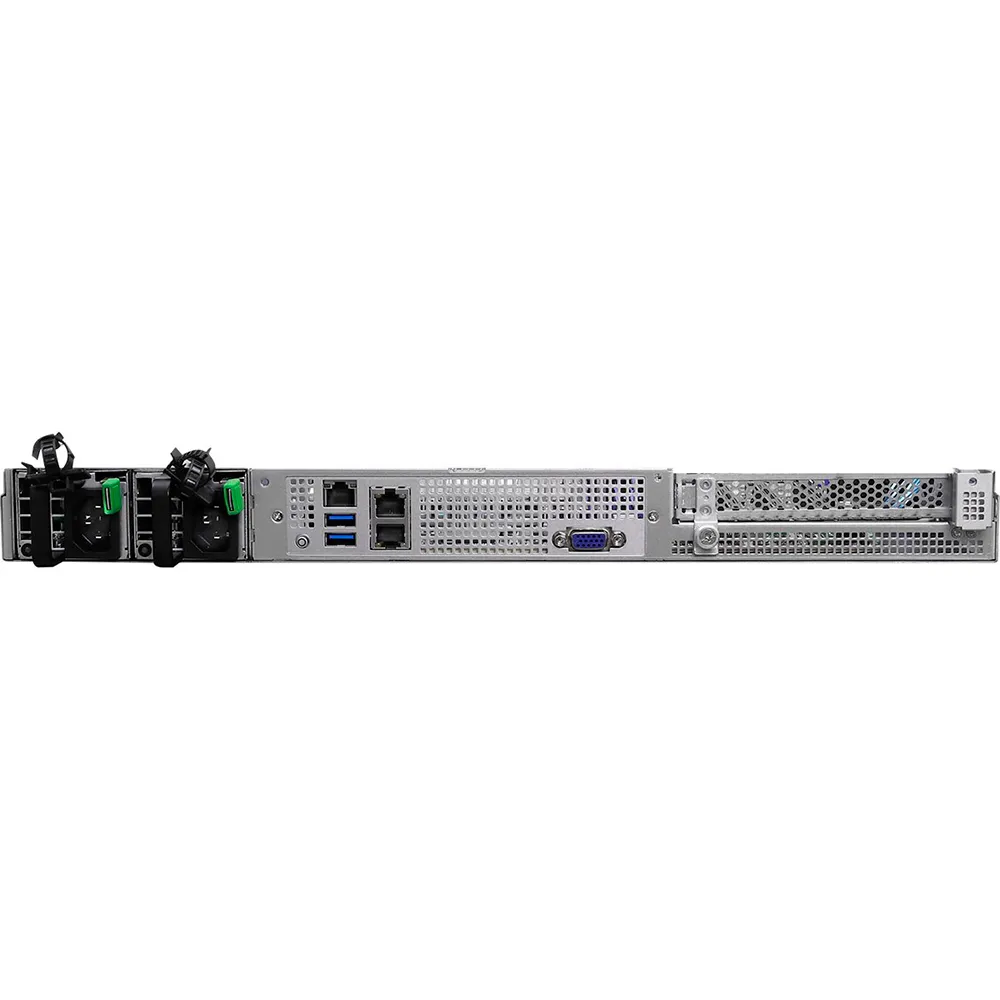

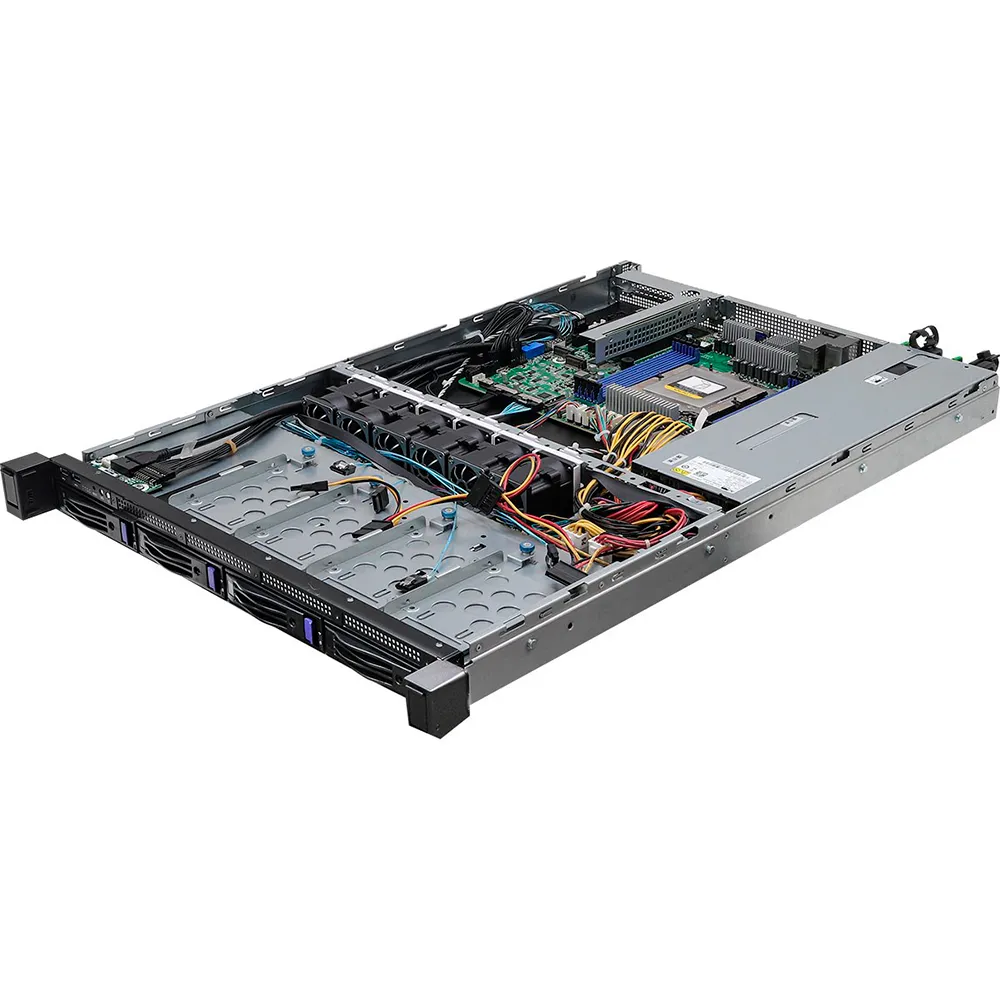

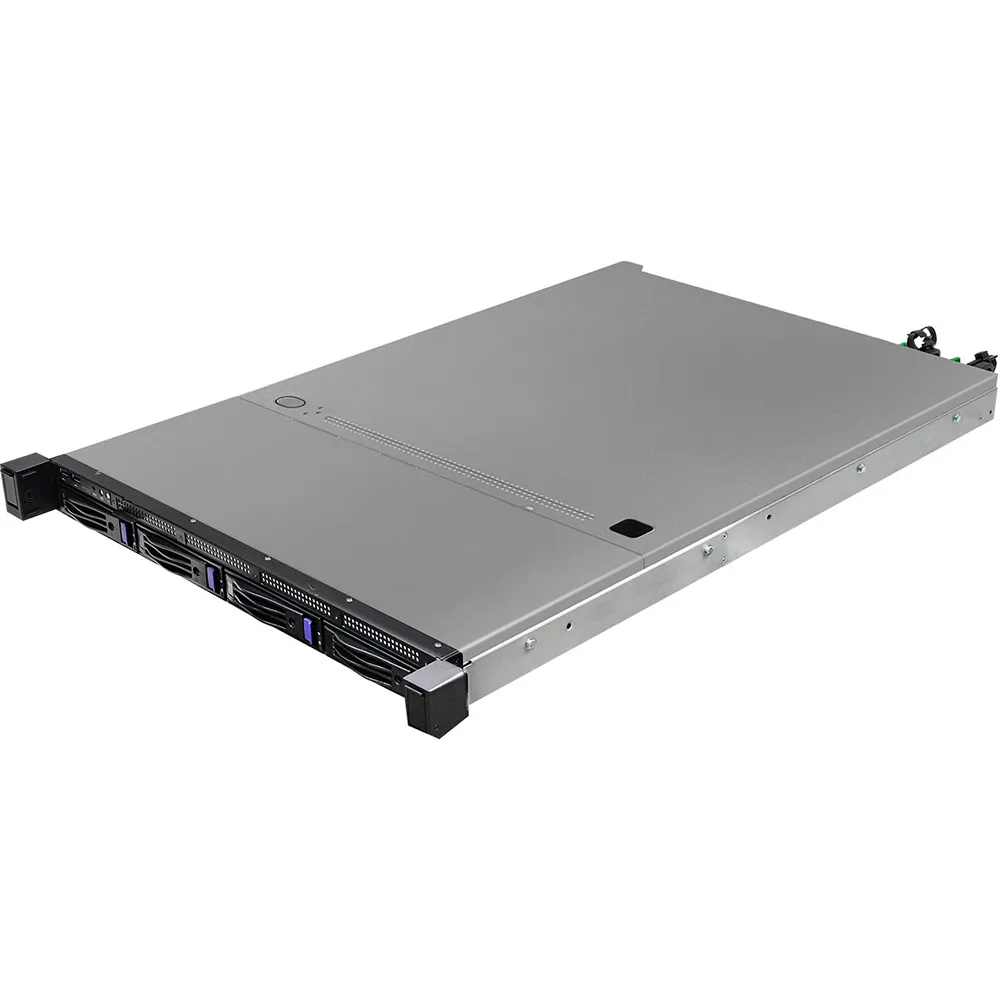

Asrock Barebone AMD rack cabinet

EU Plug.

Build your next-generation server infrastructure with the unparalleled flexibility and power of an ASROCK Barebone AMD Rack Server.

Engineered for enterprises, data centers, and cloud providers, these barebone systems provide the essential framework - chassis, motherboard, power supply, and cooling - allowing you to create a fully customized server solution tailored to your specific performance, storage, and budgetary requirements.

Harness the groundbreaking processing power of AMD EPYC™ or Ryzen™ processors and build a reliable, scalable, and cost-effective server environment from a foundation trusted for its innovation and stability.

The primary benefit of an ASROCK barebone system is ultimate customization.

Instead of being locked into a pre-configured setup, you have the freedom to select the exact AMD CPU, memory modules, and storage drives that match your workload, from high-frequency trading and virtualization to big data analytics and content delivery.

This approach not only optimizes performance but also prevents overspending on unnecessary components, ensuring maximum return on investment.

Key Benefits.

-Scalable AMD Performance:Leverage the full potential of AMD´s architecture, with support for the latest multi-core AMD EPYC™ processors for intensive data center tasks or efficient AMD Ryzen™ CPUs for dedicated hosting and edge computing.

Scale your processing power as your demands grow.

-High-Density and Efficient:Designed to maximize computing power within a minimal footprint, our rack cabinets are available in various form factors (1U, 2U, 4U).

Multi-node systems enable you to deploy several independent servers in a single chassis, significantly reducing space and energy consumption.

-Enterprise-Grade Reliability:Built with server-grade components, these barebone systems feature redundant, high-efficiency power supplies (80 PLUS Platinum/Titanium) and robust cooling solutions to ensure continuous operation and system stability for mission-critical applications.

-Simplified Remote Management:Every system includes an onboard ASPEED Baseboard Management Controller (BMC) with IPMI 2.0 support.

This allows for comprehensive out-of-band management, including remote monitoring, diagnostics, power cycling, and BIOS updates, reducing the need for physical intervention.

Main Features.

-Support for Single or Dual AMD EPYC™ and AMD Ryzen™ Processors.

-Robust and Serviceable Rackmount Chassis with Tool-less Design Elements.

-Integrated ASPEED AST-Series BMC for IPMI 2.0 and Redfish Compliance.

-Flexible Storage Configurations with Hot-Swappable Bays for NVMe, SAS, and SATA Drives.

-High-Speed Onboard Networking via Dual 10GbE or 1GbE LAN Ports.

-Dedicated RJ45 Port for IPMI Remote Management.

-Multiple PCIe Expansion Slots for GPUs, FPGAs, or High-Speed Network Adapters.

-Advanced Thermal Design with High-Performance Fans Multi-Node Architecture:Power in Decks Certain ASROCK models feature a high-density, multi-node architecture, offering multiple independent server nodes, or Decks, within a single shared chassis.

For example, a 2U4N system packs four distinct server Decks into a 2U rack space.

Each Deck functions as a standalone server with its own CPU, RAM, and storage, sharing only power and cooling.

This design is ideal for hyper-converged infrastructure (HCI), cloud hosting, and high-performance computing clusters, delivering exceptional compute density and efficiency.

Technical Specifications.

-Processor Support:AMD EPYC™ 7002/7003/9004 Series.

AMD Ryzen™ 5000/7000 Series.

-Memory Support:Up to 16 or 32 DIMM slots per motherboard, supporting DDR4 or DDR5 ECC RDIMM/LRDIMM memory.

-Management Controller:ASPEED AST2500 / AST2600 with IPMI 2.0 and iKVM support.

-Storage Interface:SATA3 (6.0 Gb/s), SAS3 (12.0 Gb/s), NVMe (PCIe Gen4/Gen5) via U.2 or M.2 slots.

-Networking:2x10GbE RJ45/SFP+ ports or 2x1GbE RJ45 ports.

1 x Dedicated IPMI LAN port.

-Expansion Slots:Multiple PCIe 4.0/5.0 x16 and x8 slots.

-Power Supply:Redundant (1+1) configuration with wattages ranging from 800W to 3000W.

80 PLUS Platinum or Titanium efficiency rating.

Choose an ASROCK Barebone AMD Rack Server to build a powerful, custom-fit, and future-proof solution that drives your business forward.
