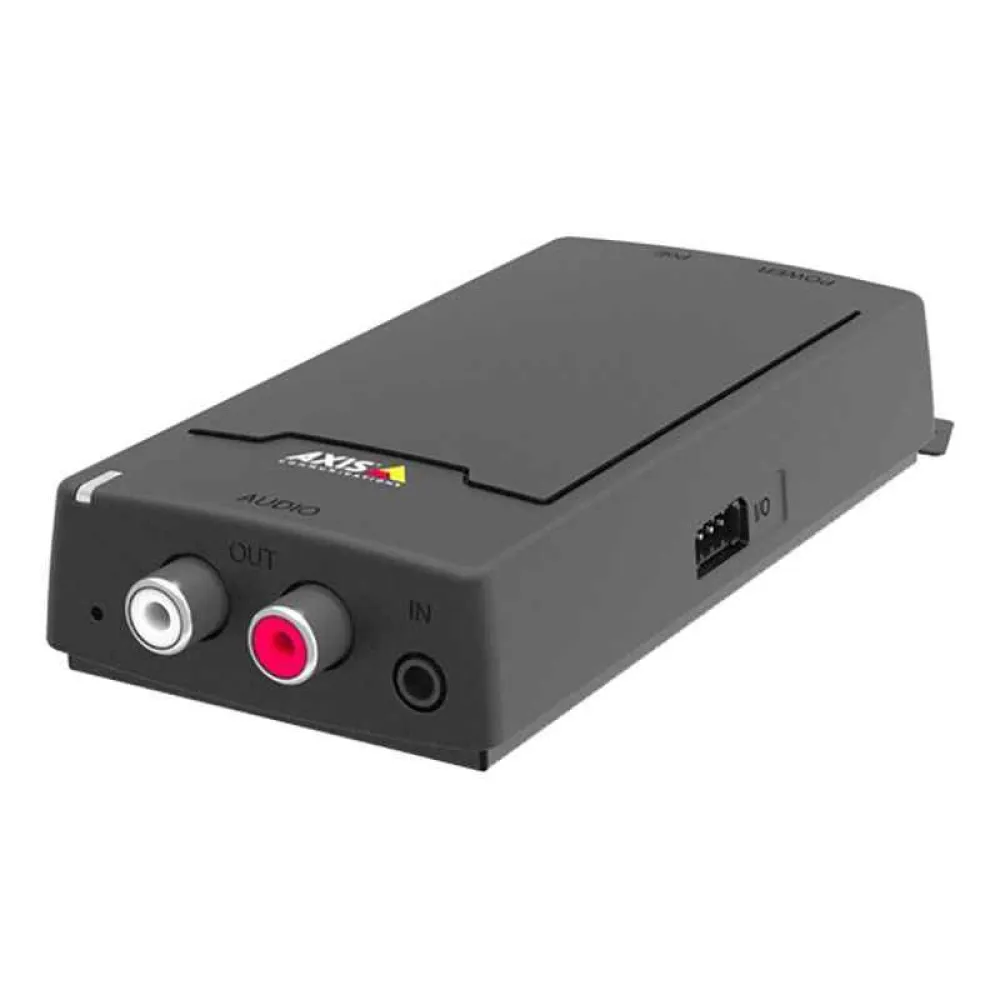

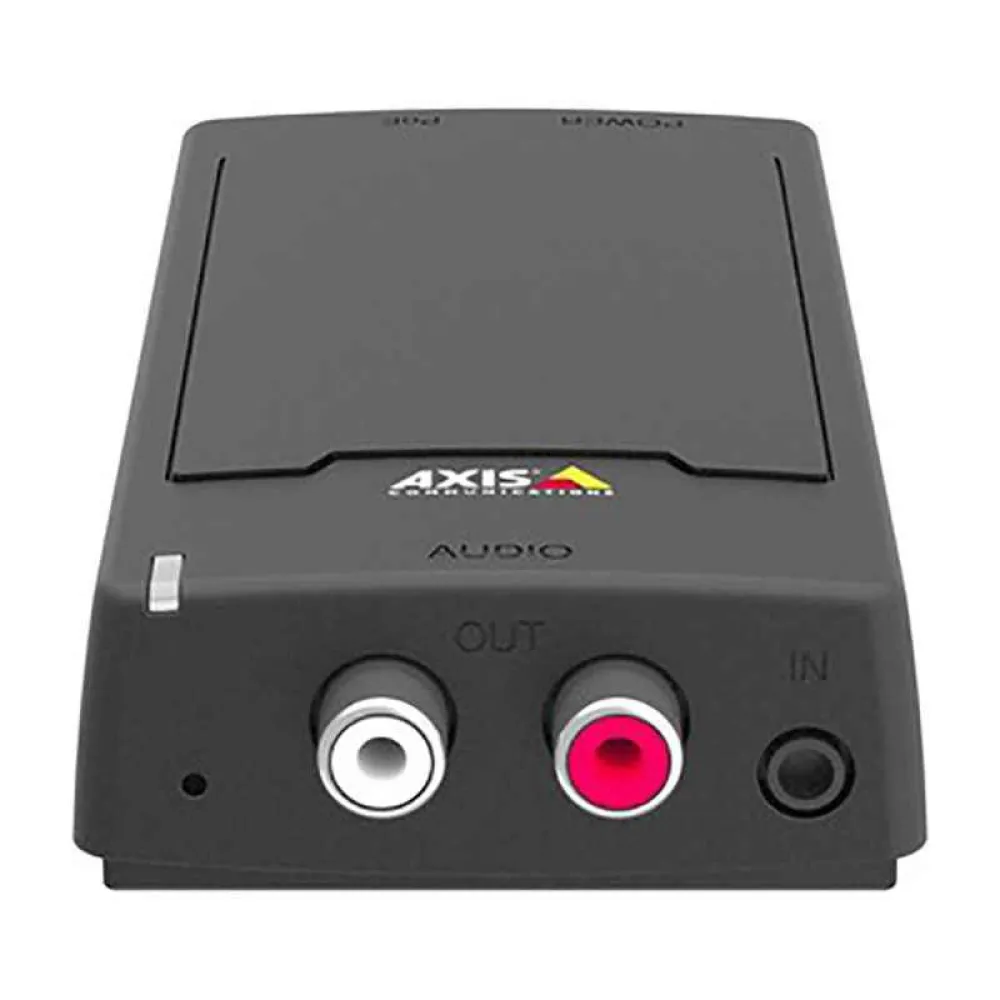

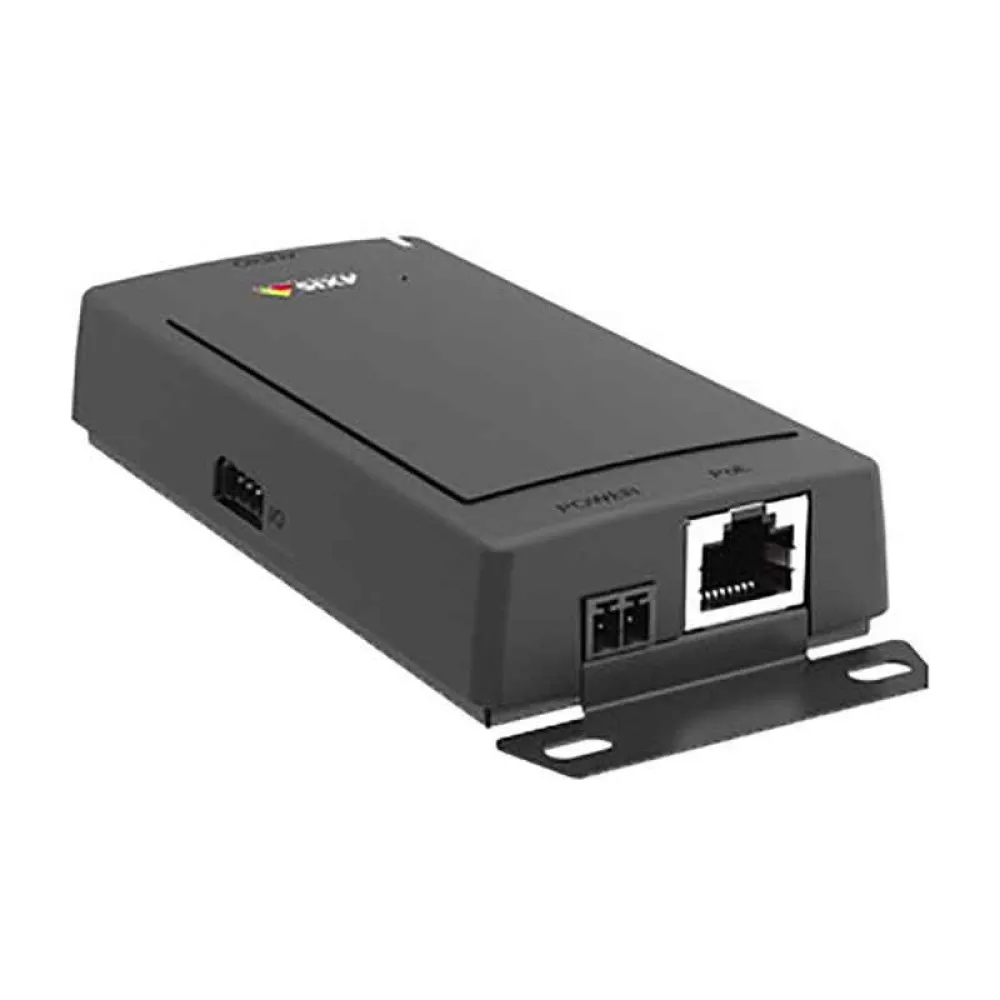

Axis C8110 Audio Amplifier

Specifications:

General:

- Type Of Device:

Audio Extender.

- Form Factor:

External.

- Embedded Devices:

512 Mb Ram, 512 Mb Flash, Microsdxc Card Reader.

- Location:

Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe Network Connection:

- Connectivity.

Technology:

Cabling.

- Remote Management Protocol:

Snmp 1,Snmp 3,Snmp 2c,Http,Https,Ssh,Sftp,Smtp.

- Characteristics:

Power Over Ethernet (Poe), Ipv6 Support, Ip Address Filtering, Ipv4 Compliant, Management Information Base (Mib) Ii, Https Encryption, Password Protection, Digest Authentication, User Access Logging, Centralized Certificate Management.

- Standards Compliance:

Ieee 802.3af,Ieee 802.1x,G.711,G.726 Expansion / Connectivity:

- Interfaces:

1 X Ethernet 10base-T/100base-Tx (Poe).

- Rj-45 Female.

- 1 X Digital I/O.

- 4-Pin Terminal Block.

- 1 X Audio Line In.

- Female Mini Jack.

- 1 X Audio Line Out.

- Rca Female X 2 Different:

- Accessories Included:

Hook And Loop Fastener, License Key For Axis Camera Station, I/O Connector, Power Connector, Avhs Authentication Key.

- Standards Compliance:

En 61000-6-1,Iec 60529 Ip20,Emc,En 61000-6-2,Fcc Part 15 B Class A,Vcci Class B,Eac,Rcm,Kn35,En 55032 Class B,As/Nzs Cispr 32 Class B,Kn32 Class B,Cispr 32 Class B,Ul 62368-1,En 55035,Cispr 35,Ices-3(B)/Nmb-3(B) Feeding:

- Power Over Ethernet (Poe):

Poe Class 2.

- Feeding Device:

External Power Adapter (Not Included).

- Software / System Requirements.

- Software Included:

Axis Audio Manager Edge Dimensions And Weight:

- Width:

12.8 Cm.

- Depth:

5.6 Cm.

- Height:

2.4 Cm.

- Weight:

107 G Environment Parameters:

- Minimum Operating Temperature:

-20 °C.

- Maximum Operating Temperature:

50 °C.

- Operating Humidity Range:

10.

- 85%.
