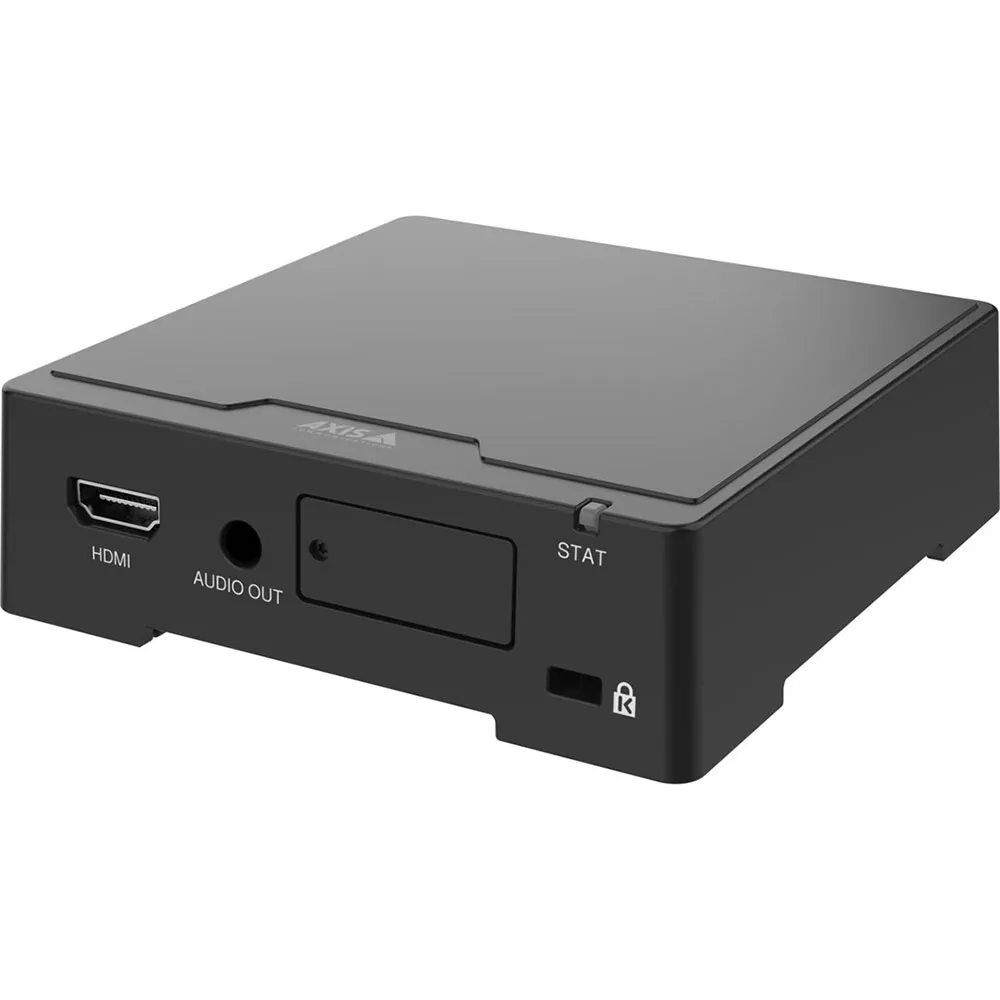

Axis D1110 video decoder

AXIS D1110 Video Decoder – 4K UHD Display for Security and Surveillance

Elevate your security and smarthome monitoring capabilities with the AXIS D1110 Video Decoder. This powerful and compact device is engineered to seamlessly display crisp, high-definition live video on any public view monitor or display with an HDMI input. It serves as the essential final link in a sophisticated surveillance system, perfectly decoding streams from your IP cameras for real-time viewing. While a complete IP system relies on robust Video Encoders to digitize and transmit camera feeds, the AXIS D1110 is the crucial counterpart that brings that digital information back to life with exceptional clarity, ensuring you never miss a critical detail. Designed for reliability and simplicity, it provides an effortless way to enhance situational awareness in retail, commercial, and public environments.

Key Benefits:

* Crystal-Clear 4K UHD Monitoring: Experience unparalleled image quality by decoding video streams in up to 4K Ultra HD resolution. Display live footage from your high-resolution Axis cameras with the sharpness and detail they were designed to capture, making it easier to identify individuals, objects, and events.
* Seamless System Integration: Built on an open platform, the AXIS D1110 integrates flawlessly into your existing Axis network video system. With support for a vast range of Axis products and VMS solutions, as well as ONVIF protocols, it ensures smooth and reliable performance for displaying single or multiple video streams in sequence.
* Versatile and Discreet Installation: The ultra-compact design allows for discreet placement behind a monitor or in a small enclosure, maintaining a clean and professional aesthetic. Power over Ethernet (PoE) simplifies installation by delivering both power and data through a single network cable, reducing clutter and installation costs.

Main Features:

* Decodes H.264 and H.265 video streams
* Provides 4K Ultra HD video output via a standard HDMI port
* Supports live video display in sequence and multiview formats
* Features audio-in and audio-out ports for two-way communication
* Includes a configurable input/output port for external device integration
* Powered efficiently through Power over Ethernet (PoE)
* Equipped with advanced security features including signed firmware and secure boot
* VESA mounting compatibility for easy attachment to monitors and displays
---

Technical Specifications
* Video Compression: H.265 (MPEG-H Part 2/HEVC) Main Profile; H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles; Motion JPEG
* Maximum Resolution: 3840x2160 (4K UHD) at 30 frames per second
* Video Output: HDMI 2.0 with support for HDCP 1.4/2.2
* Audio Support: Two-way, half-duplex
* Audio Compression: AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
* Audio Input/Output: 3.5 mm microphone/line in, 3.5 mm line out
* Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management, signed firmware, secure boot
* Network Protocols: IPv4, IPv6, HTTP, HTTPS, SSL/TLS, TCP, ONVIF Profile S and G
* Connectors: RJ45 10BASE-T/100BASE-TX PoE, HDMI, I/O: 4-pin 2.5 mm terminal block for 1 configurable supervised digital input/digital output
