Axis F2135 security camera

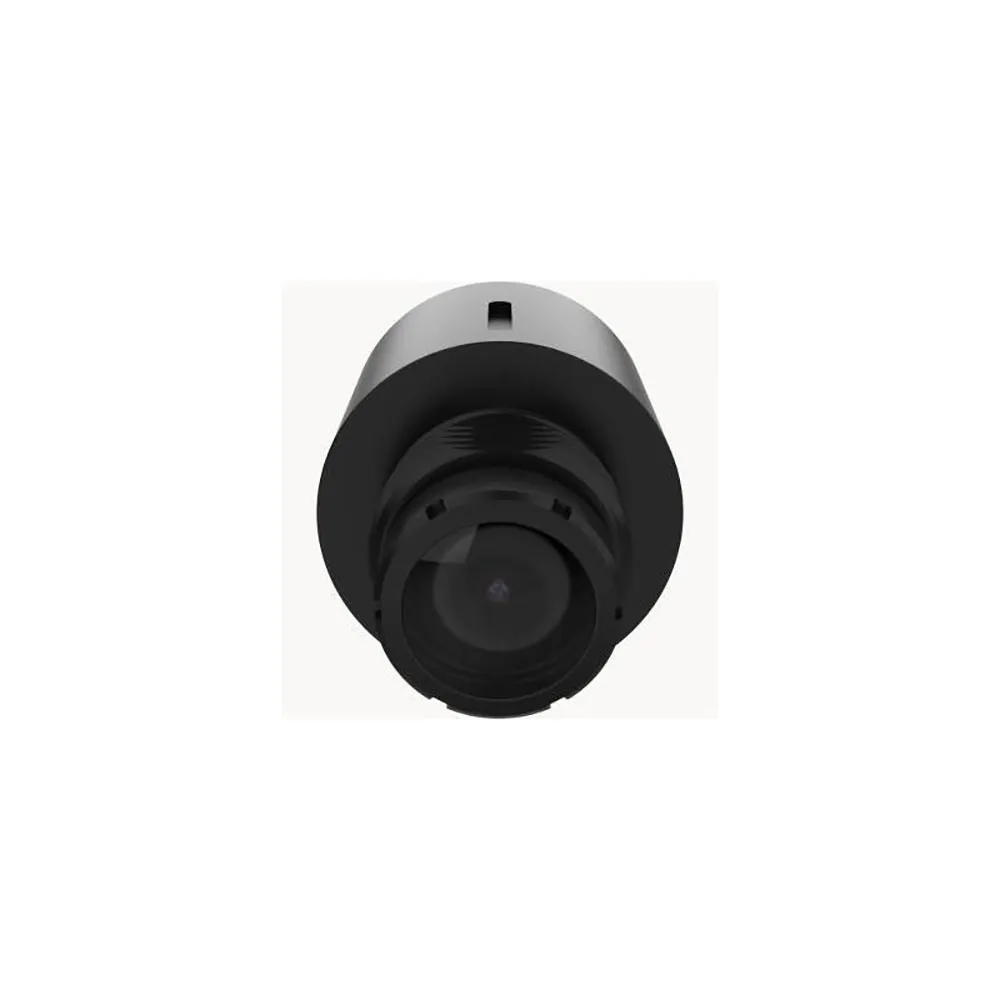

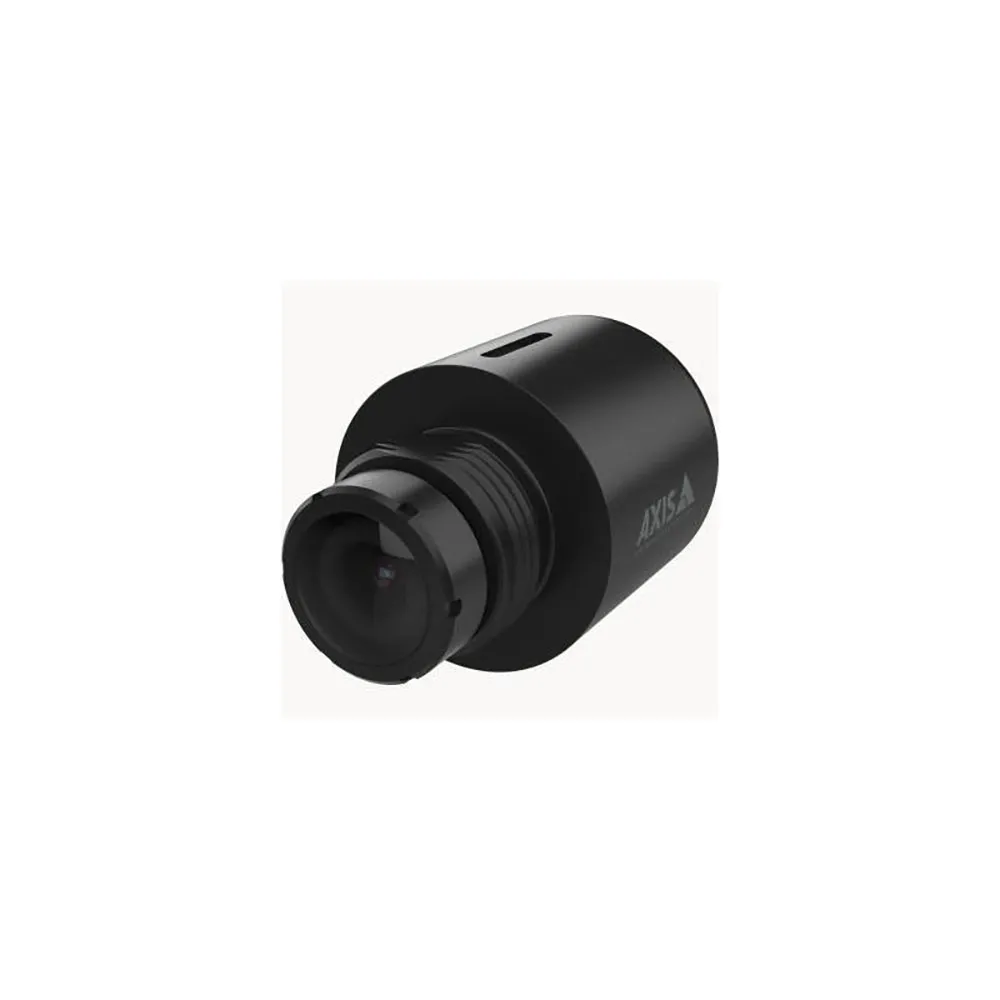

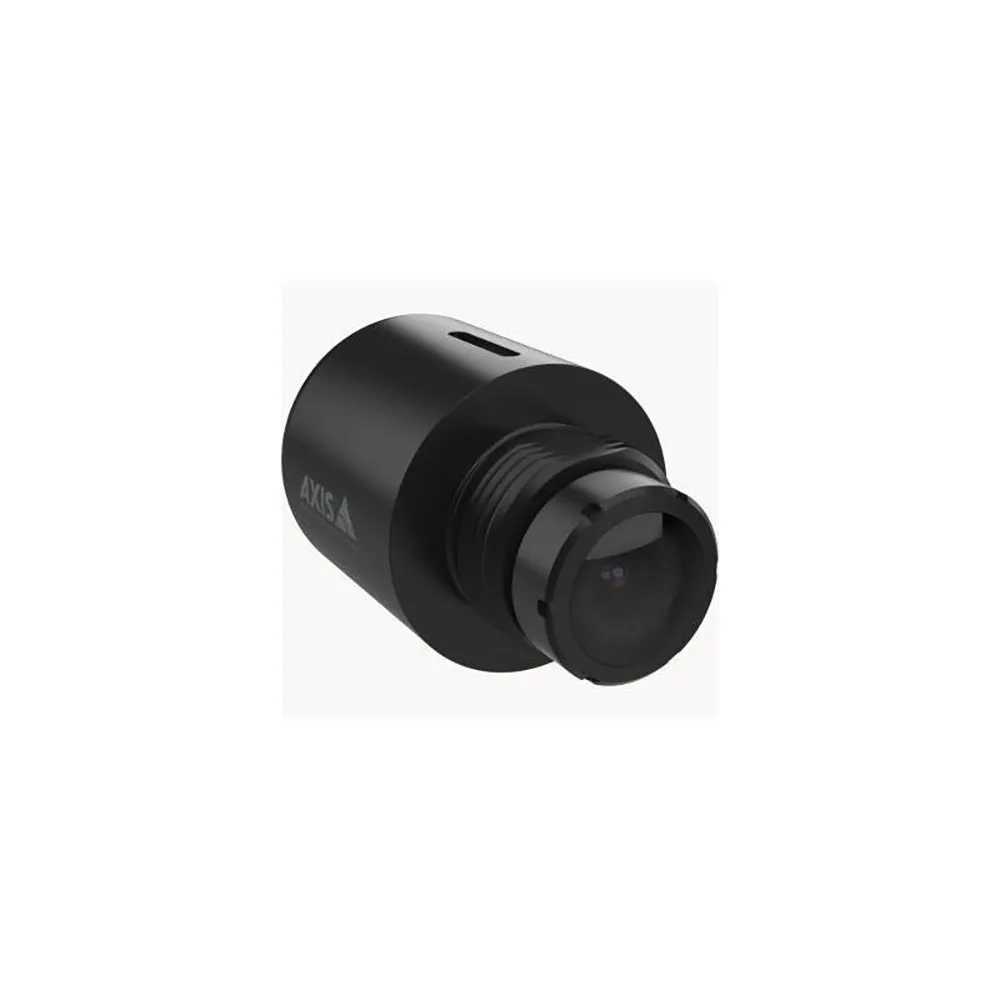

AXIS F2135-RE Fisheye Sensor Unit | 1080p Discreet Wide-Angle Surveillance

Achieve comprehensive, wide-area surveillance with the AXIS F2135-RE Fisheye Sensor Unit, a rugged and discreet component of the flexible AXIS F Series. Designed for maximum reliability and minimal visibility, this high-performance sensor is ideal for monitoring expansive indoor, outdoor, and in-vehicle spaces like retail stores, offices, buses, and emergency vehicles. Its 185° fisheye lens captures an entire scene in crisp 1080p resolution, providing complete situational awareness without blind spots. As part of a modular system, the F2135-RE connects to an AXIS F Series Main Unit (sold separately), allowing for an exceptionally discreet installation where the small sensor can be placed in one location and the main unit in another. This two-part design is perfect for tight spaces and applications where the camera must be nearly invisible. With its robust, vandal-resistant casing, the F2135-RE is built to withstand harsh conditions while delivering uncompromising image quality.




About this item.

02641-001.

The AXIS F2135-RE Fisheye Sensor Unit is an integral part of the modular AXIS F Series, offering a 185° field of view for total coverage. Please note this sensor unit requires a compatible AXIS F Main Unit to function.




Key Benefits
* Complete Situational Awareness: The 185° horizontal field of view provided by the fisheye lens eliminates blind spots, allowing you to monitor an entire room or area with a single, unobtrusive sensor unit. This reduces the total number of cameras needed, simplifying installation and lowering costs.
* Exceptional Image Detail: Capture high-quality video in full 1080p resolution. Combined with Forensic WDR (Wide Dynamic Range), the F2135-RE delivers excellent clarity and detail in scenes with challenging lighting conditions, such as areas with both bright sunlight and deep shadows.
* Rugged and Discreet Design: With IP66/IP67 and IK09 ratings, this sensor unit is protected against water, dust, and vandalism. Its compact, low-profile form factor allows for subtle, recessed mounting in walls, ceilings, or panels, making it ideal for discreet surveillance.
* Ultimate Installation Flexibility: As a modular component, the F2135-RE connects to a main unit via a pre-attached cable . This allows the sensor to be installed in space-constrained locations while the main unit can be secured elsewhere, providing enhanced security and installation versatility.




Main Features
* High-definition 1080p resolution at up to 60 fps (with a compatible main unit)
* Expansive 185° horizontal field of view
* Forensic WDR for optimal clarity in mixed lighting
* Compact, rugged, and discreet design
* IP66, IP67 and NEMA 4X ratings for water and dust resistance
* IK09-rated for vandal resistance

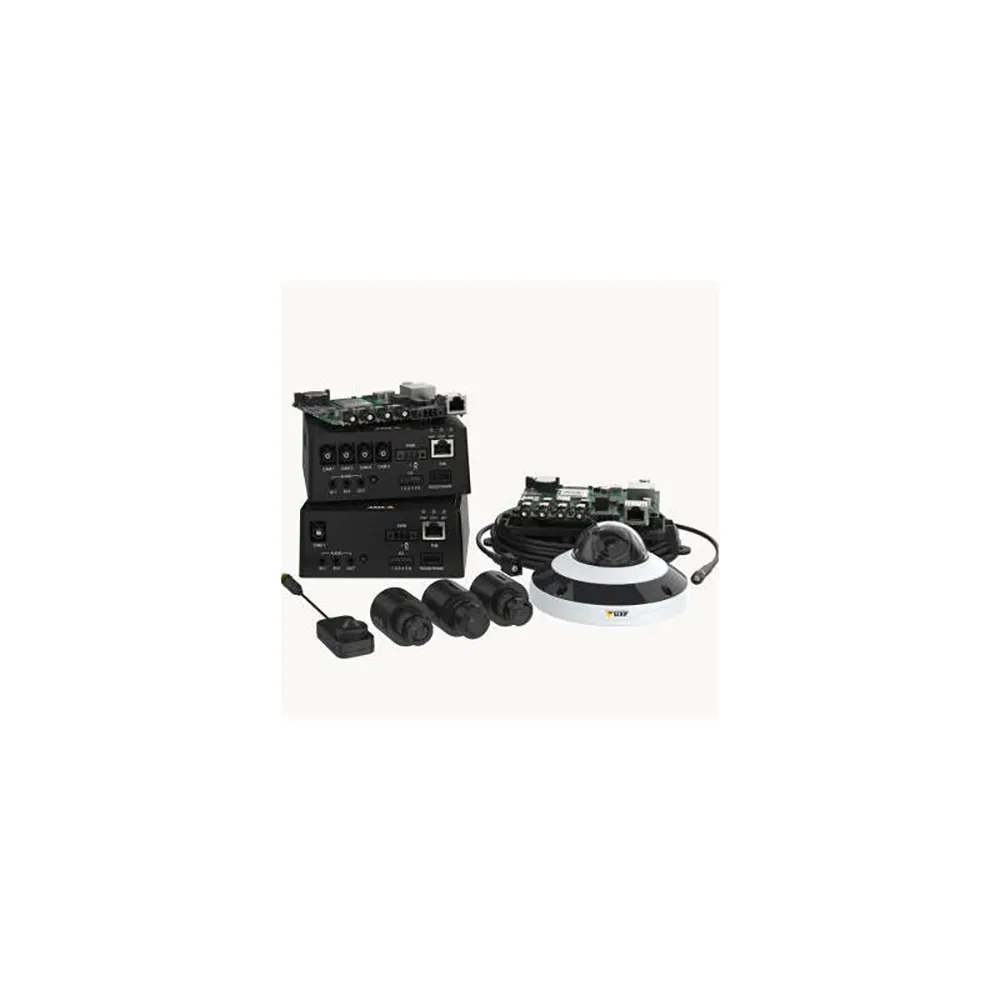

* Part of the flexible and modular AXIS F Series
* Compatible with AXIS F91 Main Units for single-channel and AXIS F82 Main Units for multi-channel solutions




Attributes

Cameras




Technical Specifications
* Model: AXIS F2135-RE Fisheye Sensor Unit
* Part number: 02641-001
* Image Sensor: 1/2.8” progressive scan RGB CMOS
* Lens: 1.63 mm, F2.0, Fixed iris, fixed focus
* Field of View: Horizontal: 185°, Vertical: 108°
* Resolution: 1920x1080 (HDTV 1080p)
* Frame Rate: Up to 50/60 fps
* Wide Dynamic Range: Forensic WDR
* Casing: IP66/IP67 water/dust resistant, IK09 vandal resistant, NEMA 4X-rated
* Manufacturer: ‎Axis
* Item Weight: ‎110 g
* Product Dimensions: ‎50x50 x 28 cm
