Axis P3737-PLE security camera

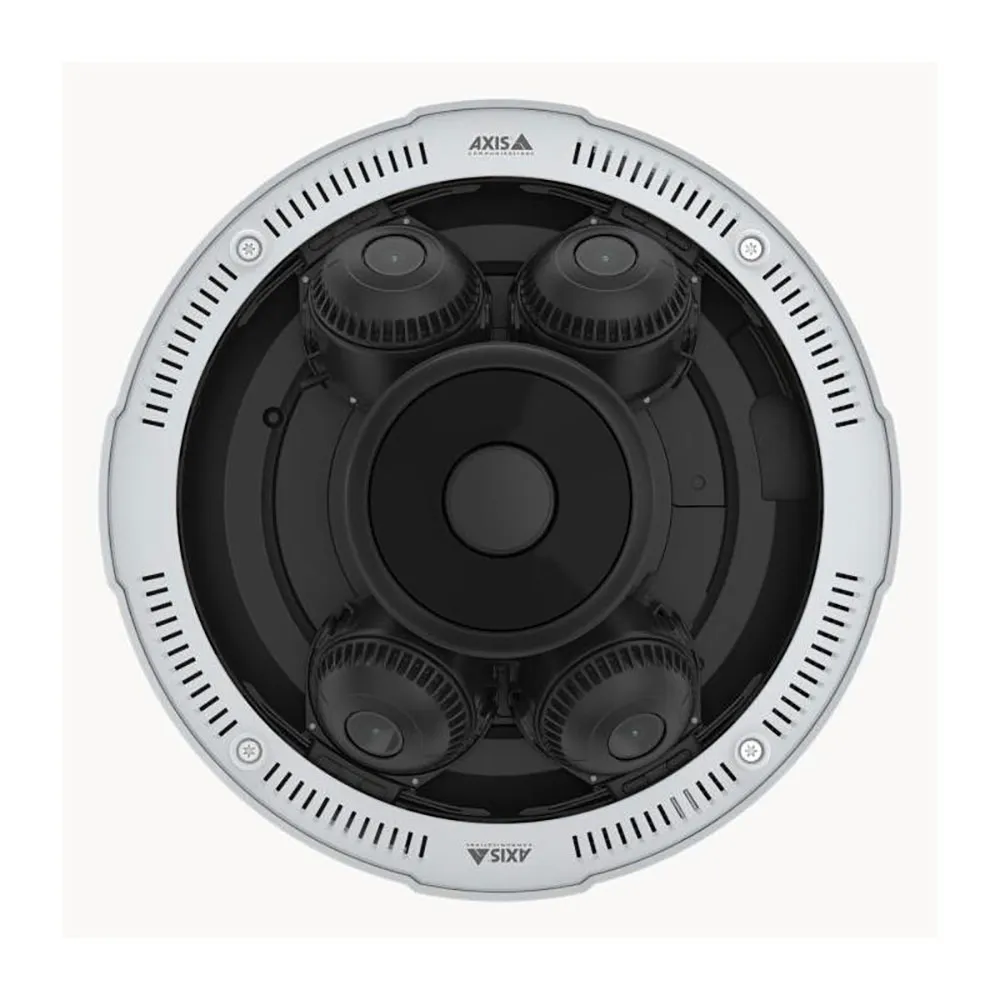

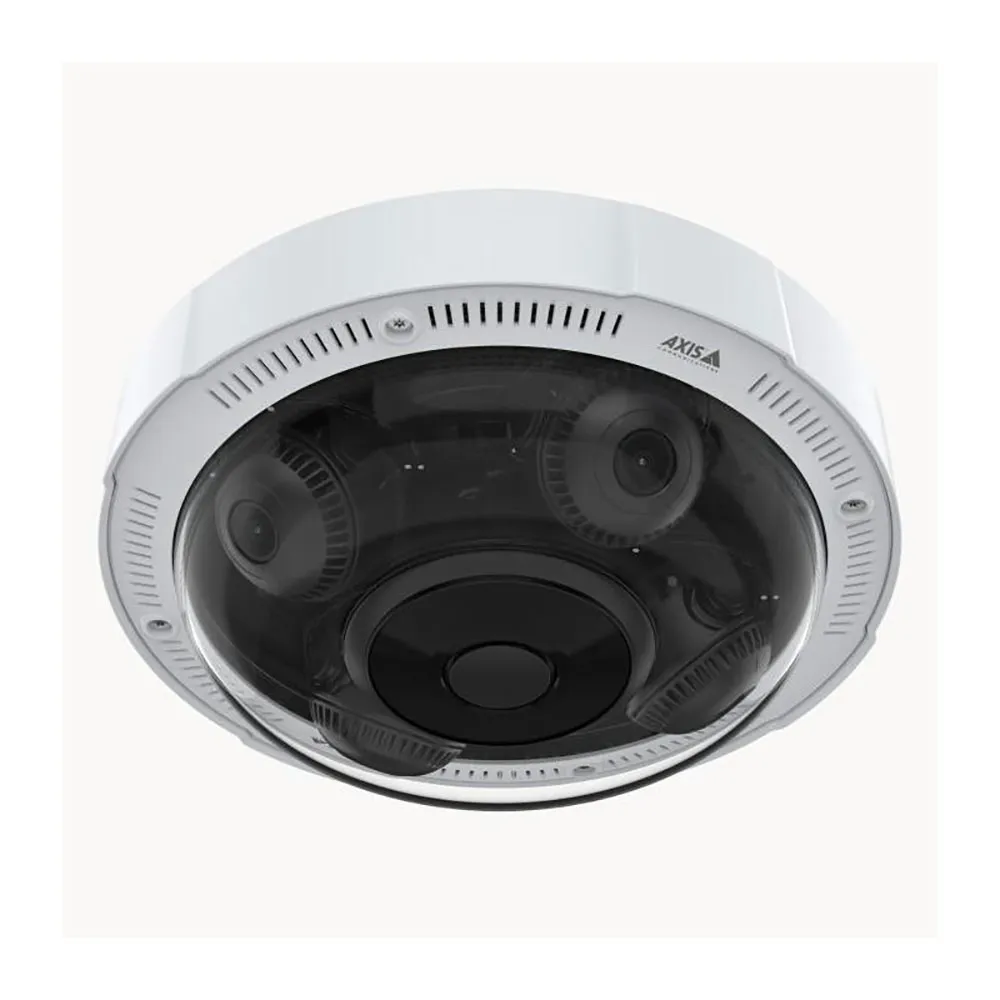

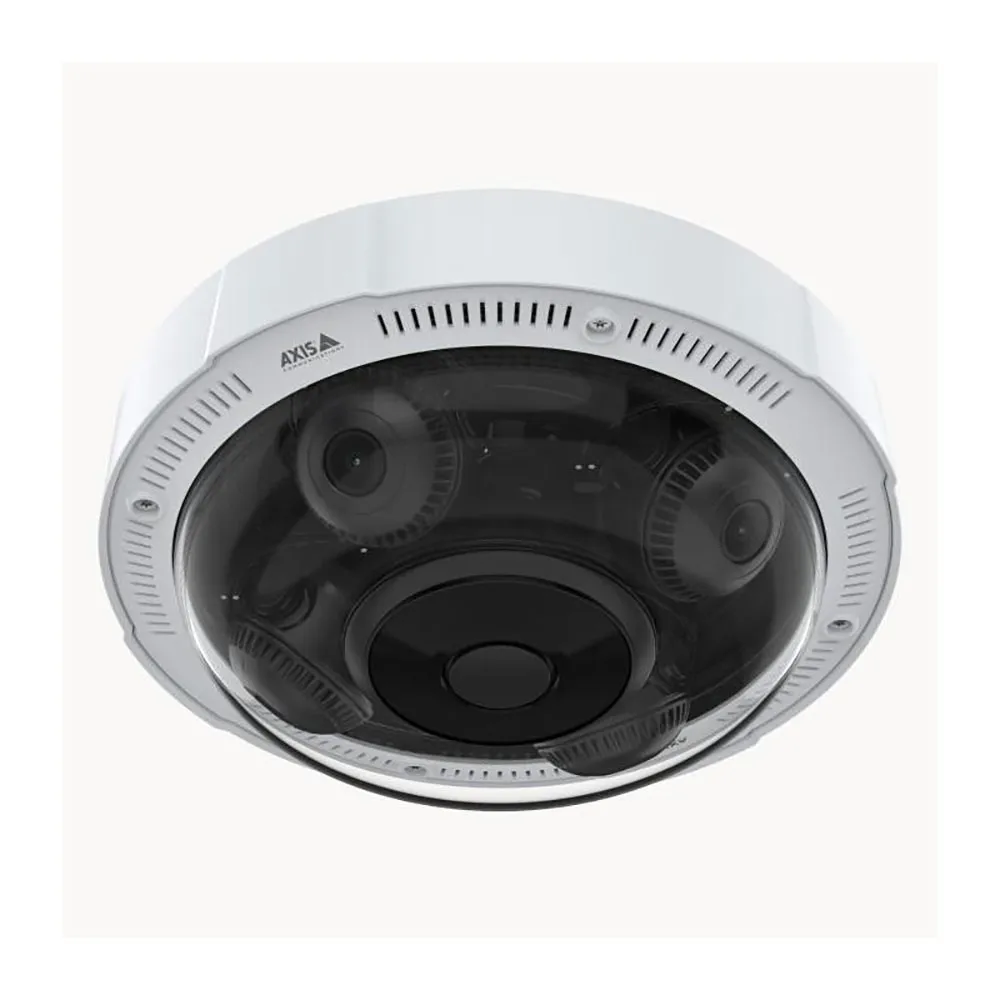

AXIS P3737-PLE Multidirectional 20 MP Security Camera with 360° IR

Enhance your safety and security with the AXIS P3737-PLE, a powerful and cost-effective multidirectional camera designed for comprehensive wide-area surveillance. This single, discreet unit houses four 5 MP varifocal camera heads, allowing you to monitor multiple directions simultaneously and achieve unparalleled situational awareness. Ideal for large outdoor spaces, intersections, and building exteriors, the P3737-PLE drastically reduces installation costs by requiring only one camera, one network cable, one IP address, and a single video management software (VMS) license to cover the area of four standard fixed cameras.

Experience exceptional image quality in any lighting condition. Each camera head can be individually positioned to capture the perfect view, offering a flexible 270° to 360° overview depending on the configuration. With Axis Lightfinder technology, the camera delivers sharp, full-color images even in near-darkness. For scenes with both bright and dark areas, Forensic WDR ensures every detail is visible and free from shadows or overexposure. When darkness falls, the camera’s 360° IR illumination with individually controllable LEDs provides clear, shadow-free black-and-white video, ensuring no event is missed, day or night.

At its core, the AXIS P3737-PLE features a deep learning processing unit (DLPU), unlocking advanced analytics at the edge. It comes pre-installed with AXIS Object Analytics, which can intelligently detect and classify humans and vehicles, reducing false alarms and enabling you to focus on genuine security events. Built-in cybersecurity features, including Axis Edge Vault, protect your device´s integrity and safeguard your system from unauthorized access.

Key Benefits:

* Cost-Effective Surveillance: Combines four cameras in one housing, significantly lowering the total cost of ownership through reduced hardware, cabling, installation time, and software licensing fees.
* Complete Area Coverage: Four repositionable 5 MP varifocal camera heads provide flexible, high-resolution coverage of up to 360°, eliminating blind spots in large areas.
* Superior 24/7 Image Quality: Delivers outstanding image clarity in any light with Lightfinder for low-light color video, Forensic WDR for challenging light scenes, and 360° IR illumination for total darkness.
* Intelligent Analytics: Powered by a deep learning processing unit (DLPU), it supports advanced analytics like AXIS Object Analytics for reliable human and vehicle detection, enhancing proactive monitoring.
* Robust and Secure Design: With IP66/IP67 and IK10 ratings, the camera is protected against harsh weather and vandalism. Axis Edge Vault provides a hardened cybersecurity platform.

Main Features:

* Four 5 MP sensors for a total resolution of 20 MP
* Multidirectional camera with four varifocal camera heads
* 360° IR illumination with individually controllable LEDs
* Axis Lightfinder and Forensic WDR technologies
* Deep Learning Processing Unit (DLPU)
* AXIS Object Analytics pre-installed for human and vehicle classification
* Axis Zipstream technology with support for H.264/H.265 to reduce bandwidth and storage needs
* Signed firmware and secure boot for enhanced cybersecurity
* Single IP address for four camera channels
* IP66, IP67, IK10, and NEMA 4X-rated casing

Technical Specifications

* Attribute: Cameras
* Image Sensor: 4x1/2.7” progressive scan RGB CMOS
* Resolution: 4x5 MP (2592x1944)
* Lens: 4 x Varifocal, 3.2–8.1 mm, F1.9–3.0
* Field of View (Horizontal): 4x100°–39°
* Field of View (Vertical): 4x72°–29°
* Frame Rate: Up to 20 fps in 5 MP; Up to 30 fps in 4 MP
* Minimum Illumination: Color: 0.15 lux; B/W: 0 lux with IR illumination on
* Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile; Motion JPEG
* Analytics: AXIS Object Analytics, AXIS Video Motion Detection, Active tampering alarm
* Cybersecurity: Axis Edge Vault, signed firmware, secure boot, password protection
* Power: Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
* Connectors: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
* IR Illumination: 360° IR illumination with individually controllable, power-efficient, long-life 850 nm IR LEDs
* Casing: IP66/IP67, IK10, and NEMA 4X-rated aluminum and polycarbonate casing
* Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
