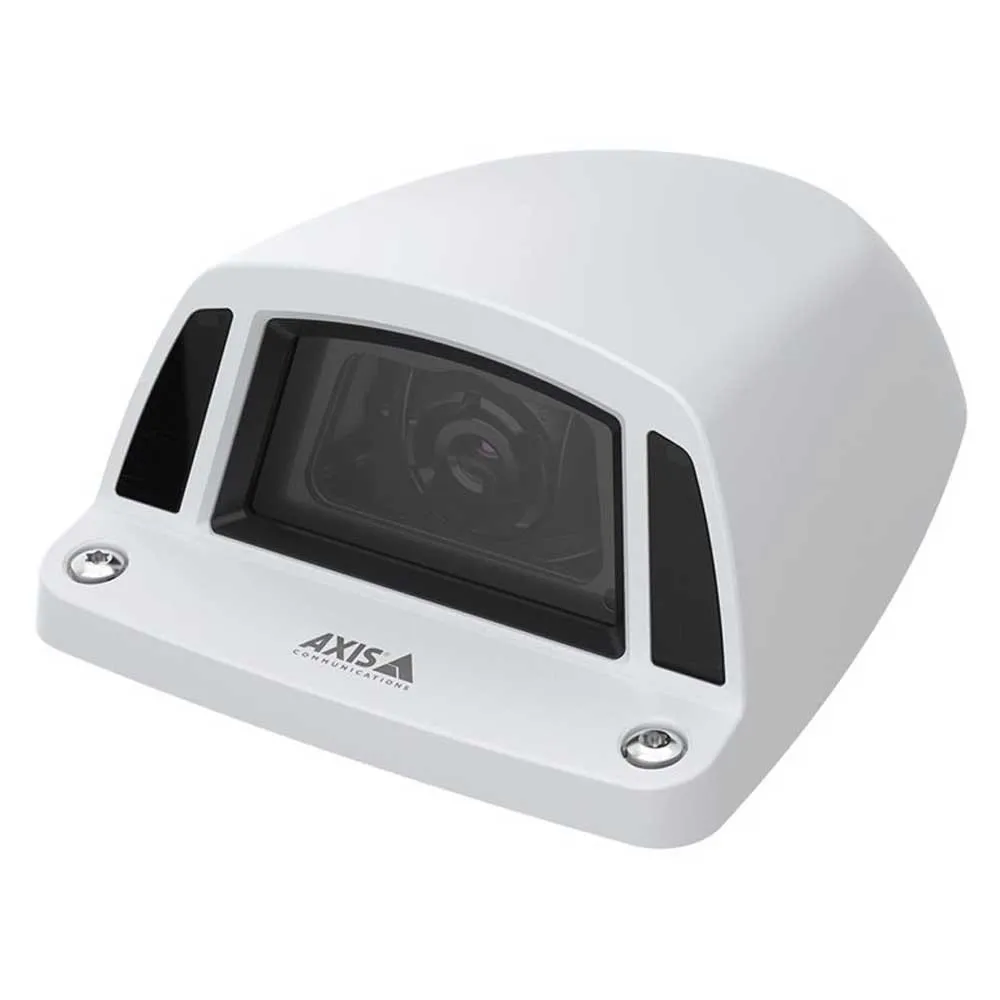

Axis P3925-LRE security camera

AXIS P3925-LRE was specially designed for side view monitoring on buses, trains and transport vehicles.

It can also be used to identify maintenance needs on rolling stock, such as wear and tear on pantograph collector bands.

This robust and compact camera features a tempered glass window that meets transportation industry standards and IK10+,IP66,IP67 and IP6K9K.

It offers HDTV 1080p with Lightfinder for color images in low light and Forensic WDR for maximum forensic use in mixed lighting conditions.

In addition, the integrated IR illumination allows monitoring in complete darkness.

In addition, it is compatible with interchangeable lenses to offer complete flexibility.

Features:

- IR illumination and EIS.

- Lightfinder y Forensic WDR.

- low latency mode.

- Built-in cybersecurity features.

Specifications:

General:

- Type of device:

network surveillance camera.

- connectivity.

Technology:

Cabling.

- Width:

11.6 cm.

- Depth:

16 cm.

- Height:

6.3 cm.

- Weight:

770 g Camera:

- digital video format:

MPEG-4,MJPEG,H.264,AVC,HEVC,H.265.

- Max.

digital video resolution:

1920 x 1080.

- Motion detection:

Yeah.

- video modes:

1080p.

- exposure range:

2 sec.

- 1/33500 sec.

- minimum lighting:

0.07 lux.

- color.

- F1.9.

- 30 IRE.

- 0.14 lux.

- color.

- F1.9.

- 50 IRE.

- 0.02 lux.

- B/N.

- F1.9.

- 30 IRE.

- 0.04 lux.

- B/N.

- F1.9.

- 50 IRE.

- 0 lux.

- IR.

- infrared LEDs:

Yeah.

- video capture:

1920 x 1080 30 fps.

- 1280 x 960 45 fps.

- Still Image Capture Resolution:

1080p.

- RAM memory:

1 GB.

- Flash memory:

512 MB.

- Type:

RGB CMOS 1/2.9´´ Lens Construction:

- Type:

M12 mounting.

- fixed focal.

- Focal distance:

6 mm.

- objective iris:

F/1.9 fixed iris.

- Horizontal field of view (degree):

56.

- Vertical field of view (degree):

30 Panoramic:

- Range (degrees):

-20 a +20 Inclination:

- Range (degrees):

0 to 15 Interfaces:

- network interface:

Ethernet 10Base-T/100Base-TX.

- network protocols:

DDNS,DHCP,DNS,FTP,HTTP,NTP,SMTP,TCP/IP,UDP/IP,ARP,ICMP,SNMP 1,SNMP 2c,SNMP 3,SOCKS,RTSP,RTP,HTTPS,UPnP,TLS,IPv4,IPv6,Bonjour,RTCP,SMB,IGMP,SSH,SSL,QOS,IGMPv2,IGMPv3,CIFS,SRTP,EAP,SFTP,LLDP,USGv6,MQTT Expansion / Connectivity:

- ports:

LAN / power.

- RJ-45.

- Compatible memory cards:

microSD card, microSDHC card, microSDXC card Different:

- Accessories included:

Drilling template,target tool,Allen key Resistorx,camouflage kit.

- Standards Compliance:

EN 61000-6-1,EN 61000-6-2,IEC 60068-2-27,FCC Part 15 B Class A,IEC 60068-2-64,IEC 60068-2-1,IEC 60068-2-2,EN 50121-4,IEC 62236-4,VCCI Class A,RCM,EN 50121-3-2,IS13252,IEC 62471,EN 50498,EN 45545-2,KN35,EN 50155,NEMA250 Type 4X,AS/NZS CISPR 32 Class A,EN 55032 Class A,KCC KN32 Class A,IEC/EN/UL 60950-22,ISO 20653,IEEE 802.3af,IEEE 802.3at,IEC 60721-3-5 Class 5M3,CAN/CSA-C22.2 No.

62368-1,EN 55035,IEC/EN/UL 62368-1,IEC/EN 60529 IP66,IEEE 802.1x,IP6K9K,CAN/CSA C22.2 No.

60950-22,NIST SP500-267,EN 50155:2017 Class OT2/ST2,ICES-3(A)/NMB-3(A),UN ECE R118,IEC/EN 61373 Category 1 Class B,IEC/EN 60529 IP67,ECE-R10 Rev.6 (aprobación E),IEC/EN 62262 IK10+ Feeding:

- power requirements:

PoE Class 3.

- Software / System Requirements.

- software included:

1 user Windows decoder license environment parameters:

- minimum operating temperature:

-40 °C.

- maximum operating temperature:

55 °C.

- Relative Humidity (Operating):

10.

- 95% (non-condensing).
