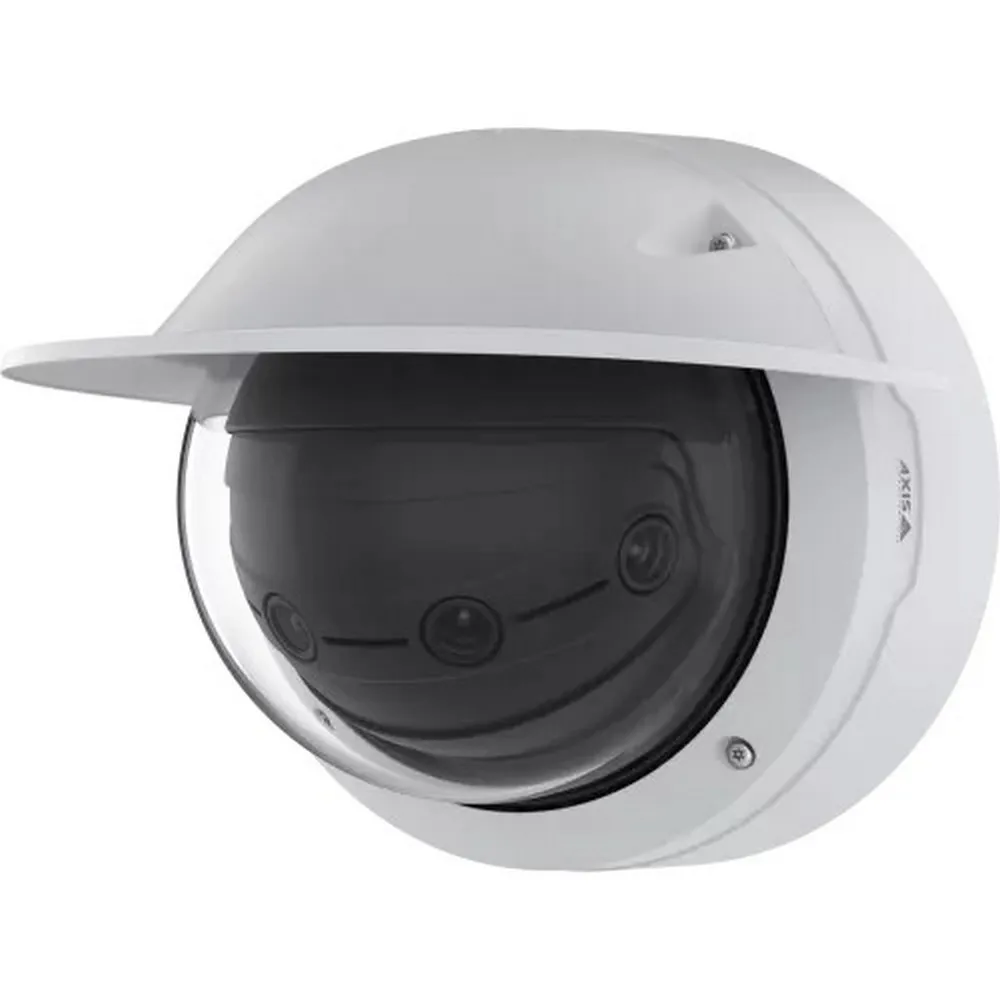

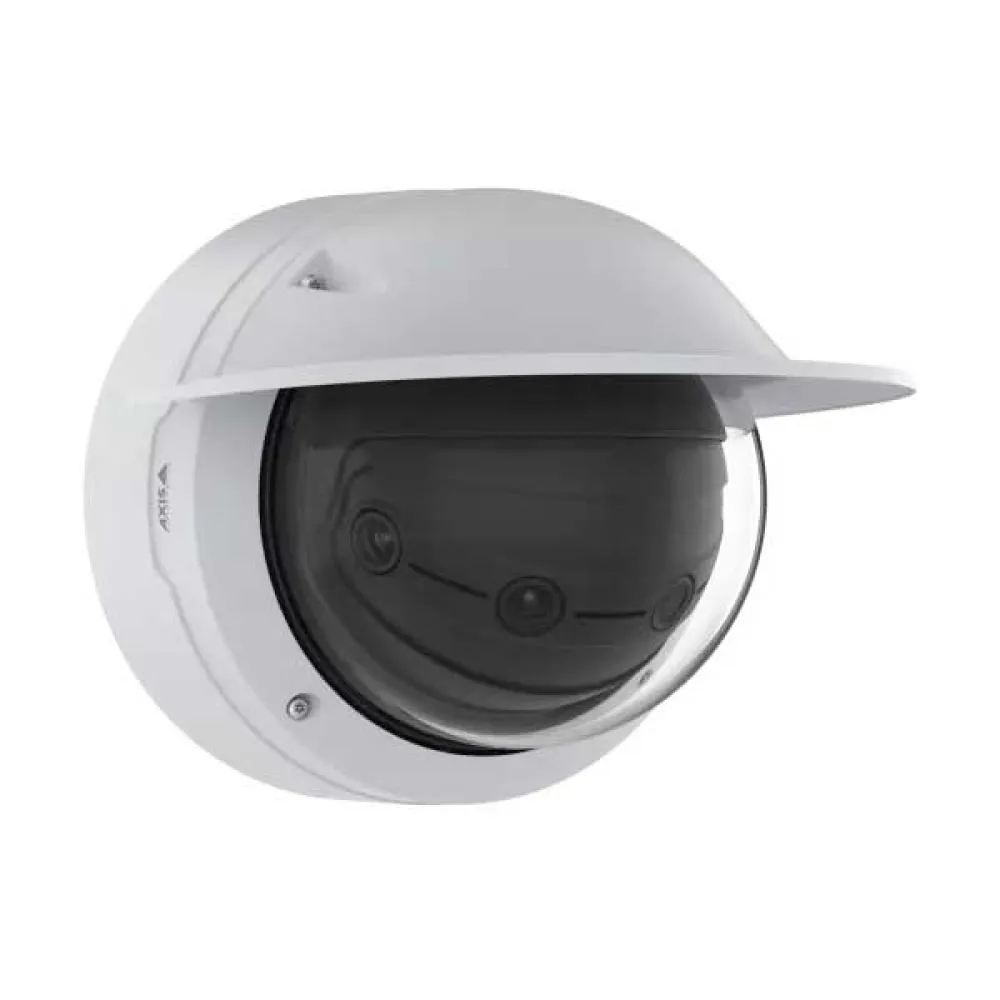

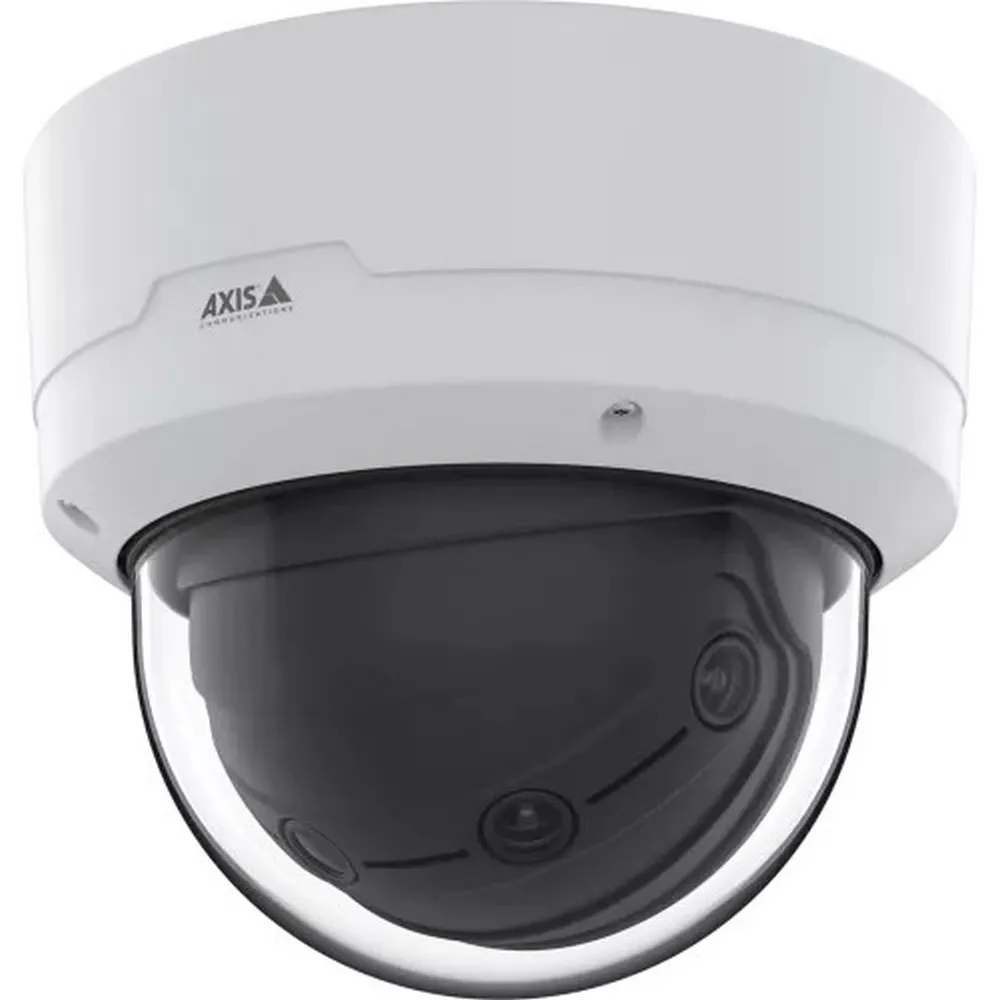

Axis Q4809-PVE security camera

AXIS Q4809-PVE Panoramic Network Camera | 360° Outdoor Security

Achieve complete situational awareness and superior protection for large outdoor areas with the AXIS Q4809-PVE Network Camera. As a premier solution in the Safety and Security category, this single-sensor panoramic camera is engineered to deliver uninterrupted 360° or 270° coverage without any blind spots, making it ideal for monitoring city squares, stadiums, and critical infrastructure. Eliminate the need for multiple cameras to cover a wide area; the Q4809-PVE provides a comprehensive, high-resolution overview and allows for simultaneous dewarped views, such as panorama and quad view, all from a single video stream.

Built to withstand the toughest conditions, this camera boasts an IK10-rated vandal-resistant casing and is protected against harsh weather with IP66 and NEMA 4X ratings. Its robust design ensures reliable operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Installation is streamlined and cost-effective, requiring only one camera, one cable, and one IP address for total area coverage.

Experience unparalleled image quality, day or night. The powerful 12 MP sensor captures detailed forensic-grade video at up to 30 frames per second. Featuring Axis Lightfinder 2.0 and Forensic WDR, the AXIS Q4809-PVE delivers true colors and sharp detail in challenging low-light conditions and scenes with both dark and bright areas.

At its core, this device is one of the most intelligent panoramic cameras on the market, equipped with a deep learning processing unit (DLPU). This enables advanced analytics on the edge, with AXIS Object Analytics preinstalled to detect and classify humans and vehicles, reducing false alarms and focusing security efforts on real threats. For enhanced cybersecurity, Axis Edge Vault protects your device’s ID and simplifies the authorization of Axis products on your network.
---

Key Benefits:

Experience total situational awareness with a seamless 360° panoramic view from a single, powerful device. This high-performance camera significantly reduces installation complexity and total cost of ownership by replacing multiple conventional cameras. Enjoy outstanding image usability in any light condition thanks to Lightfinder 2.0 and Forensic WDR, ensuring crucial details are always visible. Benefit from proactive security with advanced, deep-learning-based analytics that intelligently classify objects and minimize false alarms. Trust in its durable, all-weather, and vandal-resistant design for long-lasting, reliable outdoor surveillance.

Main Features:

* 12 MP sensor with up to 30 fps
* Complete 360° or 270° panoramic coverage
* Lightfinder 2.0 and Forensic WDR technologies
* Deep Learning Processing Unit (DLPU)
* AXIS Object Analytics preinstalled
* Axis Edge Vault for enhanced cybersecurity
* IP66, NEMA 4X, and IK10-rated casing
* Support for audio and I/O connectivity
* Zipstream technology with H.264/H.265 support
* Power over Ethernet (PoE) for simple installation
---

Attributes: Cameras

Technical Specifications:

* Image Sensor: 1/1.7” progressive scan CMOS
* Resolution: Overview: 4000x3000 (12 MP); Dewarped Views: Up to 1920x1080
* Lens: 1.3 mm, F2.0
* Field of View: Horizontal: 183°, Vertical: 183°
* Frame Rate: Up to 25/30 fps (50/60 Hz) in all resolutions
* Video Compression: H.264 (Baseline, Main, High), H.265 (Main), Motion JPEG
* Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
* Cybersecurity: Signed firmware and secure boot via Axis Edge Vault
* Dimensions (Ø x H): 200x78 mm (7 7/8x3 1/16 in)
* Weight: 1.7 kg (3.7 lb)
