Axis Q6300 security camera

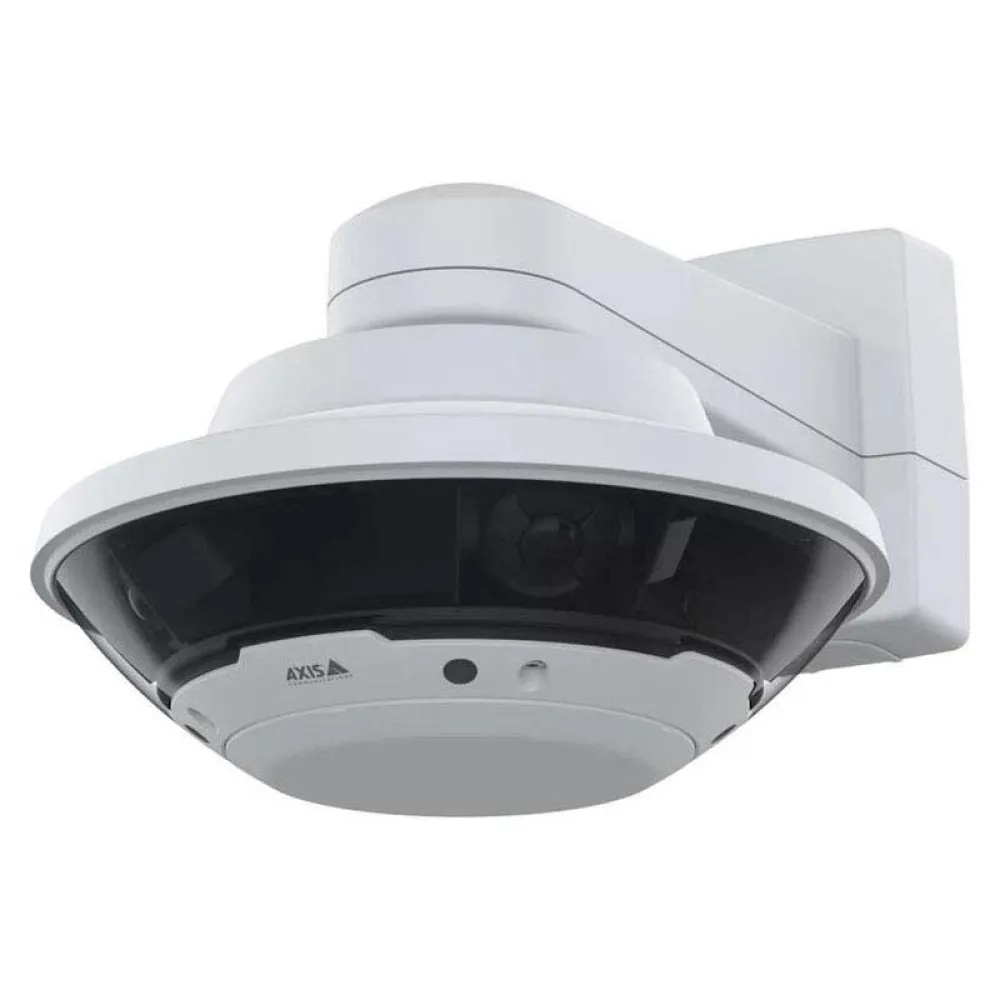

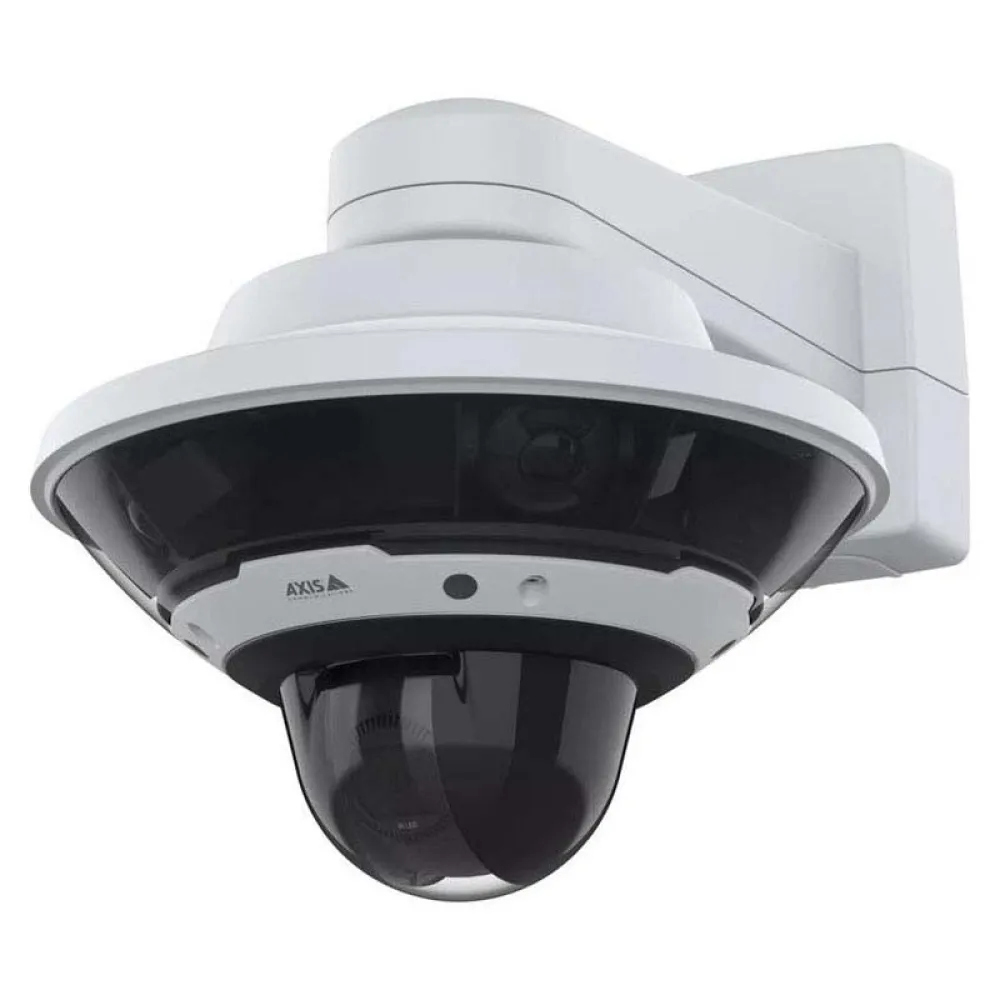

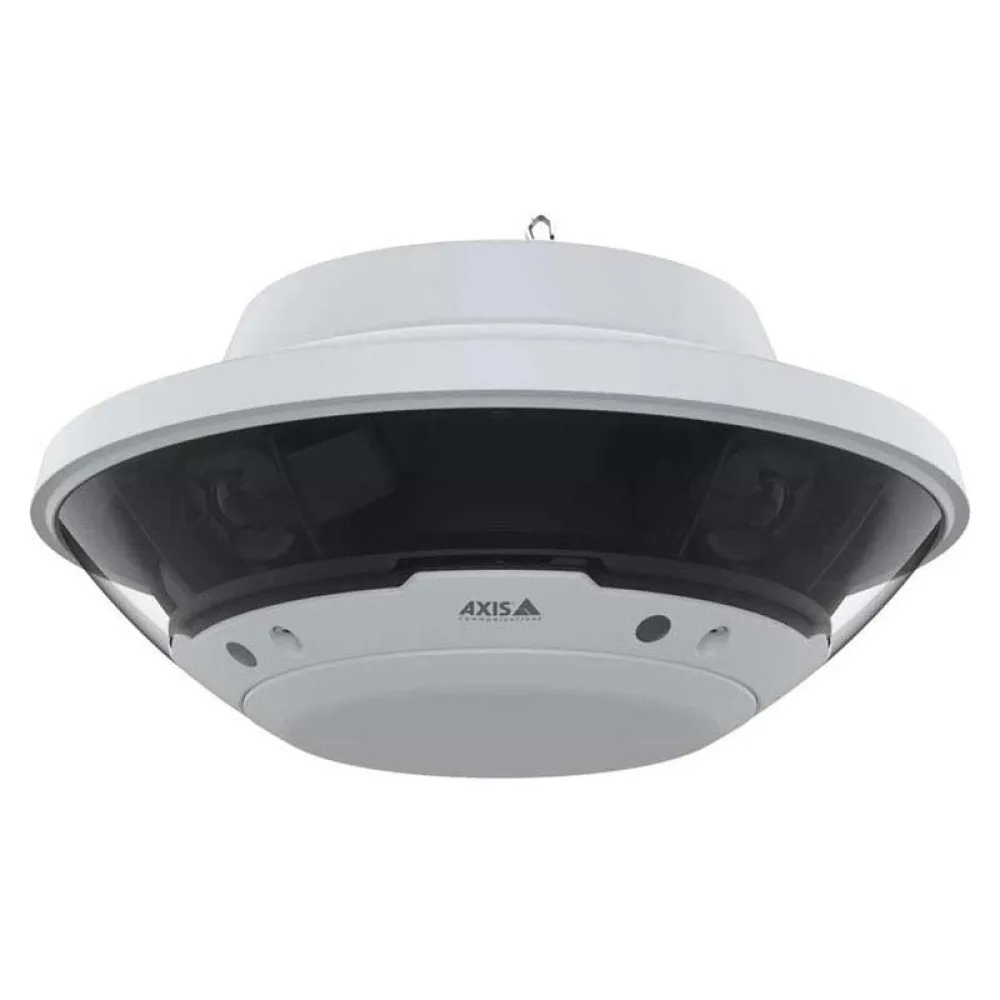

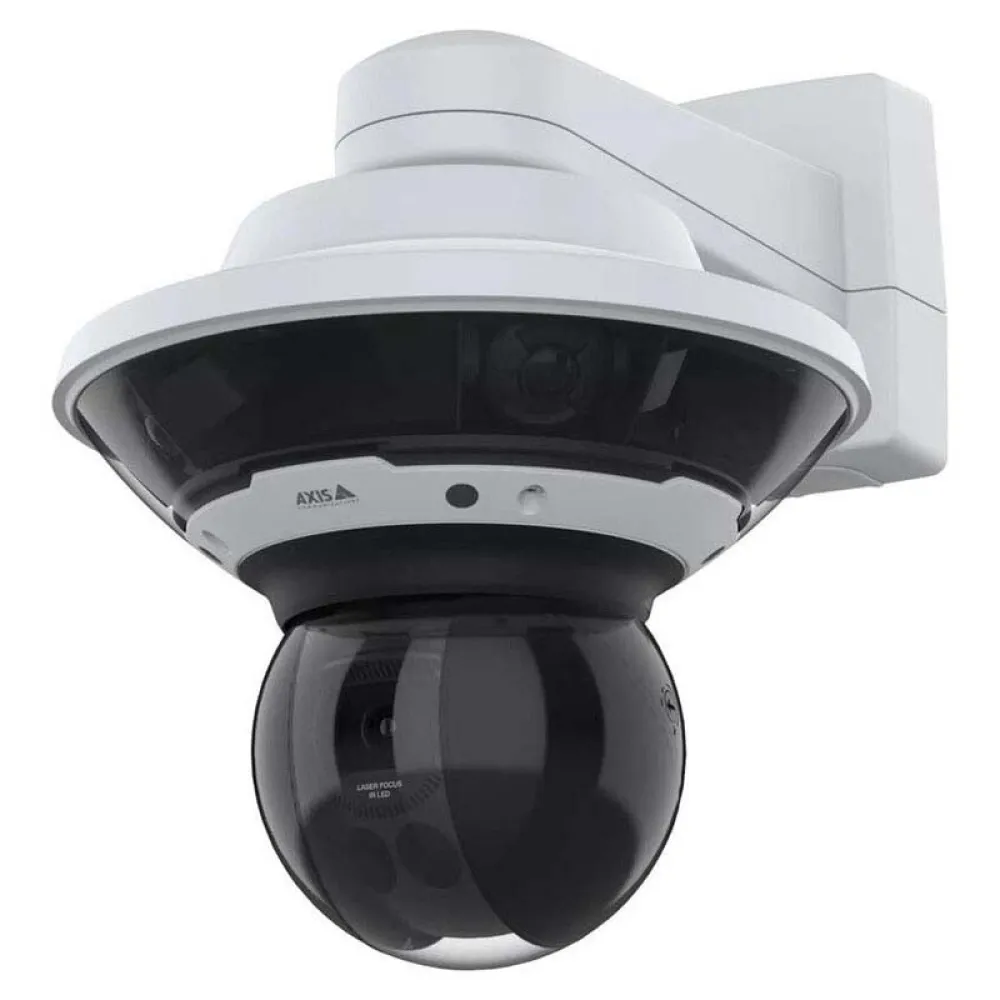

AXIS Q6300-LE PTZ Network Camera

Unrivaled Situational Awareness with Integrated PTZ Control for Comprehensive Wide-Area Surveillance

Elevate your safety and security infrastructure with the AXIS Q6300-LE, a state-of-the-art PTZ network camera designed for total situational awareness in large outdoor areas. This innovative camera combines four high-resolution sensors into a single unit, providing a seamless 360° overview without any blind spots. Simultaneously, an integrated PTZ (Pan-Tilt-Zoom) camera allows you to instantly zoom in on specific details with exceptional clarity. This dual functionality makes the AXIS Q6300-LE the ultimate all-in-one solution for city surveillance, critical infrastructure, stadiums, and other expansive environments, reducing the need for multiple cameras and simplifying installation.

The true power of the AXIS Q6300-LE lies in its ability to provide both the big picture and the finest details. With a single click on any point in the overview image, the PTZ camera instantly orients and zooms to that exact spot, ensuring you never miss a critical event. This "click and track" functionality, combined with Autotracking 2, allows for automated tracking of moving objects. Built for demanding conditions, its robust IP66/IP68 and IK10-rated casing protects against harsh weather and vandalism. Furthermore, powerful built-in IR illumination ensures clear, sharp images even in complete darkness, providing reliable 24/7 security. With pre-installed AXIS Object Analytics, the camera can intelligently detect and classify humans and vehicles, making your surveillance system smarter and more efficient.

Main Features
* Four 5 MP sensors for a complete 360° overview
* Integrated PTZ camera with 31x optical zoom
* Long-range IR illumination (up to 300 m / 984 ft) for night-time surveillance
* One-click PTZ control and autotracking capabilities
* AXIS Object Analytics preinstalled for intelligent detection
* Vandal-resistant (IK10) and weather-resistant (IP66/IP68)
* AXIS Zipstream technology with support for H.264/H.265
* Single camera unit, one IP address, and one VMS license for cost-effective installation
* Powered with high PoE (IEEE 802.3bt)

Cameras

Overview Cameras
The system features four 1/2.7" progressive scan CMOS sensors, each delivering 5 MP resolution. These sensors are combined to create a continuous, high-quality 360° or 270° overview image, providing complete situational awareness without interruption.

PTZ Camera
A separate, highly responsive PTZ camera is integrated into the unit, featuring a 1/2.8" progressive scan CMOS sensor. It offers powerful 31x optical zoom and 360° continuous pan, allowing operators to investigate incidents with precise, high-definition detail.

Technical Specifications
* Image Sensor: Overview: 4x1/2.7” Progressive Scan CMOS | PTZ: 1/2.8” Progressive Scan CMOS
* Resolution: Overview: Up to 360° @ 20 MP | PTZ: HDTV 1080p
* Frame Rate: Up to 30/25 fps in all resolutions and streams
* Lens (PTZ): 6.91–214.63 mm, F1.36–4.6; Horizontal field of view: 59.8°–2.2°
* Pan/Tilt/Zoom: 360° endless Pan, 90° Tilt, 31x Optical Zoom, 12x Digital Zoom
* Minimum Illumination: Color: 0.1 lux, B/W: 0 lux with IR illumination on
* IR Illumination: OptimizedIR with a range of up to 300 m (984 ft)
* Video Compression: H.264 (AVC) Baseline, Main and High Profiles; H.265 (HEVC); Motion JPEG
* Power: Axis High PoE 60 W SFP+ Midspan or IEEE 802.3bt Type 4 Class 8
* Cybersecurity: Signed firmware, secure boot, Axis Edge Vault
* Operating Conditions: -50 °C to 50 °C (-58 °F to 122 °F)
