Axis T6101 security camera

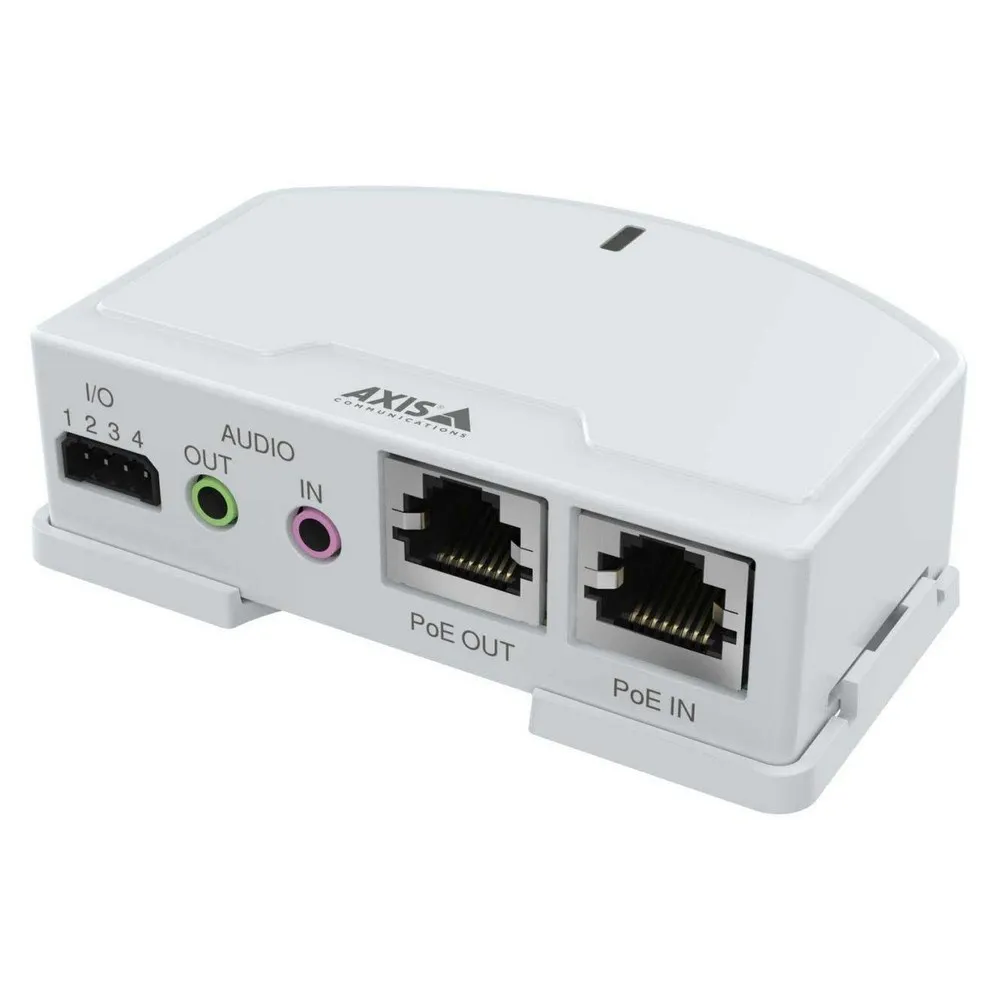

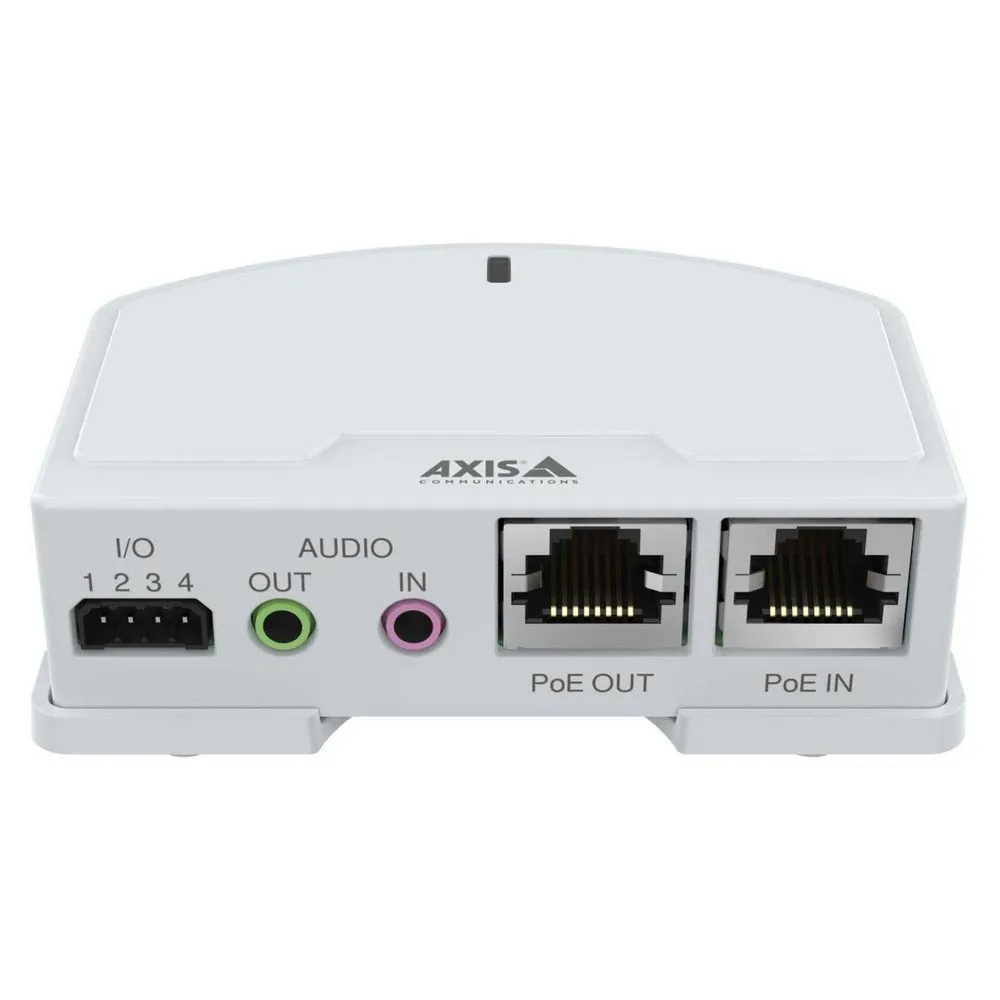

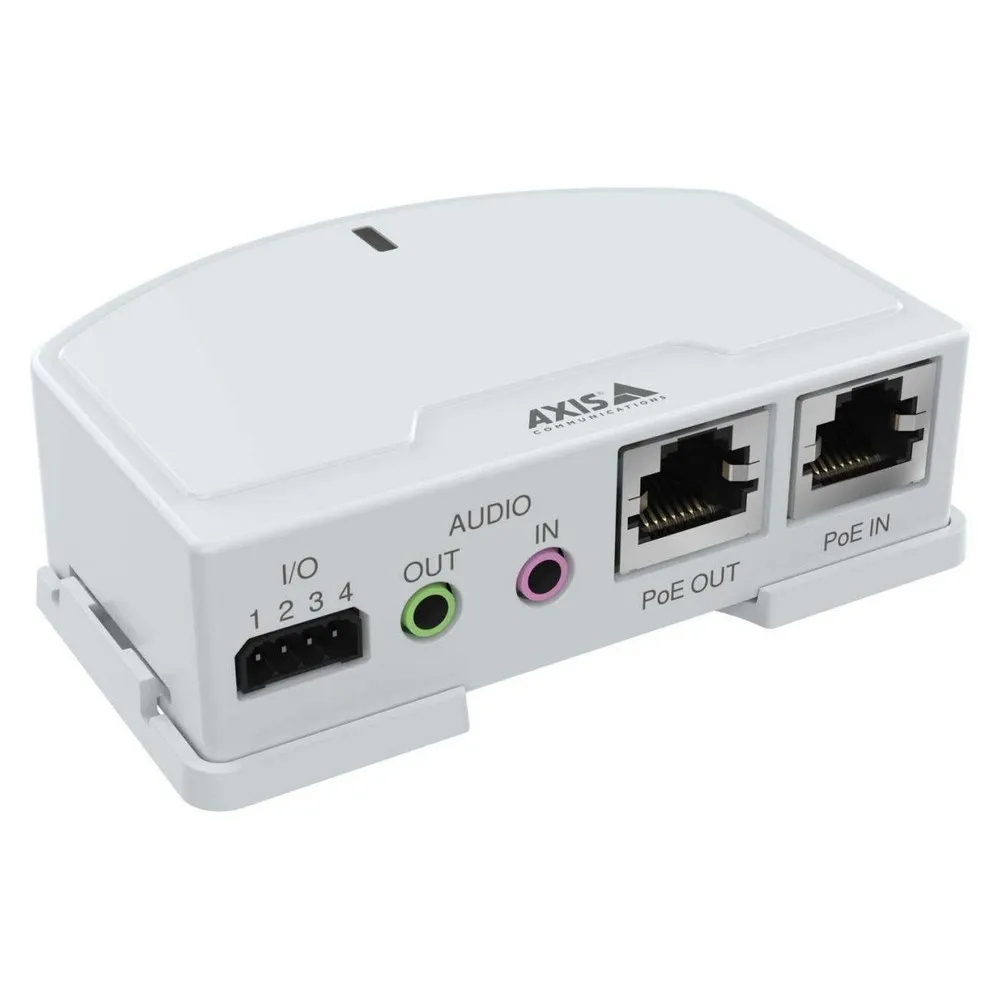

AXIS T6101 Audio and I/O Interface

Elevate your security and surveillance system with the AXIS T6101 Audio and I/O Interface, a compact and powerful device designed to seamlessly add critical audio and I/O functionality to your Axis network cameras. This discreet unit allows you to upgrade your existing video-only surveillance into a comprehensive, interactive security solution. By integrating audio, you can not only hear what is happening on-site for improved incident verification but also communicate directly through the camera to deter intruders or provide instructions. It unlocks a new level of proactive security, transforming your camera from a passive observer into an active part of your security protocol.

The true power of the AXIS T6101 lies in its ability to add intelligence and interactivity. The inclusion of configurable I/O ports allows you to connect external devices such as sensors, detectors, relays, and alarms directly to your camera system. This enables you to create sophisticated event-based rules; for example, a door sensor can trigger a recording, an alarm can be activated in response to detected motion, or lights can be switched on when a specific area is entered. This integration creates a responsive and automated smart security environment. Furthermore, the T6101 enables the use of advanced audio analytics on your network camera, allowing for intelligent detection of glass breaking, gunshots, or aggressive voices, providing immediate alerts for faster response times. The installation is remarkably simple and efficient, leveraging Portcast technology for a plug-and-play experience that requires no additional IP addresses or VMS licenses.

Main Features
* Enables two-way audio communication
* Provides configurable supervised input/output (I/O) ports
* Utilizes unique AXIS Portcast technology
* Allows for audio-based analytics and detection
* Seamless and discreet plug-and-play installation
* Powered directly by the host network camera via PoE passthrough
* Robust and durable IP66-rated casing for outdoor use

Cameras

The AXIS T6101 is not a standalone camera; it is a dedicated interface designed to work in perfect harmony with your compatible Axis network cameras. Through the innovative AXIS Portcast technology, the T6101 is installed between the network switch and the camera, using a single Ethernet cable for both power and data transfer for the entire setup. This means you do not need a separate power cable or network drop for the T6101. It cleverly uses the camer´s existing IP address, ensuring that audio, video, and I/O control are perfectly synchronized into a single, manageable stream. This seamless integration simplifies your VMS (Video Management Software) configuration, as the system treats the camera and the T6101 as one unified device. This allows you to add audio and I/O capabilities to a wide range of Axis cameras, including those in discreet locations or in housings where built-in audio is not feasible.

Technical Specifications
* Audio Streaming: Two-way, full duplex
* Audio Input: 3.5 mm jack for microphone/line in (mono)
* Audio Output: 3.5 mm jack for line out (mono)
* Audio Codecs: AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
* I/O Ports: 2 x configurable supervised digital I/O (0-40 V DC input, 0-40 V DC output)
* Connectors: RJ45 10BASE-T/100BASE-TX PoE In, RJ45 10BASE-T/100BASE-TX PoE Out
* Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
