Axis T94S01P Conduit Back Box

AXIS T94S01P Conduit Back Box: Secure and Robust Outdoor Mounting Solution

Elevate the durability and professionalism of your security installations with the AXIS T94S01P Conduit Back Box. Specifically engineered for the demanding environments of modern surveillance, this back box provides a superior mounting and protection solution that integrates seamlessly with your Axis network cameras. It addresses the common challenge of housing connectivity components outdoors, offering a streamlined, secure, and aesthetically superior alternative to separate enclosures. Protect your investment and ensure the long-term reliability of your surveillance system with this essential mounting accessory.

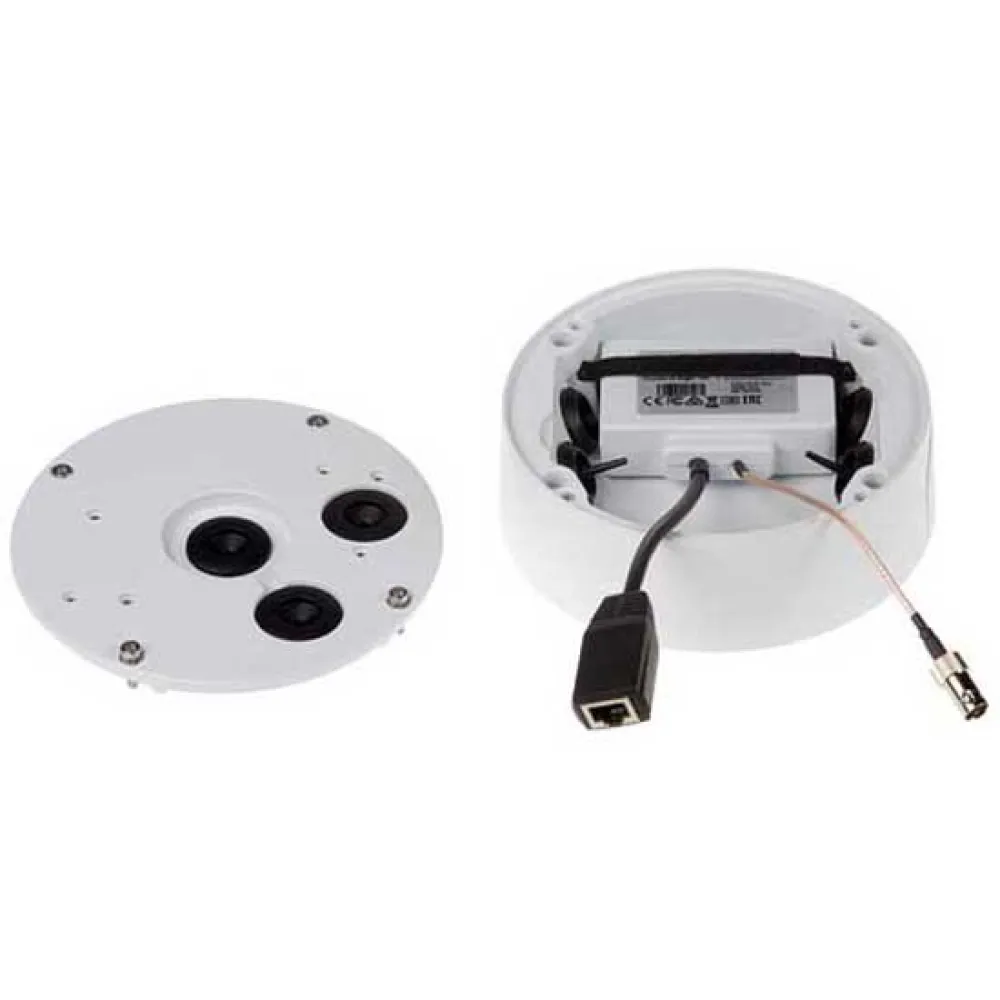

Designed for a wide range of Axis network cameras, the AXIS T94S01P Conduit Back Box is outdoor-ready and impact resistant (IK10+) with an ingress-protected compartment for secure storage of connectivity devices. AXIS T94S01P enables both camera and connectivity device to be safely mounted at the same point, without the need for extra cabinet installation (even directly onto junction boxes). The finished installation is both aesthetically pleasing and able to withstand challenging outdoor conditions. It’s carefully designed to store for example an IP-over-COAX adapter to re-use legacy cabling or a network cable coupler to bridge between rigid and flexible network cables. This all-in-one design not only enhances the visual appeal of the installation but also significantly fortifies the entire camera setup against environmental hazards and potential tampering.

Key Benefits

The primary advantage of the AXIS T94S01P is its ability to consolidate and protect. By providing a dedicated, weatherproof compartment directly behind the camera mount, it eliminates the need for bulky, separate junction boxes for critical components. This creates a single, clean point of installation that is less obtrusive and far more secure. The robust construction ensures that your camera and its associated connections are shielded from both extreme weather and physical attacks, guaranteeing operational continuity. Its versatile design simplifies complex installations, such as retrofitting systems using existing coaxial cables or extending network runs, saving installers time and reducing overall project complexity.

Main Features
* IP66/IP67 storage compartment for connectivity devices
* Impact resistant (IK10+) against vandalism attempts
* ¾ “ / M25 conduit interface from both side and back
* Compatible with a wide range of Axis network cameras

Technical Specifications

Attribute: Housings
* Casing: Impact-resistant, outdoor-ready polymer
* Impact Resistance: IK10+ (IEC 62262), ensuring maximum protection against significant impacts and vandalism.
* Ingress Protection: IP66/IP67 (IEC 60529), providing complete protection against dust ingress and powerful water jets, as well as immersion in water.
* Conduit Interface: Features M25 (¾”) conduit holes on the side and a rear entry point, offering flexible cable routing options for wall, ceiling, or pole-mounted installations.
* Compatibility: Optimized for use with a broad selection of Axis fixed dome and bullet cameras, including specific models within the AXIS P-series and Q-series.
* Operating Conditions: Engineered to perform in extreme temperatures, ensuring reliability in diverse climates.
* Mounting: Can be mounted directly to walls, poles (with optional pole mount adapters), and standard junction boxes.
* Internal Space: Generously sized to securely house critical components such as IP-over-Coax media converters, PoE extenders, and network cable couplers
