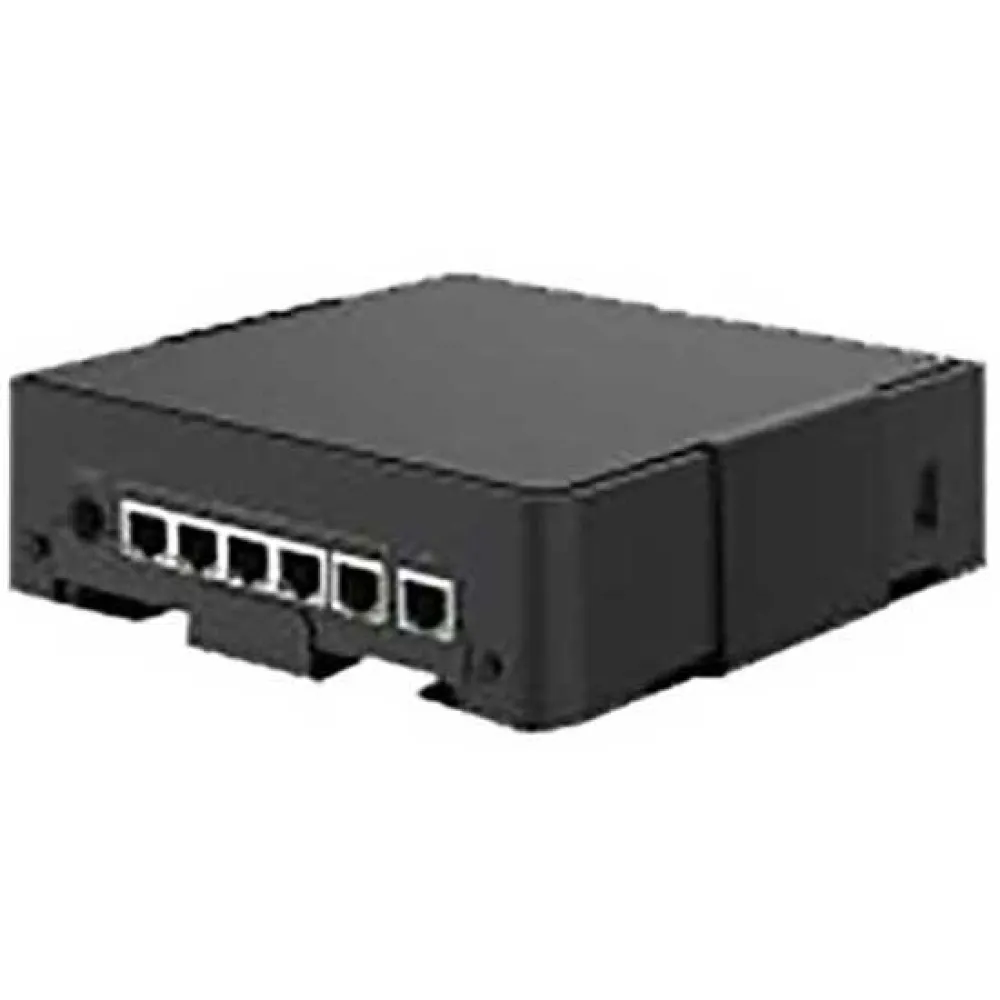

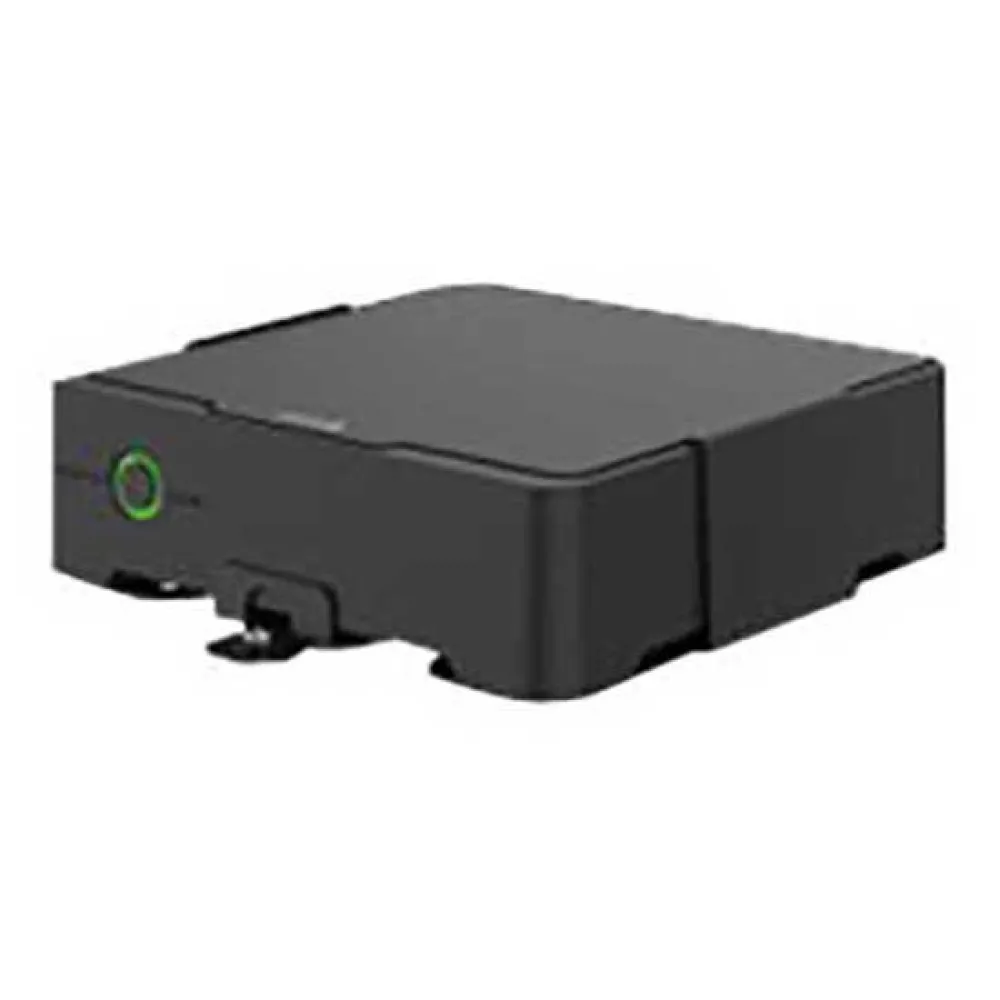

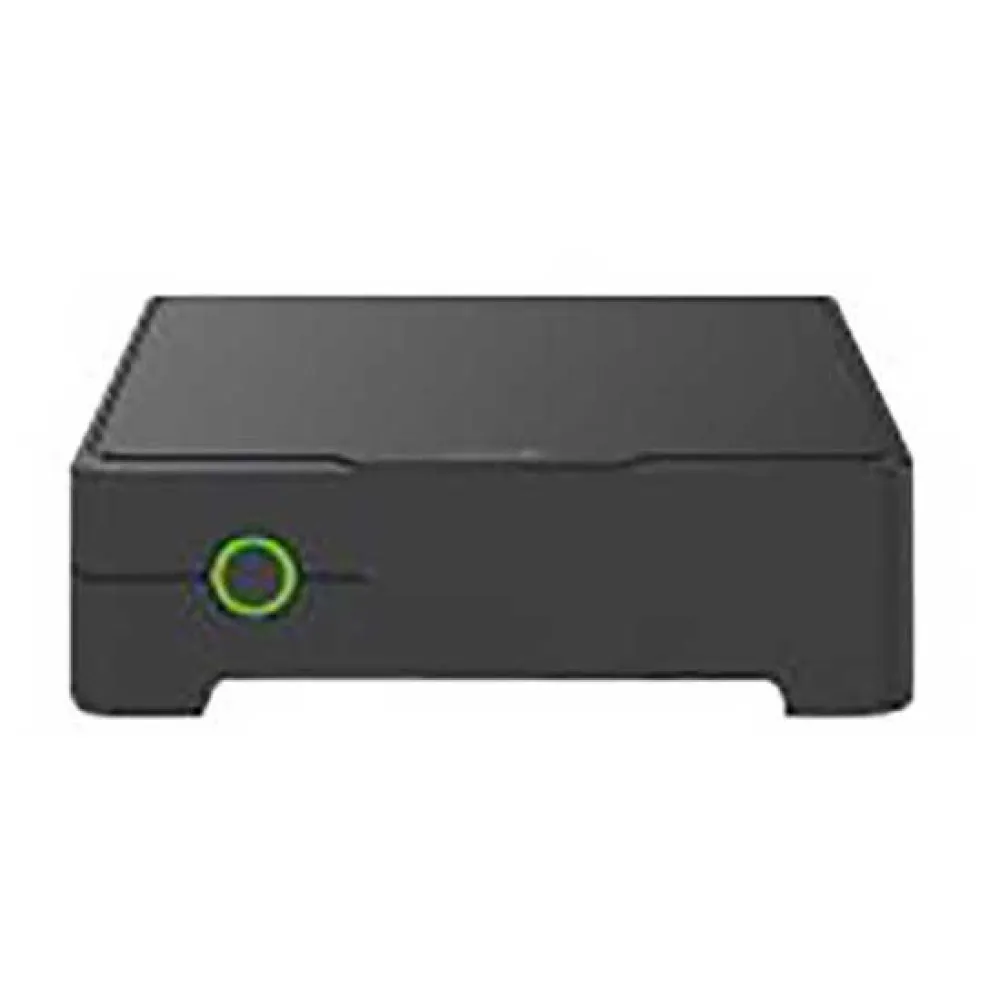

Axis W800 System Controller Video Encoder server

EU Plug.

Axis W800 System Controller Is A Stand-Alone Unit, Making It Exceptionally Easy And Cost-Effective To Add More Docking Stations And Cameras Whenever You Want.

Cost Effective And Scalable:- Axis W800 System Controller Makes Adding Cameras And Docking Stations Cost-Effective And Easy.

Most System Controllers For Body-Worn Systems Are Built Into Camera Docking Stations.

This Means That Each Docking Station Contains A Sensitive And Relatively Expensive Component:The System Controller and Every Time You Add Cameras To Your System Or Need To Replace A Docking Station, You´re Paying For A System Controller.

But Axis W800 System Controller Is Different.

As A Stand-Alone Unit, A Single Axis W800 System Controller Supports Up To Five Docking Stations And 40 Cameras.

A Single Interface:- Axis W800 System Controller Provides A Single Point Of Integration And Management For Your Body-Worn Solution.

By Linking Multiple Controllers, You Can Easily Manage Any Number Of Cameras Through A Single Interface.

Axis W800 System Controller Provides Fast And Reliable Video Download (100 Mbit Per Camera).

What´s In The Box:- Axis W800 System Controller.

- External Electrical Transformer.

- Mounting Bracket.

Features:

- Discrete Unit.

- Supports Up To Five Docking Stations.

- Profitability And Scalability.

- Easy Camera Management General.

- Type Of Device:Network Management Device.

- Width:18 Cm.

- Depth:18 Cm.

- Height:5.3 Cm.

- Weight:765 G.

- Processor / Memory / Storage.

- Hdd:Ssd 480 Gb Network Connection.

- Form Factor:External.

- Number Of Ports:5.

- Connectivity.

Technology:Cabling.

- Red / Transport Protocol:Tcp/Ip,Udp/Ip,Ntp,Arp,Dhcp,Dns,Bonjour,Https,Ipv4,Ipv6.

- Remote Management Protocol:Https,Ntp,Icmp,Dhcp,Ipv4,Ipv6.

Performance:Throughput Of The Camera In Command Of The System:100 Mbps.

- Throughput Of The Content Destination In Command Of The System:1 Gbps.

- Maximum Docking Stations:Up To 5.

- Ability:Maximum Number Of Cameras:40.

- Characteristics:Modular Design, Network Access Control (Nac), Secure Boot, Trusted Platform Module 2.0 (Tpm 2.0), Brute Force Protection, Password Protection.

- Encryption Algorithm:Fips 140-2,Aes De 256 Bits Expansion / Connectivity:- Interfaces:1 X 1000base-T (Enlace Ascendente).

- Rj-45.

- 5 X 1000base-T.

- Rj-45.

- Usb 2.0 Different.

- Accessories Included:Mounting Bracket.

- Standards Compliance:En 61000-3-2,En 61000-3-3,En55024,En 61000-6-1,En 61000-6-2,Iec 60068-2-27,Iec 60068-2-6,Fcc Part 15 B Class A,Iec 60068-2-1,Iec 60068-2-2,Iec 60068-2-14,Iec 60068-2-78,Vcci Class A,Rcm,Usgv6,As/Nzs Cispr 32 Class A,En 55032 Class A,Iec/En/Ul 62368-1,Nist Sp500-267,Ices-3(A)/Nmb-3(A),Iec/En 60529 Ip3x Feeding.

- Feeding Device:External Electrical Transformer.

- Required Voltage:Cc 12 V.

- Power Consumption In Operation:16 Watts.

- Environment Parameters.

- Minimum Operating Temperature:0 °C.

- Maximum Operating Temperature:40 °C.

- Operating Humidity Range:5.

- 95% (Non-Condensing).
